Xlim SQ Pod Kit System
User Manual

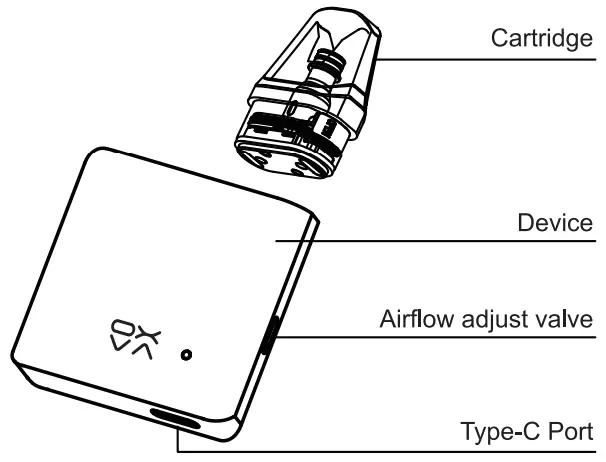

STRUCTURE
SPECIFICATION
| Size | 14x47k68.5mm |
| Capacity | 2m1 |
| Output Voltage | 3.3-4.2V |
| Battery Type | Built-in 900mAh |
| Charging | Type-C 5V/1A |
| Output Power | 22W(0.6Ω Cartridge) 16W(0.8Ω Cartridge) 12W(1.2Ω Cartridge) |
GUIDANCE

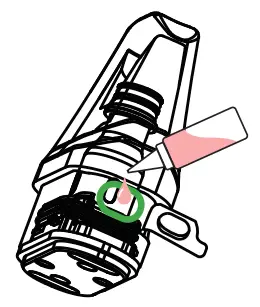

1. FILLING JUICE
Fill the e-juice into the cartridge.
TIPS
1) After filling the juice, please close the filling port as soon as possible to avoid leaking.
2) After filling the e-juice into a new pod, please wait for at least 5-8 minutes before vaping to avoid dry burning.
2. VAPE
After 5-8 minutes of filling the e-juice into a new cartridge, you could inhale to vape.
3. ADJUSTTHE AIRFLOW
Slide the airflow adjusting valve to get your preferred puff resistance.
4. CHARGING
Connect the charging cable to the Type-C interface to charge with the charge current of 1A. After fully charged, please cut off the power in time.
LED LIGHT INDICATOR
| Put pod into device | White light |
| Low battery | Red light flashes 10 times (while inhale) |
| Battery lower than 30% | Red light (while inhale) |
| Battery level 30%-65% | Blue light (while inhale) |
| Battery level 65%400% | Green light (while inhale) |
| Charging | The light “breathe” with battery level color |
| Open-Circuit indicator | Blue light flashes 3 times (while inhale) |
| Short-Circuit indicator | Red light flashes 3 times (while inhale) |
STATEMENT
- This product is only available to people who have reached the legal age of smoking. It is strictly forbidden for young children, women who are pregnant or breastfeeding, or for patients with heart disease, hypertension, diabetes, depression, and asthma.
- Please put the product out of reach of children and pets to avoid injury.
- Please keep away from inflammable and explosive materials to avoid injury.
- This product contains nicotine which is a highly addictive substance. It is not recommended for use by non-smokers.
- Please don’t leave the device unattended while charging.
- Inhaling too much nicotine might cause side effects, like Nausea, Feeling faint, Headache, Dizziness Stomach discomfort, Abnormal heart rate, and Hiccups, and so on. If you experience any side effects as mentioned or not mentioned above, please discontinue using the product for a while and consult your doctor.
WARRANTY POLICY
Thank you for purchasing OXVA product. OXVA will provide repair or replacement to the original purchaser under warranty according to the following terms and conditions:
- The warranty covers defects in materials or workmanship, under normal use, for a period of 90 days from the date of purchase. Warrantor provides repair or replacement for all the defective parts.
- This warranty may be disqualified as a result of the following circumstances: The customer does not provide this warranty card and the original receipt of purchase.
• Merchandise failure or damage is caused by improper use or unauthorized adjustments.
• Merchandise failure or damage as a result of excessive force or impact and non- recommended operating conditions. (see user manual) ” Merchandise failure or damage caused by exposure to water or other conducting liquids. ” Merchandise failure or damage caused by use with non-OXVA brand components or recommended e-liquids. - This warranty does not cover personal or consumable parts such as coil heads, USB cable, mouthpiece.
For more information please visit our website at www.oxva.com Or email us at [email protected]
PURCHASE INFORMATION
Model:……………….
Date of Purchase (Based on the date from receipt of purchase):
Day……………………….
Month………………………
Year:…………………………….
Store Information:
Store Name………………………………………
Phone:……………………………………..
Store Address:…………………………………….
City:………………………………………………
Country-……………………………………………..
Post Code:…………………………………………..
Customer Information:
Customer Name’…………………………
Phone’…………………………………………
Customer Address:
City. Country……………………………
Post Code’……………………………….
