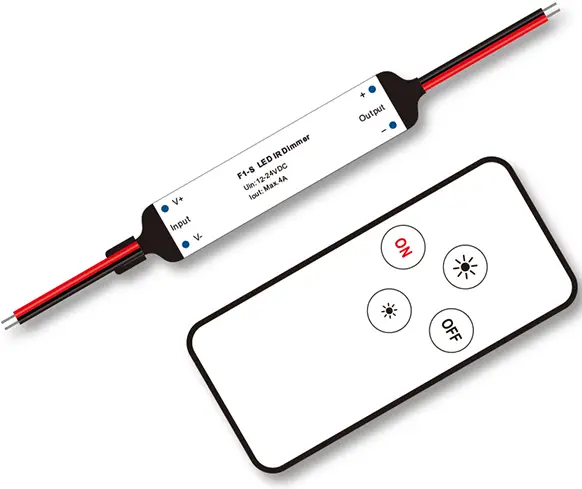

SKYDANCE F1-D 3-Key Single Color LED IR Controller User Manual

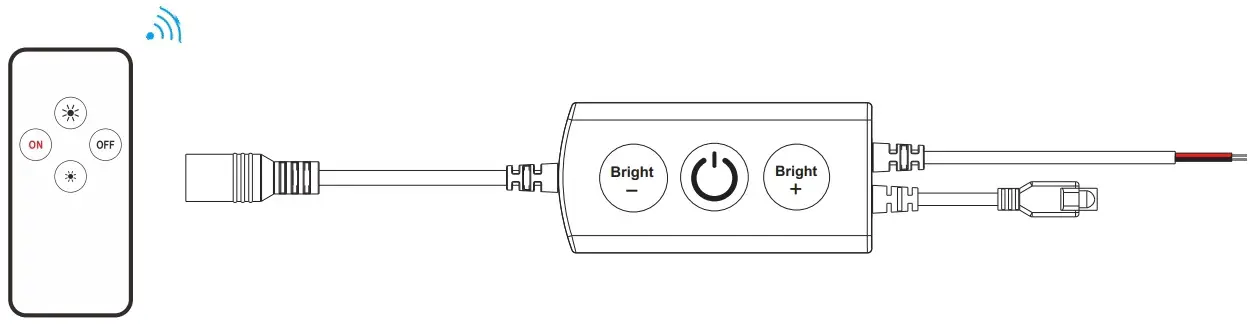

Product Overview
Features
- 1 channel constant voltage single color LED mini controller.
- 3 key operation with on/off and dimming.
- 5A output, connect with 5 meters single color LED strip.
- 8192 levels 0-100% dimming smoothly without any ash.
Technical Parameters
| Input and Output | |
| Input voltage | 12-24VDC |
| Output voltage | 12-24VDC |
| Output current | Max. 5A |
| Output type | Constant voltage |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse polarity Over heat Short circuit |
| Dimming data | |
| Input signal | IR |
| Control distance | 10m(Barrier-free space) |
| Dimming gray scale | 8192 (2^13) levels |
| Dimming range | 0 -100% |
| Dimming curve | Logarithmic |
| PWM Frequency | 2000Hz (default) |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c:+85OC |
| IP rating | IP20 |

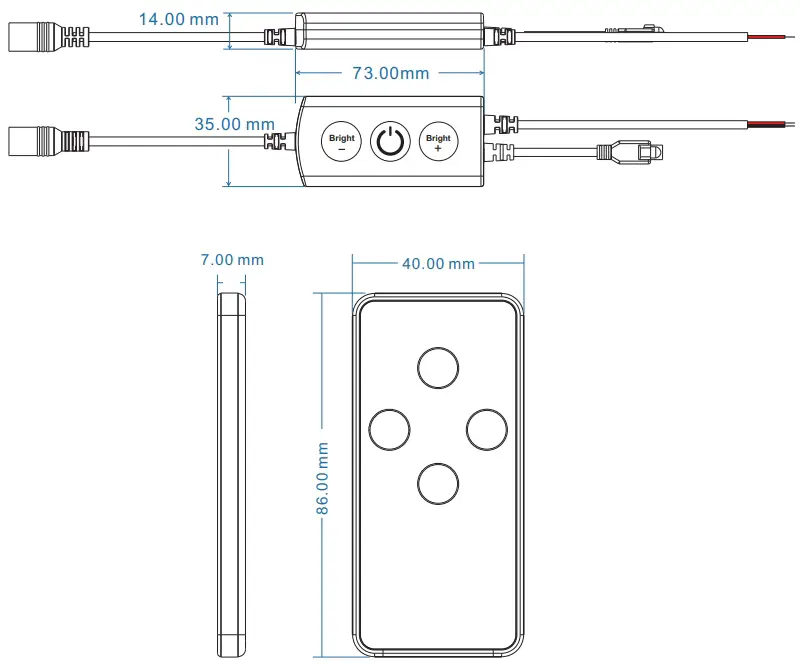

Dimension

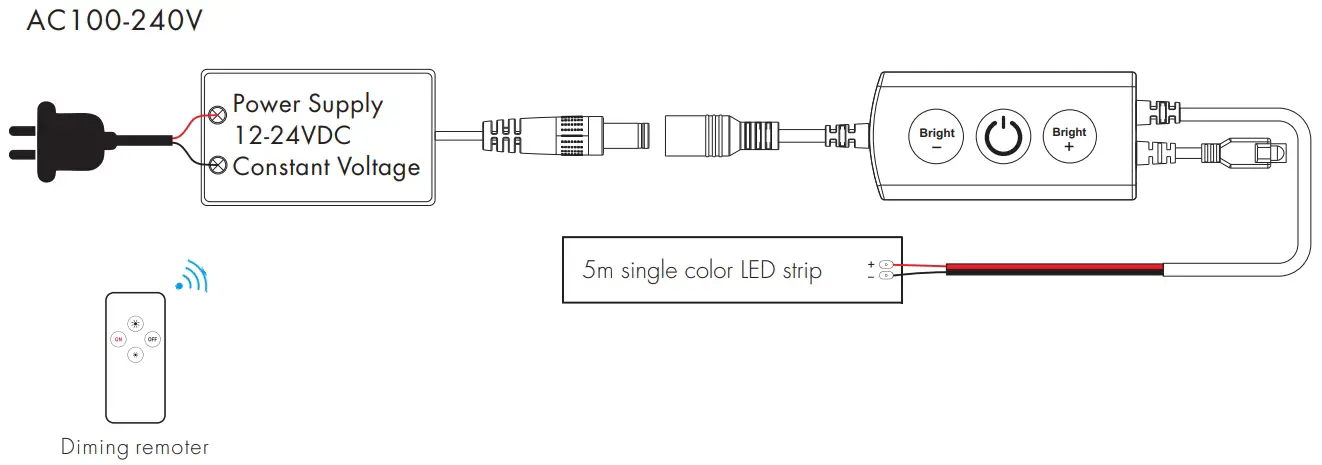

Wiring Diagram
Key Function of controller
:Turn on or off light.
:Brightness -, short press 10 levels, long press 1-6s for continuous 256 levels adjustment.
:Brightness +, short press 10 levels, long press 1-6s for continuous 256 levels adjustment.

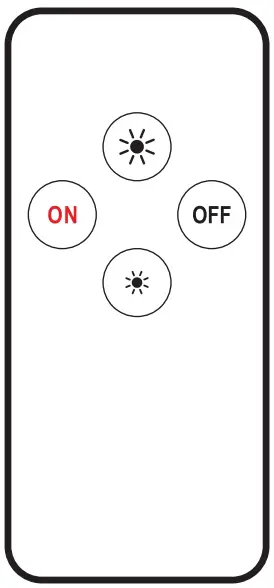

Key Function of remoter
: Turn on the light- : Turn off the light.
- : Increase brightness,
Short press 10 levels, long press 1-6s for continuous 256 levels adjustment. - : Decrease brightness,
Short press 10 levels, long press 1-6s for continuous 256 levels adjustment
: Turn on the light
: Turn off the light.
: Increase brightness,

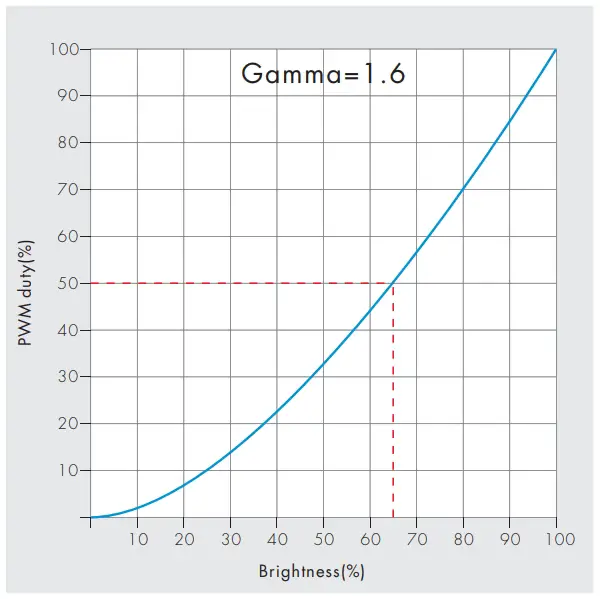

: Decrease brightness,Dimming Curve
Malfunctions analysis & troubleshooting
Malfunctions | Causes | Troubleshooting |
| No light |
|
|
| No response from the remote |
|
|
