Automatic Transaxle/Transmission External Controls
– Selector Lever – Column Shift Removal and
Installation
2013 F-150 307-05 Automatic Transaxle Transmission External Controls
| 307-05 Automatic Transaxle/Transmission External Controls | 2013 F-150 |
| REMOVAL AND INSTALLATION | Procedure revision date: 08/30/2012 |
Selector Lever — Column Shift

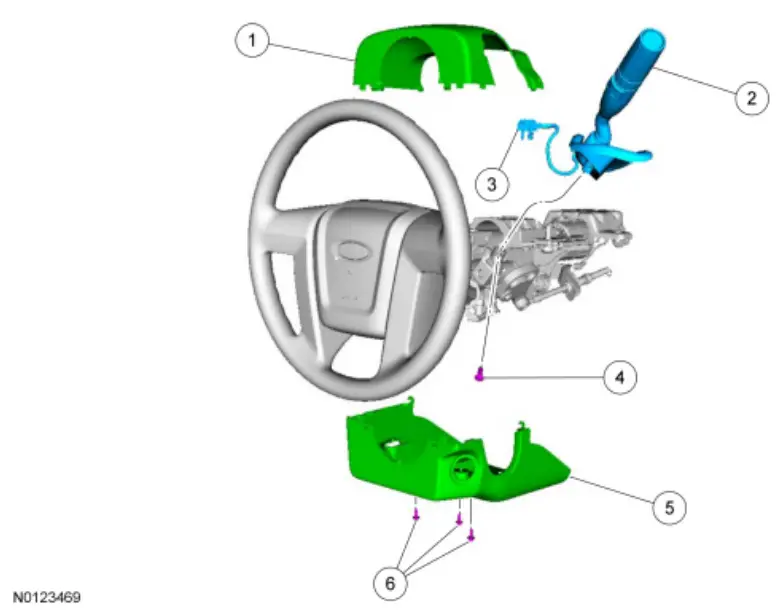

NOTE: Refer to the on-line Workshop Manual to view this illustration as an interactive exploded view, requires Adobe® Acrobat® 8.0 or higher.
NOTE: Refer to the on-line Workshop Manual to learn about using an Interactive Illustration.
| Item | Part Number | Description |
| 1 | 3530 | Upper steering column shroud |
| 2 | 7210A | Selector lever |
| 3 | — | Tow/Haul switch electrical connector (part of 7210A) |
| 4 | W712000 | Selector lever bolt |
| 5 | 3530 | Lower steering column shroud |
| 6 | W710485 | Lower steering column shroud screws (3 required) |
Removal and Installation
- Remove the steering column shrouds. For additional information, refer to Section 211-04.

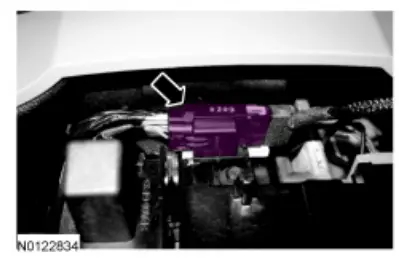

- Disconnect the Tow/Haul switch electrical connector.

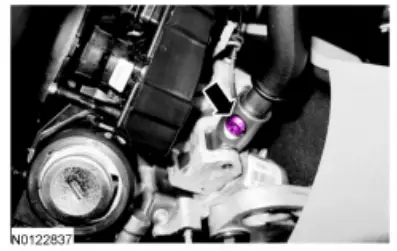

- Remove and discard the selector lever bolt.
• To install, tighten to 18 Nm (159 lb-in).
- Remove the selector lever.
- To install, reverse the removal procedure.
