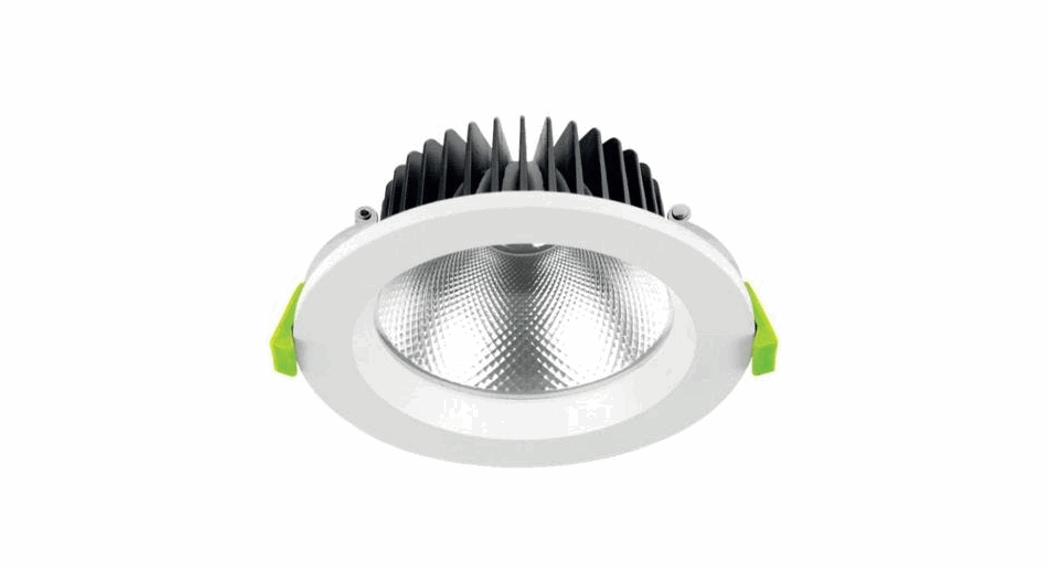

ID7W LED Downlight
Certainty at The Speed of Light LED ID7W, ID8W
The Certainty at The Speed of Light LED ID7W and ID8W are
downlights suitable for indoor use only. These downlights are
available in Warm White (3000K), Neutral White (4000K), and Cool
White (5700K) color temperatures. The downlights come with an
internal driver and a color changeable switch.
Important Safety Instructions
Before installation, please read the following important safety
instructions:
- Read all instructions before installation.
- Only licensed electricians should perform the
installation. - The downlights have an IP54 rating and are suitable for indoor
use only. - Always ensure the power is OFF and the fitting has cooled down
before performing any maintenance, cleaning, changing the globe, or
adjustment to the fitting. - Do not install any luminaire near the heat source.
- Do not exceed the nominal supply voltage or amperage
ratings. - To avoid damage to the fitting, please ensure that power leads
and screws are secure before connecting the power.
Installation Instructions
The fitting has an insulating ceiling type IC-4 rating. Building
material and thermal insulation that can safely be exposed
continuously to temperatures up to 90 may abut and cover the
luminaire. If the building material cannot meet this condition, the
minimum clearance of 25mm is required.
Please refer to Tab 1 for the ceiling cutout reference
table:
| Downlight dia (inch) | Ceiling Cutout (mm) |
|---|---|
| 2.5 | 70-75 |
| 3 | 90 |
| 4 | 120 |
| 6 | 160 |
| 8 | 190 |
Before installation, please check the IP label on the luminaire
to choose the right place to install. The downlights are available
in IP20/IP40 (indoor use only, do not use in wet or damp places),
IP44/IP54 (suitable for indoor areas including bathrooms and
covered/sheltered areas such as porches), and IP65 (suitable for
outdoor areas, not suitable for water immersion) ratings.
Please also check the information of the driver before
installation:
- Non-dim: Cannot be used with any dimmer.
- Triac dim: Compliable with recommended TRIAC dimmers, dimming
range 8-100%.
Installation Procedure
Before starting any installation, turn off the power supply and
read the instructions. Make sure you have all the tools and
accessories to complete the installation correctly.
To install the downlight with an internal driver:
- Select the color temperature before installation: Warm White
(3000K), Neutral White (4000K), or Cool White (5700K). - Cut a hole according to the cutout size of the LED
downlight. - Use a screwdriver to open the driver terminal cover on the back
of the downlight, feed the main AC wire L.N. in the terminal block
respectively, then fix the cover back. - Hold back the spring clip then push the downlight into the
hole. - Make sure the downlight is fixed tightly in the ceiling, then
turn on the power.
Warning: Switch off before installation. Switch
on only after complete installation and examination of the circuit.
Professional electricians should perform installation and
maintenance only. There is a risk of overheating or fire if the
clearance distances are compromised.
Certainty at The Speed of Light
LED
ID7W, ID8W
Important Safety Instructions
Basic safety precautions should always be followed when installing, including the following: 1. Read all instructions. 2. Licensed electrician for installation only. 3. IP54 for indoor use only. 4. Always ensure the power is OFF and the fitting has cooled down before performing
any maintenance, cleaning, changing the globe or adjustment to the fitting.
5. Do not install any luminaire near the heat source. 6. Do not exceed the nominal supply voltage or amperage ratings. 7. To avoid damage to the fitting, please ensure that power leads and screws are secure
before connecting the power.
Installation Instructions
The fitting has an insulating ceiling type IC-4 rating. Building material and thermal insulation that can safely be exposed continuously to temperatures up to 90 may abut and cover the luminaire. If the building material cannot meet this condition, the minimum clearance of 25mm is required. See Figure 1
Fig 1: Installation Spacing
Thermal insulation
HCB=25mm
Building material
SCB=25mm
Tab 1: Ceiling cutout reference table.
Downlight dia (inch)
2.5
3
4
6
8
Ceiling Cutout (mm)
70-75
90
120
160
190
NOTE: Before installation, please check the IP label on the luminaire to choose the right place to install.
IP20/IP40 Indoor use only, do not use in wet or damp place.
IP44/IP54
Suitable for indoor areas including bathrooms and covered/sheltered areas such as porches.
IP65
Suitable for outdoor areas, not suitable for water immersion.
NOTE: Before installation, please check the information of driver as below.
Non-dim
Can not be used with any dimmer.
Triac dim
Compliable with recommended TRIAC dimmers, dimming range 8-100%.
Installation Procedure
WARNING
1.Switch off before installation. 2.Switch on only after complete installation and examination of the circuit. 3.Professional electrician for installation and maintenance only. 4.Risk of overheating of fire if the clearance distances are compromised.
Turn Off power supply before starting any installation. Read instructions & check you have all the tools & accessories to complete the installation correctly.
Downlight with internal driver
Please select the colour temperature before installation: WW: 3000K NW: 4000K CW: 5700K
Colour changeable switch
1. Cut a hole according
to the cutout size of led downlight.
2. Use screw-driver to open the
driver terminal cover on the back of downlight, feed the main AC wire L. N. in terminal block respectively, then fix the cover back.
3. Hold back the spring clip then push the downlight into the hole.
RISK OF FIRE Required clearance from structural members and building elements SCB=25mm HCB=25mm
Warning:
Input wire diameter 0.75mm² Product modification and improper installation void the warranty!
4. Make sure the downlight
fixed tightly in ceiling, turn on the power (Fig 1).
