Guide Sensmart TS Series Thermal Rifle Scope
Introduce

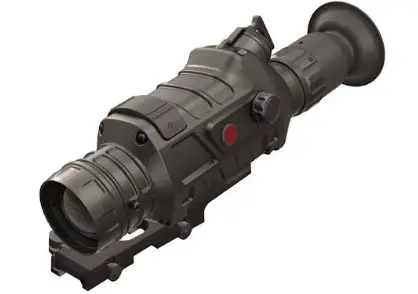

TS Series is an economical civilian infrared thermal imaging riflescope that includes 25mm/35mm/50mm objective lenses. With 400×300 pixel TEC metal-encapsulated thermal detector, it can detect longer range and capture vivid images of higher clarity. TS thermal riflescope also features with compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in any harsh weather.
Features and Benefits
- Excellent imaging performance, with 17m@400×300 TEC metal encapsulated thermal detector for crisper images.
- Rugged and durable, IP67 degree of protection, high shock resistance, no fears of harsh weather.
- Zoom in on the center of the reticle, and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy.
- 50Hz high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation.
- 1024×768 resolution AMOLED eyepieces, colorful and detailed images
- Battery-mount user-friendly design, both side can be mounted, change battery easily in darkness.
Application
- Outdoor Observing
- Law Enforcement
Specifications
| Model | TS425 | TS435 | TS450 |
| Infrared detector | |||
| Detector type | VOx | ||
| Detector resolution and pitch | 384 × 288, 17 μm | ||
| Spectral range | 8 to 14 μm | ||
| NETD | ≤50mk @ F1 25℃ | ||
| Lens | |||
| Focal length | 25 mm; F1.1 | 35 mm; F1.2 | 50 mm; F1.2 |
| Focus | Manual | ||
| Field of angle | 14.9° × 11.2° | 10.7° × 8.0° | 7.5° × 5.6° |
| Frame rate | |||
| Output frame frequency | 50 Hz | ||
| Zoom | |||
| Optical zoom | 1.6x | 2.3x | 3.3x |
| Digital zoom | 1x, 2x and 4x | ||
| Power | |||
| Battery type | Single, replaceable 18650 battery | ||
| Battery life | ≥ 4.5 hours | ||
| Interface | |||
| Video interface | LEMO | ||
| External expansion | External Display | ||
| Mechanical interface | Picatinny | ||
| Display | |||
| Display type | 0.39’’ OLED | ||
| Resolution | 1024 × 768 | ||
| Eyepiece | Exit pupil distance ≥ 48 mm Exit pupil diameter ≥ 8 mm Diopter ± 4 | ||
| Eyepiece zoom | 14x | ||
| Video output | Analog video | ||
| Button | |||
| Button functions | Power / Roller | ||
| Functions | |||
| Screen brightness adjustment | 10 levels | ||
| Detector brightness adjustment | 10 levels | ||
| Detector contrast adjustment | 10 levels | ||
| Color palettes | White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot | ||
| Hot spot tracking | Available | ||
| Compensation modes | Automatic, shutter and scene compensation | ||
| Zero calibration | Available | ||
| Line type | 10 types | ||
| Line brightness | 10 levels | ||
| Line color | Black / white | ||
| Automatic shutdown | Closed, 15, 30 or 60 mins | ||
| Language settings | Chinese or English | ||
| System | |||
| PIP | Upper left, Upper middle, Upper right, Closed, PIP with division line | ||
| Restore to default | Available | ||
| Start up | 18 s | ||
| Environmental | |||
| Operating temperature range | -40℃ to 50℃ | ||
| Storage temperature range | -40℃ to 60℃ | ||
| Humidity | 10 % to 95 % non-condensing | ||
| Shock | 500 G at 1 ms half sine pulse (as per IEC60068-2-27) | ||
| Vibration | 10 Hz – 150 Hz – 10 Hz 0.15 mm (as per IEC60068-2-6) | ||
| Encapsulation | IP67 | ||
| Certification | IP67, CE, RoHS | ||
| Physical | |||
| Weight | ≤660g | ≤720g | |
| Size (L × W × H) | 230 × 90 × 75 mm | 250 × 90 × 75 mm | |
| Standard | Lens cap, battery charger, Picatinny rail base, video cable, manual, battery, carry bag | ||
Guide Sensmart Tech Co., Ltd.
Address: Loeffelholzstrasse 20, Haus 12 Eingang Nord, 90441 Nuremberg, Germany
Email: [email protected]
Technical parameters are subject to change without notice. For the latest information, please visit our website: www.guideir.com
