> Industrial Display

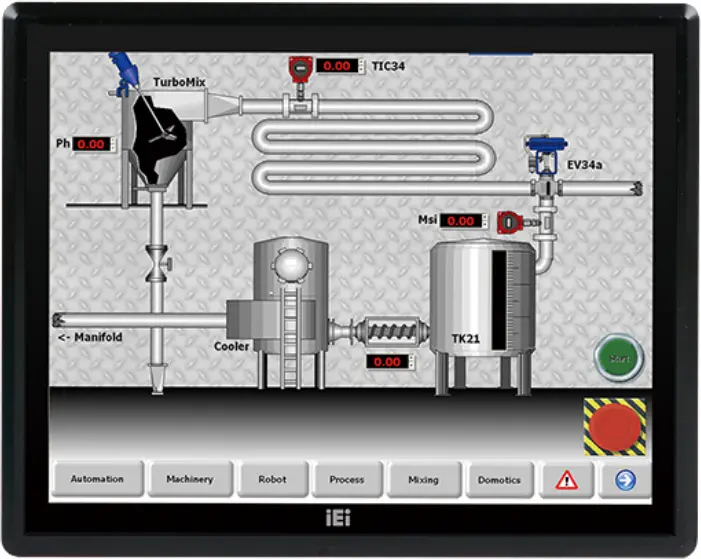

DM-F19A
17″~24″ DM-F IP65 Industrial Monitor
Features
» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Wide range 9V~36V DC input
» DVI / DisplayPort / VGA flexible video input solution
» Projected capacitive multi-touch and resistive single touch options
» Wide temperature support
Specifications
| Display | |
| Backlight MTBF(hrs) | 50000 |
| Brightness(cd/m2) | 350 |
| Contrast Ratio | 1000:1 |
| LCD Size | 19”(4:3) |
| Max Resolution | 1280 (W) x 1024 (H) |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| IP Level | IP 65 compliant front panel |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| I/O Interface | |
| I/O Ports and Switches | 1 x VGA (DB-15) |
| 1 x DVI | |
| (F19A only) | |
| 1 x HDMI(F17A only) | |
| 1 x DisplayPort1.1 | |
| 1 x USB 2.0 (touch) | |
| 1 x RS-232 (reserved for resistive touch ATO) | |
| 1 x Lockable 12V DC jack | |
| 1 x 9V-36V terminal block | |
| LCD | |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.294 x 0.294 |
| Viewing Angle (H-V) | 170° / 160° |
| Physical Characteristics | |
| Cutout Dimensions | 430 x 355 |
| Dimensions (LxWxH) (mm) | 372.4 x 447.4 x 49.57 |
| Power | |
| Power adapter | 9V~36V DC |
| Touch | |
| Touch Controller | 5-wire resistive single touch window/ Penmount 6000 |
| Touch Screen | 2-point projected capacitive touch window/ EETI EXC7200 |
| Weight | |
| Weight | 5.4 /8.4 |
Ordering Information
| DM-F19A/R-R20 | 19″ 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, R20 |
| DM-F19A/PC-R20 | 19″ 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20 |
Packing List
| 1 x Touch Pen | 1 x USB Cable |
| 1 x VGA Cable |
