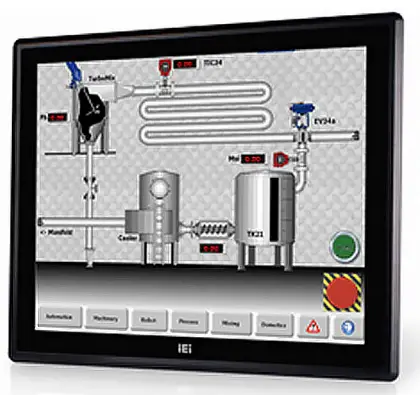

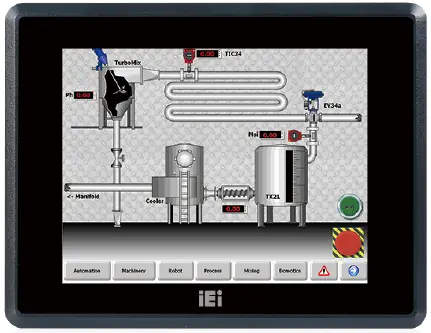

iEi DM-F08A 6.5-15 Inch DM-F IP65 Industrial Monitor
Features
- Robust IP65 aluminum front bezel
- Aesthetic ultra-thin bezel for seamless panel mount installation
- DC input
- DVI / VGA flexible video input solution
- Resistive single touch
- Wide temperature support
Specifications
| Display | |
| Backlight MTBF(hrs) | 50000 |
| Brightness(cd/m2) | 500 |
| Contrast Ratio | 20.8340277777778 |
| LCD Size | 8”(4:3) |
| Max Resolution | 800 (W) x 600 (H) |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| IP Level | IP 65 compliant front panel |
| Operating Temperature | -20°C ~ 60°C (with air flow) |
| Storage Temperature | -20°C ~ 70°C |
| I/O Interface | |
| I/O Ports and Switches | 1 x VGA (DB-15) |
| 1 x DVI | |
| 1 x USB 2.0 (touch) | |
| 1 x RS-232 (reserved for resistive touch ATO) | |
| 1 x Lockable 12V DC jack | |
| LCD | |
| LCD Color | 262K |
| Pixel Pitch (mm) | 0.0675 x 0.2025 |
| Viewing Angle (H-V) | 140°/120° |
| Physical Characteristics | |
| Cutout Dimensions | 206 x 154 |
| Dimensions (LxWxH) (mm) | 222.2 x 182.2 x 42.7 |
| Power | |
| Power adapter | 12V DC |
| Touch | |
| Touch Controller | Penmount 6000 |
| Touch Screen | 5-wire resistive single touch window |
| Weight | |
Ordering Information
Packing List
| 1 x Touch Pen | 1 x USB Cable |
| 1 x VGA Cable | 1 x Adapter |
| 1 x AC power cord |
