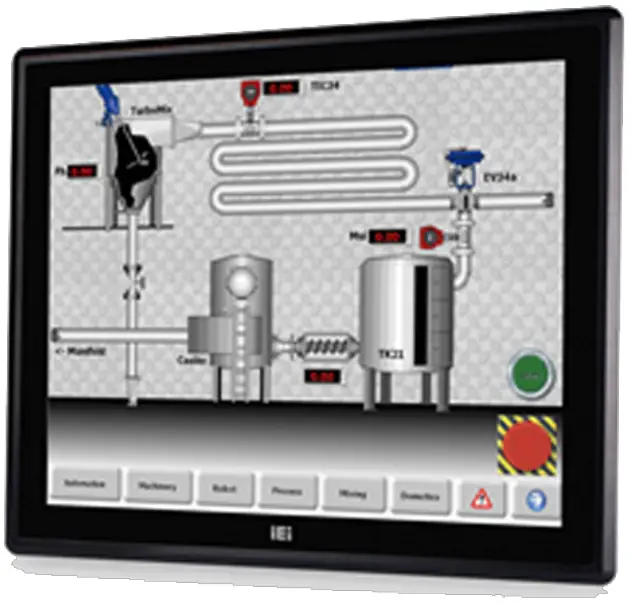

IEI DM-F17A Industrial Monitor User Manual
Features
- Robust IP65 aluminum front bezel
- Aesthetic ultra-thin bezel for seamless panel mount installation
- Wide range 9V~36V DC input
- HDMI / DisplayPort / VGA flexible video input solution
- Projected capacitive multi-touch and resistive single touch options
- Wide temperature support
Specifications
| Display | ||||
| Backlight MTBF(hrs) | 50000 | |||
| Brightness(cd/m2) | 350 | |||
| Contrast Ratio | 1000:1 | |||
| LCD Size | 17”(5:4) | |||
| Max Resolution | 1280 (W) x 1024 (H) | |||
| Environment | ||||
| Humidity | 10% to 95% (non-condensing) | |||
| IP Level | IP 65 compliant front panel | |||
| Operating Temperature | -20°C ~ 60°C | |||
| Storage Temperature | -20°C ~ 70°C | |||
| I/O Interface | ||||
| I/O Ports and Switches | 1 x VGA (DB-15) | |||
| 1 x DVI | ||||
| (F19A only) | ||||
| 1 x HDMI(F17A only) | ||||
| 1 x DisplayPort1.1 | ||||
| 1 x USB 2.0 (touch) | ||||
| 1 x RS-232 (reserved for resistive touch ATO) | ||||
| 1 x Lockable 12V DC jack | ||||
| 1 x 9V-36V terminal block | ||||
| LCD | ||||
| LCD Color | 16.7M | |||
| Pixel Pitch (mm) | 0.26 x 0.26 | |||
| Viewing Angle (H-V) | 170° / 160° | |||
| Physical Characteristics | ||||
| Cutout Dimensions | 324 x 391 | |||
| Dimensions (LxWxH) (mm) | 341.4 x 408.4 x 49.3 | |||
| Power | ||||
| Power adapter | 9V~36V DC | |||
| Touch | ||||
| Touch Controller | 5-wire resistive single touch window/ Penmount 6000 | |||
| Touch Screen | 2-point projected capacitive touch window/ EETI EXC7200 | |||
| Weight | ||||
| Weight | 4.4 / 7.1 | |||
Ordering Information
| DM-F17A/R-R20 | 17″ 350 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, R20 |
| DM-F17A/PC-R20 | 17″ 350 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20 |
Packing List
| 1 x Touch Pen | 1 x USB Cable |
| 1 x VGA Cable |
