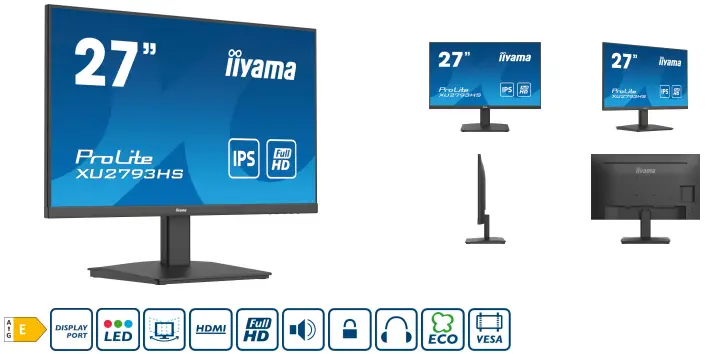

iiyama ProLite XU2793HS-B5 27 Inch Full HD IPS Monitor Owner’s Manual
27” Full HD IPS monitor with edge-to-edge design, perfect for multi-monitor setups
Stylish edge-to-edge design makes the ProLite XU2793HS perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, headphone socket, HDMI and DisplayPort connections, a blue light reducer function to reduce eye fatigue make this 27’’ monitor a great choice for both multi-monitor configuration and office applications.
Available also with height adjustable stand: ProLite XUB2793HS-B5
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
As we all know looking at a monitor screen for several hours per day, especially form a closer distance, causes eye fatigue. This effect is much stronger with computer screens than with TV equipment. One of the factors responsible for this phenomenon is the blue light emitted by the screen. Therefore reducing the amount of blue light ultimately allows our eyes to feel less tired while working long hours with a computer screen. We achieved it by adjusting the monitor’s brightness and color temperature through a new feature called “Blue light reduction” easily accessible through the monitor’s OSD menu.
DISPLAY CHARACTERISTICS
| Design | 3-side borderless |
| Diagonal | 27″, 68.5cm |
| Panel | IPS panel technology LED, matte finish |
| Native resolution | 1920 x 1080 @75Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 300 cd/m² |
| Static contrast | 1000:1 |
| Advanced contrast | 80M:1 |
| Response time (GTG) | 4ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln (sRGB: 96%; NTSC: 72%) |
| Horizontal Sync | 30 – 83kHz |
| Viewable area W x H | 597.9 x 336.3mm, 23.5 x 13.2″ |
| Pixel pitch | 0.311mm |
| Colour | matte, black |
INTERFACES / CONNECTORS / CONTROLS
| Signal input | HDMI x1 DisplayPort x1 |
| HDCP | yes |
| Headphone connector | yes |
FEATURES
| Blue light reducer | yes |
| FreeSync support | yes |
| Extra | i-style Colour |
| OSD languages | EN, DE, FR, IT, RU, JP, CZ, NL, PL |
| Control buttons | Power, Menu, + / Volume, – / Eco, Input/ Exit |
| User controls | picture adjust (brightness, contrast, i-Style colour, ACR, Eco, OD, X-Res technology), colour settings (gamma, RGB range, colour temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (H. position, V. position, OSD time, OSD background, OSD rotate, language), extra (reset, DDC/CI, signal select, LED, opening logo, AdaptiveSync, information, volume) |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX |
MECHANICAL
| Display position adjustments | tilt |
| Tilt angle | 23° up; 5° down |
| VESA mounting | 100 x 100mm |
ACCESSORIES INCLUDED
| Cables | power, HDMI |
| Other | quick start guide, safety guide |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 – 240V, 50/60Hz |
| Power usage | 19W typical, 0.5W stand by, 0.3W off mode |
SUSTAINABILITY
| Regulations | CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT

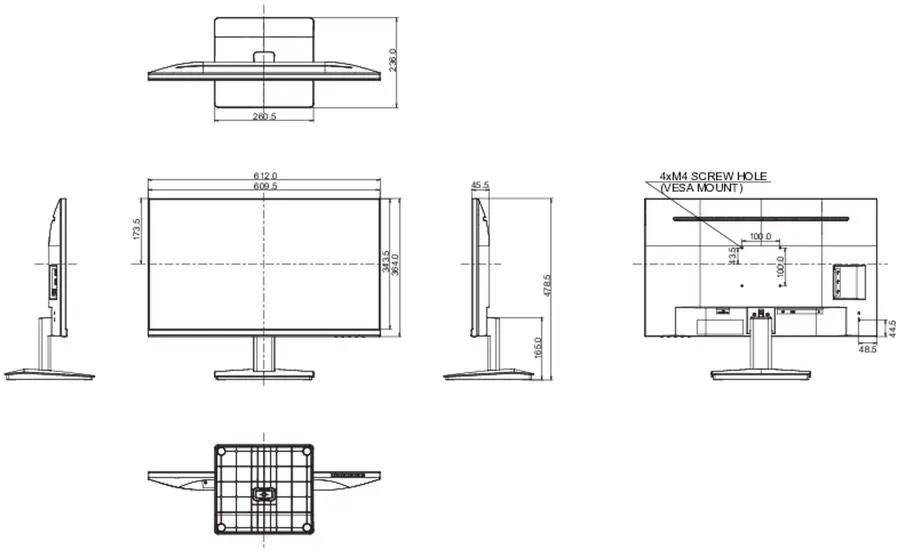

| Product dimensions W x H x D | 612 x 479.5 x 236mm |
| Box dimensions W x H x D | 685 x 145 x 435mm |
| Weight (without box) | 4.6kg |
| Weight (with box) | 6.2kg |
| EAN code | 4948570121175 |
* USB are available only for XU2793HSU.
All trademarks and registered trademarks acknowledged. E & O E. Specification subject to change without notice. All LCD’s comply with ISO-9241- 307:2008 in connection with pixel defects.
