The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trademarks of Waves Audio Ltd.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:

This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ASSEMBLING AND PREPARING

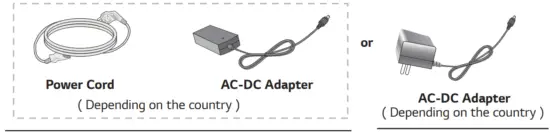

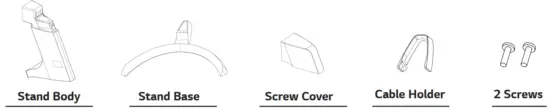

Product Components

Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look different from those shown here.

CAUTION

Always use genuine components to ensure safety and product performance.
The product warranty will not cover damage or injury caused by the use of counterfeit components.
It is recommend that use the supplied components.
If you use generic cables not certified by LG, the screen may not display or there may be image noises.

NOTE

Note that the components may look different from those shown here.
Without prior notice, all information and specifications in this manual are subject to change to improve the performance of the product.
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product.

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

*Drivers* *and Software*	*Installation Priority*	*27MP89HM*
*Monitor Driver*	*Recommended*	O
*OnScreen Control*	*Recommended*	O

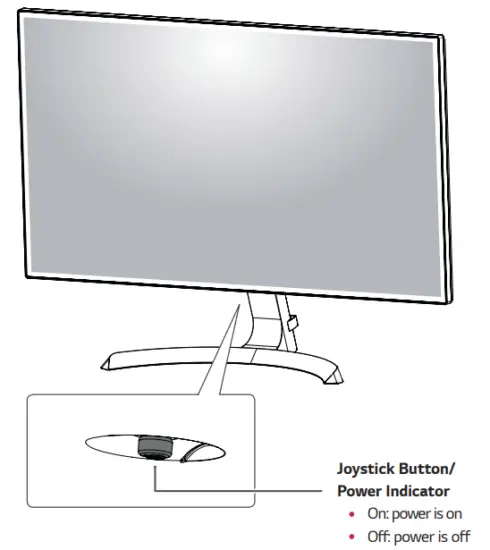

Component and Button Description

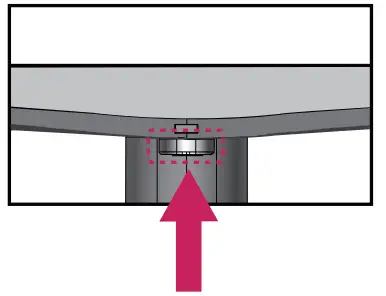

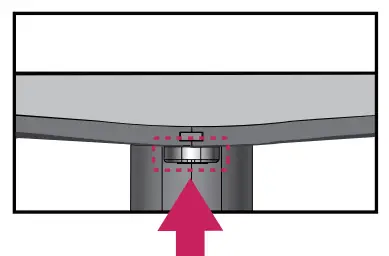

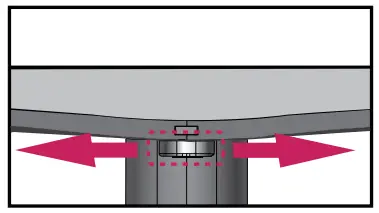

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.

Basic Functions

	Power on	Press the joystick button once with your finger to turn on the monitor.
	Power off	Press and hold the joystick button once with your finger to turn off the monitor.
◄/►	Volume Control	You can control the volume by moving the joystick button left/right.

NOTE

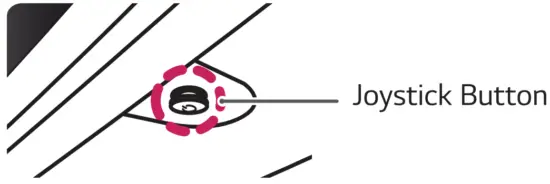

The joystick button is located at the bottom of the monitor.

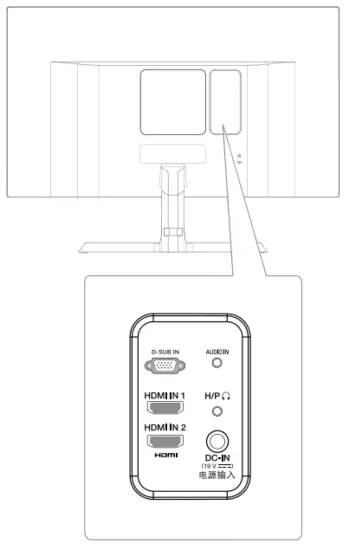

Input Connector

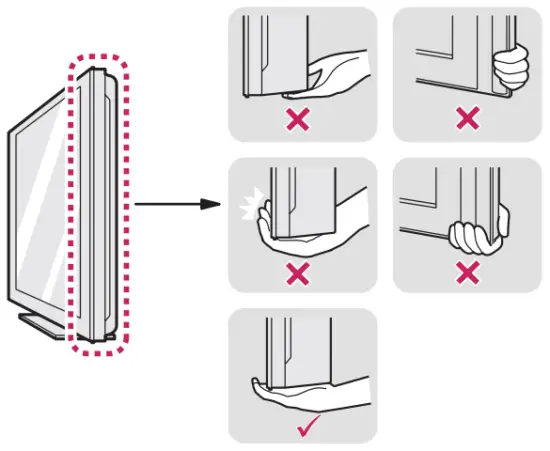

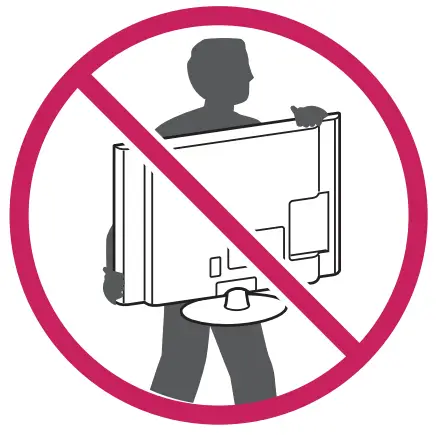

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.

It is advisable to place the monitor in the original box or packing material before attempting to move it.
Before moving or lifting the monitor, disconnect the power cord and all cables.
Hold the top and bottom of the monitor frame firmly.
Do not hold the panel itself.
When holding the monitor, the screen should face away from you to prevent it being scratched.
When moving the monitor, avoid any strong shock or vibrations to the product.
When moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.

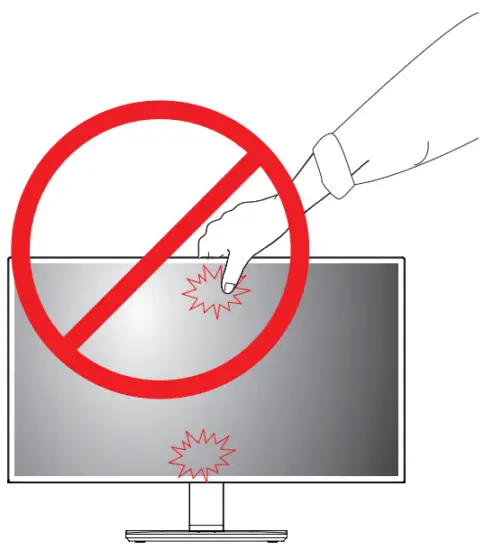

CAUTION

As far as possible, avoid touching the monitor screen.
This may result in damage to the screen or some of the pixels used to create images.

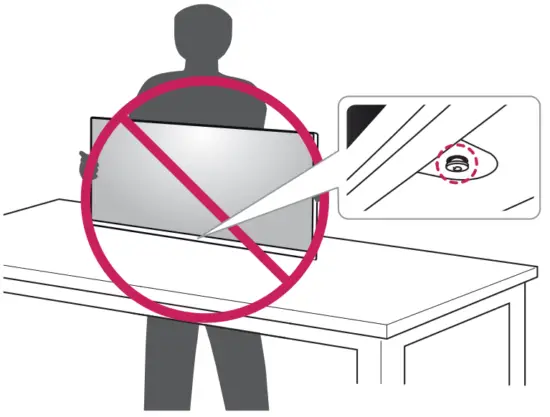

If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.

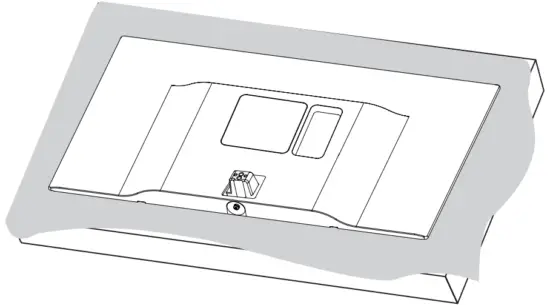

Setting up the Monitor set

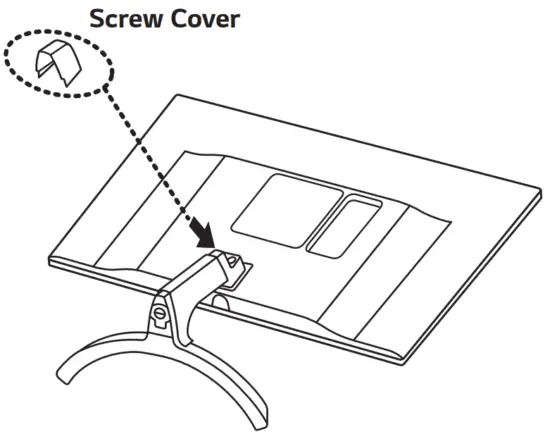

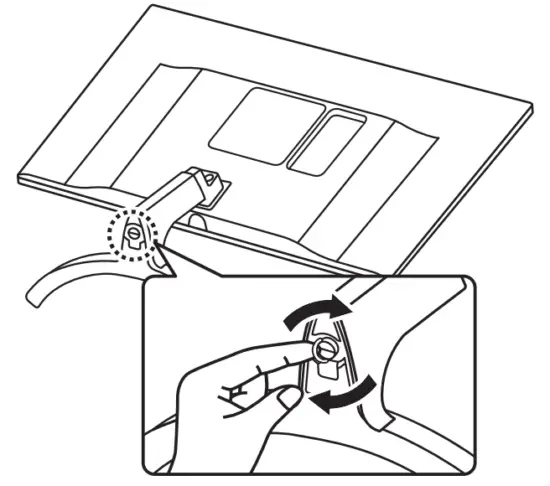

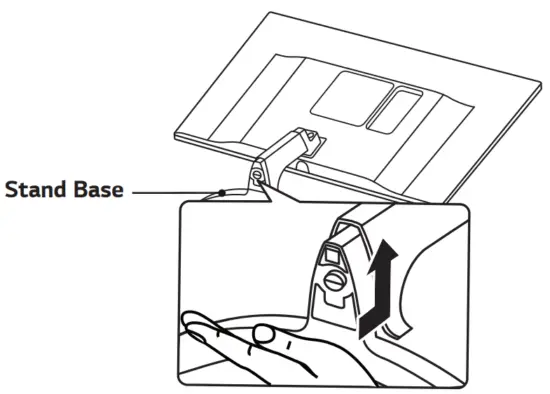

Attaching the Stand Base

CAUTION
- To protect the screen from scratches, cover the
  surface with a soft cloth.

WARNING

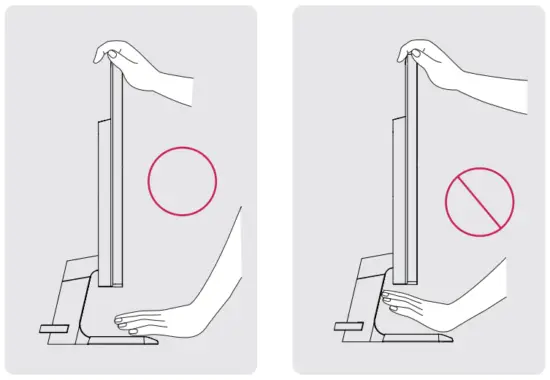

To avoid injury to the fingers and foot when Assembly Stand Body and Base, should hold Base when assembly stand body and base.

CAUTION

Illustrations in this document represent typical procedures, so they may look different from the actual product.
Do not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off the stand and could result in personal injury.
When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty

NOTE

You can disassemble the stand in the reverse order of the assembly

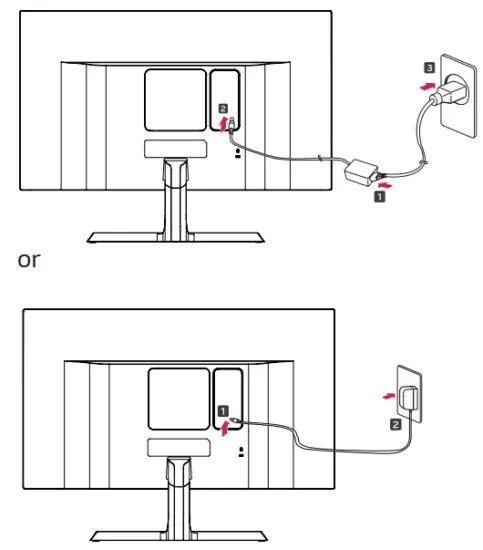

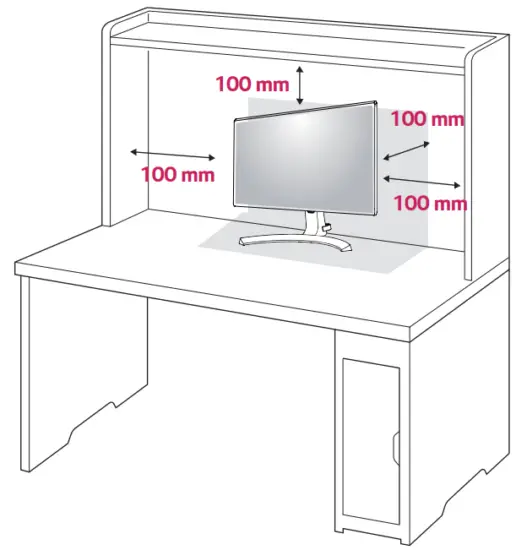

Mounting on a table

Lift and tilt the Monitor set into its upright position on a table.
Leave a 100 mm (minimum) space from the wall for proper ventilation.
Connect the AC-DC Adapter and Power Cord to a wall outlet.
Press the joystick button on the bottom of the monitor to turn on the monitor.

CAUTION

Unplug the power cord prior to moving or installing the monitor. There is risk of electric shock.

Using the cable holder

WARNING

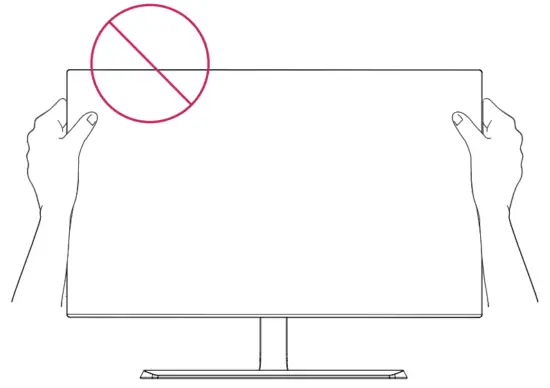

Do not touch or press the screen when adjusting the angle of the monitor.

NOTE

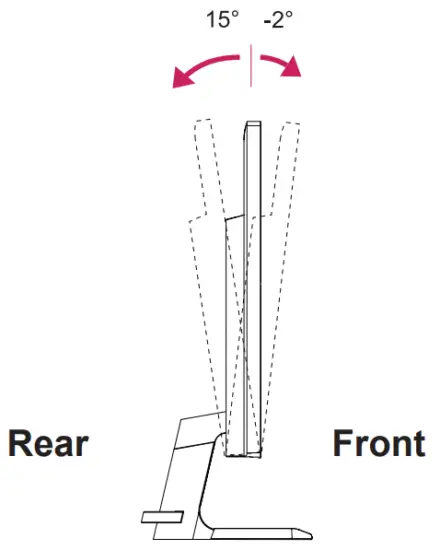

Tilt from +15 to -2 degrees up or down to adjust the angle of the Monitor set to suit your view.

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the Monitor set and a table.

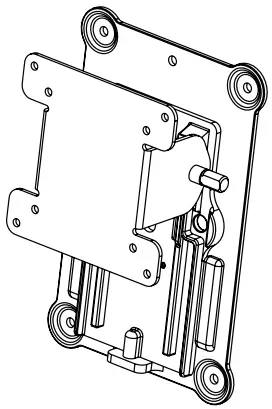

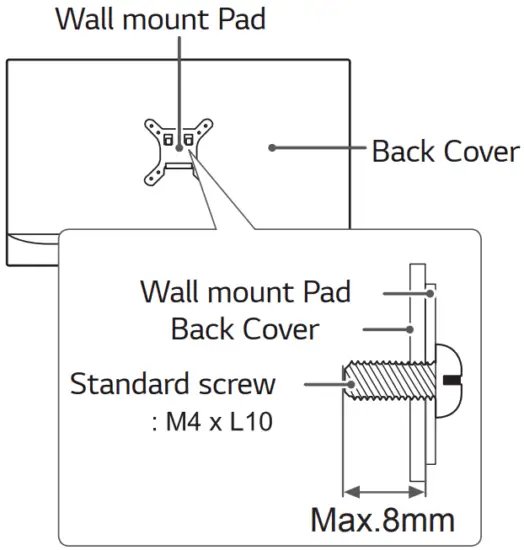

Installing to a wall

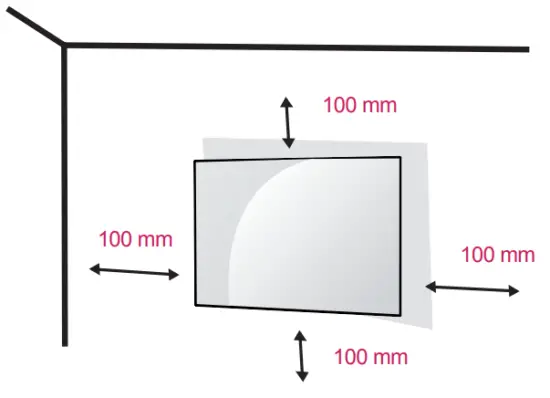

Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Please refer to the manual to install and set up a tilting wall mounting bracket.

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

If you use screw longer than standard, the monitor might be damaged internally.
If you use improper screw, the product might be damaged and drop from mounted position.
In this case, LG Electronics is not responsible for it.

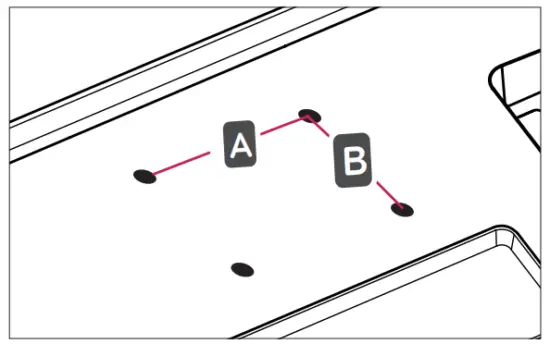

*Wall Mount (A x B)*	100 x 100
*Standard* *screw*	M4 x L10
*Number of screws*	4
*Wall Mount* *Plate* *(Optional)*	RW120

Wall Mount (A x B)

CAUTION

Unplug the power cord before moving or installing the monitor to avoid electric shocks.
Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Please use the genuine LG wall mounting bracket. For more information, contact your local retail store or a qualified installer.
Applying excessive force when fastening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
Use the wall mounting bracket and screws that conform to the VESA standard. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
Screw length from outer surface of back cover should be under 8mm.

NOTE

Use the screws specified by the VESA standard.
The wall mount kit includes the installation guide and all necessary parts.
The wall mounting bracket is optional. The accessories can be purchased at your local retail store.
The length of the screw may differ for each wall mounting bracket. Ensure the correct length screw is used.
For more information, please refer to the user manual for the wall mounting bracket.

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

HDMI connection

Transmits the digital video and audio signals from your PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.

Press the menu button and then select the input option from the input menu.

NOTE

If you use HDMI PC, it can cause compatibility problem.
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
Recommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet

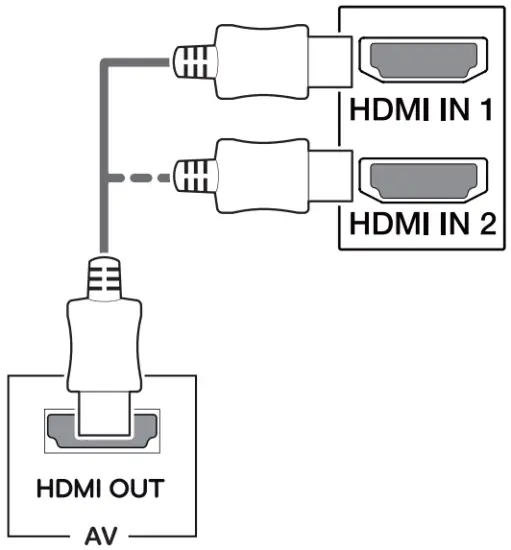

Connecting to AV Devices

HDMI connection

Transmits the digital video and audio signals from your PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.

Press the menu button and then select the input option from the input menu.

NOTE

If you use HDMI PC, it can cause compatibility problem.
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
Recommended HDMI cable types
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet

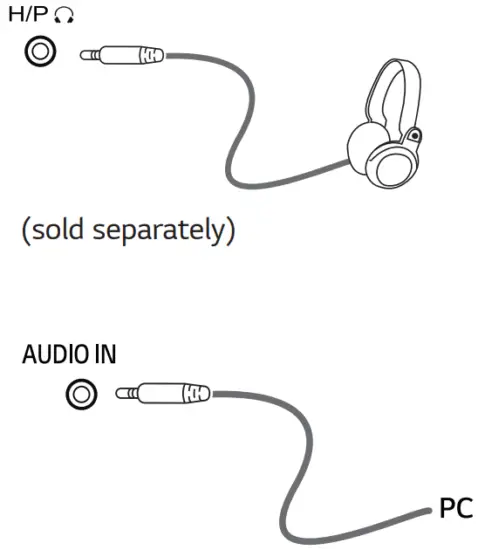

Connecting Headphones

Connect peripherals to the monitor via the headphones port. Connect as illustrated.

NOTE

Peripheral devices are sold separately.

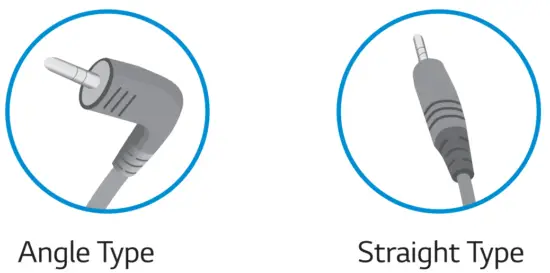

If you use angled headphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight headphones.
Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.

CUSTOMIZING SETTINGS

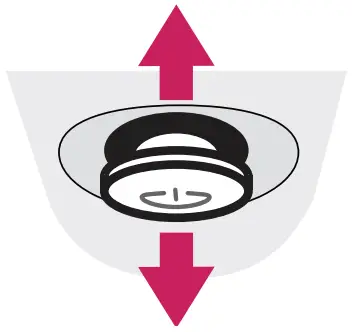

Activating the Main Menu

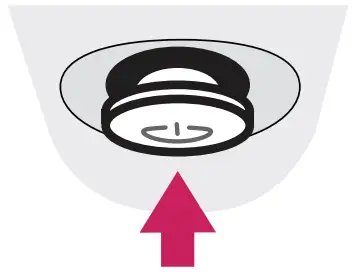

Press the joystick button on the bottom of the monitor.

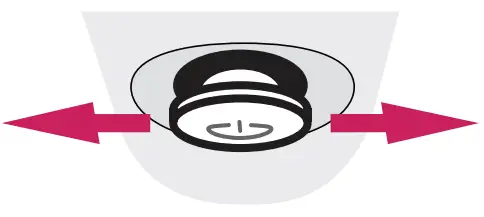

Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
Press the joystick button once more to close the main menu.

*Button*	*Menu Status*		*Description*
	*Main menu disabled*		Enables the main menu.
	*Main menu enabled*		Close the main menu. (Long press the button to turn off the monitor)
	◄	*Main menu disabled*	Adjusts the monitor volume level.
		*Main menu enabled*	Enters the input features.
	►	*Main menu disabled*	Adjusts the monitor volume level.
		*Main menu enabled*	Enters the menu feature.
	▲	*Main menu disabled*	Enables the main menu.
		*Main menu enabled*	Turns off the monitor.
	▼	*Main menu disabled*	Enables the main menu.
		*Main menu enabled*	Enters the picture mode feature.

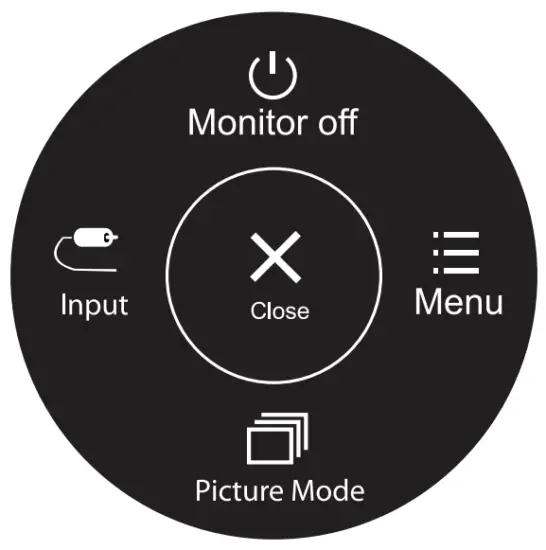

Main Menu Features

*Main Menu*	*Description*
*Menu*	Configures the screen settings.
*Picture Mode*	Select picture mode to achieve the best display ef- fect.
*Input*	Sets input mode.
*Monitor off*	Turns off the monitor.
*Close*	Close the main menu.

Customizing settings

*Menu > Quick Settings*	*Description*
*Brightness*	Adjusts the color contrast and brightness of the screen.
*Contrast*
*Volume*	Adjusts the volume.
	*NOTE* You can adjust Mute/ Unmute by moving the joystick button to ▼ in the Volume menu.
*Ratio*	Adjusts the screen ratio.
	*Wide*	Displays the video in wide-screen, regardless of the video signal input.
	*Original*	Displays a video according to the input video signal aspect ratio.
*SMART ENERGY* *SAVING*	*High*	Enables SMART ENERGY SAVING you can save energy with this energy- high efficient.
	*Low*	Enables SMART ENERGY SAVING you can save energy with this energy- low efficient.
	*Off*	Disables SMART ENERGY SAVING .

SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.

NOTE

The display may look the same for Wide, Original options at the recommended resolution (1920 x 1080).
The ratio is disabled in the interlaced signal.
Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor.If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.

Customizing settings

*Menu > Picture*	*Description*
*Picture Mode*	*Custom*	Allows the user to adjust each element. The color mode of the main menu can be adjusted.
	*Reader 1*	It is a mode that the screen is adjusted to the best for the new spaper. If you want screen more bright, you can control brightness in Menu OSD.
	*Reader 2*	It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.
	*Photo*	Optimizes the screen to view photos.
	*Cinema*	Optimizes the screen to improve the visual effects of a video.
	*Color Weakness*	This mode is for users who cannot distinguish between red and green.It enables users with color weakness to easily distinguish between the two colors.
	*Game*	Optimizes the screen for gameplay.
*Picture Adjust*	*SUPER RESOLUTION+*	High	Optimized picture quality is displayed when a user wants crystal clear images. It is ef- fective forhigh quality video or game.
		Middle	The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing. It is effective for UCC or SD video.
		Low	The optimized picture quality is displayed when a user wants smooth and natural im- ages. It is effective for slow -moving pictures or still images.
		Off	Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
	*Sharpness*	Adjusts the sharpness of the screen.
	*Black Level*	Sets the offset level (for HDMI only). Ÿ Offset: as a reference for a video signal, this is the darkest color the monitor can display.
		High	Keeps the current contrast ratio of the screen.
		Low	Low ers the black levels and raises the white levels from the current contrast ratio of the screen.
	*DFC*	On	Adjusts the brightness automatically according to the screen.
		Off	Disables the DFC feature.
*Game Adjust*	*Response* *Time*	Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Middle. For a fast-moving picture, it is recommended that you use high. Setting to High may cause image sticking.
		High	Sets the response time to High.
		Middle	Sets the response time to Middle.
		Low	Sets the response time to Low.
		Off	Does not use the response time improvement feature.

NOTE

This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off this function.
This function can’t distinguish some colors in some images.

*Game Adjust*	*FreeSync*	Provides seamless and natural images by synchronizing the vertical frequency of the input sig- nal with that of the output signal. *CAUTION* Supported Interface: HDMI. Supported Graphic Card : A graphic card that supports AMD’s FreeSync is necessary. Supported Version : Make sure to update the graphic card to the latest driver. For more information and requirement, refer to AMD website at http://www.amd.com/ FreeSync
		On	*FreeSync* function on.
		*Off*	*FreeSync* function off.
	*Black Stabilizer*	Black Stabilizer: You can control the black contrast to have better visibility in dark scenes. Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.) Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
	*Cross Hair*	Cross Hair provides a mark on the center of the screen for First Person Shooter(FPS) games. Users can select the *cross hair* that fits their gaming environment among four different *cross* *hairs.* When the monitor is off or enters energy saving mode, the Cross Hair feature is automatically turned *off*.
*Color Adjust*	*Gamma*	*Mode 1,* *Mode 2,* *Mode 3*	The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.
		*Mode 4*	If you do not need to adjust the gamma settings, select Mode 4.
	*Color Temp*	Selects the factory default picture color. Warm: Sets the screen color to a reddish tone. Medium: Sets the screen color between a red and blue tone. Cool: Sets the screen color to a bluish tone. Custom: The user can adjust it to red, green or blue by customization.
	*Red/Green/* *Blue*	You can customize the picture color using Red, Green, and Blue colors.
	*Six Color*	Meets the user requirements for colors through adjusting the color and saturation of the six colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_ Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yellow_Saturation) and saving the Six Color settings.
		Hue: Adjusts tone of the screen. Saturation: Adjusts the saturation of the screen colors. The lower the value, less saturated and bright the colors become. The higher the value, the more saturated and dark the colors become.
	*Reset*	Returns the color settings to the default settings.
*Display*	*Horizontal*	To move image left and right.
	*Vertical*	To move image up and down.
	*Clock*	To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.
	*Phase*	To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

Customizing settings

*Menu > Sound*	*Description*
MaxxAudio	On	MaxxAudio^® by Waves, recipient of a Technical GRAMMY Award^® is a suite of studio-quality sound tools for a superior listening experience.
MaxxAudio	Off	Disables the MaxxAudio function.
MaxxAudio Settings	The user can set the sound quality manually.
	MaxxBass	Bass Enhancement.
	MaxxTreble	Treble Enhancement.
	MaxxDialog	Dialog Enhancement.
	Maxx3D	Enhances the three dimensional effect of the sound.
	Reset	Returns the sound quality to the default settings.
Midnight Mode	On	Lets you enjoy rich and full sound at a low volume.
Midnight Mode	Off	Disables Midnight Mode.
Main Audio	Main Audio have two options Audio-In , HDMI.(Only for HDMI )

*Menu > General*	*Description*
*Language*	To choose the language in which the control names are displayed.
*Power LED*	Turns the power indicator on the bottom side of the monitor on/off.
	On	The power indicator is automatically turned on.
	*Off*	The power indicator is turned off.
*Automatic Standby*	The monitor will automatically switch to standby mode after a certain period.
*Resolution*	User can set the desired resolution.This option is enabled only when the screen resolution on your computer is set to the following(D-SUB only).
	*NOTE* The function is enabled only when the screen resolution on your computer is set to the follow- ing, except that the PC output wrong resolution.
	1024×768, 1280×768, 1360×768, 1366×768,Off
	1280×960, 1600×900,Off
	1440×900, 1600×900,Off
*OSD Lock*	Prevents incorrect key input.
	On	Key input is disabled.
	*NOTE* All function except for the OSD Lock mode, brightness, Contrast, Input and Volume are dis- abled.
	*Off*	Key input is enabled.

*Menu > Auto Configuration*	*Description*
*Do you want to Auto Configuration?*
*Yes*	Operate the Auto configuration for optimal display in D-SUB.
*Cancel*	Cancel the select.

NOTE

This function will be enable only in analog input.

*Menu > Reset*	*Description*
*Do you want to reset your settings?*
*Reset*	Returns to the default settings.
*Cancel*	Cancel the select.

TROUBLESHOOTING

Check the following before calling for service.

No *image* *appears*
*Is the power cord of the display* *connected?*	Check and see if the power cord is connected properly to the power outlet.
*Is the power indicator light on?*	Press the Power button.
*Do you see an “Out of Range” message on the screen?*	This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the ‘Specifications’ section of this manual and configure your display again.
Do *you* *see* a *“NO* *SIGNAL”* *message* on *the screen?*	After the monitor is on “NO SIGNAL”, the monitor goes to DPM mode. This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.

*Can ‘t you control some functions in OSD?*
*Can’t you select some menu in* *OSD?*	You can unlock the OSD controls at any time by entering the OSD lock menu and changing items to off.

CAUTION

Check Control Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer

*Display image is incorrect*
*The screen color is mono or abnormal.*	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary. Make sure the video card is properly inserted in the slot. Set the color setting higher than 24 bits (true color) at *Control* *Panel* ► *Settings*.
*The screen blinks.*	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

*Do you see an “Unrecognized monitor, Plug&Play (VESA DDC) monitor found” message?*
*Have you installed the display driver?*	Be sure to install the display driver from our web site: http://www.lg.com. Make sure to check if the video card supports Plug&Play function.

*The screen is flickering.*
*Did you select* *the recommended* *resolution?*	If the selected resolution is HDMI *1080i* 60/50 Hz, the screen may be flickering. Change the resolution to the recommended resolution *1080P*.

SPECIFICATIONS

27MP89HM

LCD Screen	Type	TFT (Thin Film Transistor) LCD(Liquid Crystal Display) Screen
	Pixel Pitch	0.3114mm x 0.3114mm
Resolution	Maximum Resolution	1920 x 1080 @ 75 Hz
	Recommended Resolution	1920 × 1080 @ 60 Hz
Video Signal	Horizontal Frequency	HDMI : 30 ~ 85 KHz (FreeSync on) HDMI : 30 ~ 83 KHz (FreeSync off) Analog : 30 ~ 83 KHz
	Vertical Frequency	HDMI : 40 ~ 75 Hz (FreeSync on) HDMI : 56 ~ 75 Hz (FreeSync off) Analog : 56 ~ 75 Hz
	Synchronization	Separate Sync, Digital.
Input Connector	HDMI1/2 IN, D-SUB IN, HP OUT, AUDIO IN
Power Input	19 V 1.6 A
Power Consumption	On Mode : 24.5 W Typ. ( Outgoing condition ) * Sleep Mode (Standby Mode) ≤ 0.3 W ** Off Mode ≤ 0.3 W
AC/DC adaptor	Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-32FSG-19 19032EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-45SQ-19-3 19032E, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-45FSQ-19 19032EPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-45FSQ-19 19032EPK-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-45FSQ-19 19032EPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-45FSQ-19 19032EPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP51A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type PA-1031-23, manufactured by Lite-On Technology Corporation or Type ADS-45FSQ-19 19032EPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type AD2138U20, manufactured by PI Electronics (H.K.) Ltd.
	OUTPUT: 19 V 1.7 A
Environmental conditions	Operating Temperature Operating Humidity	0 °C to 40 °C Less than 80%
	Storage Temperature Storage Humidity	-20 °C to 60 °C Less than 85 %
Dimension	Monitor Size (Width x Height x Depth)
	With Stand	613.1 mm x 456.2 mm x 209.7 mm
	Without Stand	613.1 mm x 352.8 mm x 60.5 mm
Weight (Without Packaging)	With Stand	4.8 Kg
	Without Stand	4.3 Kg

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

The power consumption level can be different by operating condition and monitor setting.
The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes)

Preset Modes (Resolution)

D-SUB/HDMI PC Timing

*Display Modes (Resolution)*	*Horizontal Frequency(kHz)*	*Vertical Frequency(Hz)*	*Polarity(H/V)*
720 x 400	31.468	70	-/+
640 x 480	31.469	60	-/-
640 x 480	37.500	75	-/-
800 x 600	37.879	60	+/+
800 x 600	46.875	75	+/+
1024 x 768	48.363	60	-/-
1024 x 768	60.023	75	+/+
1152 x 864	67.500	75	+/+
1280 x 1024	63.981	60	+/+
1280 x 1024	79.976	75	+/+
1680 x 1050	65.290	60	-/+
1920 x 1080	67.500	60	+/+	Recommend Mode
1920 x 1080	83.89	75	+/+	FreeSync on

HDMI AV Timing

*Factory support mode* *(Preset Mode)*	*Horizontal Frequency(kHz)*	*Vertical Frequency(Hz)*	*HDMI*
480P	31.50	60	O
576P	31.25	50	O
720P	37.50	50	O
720P	45.00	60	O
1080P	56.25	50	O
1080P	67.50	60	O Recommend Mode
