INSTRUCTION GUIDE
IC350 PRO MONITOR

Contents hide

9 Documents / Resources

9.1 References

10 Related Posts

COPYRIGHT

The contents of this manual are subject to change without notice to improve quality.
© 2023 JLL Fitness Ltd
JLL Fitness Ltd owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of JLL Fitness Ltd is prohibited.

SAFETY PRECAUTIONS

The monitor on this machine has been tested to the required standards, each of those passed regulations are shown via the following symbols:
WEEE – Waste Electrical and Electronic Equipment Recycling.
ABS – Acrylonitrile Butadiene Styrene often referred to as ABS is a type of plastic that is an opaque thermoplastic.
CE – The product conforms with relevant EU directives regarding health and safety or environmental protection.
QC Pass – A product which has fulfilled the requirements of a technical control and passed the outgoing exams.
ROHS – This is an abbreviation for “Restriction of (the use of certain) Hazardous Substances in electrical and electronic Equipment”.

CLEANING

Please take care when cleaning this monitor as the LCD screen can easily be scratched.

You will need a soft dry clotheDo not spray cleaning chemicals directly onto the monitor

Do not apply water to the monitor as it is electrical and may damage the internal components

INSTALLATION

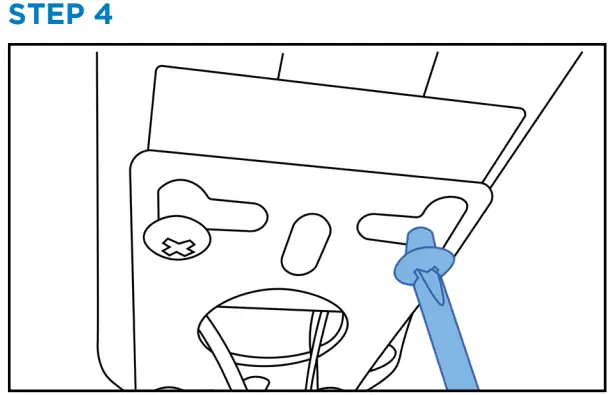

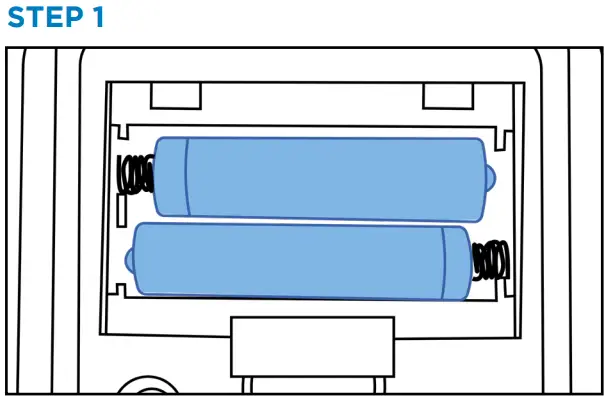

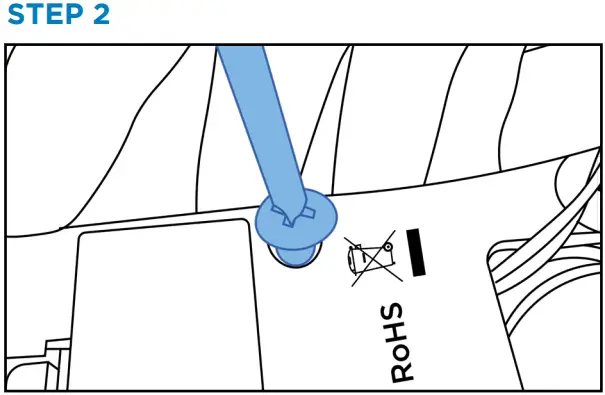

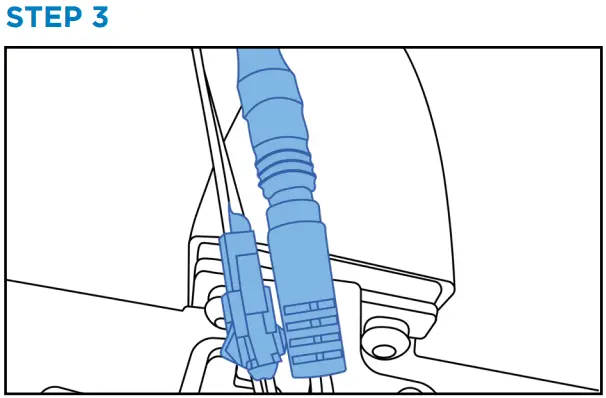

Insert the batteries, making sure they are the correct way round.	Connect the male to female wires and pulse wires from the base to the monitor.

Slot the monitor to the handlebar frame.	Connect the male to female wires and pulse wires from the base to the monitor.

OPERATION

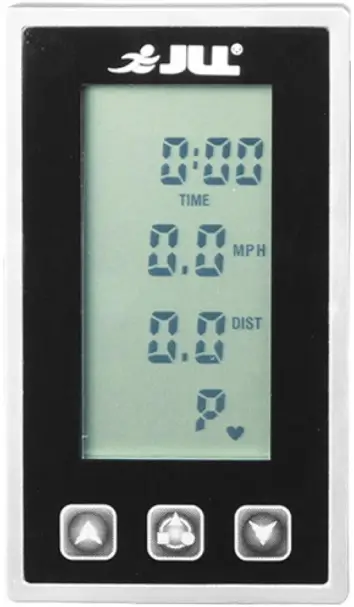

The IC350 Pro monitor has a total of 7 readouts, displaying:
Time Speed Distance Heart-Rate Calories RPM Target-Heart-Rate
When first powered on, the monitor will only show Time, Speed, Distance and Pulse. To view more readouts please see the instructions below.

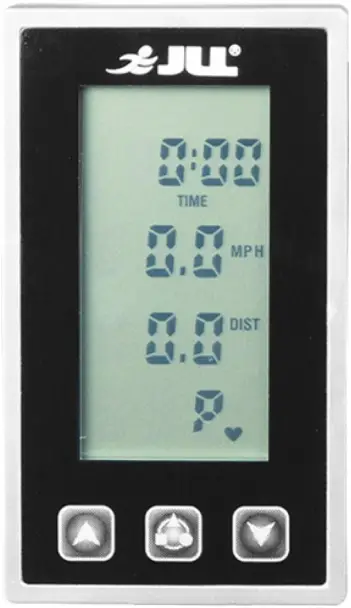

VIEWING ALL READOUTS
Press either the UP or DOWN arrows to move between the two screens showing the following:
Screen 1: Time, Speed Distance and Pulse
Screen 2: RPM, Calories and Target Heart Rate

SETTING TARGET PROGRAMS
On this monitor your are able to set a target time, distance, heart rate and calories.

Start by pressing the CENTRE button until your chosen setting flashes.
Then press the UP or DOWN arrows to change the digits to your desired target.
Once set, begin your workout by pedaling and you will see the digits begin to change.
Once you’ve hit your target the monitor will beep.

When you begin a workout you will see a bicycle icon in the right of the screen to indicate the bike is in use. There is a speedometer graphic found curving round the top left corner of the monitor giving you a visual of how fast you are pedaling.

RESETTING YOUR MONITOR
Press and hold the centre button until all the digits come up and return to zero, the monitor will also beep.

DATA READOUTS

Readout	Measurement
Time	Minutes : Seconds
Speed	MPH
Distance	Miles
Pulse	BPM (Beats Per Minute)

TROUBLESHOOT

Issue	Resolutions
No power to the monitor	Make sure the batteries are fully inserted and the correct way round. Check your connection wires from the monitor to the base. They must not be trapped, fully connected and the pins must be straight.
No pulse reading	Make sure the pulse plates are clean and dry. Do not have any lotion on your hands. Sweat can affect the reading. Make sure both hands are fully gripping each plate.
