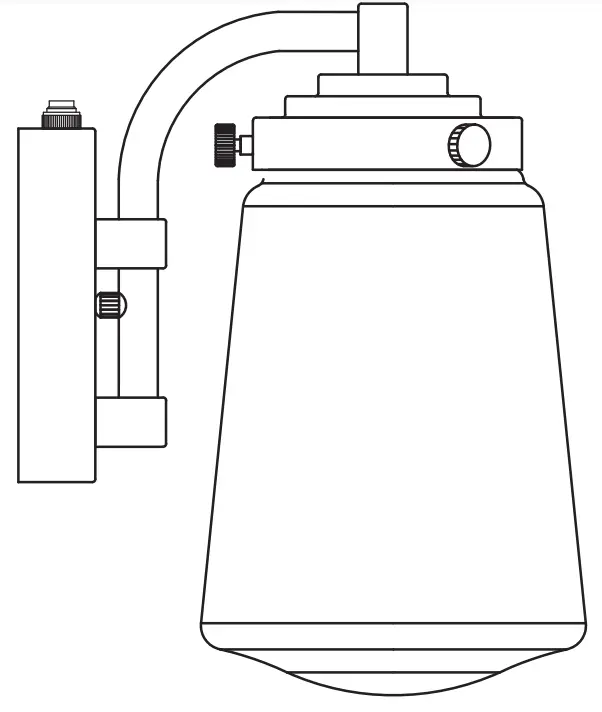

KEG1601A-2 Marken 1-Light 8.87-in Matte Black Outdoor Wall Light
Instruction Manual
ITEM #2602009
OUTDOOR WALL
LANTERNHARBOR BREEZE and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved.
KEG1601A-2 Marken 1-Light 8.87-in Matte Black Outdoor Wall Light
Thank you for purchasing this Harbor Breeze product. We’ve created these easy-to-follow instructions to ensure you spend your time enjoying the product instead of putting it together. But, if you need more information than what is provided here, please visit Lowes.com, search the item number and refer to the Guides & Documents tab on the product’s page.
If the item is no longer for sale, or if you have any questions or problems, please call our customer service department at 888-251-1003 , 8 a.m. – 8 p.m., EST, Monday – Sunday. You could also contact us at [email protected].
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 20-30 minutes
TOOLS REQUIRED (NOT INCLUDED)
FEELING CONFIDENT? START YOUR NEXT PROJECT
• Visit lowes.com for more information.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
- Some metal parts in the fixture may have sharp edges.To prevent cuts and scrapes, wear gloves when handling the parts.
- Account for small parts and destroy packing material, as these may be hazardous to children.
- Use flashlight or alternate light source to light work area during installation.
- Assistance may be required to support fixture during installation.
CAUTION
- Connect fixture to supply wires rated for at least 167˚F.
- Workable for dimming circuits when using appropriate light bulbs with dimmable function.

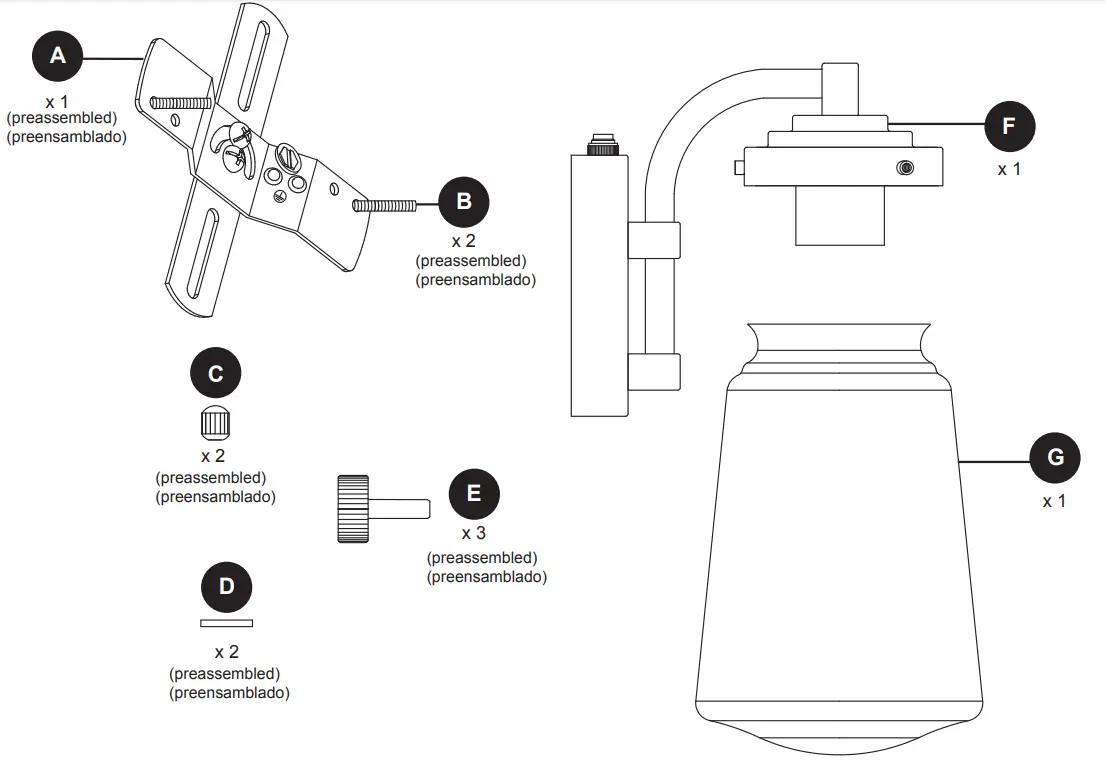

PACKAGE CONTENTS

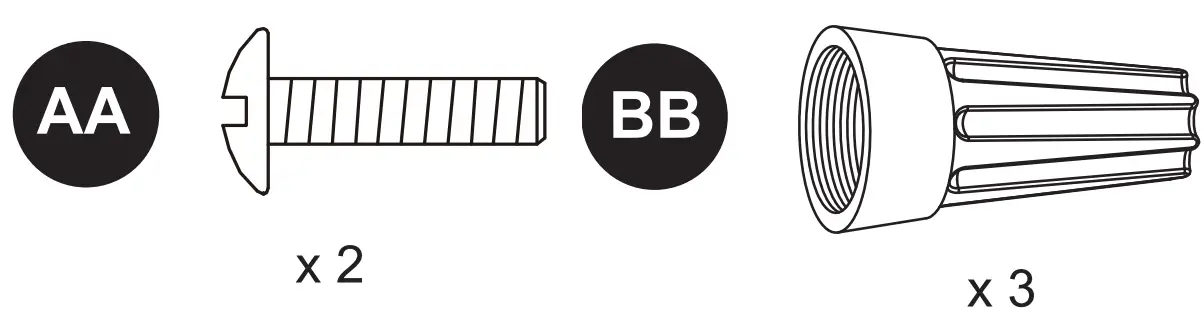

HARDWARE CONTENTS
Note: Hardware shown actual size.
INSTALLATION OVERVIEW
Turn off the power and remove existing fixture.

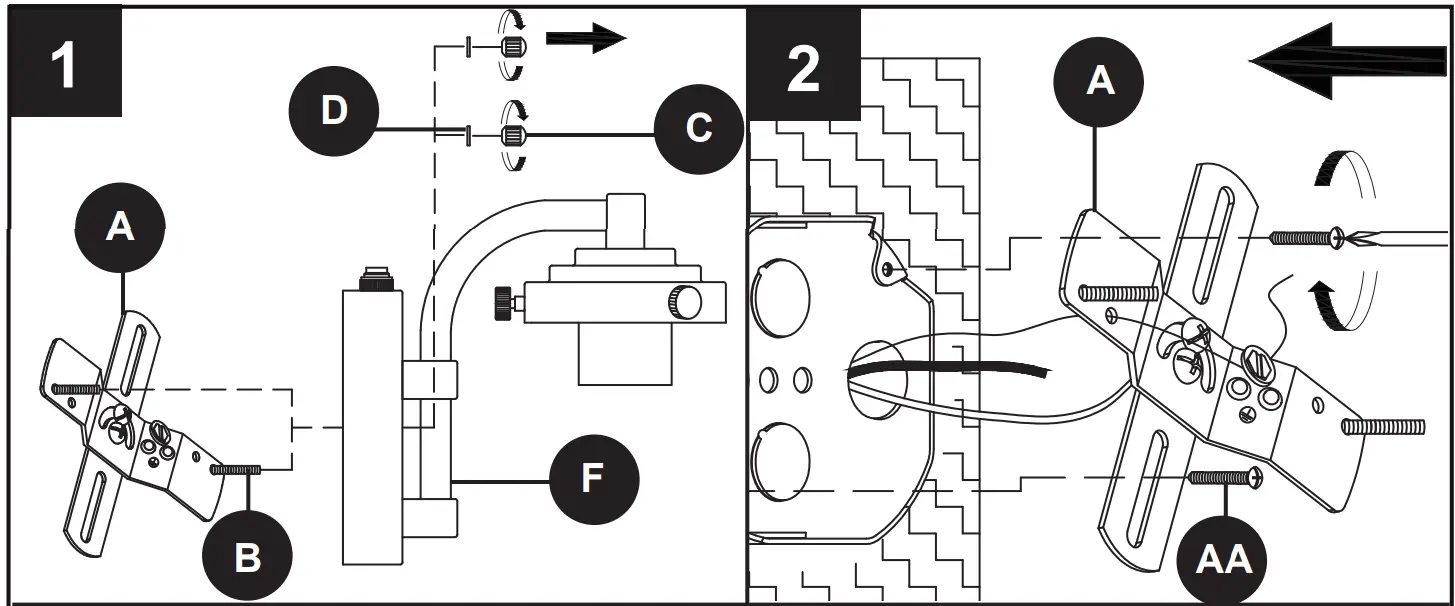

Attach A to outlet box using AA. Temporarily place F through B determine amount of adjustment necessary B.

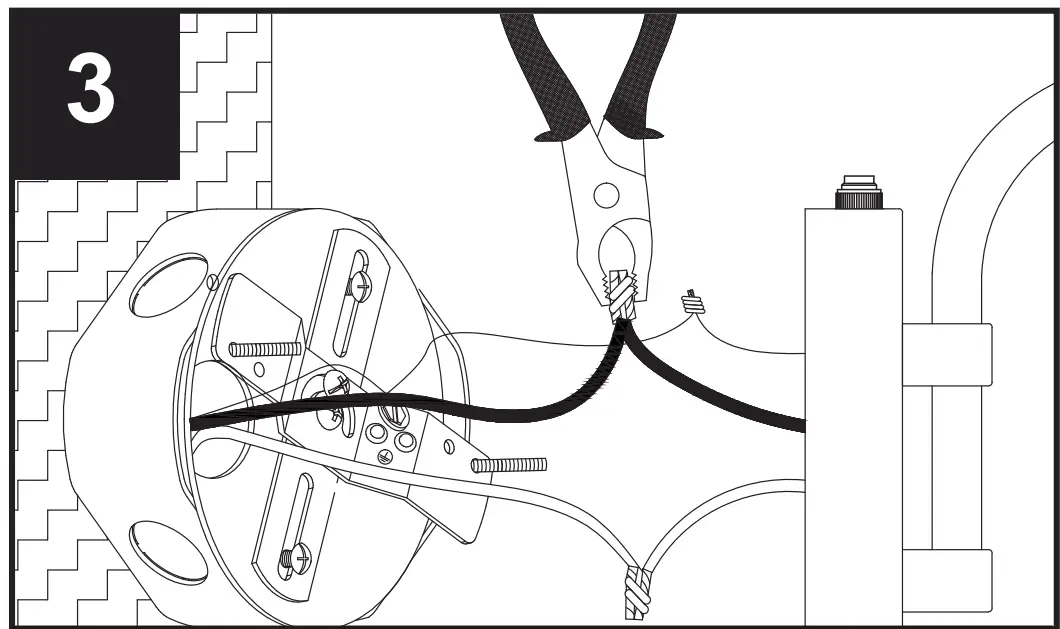

Feed wires. Twist stripped wire ends together with pliers (not included), black to black, white to white, and ground/bare to ground/bare.
Attach BB to connections with electrical tape (not included).

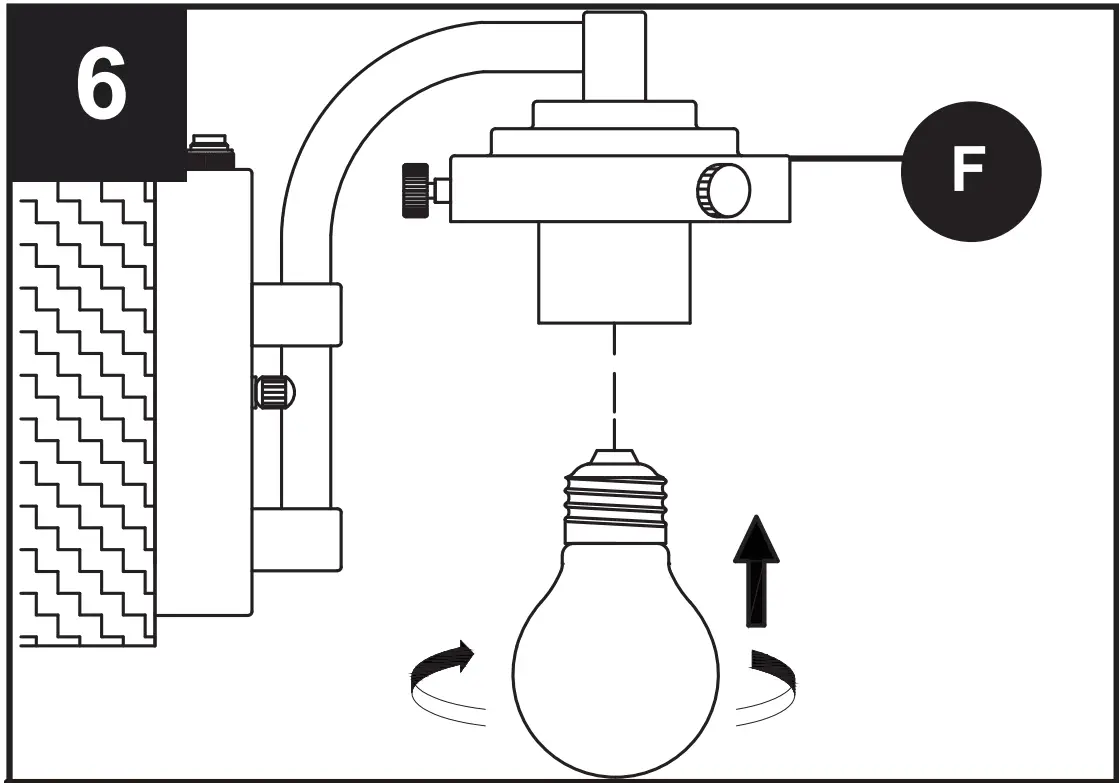

Install light bulb (not included). Use 60-watt max. standard-base incandescent bulb or CFL/LED equivalent.
