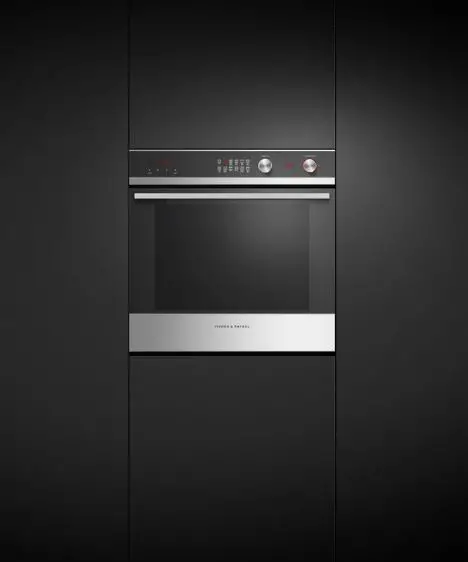

FISHER PAYKEL OB24SMPTDB1 Self-Cleaning Oven
A highlight of the Fisher & Paykel collection, this Minimal style oven with touchscreen guided cooking helps to ensure every dish is cooked to perfection.
- Touchscreen guided cooking capability offers helpful tips for different food types as well as full recipes.
- 3 cu ft total capacity, with 16 oven functions including Pastry Bake, Roast, Air Fry and Dehydrate.
- A Wireless Temperature Sensor precisely monitors cooking in real time.
- Pyrolytic self-cleaning function breaks down food residue for an easy clean.

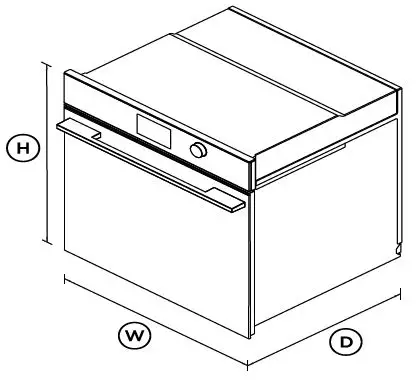

DIMENSIONS
- Height: 23 9/16″
- Width: 23 7/16″
- Depth: 22 1/4″
FEATURES & BENEFITS
COOK WITH CONFIDENCE
- Using the large 5″ touchscreen interface, you can cook with a favorite method, hero ingredient, cooking function or recipe.
- Your oven will guide you through the steps, or change the temperature and heat type automatically, depending on your selection.
GENEROUS CAPACITY
With an exceptional 3 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves. Non-tip, full-extension shelves help to ensure safe removal of hot dishes.
EXCEPTIONAL PERFORMANCE
Our unique cooking technologies were developed to help deliver perfect results. ActiveVent ensures optimized moisture levels, while AeroTech™ circulates heat evenly for a consistent temperature.
SAFE AND SOUND
The CoolTouch door of this built-in oven is safe to touch from the outside. Sturdy, fully extendable shelves slide all the way out, reducing the need for you to reach inside.
SELF-CLEANING
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
COMPLEMENTARY DESIGN
Designed to blend seamlessly into the kitchen, this Minimal style oven features subtle textural and tonal contrasts. Available in a sleek black finish to support a considered kitchen design. Pair with a Warming Drawer for the ultimate kitchen solution.
MULTI-FUNCTION FLEXIBILITY
Each function has been tailored, tested and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A Wireless Temperature Sensor precisely monitors cooking in real time, giving you complete control.
SPECIFICATIONS
Accessories
| Broil grid | 1 |
| Broil pan | 1 |
| Broil rack | 1 |
| Full extension telescopic | 1 set |
| Pyrolytic-proof shelf runners | • |
| Step down wire shelf | 1 |
| Telescopic sliding shelves | 1 set |
| Wireless temperature sensor | 1 |
Capacity
| Shelf positions | 6 |
| Total capacity | 3cu ft |
| Usable capacity | 2.5cu ft |
Cleaning
| Acid-resistant graphite enamel | • |
| Pyrolytic-proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls
- Adjustable audio and display
- Audio feedback
- Automatic cooking/minute
- Automatic pre-set
- Celsius/Fahrenheit
- Delay start
- Electronic clock
- Electronic oven control
- Food probe
- Guided cooking by food type
- Halogen lights
- Intuitive touchscreen display
- Multi-language display UK English, US English,
- Sabbath mode with Star K
- Soft close doors
- Turned stainless steel dials
- Wi-Fi connectivity
- Wireless temperature sensor
Functions
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Classic bake | • |
| Dehydrate | • |
| Number of functions | 16 |
| Pastry Bake | • |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Self-clean | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
| Warm | • |
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Temperature range | 95 °F – 540 °F |
Power requirements
| Amperage | 16.6 – 19.4A |
| Supply frequency | 60Hz |
| Supply voltage | 208C – 240VV |
Product dimensions
| Depth | 22 1/4″ |
| Height | 23 9/16″ |
| Width | 23 7/16″ |
Safety
| ADA compliant | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
Warranty
| Parts and labor | 2 years |
| SKU | 82517 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
