QUICK START GUIDE
Android TV 50A1S
Design and specifications are subject to change without prior notice. All OSD images shown in this user manual are for illustrative purposes only and may differ from the actual product based on the model, Syinix reserves the right to a final explanation.

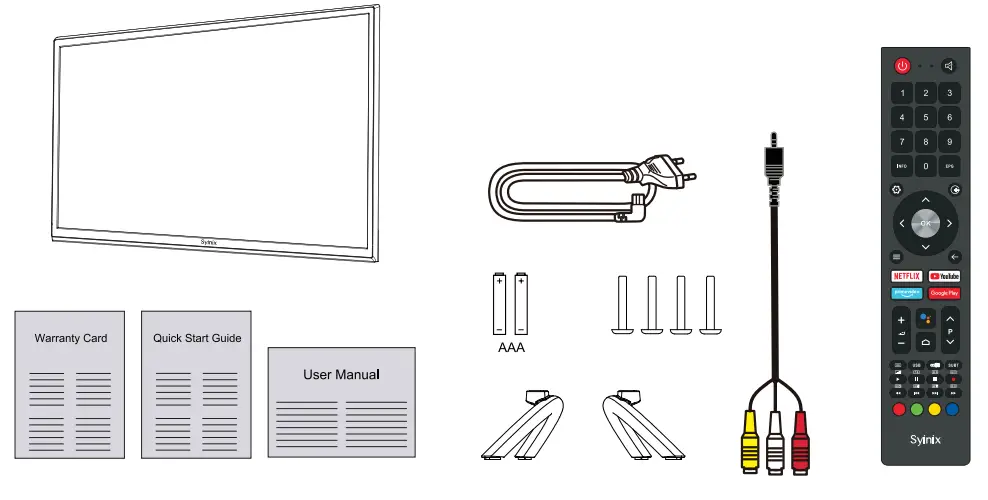

Packaging including
The items below should be included in the box:
1 x 50″ TV Set
2 x Base Stands
4 x Screws( M4 x 20 )
1 x Remote Control
2 x AAA Batteries
1 x Mini AV Cable
1 x Power Cord
1 x Warranty Card
1 x Quick Start Guide
1 x User Manual

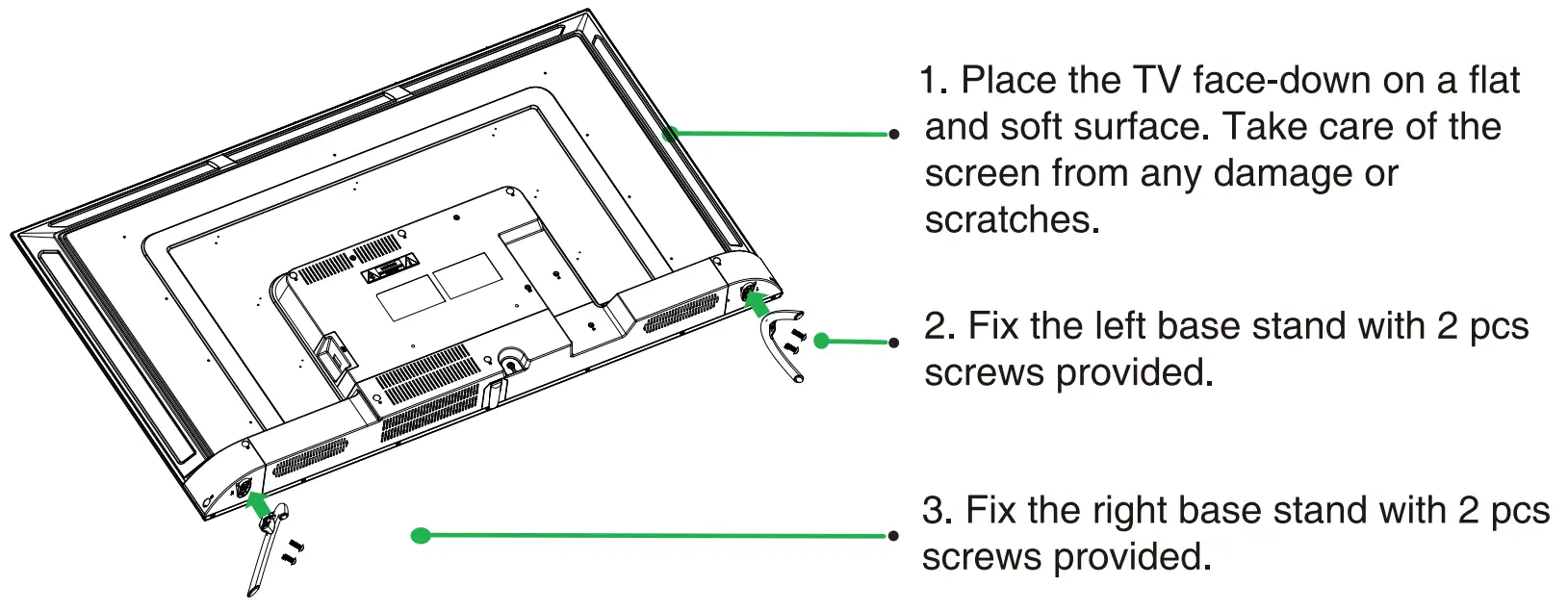

Installing the Stands

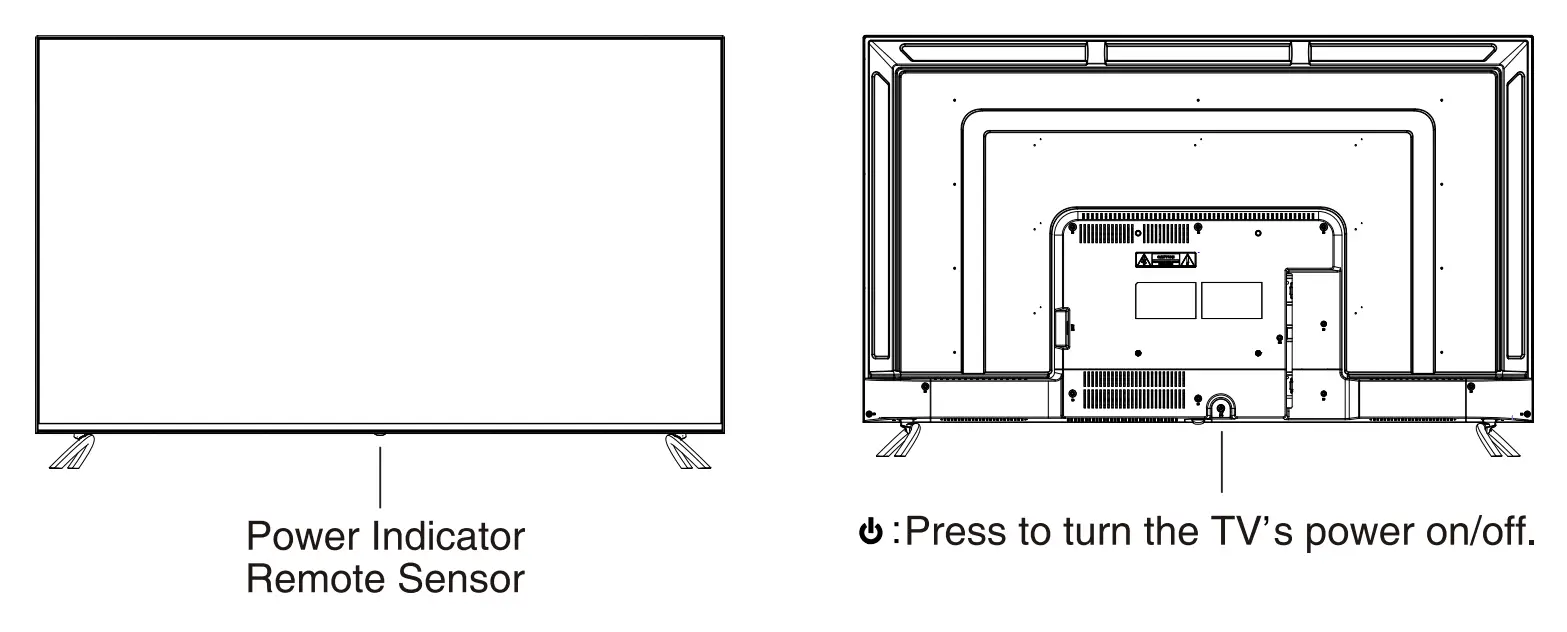

Font&Back Views

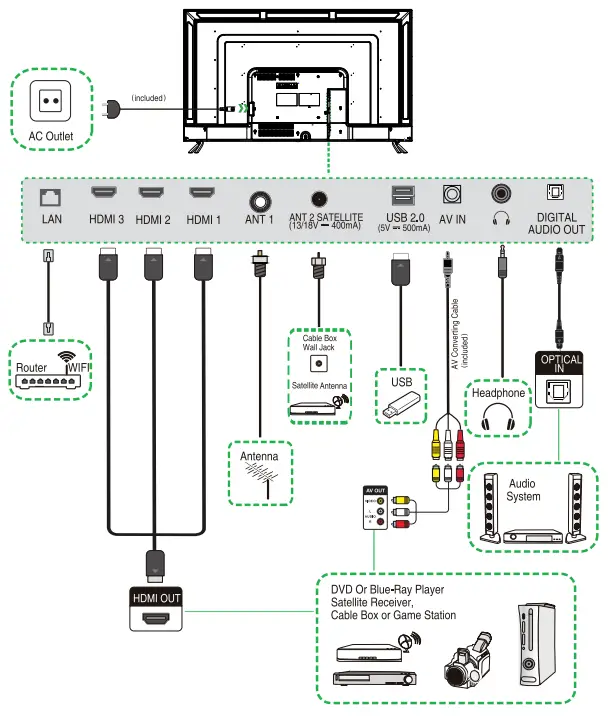

Connecting to your TV
Connect the power cable to the TV, then plug the power cord into the AC outlet.

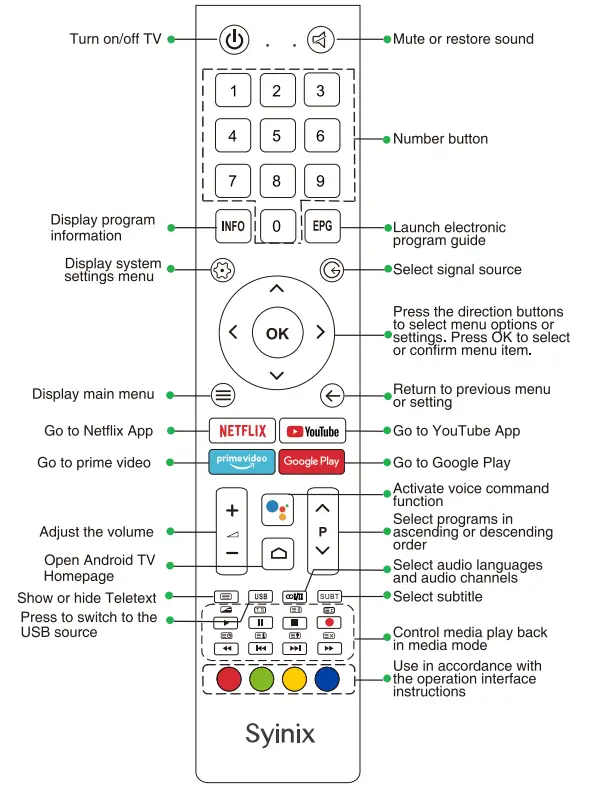

Remote Control
Remote Control Set-Up:
- Remove the battery compartment cover.
- Insert 2xAAA batteries with correct polarity (+/-) as indicated.
- Replace the cover.
