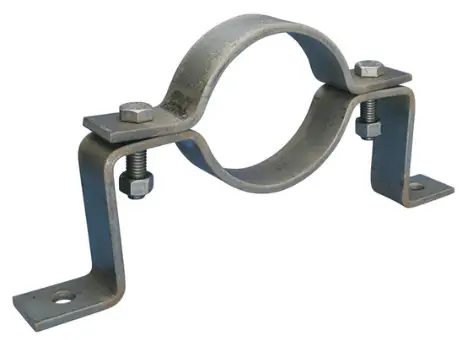

ERICO 700 Offset Pipe Clamp

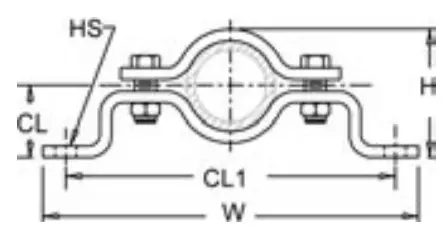

Offset Pipe Clamp

APPLICATION: To support piping away from wall or floor.

Part No.	PS	H	CL	CL1	W	HS	Max Recom. Load (lbs)	Finish*
7000050PL	1/2	3-3/8	2-3/4	8-1/2	9-3/4	3/8	190	PL
7000075PL	3/4	3-5/16	2-1/2	7-3/16	8-7/16	3/8	200	PL
7000100PL	1	3-9/16	2-5/8	7-9/16	9-1/16	3/8	200	PL
7000125PL	1-1/4	3-15/16	2-13/16	7-7/8	9-3/8	3/8	200	PL
7000150PL	1-1/2	4-1/8	2-15/16	8-1/4	9-3/4	3/8	200	PL
7000200PL	2	4-5/8	3-3/16	9-1/8	10-5/8	3/8	410	PL
7000250PL	2-1/2	5-1/8	3-7/16	10-1/2	11-5/8	3/8	410	PL
7000300PL	3	5-3/4	3-3/4	11-1/8	12-7/8	3/8	410	PL
7000400PL	4	6-3/4	4-1/4	12-1/2	14-1/2	1/2	600	PL
7000500PL	5	7-13/16	4-3/4	13-3/4	15-3/4	1/2	600	PL
7000600PL	6	9	5-5/16	16-1/2	18-1/4	1/2	850	PL
7000800PL	8	11	6-5/16	18-5/8	20-5/8	1/2	850	PL

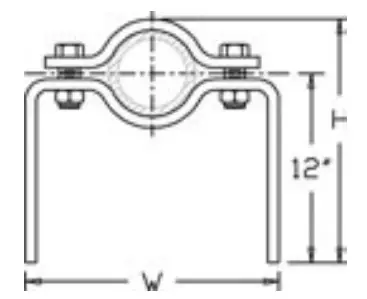

Extended Pipe Clamp

APPLICATION: As offset pipe clamp for field fabrication during installation of pipe, when specific center line distances are unknown, or use by welding legs to the structure.

Part No.	PS	H	W	Finish*
7050050PL	1/2	12-9/16	4-3/16	PL
7050075PL	3/4	12-11/16	4-15/16	PL
7050100PL	1	12-7/8	5-3/16	PL
7050125PL	1-1/4	13	5-1/2	PL
7050150PL	1-1/2	13-1/8	5-3/4	PL
7050200PL	2	13-7/16	6-1/2	PL
7050250PL	2-1/2	13-11/16	7-3/4	PL
7050300PL	3	14	8-3/8	PL
7050350PL	3-1/2	14-1/4	8-7/8	PL
7050400PL	4	14-1/2	9-3/4	PL
7050500PL	5	15	11	PL
7050600PL	6	15-11/16	13-1/4	PL
7050800PL	8	16-1/16	15-3/8	PL

All dimensions are in inches unless otherwise noted.
See page 2 for finish and material descriptions. All material is Carbon Steel unless otherwise noted.
