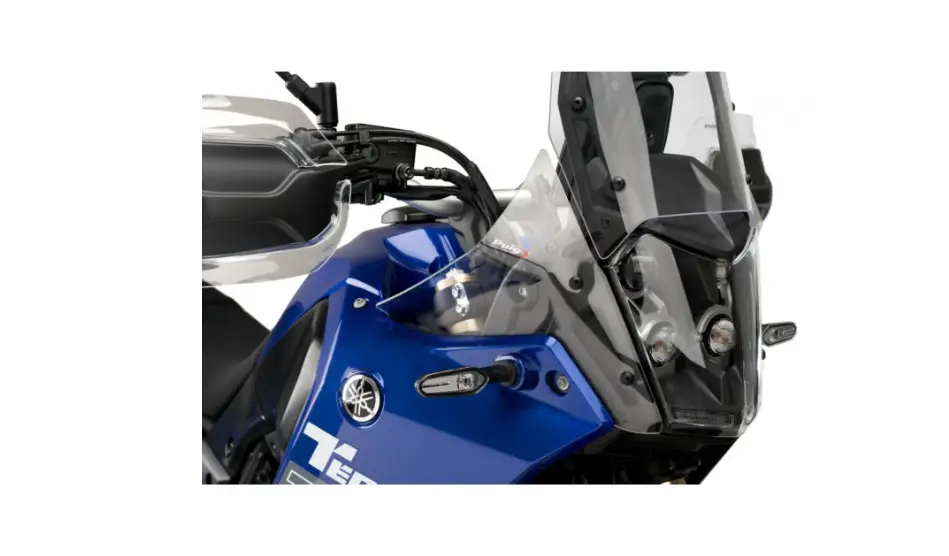

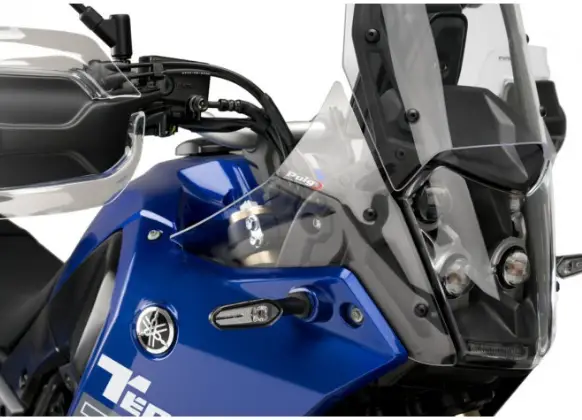

21263 Extended Front Deflectors for Motorcycle
Product Information
Product: Yamaha Tenere 700 ’19- Extended FrontDeflectors
Part Number: REF 21263
Description: Left and Right Deflectors

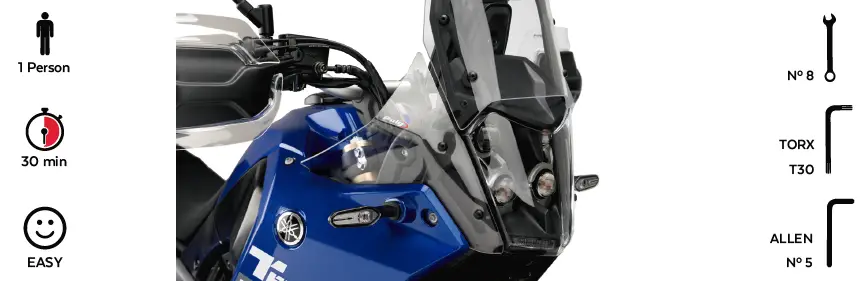

Assembly Difficulty: Easy
Estimated Assembly Time: 30 minutes for 1 person
Product Usage Instructions

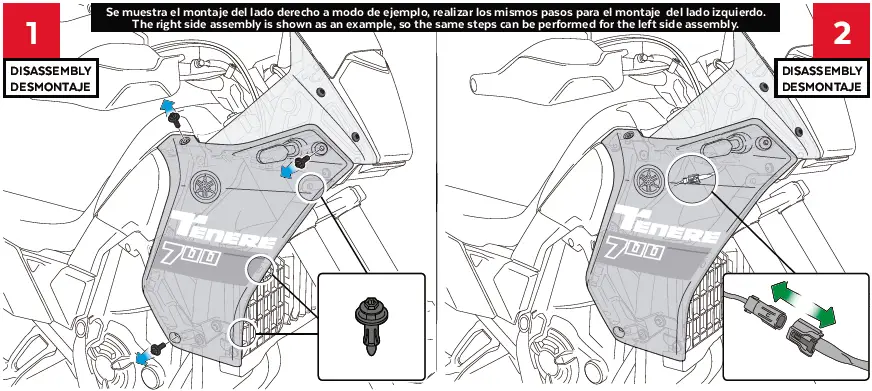

Disassembly
- Start by disassembling the original part (A).
- Some components may already be supplied assembled.
Assembly

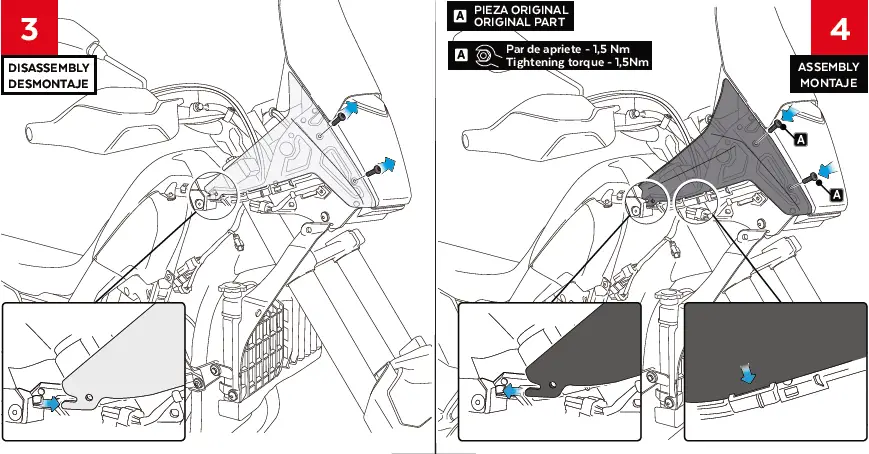

- Tighten the original part (A) with a torque of 1.5 Nm.

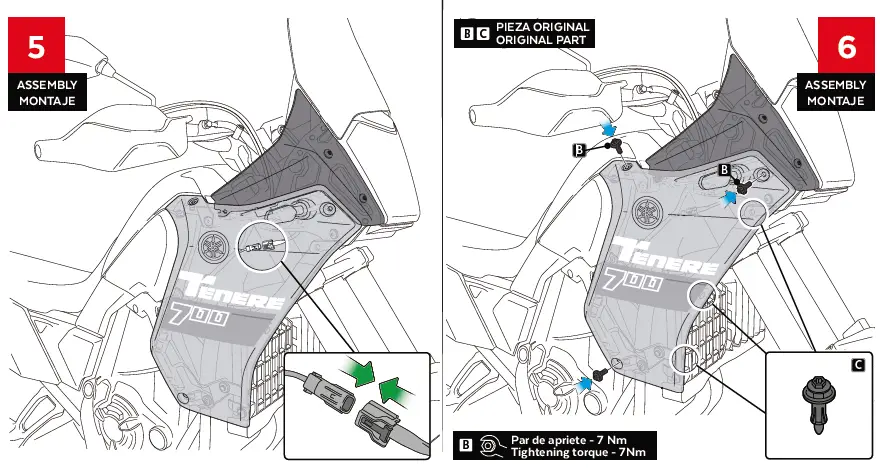

- Proceed with the assembly using parts (B) and (C).
- Tighten parts (B) and (C) with a torque of 7 Nm.
| PART | Description | Torque (Nm) | Quantity | Reference Number |
|---|---|---|---|---|
| 1 | Left deflector | TORX T30 | 1 | 21263W/H/FM3 |
| 2 | Right deflector | TORX T30 | 1 | 21263W/H/FM3 |
Please refer to the illustrations and layout provided by www.ciandisseny.com for visual guidance.
If you have any further questions or need assistance, please contact Puig at: Website: www.puig.tv, www.puigusa.com
Email: [email protected],
[email protected]
YAMAHA TENERE 700 ‘19-
MOUN T IN G INSTRUCTION S
REF 21263 EXTENDED FRONT DEFLECTORS
DESCRIPTION QTY REF
Left deflector 1 21263W/H/FM3
Right deflector 1 21263W/H/FM3
MOUNTING INSTRUCTIONS
Illustrations and layout by: www.ciandisseny.com
