ELECTRONIC DRUM KIT
DD200X
USER MANUAL
INTRODUCTION
Thank you for purchasing the DD200X Electronic Drum Kit. To get the most out of your product, please read this manual carefully.
FEATURES
- Adult sized electronic drum kit.
- Includes 38 drum kits and 44 songs to play along to.
- Perfect your timing with the adjustable metronome.
- Jam with your favourite songs and artists via the aux-in.

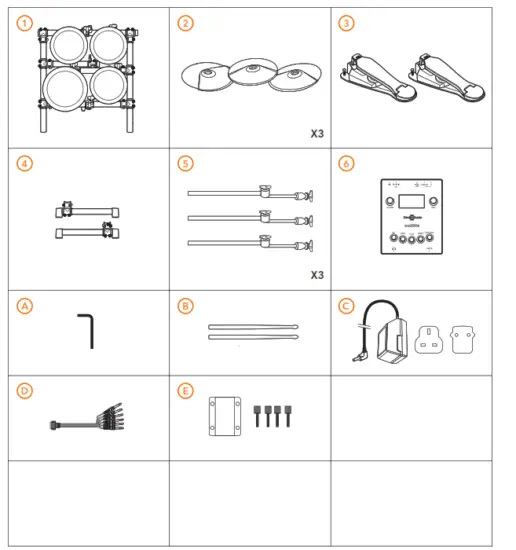

CONTENTS

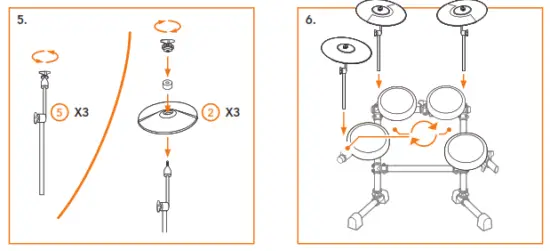

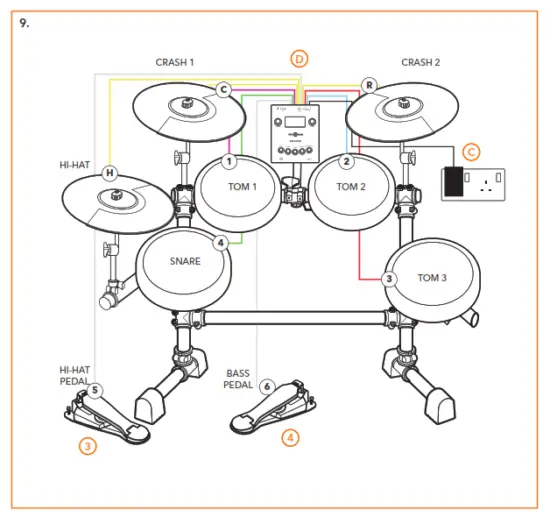

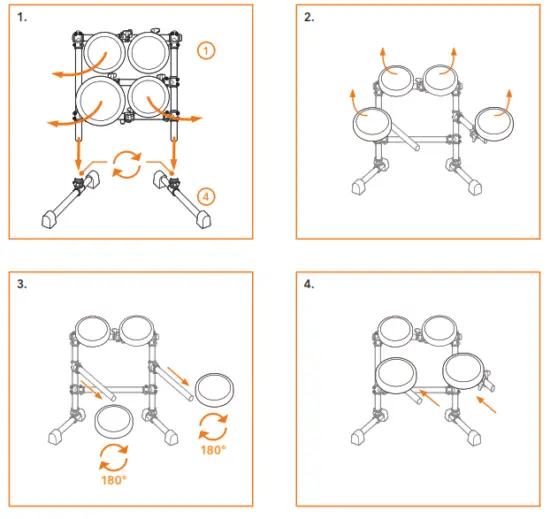

ATTACH THE PARTS

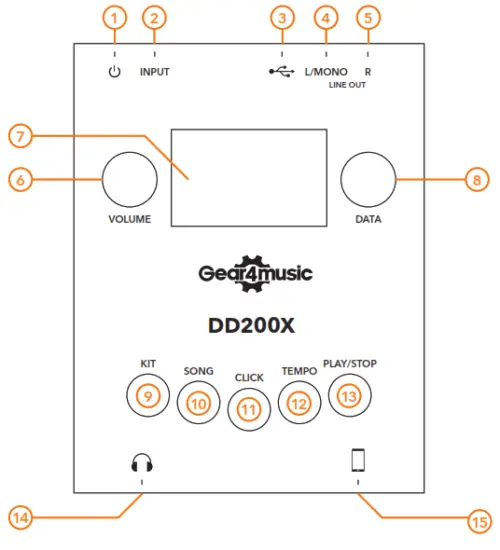

FUNCTIONS
| 1. POWER Use this to switch the DD200X on or off. A power supply needs to be connected to enable the module to work. 2. INPUT Connect the DD200X module to a power source here via the supplied 9V power supply. SERIAL NO.: 3. USB Use this to connect the DD200X to your computer. 4. L/MONO Insert a jack cable here to connect the DD200X to your amplifier, drum monitor, interface or PA system. Please note, that this is not suitable for headphones. 5. R For a stereo output, you’ll need to insert an additional cable into the R jack output. 6. VOLUM Use this wheel to control the overall volume of the DD200X. 7. SCREEN View all module information on this screen. 8. DATA Use this wheel to adjust the settings within the drum kit after being selected by the individual buttons below. 9. KITS Press this button to explore the 38 drum kits on offer. In order to scroll through please rotate the data wheel to select the sound you desire. | 10. SONG |
KIT LIST
| D.01 – Pop1 D.02 – Pop 2 D.03 – Studio 1 D.04 – Studio 2 D.05 – Studio 3 D.06 – Garage D.07 – Jazz D.08 – Indie D.09 – Hard Rock D.10 – Old Rock D.11 – Funky Jazz D.12 – Funky Jazz 2 D.13 – Fusion D.14 – Dance D.15 – Electric | D.16 – Modern D.17 – Latin D.18 – Alternative D.19 – Bubinga D.20 – Samba D.21 – Custom 1 D.22 – Custom 2 D.23 – Pop Live D.24 – Club Dance D.25 – Progress D.26 – GM Standard D.27 – GM Room Set D.28 – GM Power Set D.29 – GM Electric Set D.30 – Percussion 1 D.31 – Percussion 2 |
SONG LIST
| S.01 – Acid Jazz S.02 – Ballad Beat S.03 – Big Band S.04 – Breakbeat S.05 – Cha Cha S.06 – Cool Soul S.07 – Dancey Pop S.08 – Dixie S.09 – Easy Beat S.10 – Easy Rock S.11 – Easy Soul S.12 – Fast Funk S.13 – Folk S.14 – Folk Shuffle S.15 – Funk S.16 – Hard Rock S.17 – Hard Rock 2 S.18 – Hip Hop S.19 – Jazz Dance S.20 – Mambo S.21 – Polka S.22 – Pop Rock | S.23 – Pop Swing S.24 – Pop S.25 – Pop Disco S.26 – Pop Ballad S.27 – Pop Waltz S.28 – R&B Ballad S.29 – Real Soul S.30 – Reggae S.31 – Rock Beat S.32 – Folk Rock S.33 – Salsa S.34 – Samba S.35 – Shuffle S.36 – Slow Beat S.37 – Slow Pop S.38 – Soft Beat S.39 – Soul S.40 – Standard Pop S.41 – Swing S.42 – Techno S.43 – Techno Pop S.44 – Waltz |
RHYTHM LIST
| C.01 – 1/4 Notes C.02 – 1/8 Notes C.03 – Offbeat 1/8 Notes C.04 – 1/8 Note Triplets C.05 – 1/8 Triplet Pattern C.06 – 1/16 Notes | C.07 – Offbeat 1/16 Notes C.08 – 1/16 Note Pattern C.09 – 1/16 Gallop Pattern C.10 – 1/16 Note Pattern with Rest C.11 – 1/16 Note Swing C.12 – 1/16 Note Triplets |
MIDI CHART | ||||
| FUNCTION | TRANSMITTED | RECOGNISED | NOTES | |
| BASIC CHANNEL | DEFAULT CHANGED | 10 x | 1-8 & 10-16 x | |
| MODE | DEFAULT MESSAGE ALTERED | x x n •••••” | Mode 3 x ••••••••• | |
| NOTE NUMBER | TRUE VOICE | 0 – 127 “‘Inn** | 0.127 0 – 127 | |
| VELOCITY | NOTE ON NOTE OFF | 0 – 127 x | 0 – 127 0 – 127 | |
| AFTER TOUCH | KEYS CHANNELS | x x x | x | |
| PITCH BEND | ||||
| CONTROL CHANGE | 0 1 4 5 6 7 10 11 64 65 66 67 71 72 73 74 60 81 90 91 120 121 123 | MX xxX nn xX n lin X X n XXiCitatat | 00000000000000000000000 | Bank Select Modulation Foot Control Portamento Time ata Entry Volume Pan Expression Sustain deal Portamento N/OFF Sostenuto Pedal Soft PedalResonance Release ime Attack Time Cut Off Reverb Program Chorus program Reverb Level Chorus Level All Sound OFF Reset All Controller •1 All Notes OFF •1 |
| PROGRAM CHANGE | x | o | ||
| SYSTEM EXCLUSIVE | x | o | ||
| SYSTEM COMMON | SONG POSITION SONG SELECT TUNE | x x x | x x x | |
| SYSTEM REAL-TIME | CLOCK COMMANDS | x x | x x | |
| AUX MESSAGES | LOCAL ON/OFF ALL NOTES OFF ACTIVE SENSE RESET | x x x x | x x x x | |
SPECIFICATIONS
PADS
Snare Pad …………… 8” Single trigger mesh pad
Tom Pads …………… 8” Single trigger mesh pad
Cymbal Pads ………… Crash, Ride and Hi-Hat single trigger rubber pads
Kick Drum …………..Pedal control MODULE
Preset Kits …………..38
Training Patterns ………44
Controls ……………. Volume, Kit Select, Song Select, Click, Tempo, Adjust, Start/Stop, Data Scroll/Select
DIMENSIONS AND WEIGHTS
Set Up
(W x H x D) ………….. 800 -1100 x 900 -1130 x 470mm Room Space
(W x H x D) …………..1100 x 1130 x750mm >
Weight ……………..9.12kg
UNITED KINGDOM
If you have any more questions about this product, please do not hesitate to contact the
Gear4music Customer Service Team on: +44 (0) 330 365 4444 or [email protected]
