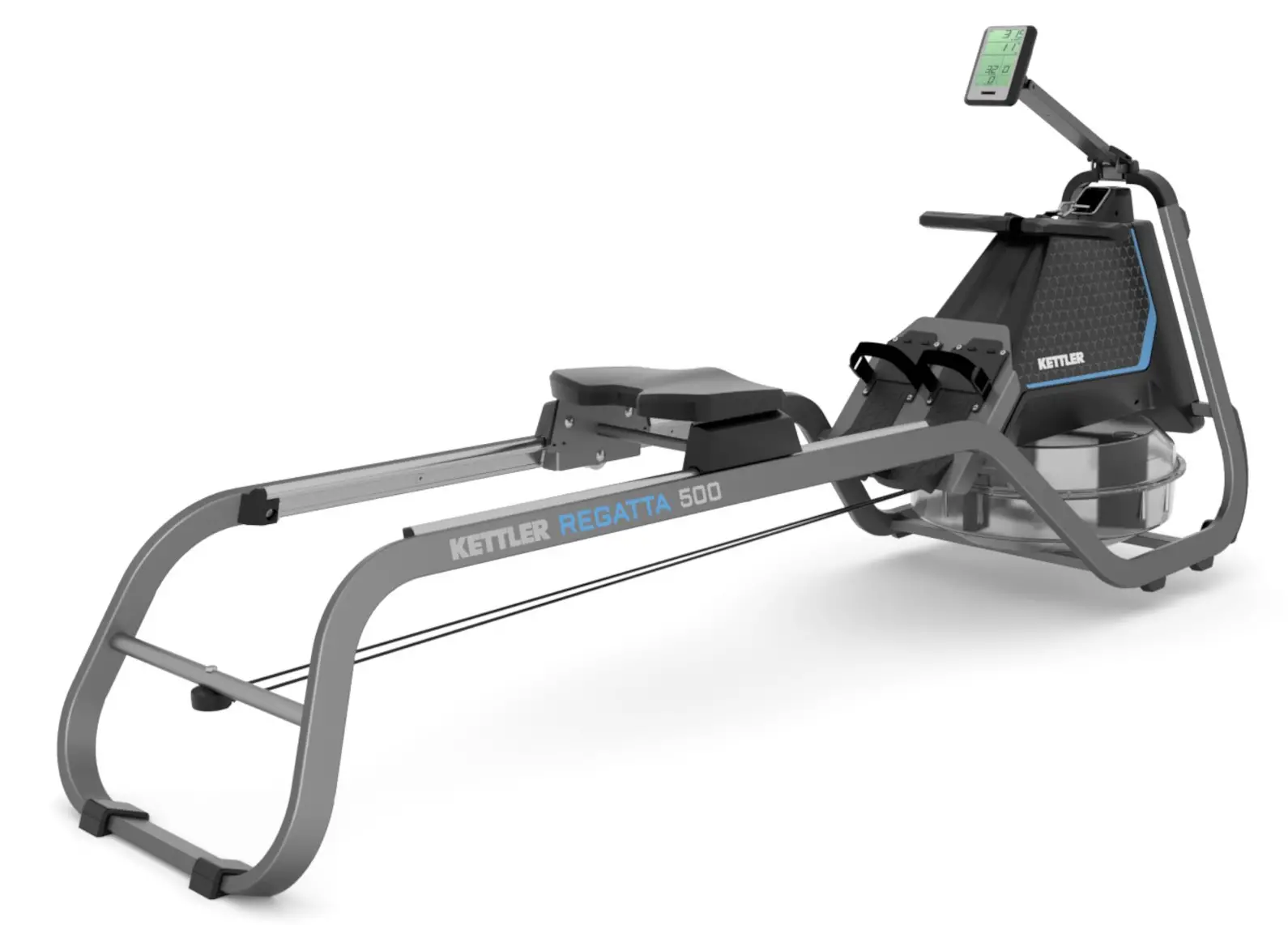

KETTLER REGATTA 500 Rowing Machine
Product Information
The product is the REGATTA 500 I RO1031-100. It is a water rower
with the following specifications:
- Weight: 48 kg
- Dimensions (A x B x C): 2.25m x 0.58m x 0.99m
- Maximum User Weight: 130 kg
- Assembly Time: 30 minutes
Product Usage Instructions
Before starting the assembly process, please read the instructions carefully. You can also download the instructions from the website www.kettlersport.com.
User Information
USER INFORMATION
This section provides safety instructions, information for initial operation and maintenance, as well as computer/training
instructions, handling, and biomechanics.
Electrical Safety
ELECTRICAL SAFETY
WARNING! Danger due to electric current!
Always use the appliance with caution and avoid exposing it to moisture. Follow the VDE guidelines when using an extension cable.
Do not use damaged cables and only use the provided mains adapter.
Initial Water Treatment
Add 1 water treatment tablet with each full tank of water. Only use commercial conditioning tablets specifically designed for WaterRower equipment. Contact a regional dealer to purchase additional chlorine tablets.

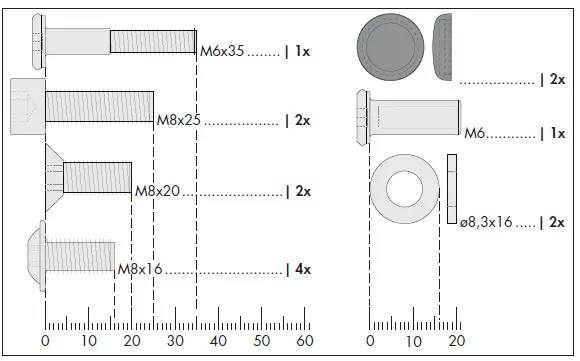

Scope of Delivery
The package includes the following items:
- 1x REGATTA 500 I RO1031-100
- 1x M6x35
- 2x M8x25
- 2x M8x20
- 4x M8x16
- 2x M6
- 1x 07975-500 Coach H2O
- 1x Cl
- 1x SW6
- 1x SW4
- 1x M6x35 M6
- 1x SW4
Please refer to the provided images and labels for proper assembly and usage of the product.
IMPORTANT INFORMATION
Important! Please read these instructions carefully before instal- lation and first use. You will receive important information for your safety as well as for the use and maintenance of the appliance. Keep
these instructions somewhere safe for information purposes or for
maintenance work or ordering replacement parts. Pass these instruc-
tions on with the appliance if the owner of the appliance changes.
This symbol ⚠ indicates an important warning.
These instructions can also be downloaded at www.kettlersport.com
USER INFORMATION
- Caution! Please ensure you observe the instructions in the booklets “Safety Instructions and Instructions for Initial Operation and Maintenance“ 3 and „Computer/training instructions, handling, biomechanics“3
- This symbol
indicates an Allen key. - This symbol
indicates a torque wrench. - This sport appliance corresponds to DIN EN ISO 20957-1:2014, and …
- DIN EN 20957-7:2021, Accuracy HB
indicates an Allen key.
indicates a torque wrench.ELECTRICAL SAFETY
⚠ WARNING! Danger due to electric current!
Electric power is always a potential source of danger. Always use the ap-pliance with the necessary caution.
⚠ Do not expose the appliance to moisture! Protect it from contact with liquids
- The properly installed electrical socket to connect the appliance must be easily accessible.
- Before connecting the plug of the mains adapter/device with the socket, the mains adapter/appliance voltage must be compared to the local volta-ge. If the values do not match, please contact our service team.
- After switching the appliance off, remove the plug from the power supply again.
- Be very careful in ensuring that the cable does not become trapped or a “tripping hazard”.
- Connect the cable with a grounded safety socket. Do not connect via multiple socket strips! When using an extension cable, this must comply with the VDE guidelines.
Do not use damaged cables again and exchange them immediately. Do not use damaged cables again and exchange them immediately. If the mains line is damaged, this must be replaced by the manufacturer, a member of the service team or another qualified specialist to avoid danger. - This symbol
indicates that the appliance is protection class I. - This symbol
indicates that the appliance is protection class II. - This symbol
indicates that the appliance is protection class III. - The appliance may only be used with the mains adapter provided.
indicates that the appliance is protection class I.
indicates that the appliance is protection class II.
indicates that the appliance is protection class III.Initial water treatment
Add 1 water treatment tablet with each full tank of water.
ALWAYS USE ONLY COMMERCIAL CONDITIONING TABLEtS FOR WATERROWER EQUIPMENT.
4 water treatment tablets are sufficient for several years. Contact a regional dealer to purchase additional chlorine tablets.

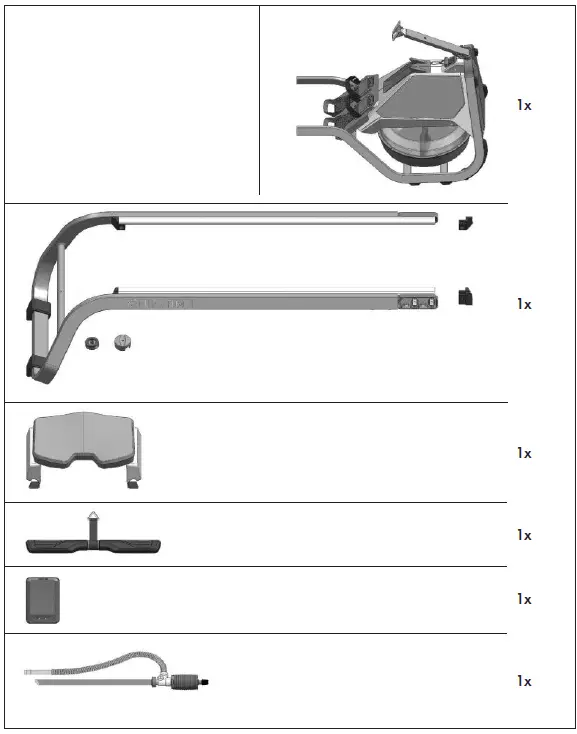

SCOPE OF DELIVERY
LIEFERUMFANG
07975-500 Coach H2O

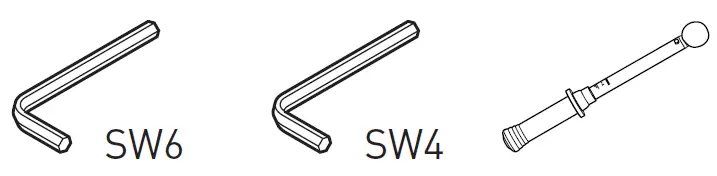

Tools required
– Not included.

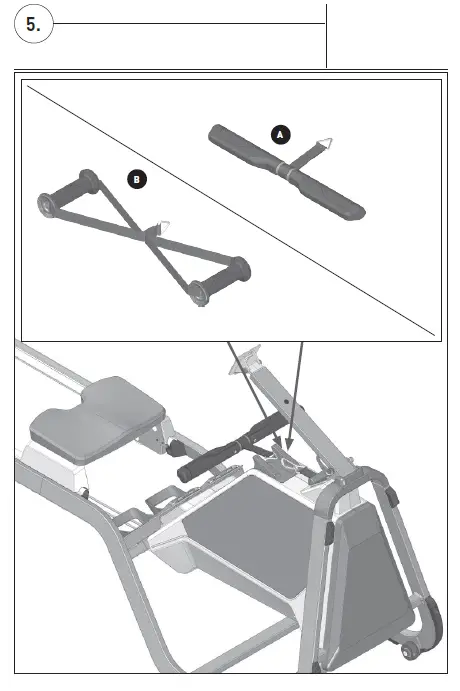

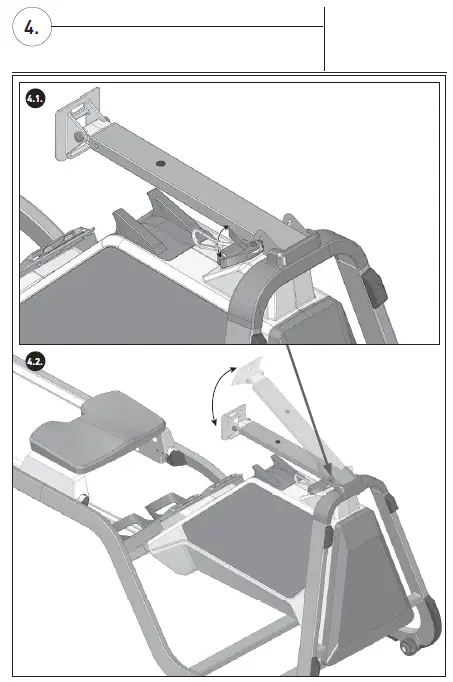

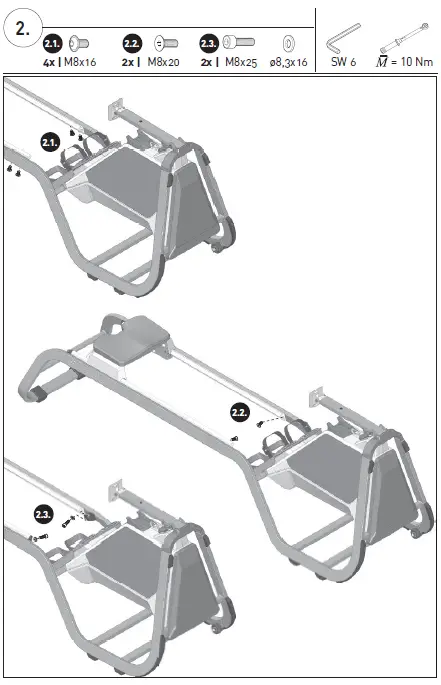

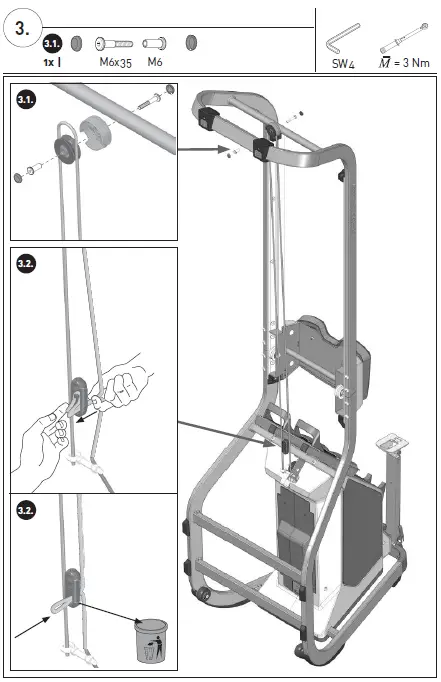

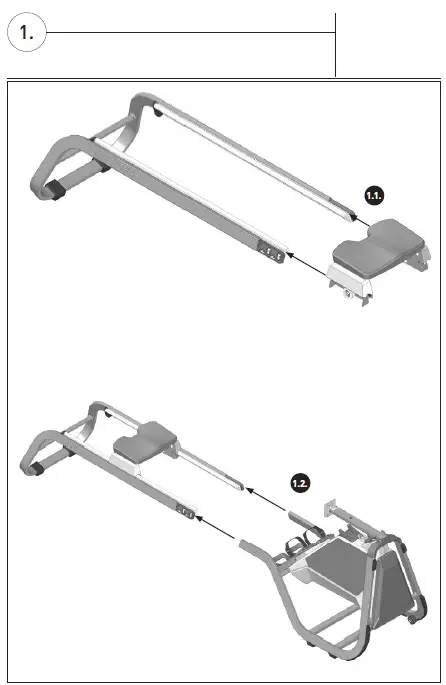

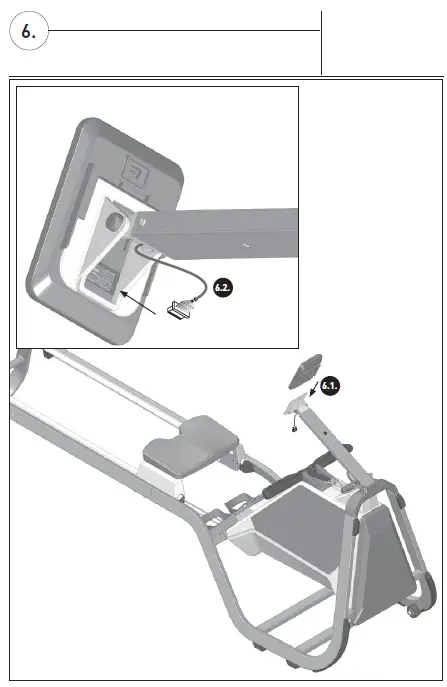

INSTALLATION

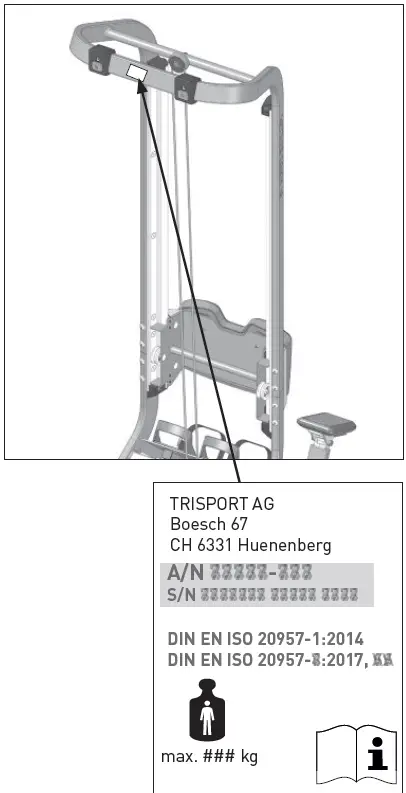

Example Type label – Serial number

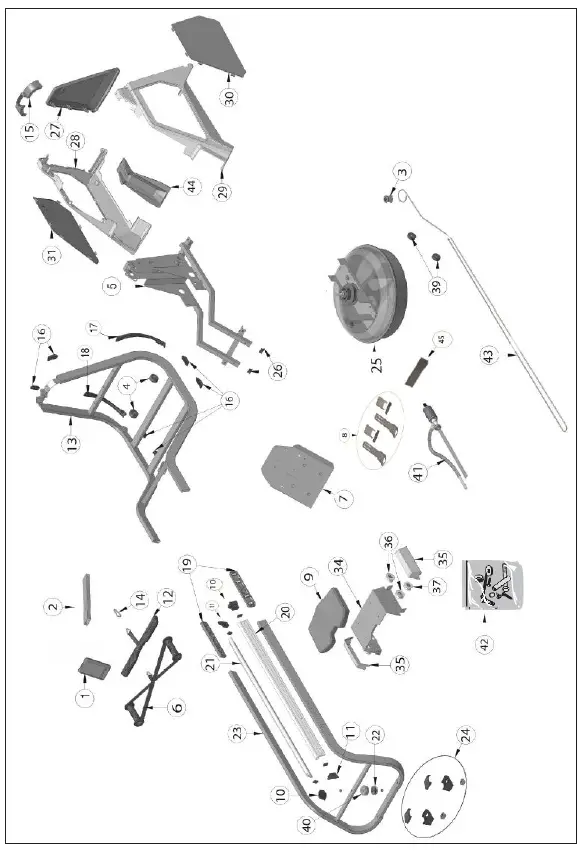

PARTS DESCRIPTION
| RO1031-100
REGATTA 500 | |||
| 1 | 1x | * | 68001890 |
| 2 | 1x | * | 68001892 |
| 3 | 1x | * | 69050010 |
| 4 | 1x | * | 69050008 |
| 5 | 1x | 70001005 | |
| 6 | 1x | * | 69050053 |
| 7 | 1x | 69050029 | |
| 8 | 1x | * | 69050028 |
| 9 | 1x | 69050023 | |
| 10 | 1x | * | 69050016 |
| 11 | 1x | * | 69050017 |
| 12 | 1x | 69050031 | |
| 13 | 1x | 68001893 | |
| 14 | 1x | 69050032 | |
| 15 | 1x | 69050004 | |
| 16 | 1x | * | 69050005 |
| 17 | 1x | * | 69050007 |
| 18 | 1x | 69050006 | |
| 19 | 1x | * | 69050019 |
| 20 | 1x | 69050014 | |
| 21 | 1x | 69050015 | |
| 22 | 1x | 69050009 | |
| 23 | 1x | 69050013 | |
| 24 | 1x | 69050020 | |
| 25 | 1x | 69050055 | |
| 26 | 1x | 69050012 | |
| 27 | 1x | * | 69050037 |
| 28 | 1x | * | 69050034 |
| 29 | 1x | 69050035 | |
| 30 | 1x | 69050038 | |
| 31 | 1x | 69050036 | |
| RO1031-100
REGATTA 500 | |||
| 33 | – | – | |
| 34 | 1x | 69050024 | |
| 35 | 1x | 69050026 | |
| 36 | 1x | 69050025 | |
| 37 | 1x | 69050027 | |
| 38 | – | – | |
| 39 | 1x | 69050022 | |
| 40 | 1x | 69050021 | |
| 41 | 1x | * | 70010002 |
| 42 | 1x | * | 70001003 |
| 43 | 1x | * | 70001004 |
| 44 | 1x | * | 69050054 |
| 45 | 1x | * | 69050051 |
WHO TO USE
KETTLER Sports and Fitness Europe by
TRISPORT AG
BOESCH 67
CH-6331 HUENENBERG
SWITZERLAND
www.kettlersport.com
