Sevenoak Skm-w1 Ultracompact 2.4ghz Wireless Microphone System User Guide

SKM-W1
Ultracompact 2.4GHz Wireless
Microphone System
2.4GHz

Statement

Thank you for purchasing Sevenoak!
Please read this manual carefully before using and strictly operating and store in accordance with the instructions. Please save the manual for future reference. If the user manual can not help you to solve problems, please ask your retailer for further assistance or email us: www.sevenoak.biz.

Cautions

1. Please do not dismantle the outer case.
2. Don’t place this unit close to heat sources such as heater, oven, or other devices that produce heat.
3.  Please do not replace the battery on your own.
4. Only use a soft, dry cloth to clean the product.
5.  When using and storing, please pay attention to dust and moisture.

Introduction

The Sevenoak SKM-W1 is an ultracompact and portable 2.4GHz wireless lavalier microphone system. Used with dierent detachable adapters, it is compatible with multiple devices such as smartphones, tablets, and cameras. The SKM-W1 is ideal for live video streaming, Vlog creation, and other audio-capturing applications.

Features

2.4GHz wireless transmission technology Ideal for live video streaming, Vlog creation, etc Built-in professional microphone Detachable adapter for multi-device compatibility
Mute function & gain control Compact and easy to carry

Packing List

Product Structure

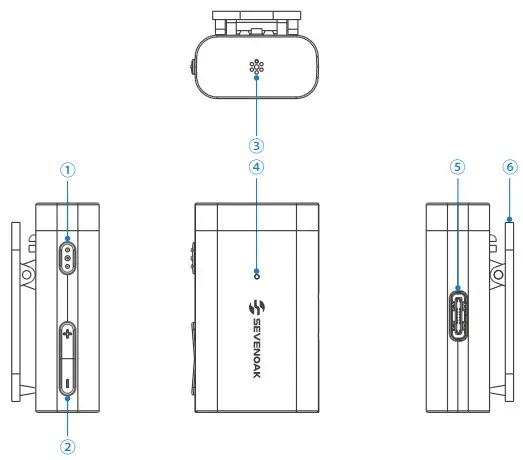

1. SKM-W1 TX
The SKM-W1 TX is an ultracompact and easy-to-use wireless lavalier transmitter. It features the functions of mute and gains control. With a high-quality built-in microphone, it can realize the best possible wireless transmission.

① Power/Mute Button

② +/-Button
Adjusts gain for microphone level input.
The setting is retained even after the power is turned off.
③ Built-in Microphone
④ Indicator

⑤ Type-C Charging Port
⑥ Belt Clip

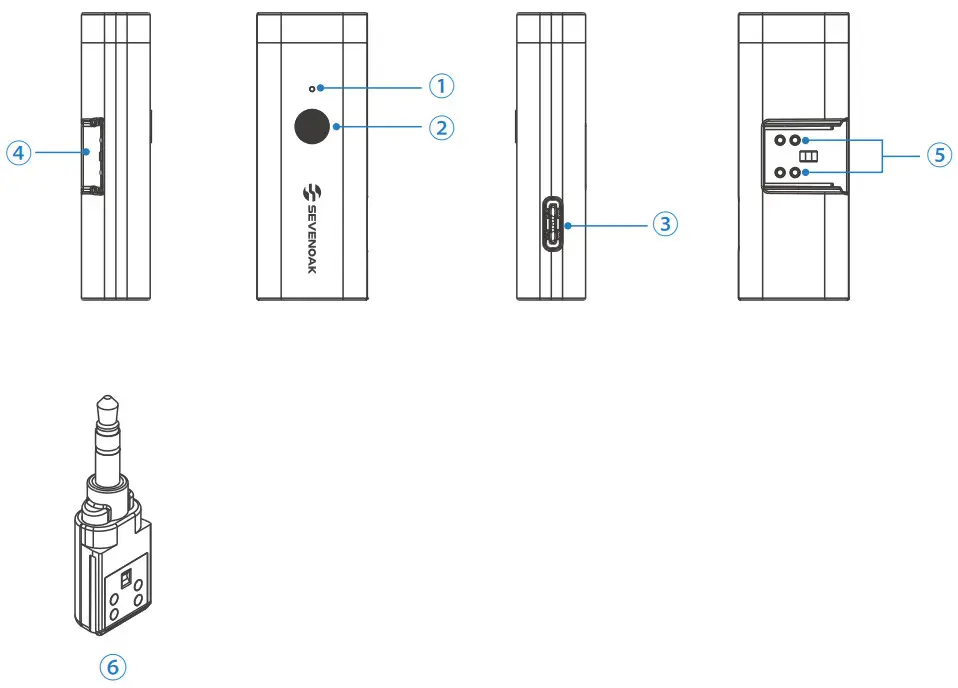

2. SKM-W1 RX
SKM-W1 RX is an ultracompact wireless receiver. Used with different detachable adapters, it is compatible with multiple devices such as smartphones and cameras.

① Indicator

② Power Button
Press and hold the button for 3 seconds to turn on/off the SKM-W1 RX.
③ Type-C Charging Port
④ Adapter Slot
⑤ Contacts
⑥ 3.5mm TRS Adapter
For DSLR, camcorder, recorder, and other devices with a 3.5mm TRS jack.

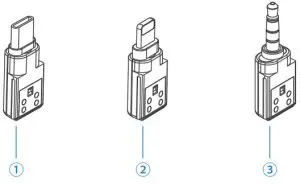

Optional Accessories

① TYPE-C Adapter
For most Android phones and other Type-C devices.
② MFi Certificated Lightning Adapter
For iPhone, iPad, iPod.
③ 3.5mm TRRS Adapter
For smartphones, laptops, tablets,s and other devices with a 3.5mm TRRS jack.
Note: Lightning adapter, 3.5mm TRRS adapter, and Type-C adapter are not included, please purchase separately if needed.

Accessories Installation

Operation Guide

1. Press and hold the Power button for 3 seconds to turn on the transmitter TX.
2. Insert the right adapter into the receiver RX according to your needs (Please refer to “Accessories Installation” for detailed operation). Press and hold the Power button for
   3 seconds to turn on the receiver RX.
3. Transmitter and Receiver pairing Before leaving the factory, the system has been paired successfully. If they are disconnected or unpaired, please see below for pairing instructions:
   ① With the system powered on, double-click the Power button of the receiver. The receiver indicator will flash rapidly in blue.
   ② When the receiver indicator flashes rapidly in blue, double-click the Power button of the transmitter to enter pairing mode. When paired successfully, the indicators will be in a solidly blue state.
4. Connect the receiver to your camera.
5. You are ready to record.

Note: Due to the 2.4GHz wireless frequency, the signal can be easily attenuated. Please try to avoid obstacles, such as walls and buildings, and avoid close proximity to devices with 2.4GHz signals, such as high-power wifi antennas, smartphones with wifi in use, radios, etc.
