Saramonic Blink100 Ultracompact 2.4ghz Dual Channel Wireless Microphone System User Manual

Ultracompact 2.4GHz Dual-Channel
Wireless Microphone System
Blink100
User Manual1F0300400312

Statement

Please read this manual carefully before using it and strictly operate and store it in accordance with the instructions. Please save the manual for your future reference.
If you need further assistance than the user manual, please consult  your retailer for help or email us: [email protected]

Cautions

1. The disintegration of this device by non-professionals is strictly prohibited.
2. Please keep it away from heat sources such as heaters or ovens.
3. Do not remove the battery without professionals’ help.
4. Please clean the device with only a soft, dry cloth.
5. When using and storing, please pay attention to dust and moisture.
6. For the best pick-up pattern, do not hold your hand against the microphone capsule cover.

Available Kits

General Introduction

Saramonic Blink100 is an ultracompact and portable 2.4GHz wireless microphone system, compatible with smartphones, tablets, DSLR cameras, and camcorders. It features automatic pairing and selectable noise cancellation, delivering broadcast-quality sound. Blink100 is ideal for live streaming, vlogging, mobile journalism, and more.

Product Structure

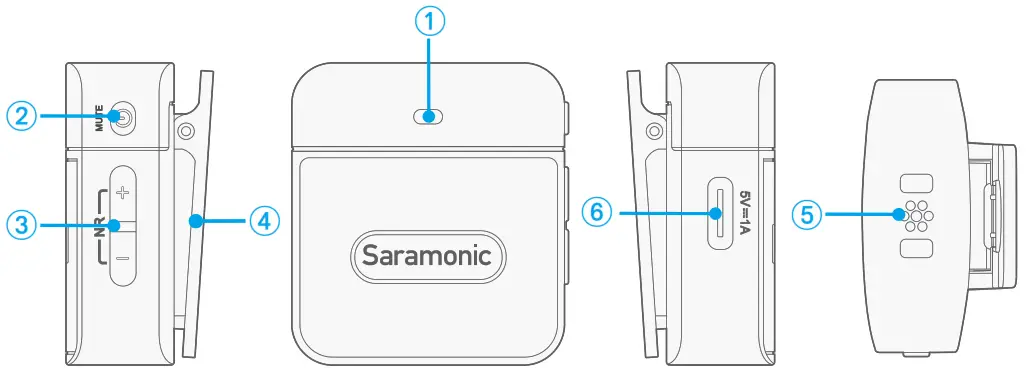

Wireless Transmitter Blink1 00 TX

① Status indicator

Note: Please charge the transmitter in time when in a low battery status, or it will auto shut off within 10 mins.
2. Power/Mute button

3.  + -/NR button

• Press the +/- button to adjust mic gain. (The setting is retained even after the power is turned off.)
• Press and hold or continuously press “+”/ “-” to adjust mic gain to maximum/ minimum, the indicator flashes blue twice (flashes green twice in noise cancellation mode).
• Press the NR button (press both “+” and “-” buttons at the same time) to turn on/off noise cancellation. (Default setting is off.)

4. Belt clip ® Built-in microphone
5. USB-C charging port (DC 5V) Use the supplied
6. USB-C charging cable to charge the unit.

Wireless Receiver Blink 100 RX

① Status indicator

Note: Please charge the transmitter in time when in a low battery status, or it will auto shut off within 10 mins.
② Power/Mute button

③ + -/NR button

• Press the +/- button to adjust mic gain. (The setting is retained even after the power is turned off.)
• Press and hold or continuously press “+”/ “-” to adjust mic gain to maximum/ minimum, the indicator flashes blue twice (flashes green twice in noise cancellation mode).
• Press the NR button (press both “+” and “-” buttons at the same time) to turn on/off noise cancellation. (Default setting is off.)

④ Belt clip
⑤ Built-in microphone
⑥ USB-C charging port (DC 5V)
Use the supplied USB-C charging cable to charge the unit.

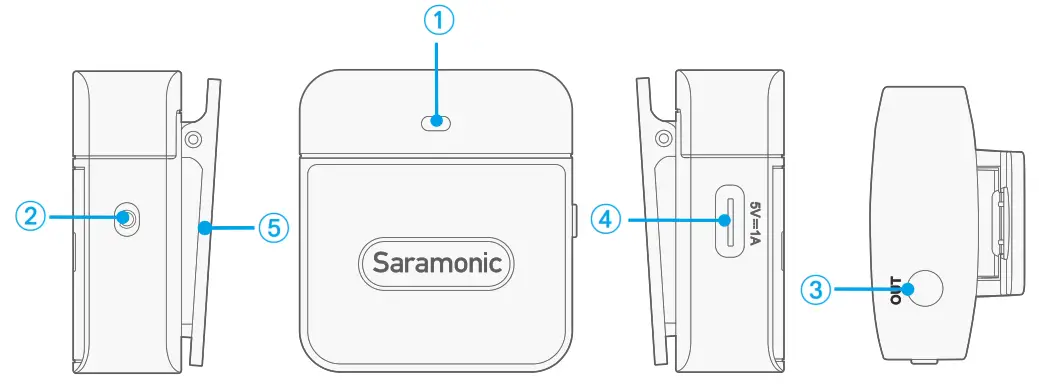

Wireless Receiver Blink100 RX

① Status indicator

Note: Please charge the receiver in time when in a low battery status, or it will auto shut off within 10 mins.

② Power button
Press and hold the power button for 2s to turn it on/ off.
③ LINE OUT jack
Connect the Blink100 RX to a smartphone, tablet, camera, recorder, or mixer with the supplied output cables.
④ USB-C charging port (DC 5V)
Use the supplied USB-C charging cable to charge the unit.
⑤ Belt clip

How to use
For the Blink100 B1/B2 kit

1. Press and hold the power button for 2 seconds to turn on the transmitter/receiver.
2. The transmitter and receiver will be successfully paired within 10s.
3. You are ready to record.

Note: Due to the 2.4GHz wireless frequency, the signal can be easily attenuated. Please try to avoid obstacles, such as walls and buildings, and avoid close proximity to devices with 2.4GHz signals, such as high-power Wi-Fi antennas, radios, etc.

Specifications

Packing list

Blink100 B1
Blink100 TX Transmitter ×1
Blink100 RX Receiver ×1
3.5mm TRS to TRS Output Cable for Cameras ×1
3.5mm TRS to TRRS Output Cable for Smartphones ×1
USB-C Charging Cable ×2
Fur Windshield ×1

Blink100 B2
Blink100 TX Transmitter ×2
Blink100 RX Receiver ×1
3.5mm TRS to TRS Output Cable for Cameras ×1
3.5mm TRS to TRRS Output Cable for Smartphones ×1
USB-C Charging Cable ×3
Fur Windshield ×2

 http://www.jiayz.com/AppDownloadQR/SmartRecorderQRPhone.html
For a better recording experience, the application SmartRecorder is recommended. http://weixin.qq.com/r/ikk1LQXEelgFrUFO9xyY
Scan the QR code and follow us！

FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

ISEDC Warning
This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

The device is in compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.
