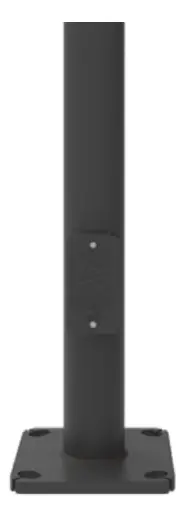

LSI 4RP Round Straight Poles

FEATURES & SPECIFICATIONS]

Pole Shaft

  • Steel round poles are 4” or 5” in diameter
  • Pole shaft is electro-welded ASTM-A500 Grade C Steel Tubing with a minimum yield strength of 46,000 psi.
  • On Tenon Mount steel poles, tenon is high strength pipe. Tenon N option is 2-3/8” O.D. x 4-3/4” tall. Tenon 4N option is 4” O.D. x 4-7/8” tall.

Hand-Hole

  • Standard hand-hole location is 12” above pole base.
  • Poles 18’ and above have a 3” x 6” reinforced hand-hole. Shorter poles have a2” x 4” non reinforced hand-hole.

Base

  • Pole base is ASTM-A36 hot-rolled steel plate with a minimum yield strength of 36,000 psi.
  • Two-piece square base cover is optional. Decorative base cover is also available.

Anchor Bolts

  • Poles are furnished with anchor bolts featuring zinc-plated double nuts and washers. Galvanized anchor bolts are optional.
  • Anchor Bolts conform to ASTM F 1554-07a Grade 55 with a minimum yield strength of 55,000 PSI.

Ground Lug

  • Ground lug is standard.

Duplex Receptacle

  • Weatherproof duplex receptacle is optional.

Ground Fault Circuit Interrupter

• Self-testing ground fault circuit interrupter is optional.

Finishes

  • Every pole is provided with the DuraGrip® Protection System and a 5-year limited warranty:
  • When the top-of-the line DuraGrip Plus Protection System is selected, in addition to the DuraGrip Protection System, a nonporous, automotive-grade corrosion coating is applied to the lower portion of the pole interior sealing and further protecting it from corrosion. This option extends the limited warranty to 7 years.

Determining The Luminaire/Pole Combination For Your Application:

  • Select luminaire from luminaire ordering information.
  • Select bracket configuration if required
  • Determine EPA value from luminaire/ bracket EPA chart
  • Select Pole Height
  • Select MPH to match wind speed in the application area (See windspeed maps).
  • Confirm pole EPA equal to or exceeding value of luminaire/bracket EPA
  • Consult factory for special wind load requirements and banner brackets.

Pole Vibration Damper

  • A pole vibration damper is recommended in open terrain areas of the country where low steady state winds are common.
  • Non-tapered poles and lightly loaded poles are more susceptible to destructive vibration if a damper is not installed.

Listings

  • UL Listed
  •  BAA/TAA Compliant

ORDERING GUIDE

TYPICAL ORDER EXAMPLE:  4RPU B3 S07G 24 S PLP DGP

Pole Series
Mounting MethodMaterialHeight4Mounting ConfigurationPole FinishOptions
4RP – 4” Diameter Round Straight Pole (New Build)

5RP – 5” Diameter Round Straight Pole (New Build)

4RPU – 4” Diameter Round Straight Pole (Retrofit)

5RPU – 5” Diameter Round Straight Pole (Retrofit)

Bolt-On Mount1 – See pole selection guide for patterns and fixture matches.

B5 – 5” Traditional Drilling Pattern B3 – 3” Reduced Drilling Pattern B2 – 2” Reduced Drilling Pattern

T – Tenon Mount – See pole selection guide for tenon and fixture/bracket matches.
I – No Mounting Holes1 – Use with: BKA-IFM4 – Flush Mount Adapter7
Greenlee Lifestyle CH Mounting Style
Enterprise, Lexington, Constitution PT Single Mounting2

S07G – 07 Ga. Steel (5RP/5RPU Only) S10G – 10 Ga. Steel (4RP/4RPU Only) S11G – 11 Ga. Steel (5RP/5RPU Only)8’

10’

12’

14’

15’

16’

17’

17’ 6”

18’

20’

22’

22’ 6”

24’

25’

26’

27’

28’

30’

S – Single/Parallel D180 – Double D90 – Double DN90 – Double T90 – Triple TN120 – Triple Q90 – Quad QN90 – Quad

N – Tenon Mount (Standard Tenon size is 2-3/8” O.D.)8

4N – Tenon Mount (5RPT only. For 4” poles only, use 4RPI)5

4N-6 – Tenon Mount (5RPT only. For 4” poles use 4RPI)

BRZ – Bronze

BLK – Black

PLP – Platinum Plus

WHT – White

SVG – Satin Verde Green

GPT – Graphite

MSV – Metallic Silver

BZA – Alternate Bronze

GA – Galvanized Anchor Bolts

SF – Single Flood3

DF – Double Flood3

DGP – DuraGrip® Plus LAB – Less Anchor Bolts CRXX – Conduit Raceway4

Accessory Ordering Information

DescriptionOrder NumberDescription                                                                                                                                                                                       Order Number
4″ SRBC Square Base Cover158450CLRMH3 – Mounting Hole Plugs for use with 3” reduced drill pattern (3 sets of 3 plugs)  681126
5″ SRBC Square Base Cover158451CLRMH2 – Mounting Hole Plugs for use with 2” reduced drill pattern (3 sets of 3 plugs)  725841
4″ /5” GBC Decorative Base Cover483859CLRBB – Banner Brackets                                                                                                                          Consult Factory for

EPA calculations

ER2 – Weatherproof Duplex Receptacle (Poles below 18’)122557CLR
ER2 – Weatherproof Duplex Receptacle for Reinforced Hand-hole (Poles 18′ and above)122566CLR
GFI – Ground Fault Circuit Interrupter (Poles below 18’)122558CLR
GFI – Ground Fault Circuit Interrupter for Reinforced Hand-hole (Poles 18’ and above)22567CLR
MH5 – Mounting Hole Plugs for use with 5” traditional drill pattern (3 set of 3 plugs)132336

FOOTNOTES:

  1. See Area Light Brackets – 3” Reduced Drill Pattern and Area Light Brackets – 5” Traditional Drill Pattern Spec Sheets.
  2. For Enterprise, Lexington, and Constitution PT mounting configuration styles, see Tenon Mount (4N) and Lifestyle Slipfit Pole Series.
  3. Standard Flat black pole cap provided. Domed Greenlee pole cap will ship with SA4 and SA5 Enterprise and Lexington fixtures, SA Lifestyle Fixtures, BK MPT BO, and UCL Brackets.
  4. Pole heights will have a +/- 1/2” tolerance. Max height for 4RP S10G is 24’. Max height of the 5RP S11G is 26’.
  5. For Enterprise and Lexington D180 or other mounting configuration styles using BK MPT BO accessories order with B3 or B5 drill pattern.
  6. See Flood Lighting Brackets section for choice of FBO Brackets.
  7. Only use with 4 inch pole.
  8. Use with BKA-IFM4.

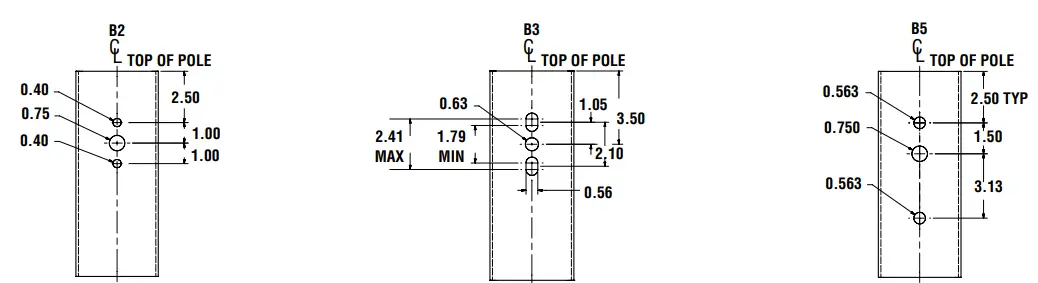

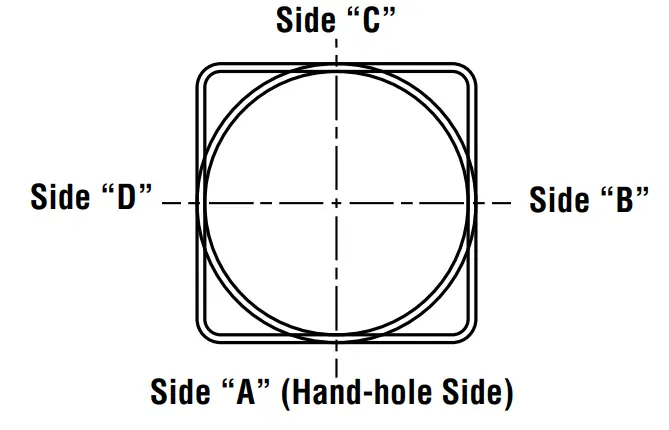

DRILLING LOCATIONS

SidesABCD
Hand-holeX
SingleX
D180 X X
D90X  X
DN901
T90XX X
TN1202
Q90XXXX
QN903
Single FBOX
Double FBO X X

NOTES:

  1. Two locations will be 45° to the left and right of Side A.
  2. Other two locations will be 120° to the left and right of Side A.
  3.  Two locations will be 45° to the left and right of Side A and two locations will be 135° to the left and right of Side A.
    Consult factory for custom variations. Standard SF and DF pole preparations are located 3/4 of the height of the pole from the base, except on 20’ poles. Maximum height for SF and DF pole preparations on 20’ poles is 13’ from the base.

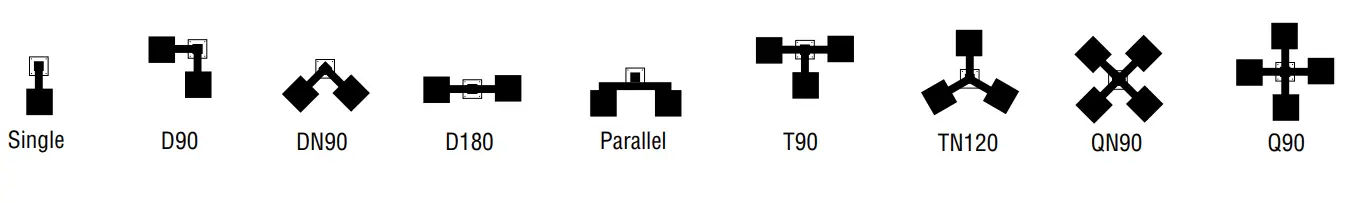

FIXTURE CONFIGURATIONS

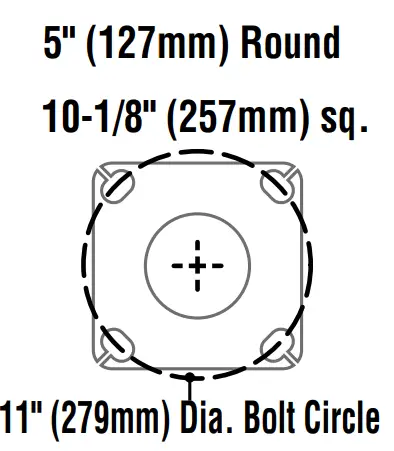

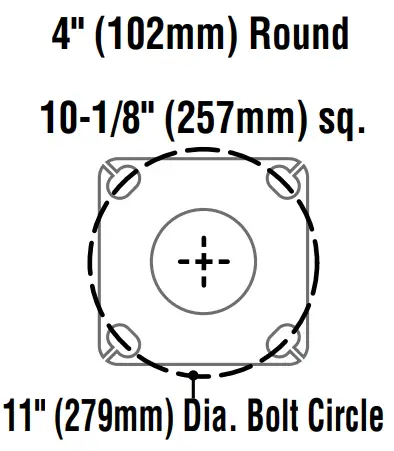

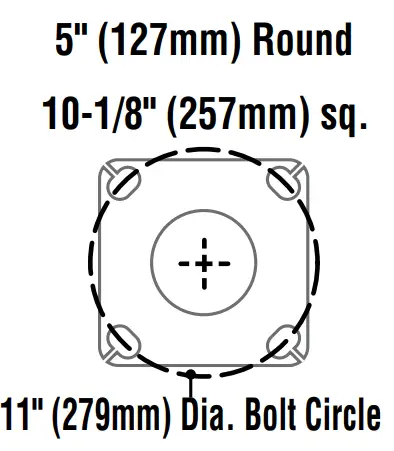

BOLT CIRCLE



Bolt Circle DesignatorLLM


Bolt Circle

Slotted 11″ (279mm)Slotted 11″ (279mm)Slotted 11″ (279mm)
Anchor Bolt Size3/4″ x 30″ (19mm x 762mm)3/4″ x 30″

(19mm x 762mm)

1″ x 36″

(25mm x 914mm)

Anchor Bolt Projection3-1/4″ (83mm)3-1/4″

(83mm)

4″   (102mm)
Base Plate Opening for Wireway Entry3-5/8″ (92mm)4-3/4″ (121mm)4-5/8″ (117mm)
Base Plate Dimensions10-1/8″ sq. x 3/4″ thk. (257mm x 19mm)10-1/8″ sq. x 3/4″ thk. (257mm x 19mm)10-1/8″ sq. x 1″ thk. (257mm x 25mm)
Pole Gauge10117

Note: Base plate illustrations may change without notice. Do not use for setting anchor bolts. Consult factory for the appropriate anchor bolt template.



Bolt Circle DesignatorKPR


Bolt Circle

Slotted

7″ – 11″ (178mm-279mm)

Slotted

7-1/2″ – 13″ (191mm-330mm)

Slotted

8″ – 13″ (203mm-330mm)

Anchor Bolt Size3/4″ x 30″

(19mm x 762mm)

3/4″ x 30″

(19mm x 762mm)

1″ x 36″

(25mm x 914mm)

Anchor Bolt Projection3-1/4″

(83mm)

3-1/4″

(83mm)

4″   (102mm)
Base Plate Opening for Wireway Entry4-1/8″ (105mm)5-1/8″ (130mm)5-1/8″ (130mm)
Base Plate Dimensions10″ sq. x 3/4″ thk. (254mm x 19mm)11-1/4″ sq. x 3/4″ thk. (286mm x 19mm)11-3/4″ sq. x 1″ thk. (298mm x 25mm)
Pole Gauge10117

Note: Base plate illustrations may change without notice. Do not use for setting anchor bolts. Consult factory for the appropriate anchor bolt template.

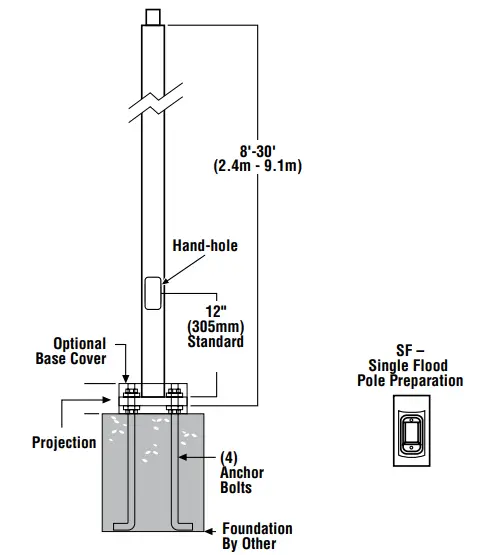

PRODUCT DIMENSIONS

RPT –
N = 2-3/8″(60mm) O.D. x 4-3/4″(121mm) Tenon
4N = 4″(102mm) O.D. x 4-7/8″(124mm) Tenon
4N6 = 4″(102mm) O.D. x 6-3/8″(162mm) Tenon

SHIPPING WEIGHTS
4″(102mm) Dia. 10 Ga. is approximately6.0 lbs./ft.
5″(127mm) Dia. 11 Ga. is approximately7.0 lbs./ft.
5″(127mm) Dia. 07 Ga. is approximately10.0 lbs./ft.
Anchor Bolts (3/4” x 30”)(19mm x 762mm)15 lbs.(7kg)/set
Anchor Bolts (1” x 36”)(125mm x 914mm)30 lbs.(14kg)/set

Bolt-On Mount 2-Bolt Pattern

WIND SPEED

EPA Information
All LSI Industries’ poles are guaranteed to meet the EPA requirements listed. LSI Industries is not responsible if a pole order has a lower EPA rating than the indicated wind-loading zone where the pole will be located.
CAUTION: This guarantee does not apply if the pole/bracket/fixture combination is used to support any other items such as flags, pennants, or signs, which would add stress to the pole. LSI Industries cannot accept responsibility for harm or damage caused in these situations.
NOTE: Pole calculations include a 1.3 gust factor over steady wind velocity. Example: poles designed to withstand 80 MPH steady wind will withstand gusts to 104 MPH. EPAs are for locations 100 miles away from hurricane ocean lines. Consult LSI for other areas. Note: Hurricane ocean lines are the Atlantic and Gulf of Mexico coastal areas. For applications in Florida or Canada, consult factory.

Use ONLY with “Wind Speed Map for ASCE 7-10



POLE1

Mtg. Height Length

(ft)



Wall Thick (ga)

BOLT CIRCLEEPA


Designator

Dia. (in)Anchor bolt Dia {in}

110 MPH



115 MPH



120 MPH



130 MPH



140 MPH



150 MPH



160 MPH



170 MPH



180 MPH

4” x 10-ga x 14’1410L110.756.05.24.73.93.22.72.32.01.7
4” x 10-ga x 16’1610L110.754.33.73.22.62.11.81.41.21.0
4” x 10-ga x 18’1810L110.757.76.86.05.04.23.53.02.52.2
4” x 10-ga x 20’2010L110.756.05.24.63.73.12.52.11.81.5
4” x 10-ga x 22’2210L110.754.63.93.32.62.11.71.41.10.9
4” x 10-ga x 24’2410L110.753.42.72.21.71.31.00.70.5n/a
5” x 11-ga x 16’1611L110.758.77.97.26.05.04.33.73.22.8
5” x 11-ga x 18’1811L110.7512.211.110.18.57.26.15.34.64.0
5” x 11-ga x 20’2011L110.7510.09.18.26.85.74.94.23.63.1
5” x 11-ga x 22’2211L110.758.17.36.65.54.53.83.22.82.4
5” x 11-ga x 24’2411L110.756.55.95.34.33.52.92.42.01.7
5” x 11-ga x 26’2611L110.755.24.64.13.22.62.11.71.41.1
5” x 7-ga x 18’187M111.0019.717.916.413.811.710.18.87.76.8
5” x 7-ga x 20’207M111.0016.515.013.711.59.88.47.36.35.6
5” x 7-ga x 22’227M111.0014.012.711.59.68.17.06.05.24.6
5” x 7-ga x 24’247M111.0011.810.69.68.06.85.74.94.23.7
5” x 7-ga x 26’267M111.009.98.98.06.75.64.74.03.42.9
5” x 7-ga x 28’287M111.008.37.46.75.44.53.73.12.72.3
5” x 7-ga x 30’307M111.006.86.15.44.43.62.92.42.01.7

All LSI Industries’ poles are guaranteed to meet the EPA requirements listed. LSI Industries is not responsible if a pole order has a lower EPA rating than the indicated wind-loading zone where the pole will be located.
CAUTION: This guarantee does not apply if the pole/bracket/fixture combination is used to support any other items such as flags, pennants, or signs, which would add stress to the pole. LSI
Industries cannot accept responsibility for harm or damage caused in these situations.
Note:
1- Poles shorter than these listed here in for each gauge have EPA rating equal to or greater than what is provided in this table. To Confirm EPA ratings on shorter poles, contact LSI Industries.
