2x LED LIGHTED SOLDERING AND CRAFT MAGNIFIER
GN-88
Instructions for use:
Installing Batteries

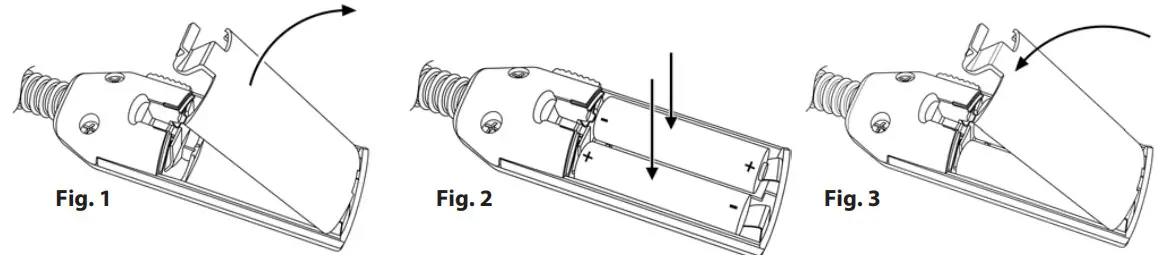

Pull open battery door (Fig. 1). Insert 2 AA batteries as shown in Fig. 2. Make sure to follow polarity indicators marked inside the battery compartment. Replace the battery door (Fig. 3).
Warning: Use only alkaline batteries. Mixing old and new, different brands or types within brands may cause batteries to leak, overheat or explode. Keep away from fire or excessive heat. Inspect batteries for corrosion or leakage. Insert in the direction indicated. Rechargeable batteries not recommended.
Attaching Flexible Arms

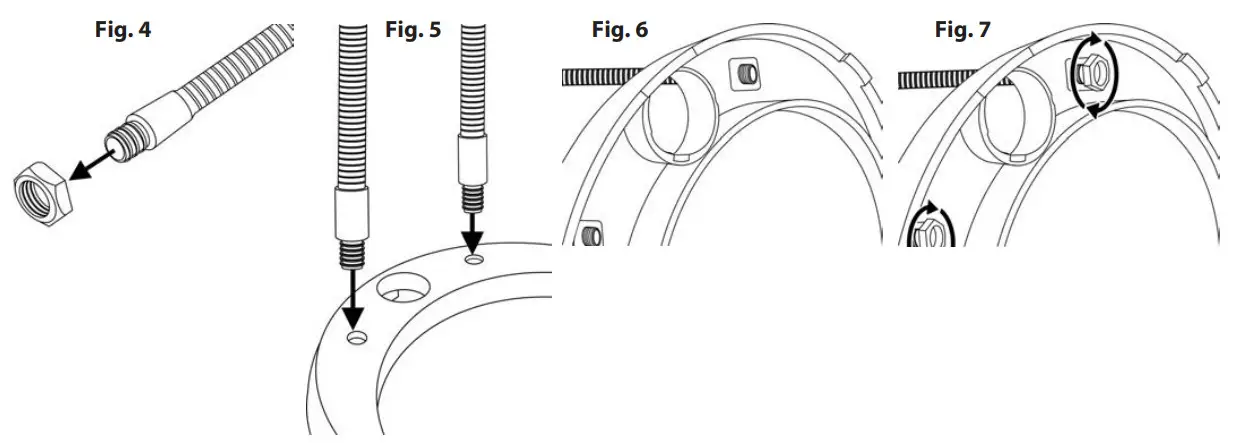

Locate flexible metal arms and remove nuts from ends (Fig. 4). Insert ends of metal arms into holes in U shaped base (Fig. 5-6). Reattach nuts to secure arms to base (Fig. 7).
To Use Hands-Free

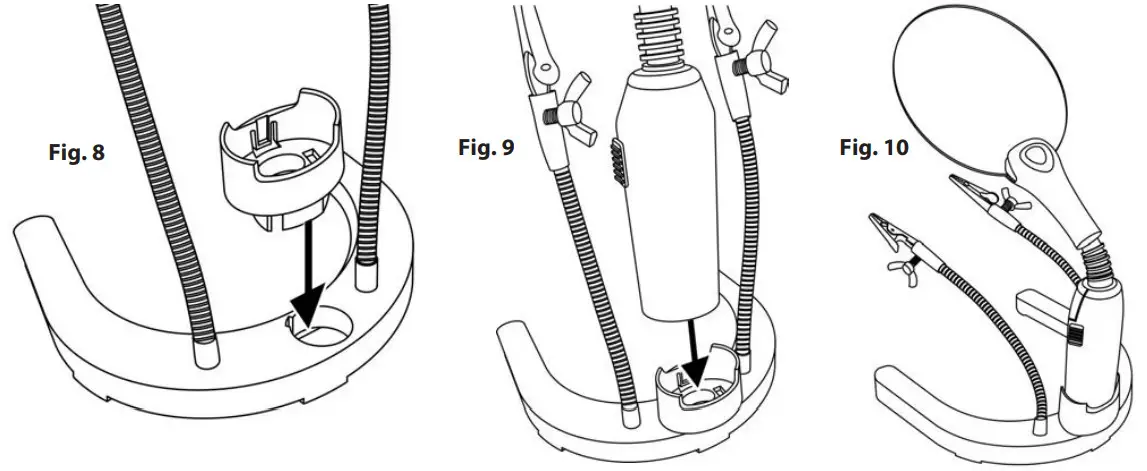

Snap adapter into the base. Please note that the adapter is “keyed” to fit only one way (Fig. 8). Place magnifier handles into adapter (Fig. 9). It is also keyed and will easily “click-lock” into the base when correctly inserted.
Adjust flexible arms and position lens as needed (Fig. 10).
To Adjust Alligator Clips

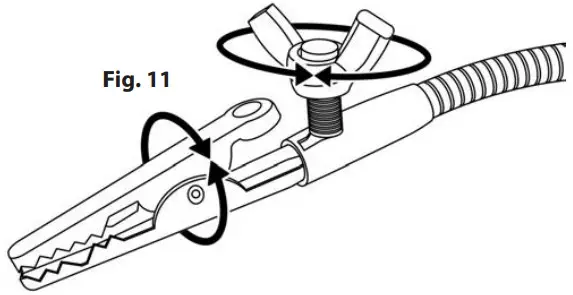

Loosen wing nuts to adjust position of alligator clips as desired (Fig. 11). Tighten wing nuts to lock into place.
Using Alligator Clips
Pinch to open each alligator clip (Fig. 12) and clamp onto the viewing subject (Fig. 13). Position arms as needed to view the subject under the lens (Fig. 14).
To Activate LED Light

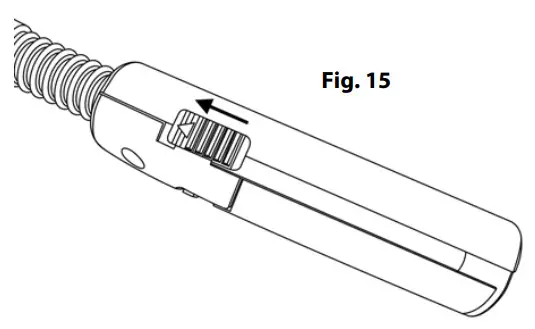

To turn light on, slide switch (located on side of magnifier handle) forward (Fig. 15).
To Remove Magnifier From Base

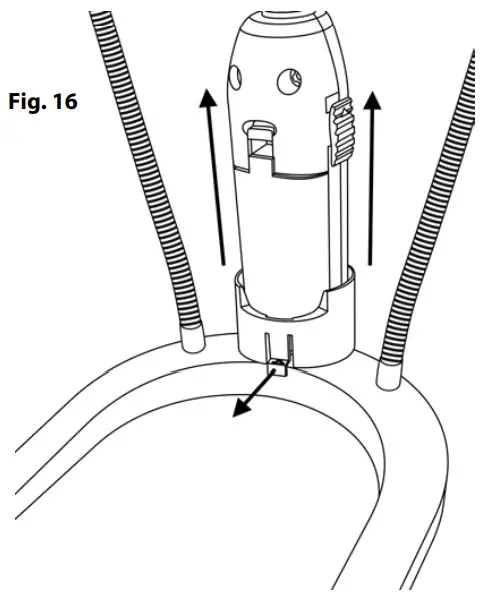

Lift lock tab outward and lift magnifier from the base (Fig. 16) to use a a hand-held magnifier.
Cleaning Your Magnifier
Clean lens with a soft, clean microfiber cloth by rubbing gently in a circular motion. Moisten the lens cloth with water if needed. Do not use harsh chemicals, solvents or abrasives as they may damage the lens.
Note: To avoid damaging the craft magnifier, do not touch the lens or plastic body with a hot soldering iron.
CAUTION – FIRE HAZARD:
Keep magnifier away from direct sunlight to prevent accidental fire.
