DISCONNECT POWER BEFORE RE-LAMPING OR WIRING THE FIXTURE. READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION.
TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURES MUST BE INSTALLED IN COMPLIANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. THE INSTALLATION AND MAINTENANCE OF THIS UNIT SHOULD BE COMPLETED BY A LICENSED ELECTRICIAN OR CERTIFIED FACTORY-TRAINED TECHNICIAN.
CALIFORNIA PROP 65: THIS LIGHTING FIXTURE CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USE.
REMOVE THE FIXTURE, PARTS, AND PARTS BAG(S) FROM THE CARTON. BEFORE DISCARDING THE CARTON, DOUBLE-CHECK TO MAKE CERTAIN THAT ALL PARTS ARE FOUND. INSPECT THE FIXTURE PRIOR TO INSTALLATION FOR ANY DAMAGE TO THE FIXTURE.
DIMMING: THE FIXTURE CAN BE CONTROLLED BY A WALL-DIMMING DEVICE. ONLY USE TRIAC/ELECTRONIC DIMMER. MAKE SURE THE CARTON IS MARKED FOR USE WITH LED COMPACT FLUORESCENT-INCANDESCENT LIGHT SOURCE ONLY. THESE CAN BE PROVIDED BY YOUR LOCAL ELECTRICAL DISTRIBUTOR, HOME CENTER, OR HARDWARE STORE.
PLEASE CLEAN WITH A SOFT, DRY CLOTH ONLY! DO NOT USE CLEANERS.

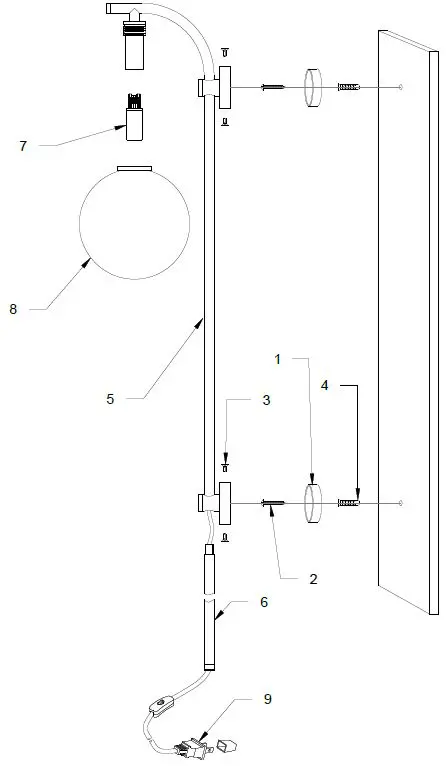

Determine the location of the lamp. Using the MOUNTING PLATE(1) as a template, mark the location of the hole for the ANCHOR(4).
Drill the appropriate size holes for the anchors (the holes should be slightly smaller than the size of the anchors ). Install the ANCHORS(4) to the hole.
Attach the MOUNTING PLATE(1) to the wall, and screw the WOOD SCREW(2)to the ANCHORS(4).
Attach the FIXTURE ASSEMBLY(5) to the MOUNTING PLATE (1) and secure with the SET SCREWS(3).
Assemble the STEM(6) to the FIXTURE ASSEMBLY(5).
Insert the BULB (7) up into the SOCKET of the fixture. THIS FIXTURE IS RATED FOR 4 WATT LAMP. DO NOT EXCEED THE RECOMMENDED WATTAGE!
Assemble the GLASS SHADE(8) to the socket.
Plug the PLUG(9) into the wall outlet. Turn on the ON/OFF switch online.
