Yansun H-wl055-2 Industrial Wall Sconce Instruction Manual

YANSUN H-WL055-2 Industrial Wall Sconce Instruction Manual

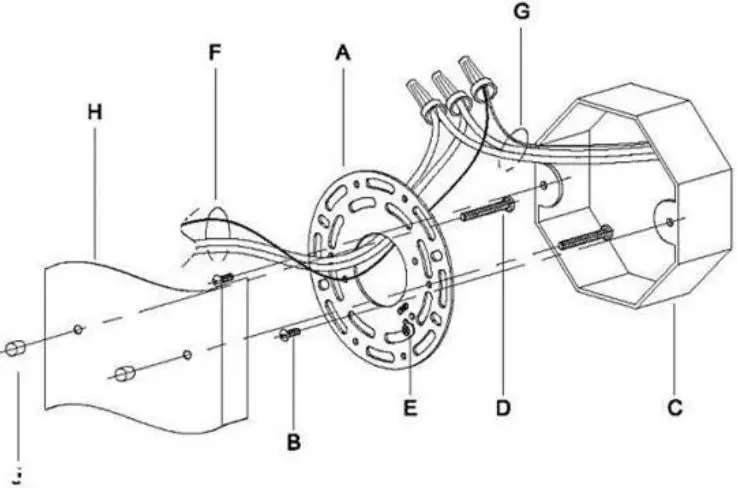

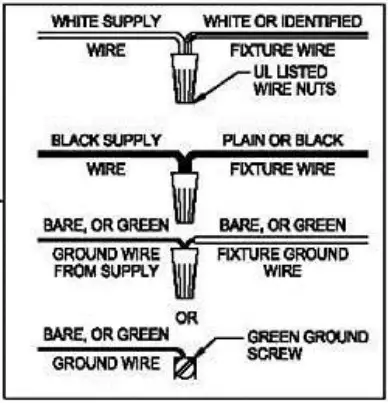

CANOPY MOUNTING & WIRE CONNECTION ASSEMBLY STEPS:

1. D,E A
2. K D
3. B,A C
4. F G
5. H,J D



FIXTURE ASSEMBLY STEPS:

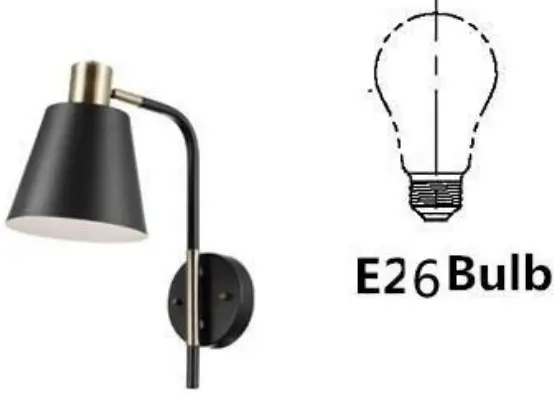

Install the E26 bulb after attaching the chassis to the wall

1. As shown in figure: Two installation methods, 2-in-1

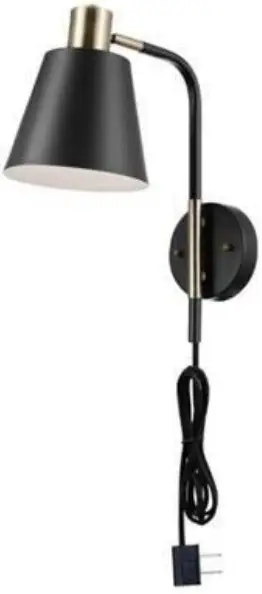

2. The plug is fixed as shown in the diagram, screw on the bulb prepared in advance, plug in the plug can be, there are switches on the wire can be controlled
3. No switch type:Cut The switch wire and pull the wire out of the pipe
4. Turn off the power, connect the main line, fix the lamps and lanterns
