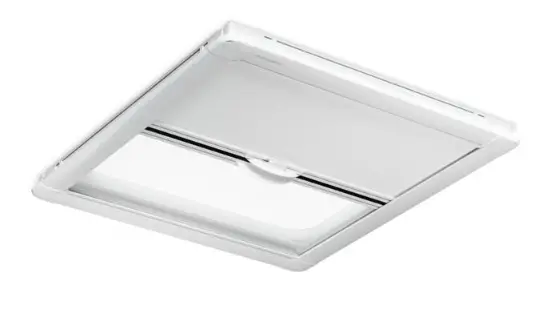

DOMETIC 83791 Skyscreen Roller Concealed

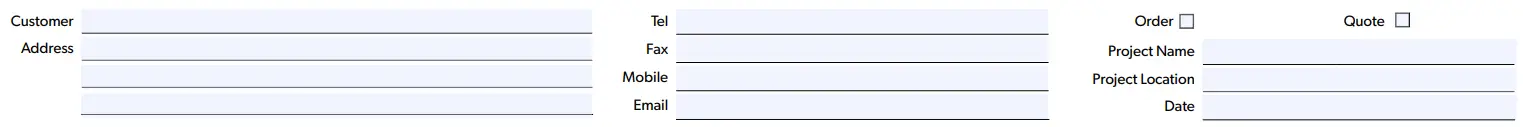

Skyscreen Roller Concealed Order Form and Product Guide
| Item | Window ID | Width (X) 1 | Drop (Y) 1 | Button Housing Colour | Format / Fabric Type | Blind fabric code | Customer supplied Trim thickness 2 | CSS1 to CSS2 Adaptor Plate3 | Qty | |
|
1 | White Chrome Dark grey | Full travel | Blind/Fly | Required | ||||||
| Meet in the Middle | Blind/Blind Fly/Fly | |||||||||
|
2 | White Chrome Dark grey | Full travel | Blind/Fly | Required | ||||||
| Meet in the Middle | Blind/Blind Fly/Fly | |||||||||
|
3 | White Chrome Dark grey | Full travel | Blind/Fly | Required | ||||||
| Meet in the Middle | Blind/Blind Fly/Fly | |||||||||
- If the Y measurement exceeds the X measurement by 30%, contact manufacturer for assessment before order.

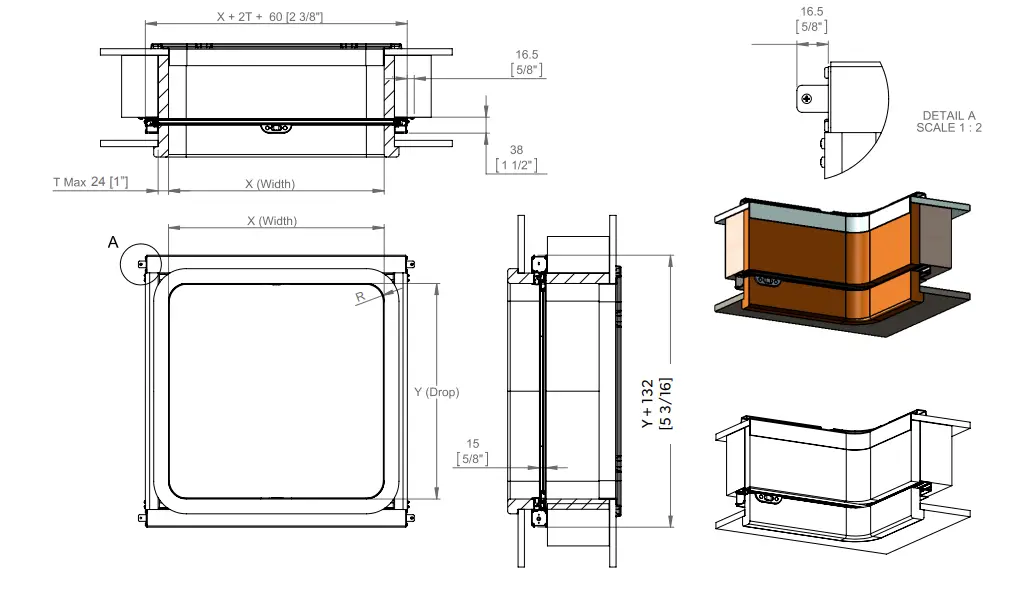

- Trim thickness cannot exceed 24mm (1”) unless handle is re-fitted with larger screws (not supplied). Overall width dimensions will be affected by trim thickness.
- Only required if upgrading a Skyscreen Concealed 1 to a Skyscreen Concealed 2 in the same window/hatch location
| Width | Drop | |
| Min | 200mm [77/8”] | 200mm [77/8”] |
| Max | 800mm [31½”] | 800mm [31½”] |
Skyscreen Roller Concealed Order Form and Product Guide
- The maximum thicknes can be up 24mm [1”]
