PRODUCT MANUAL
NX2 GOLF RANGEFINDER

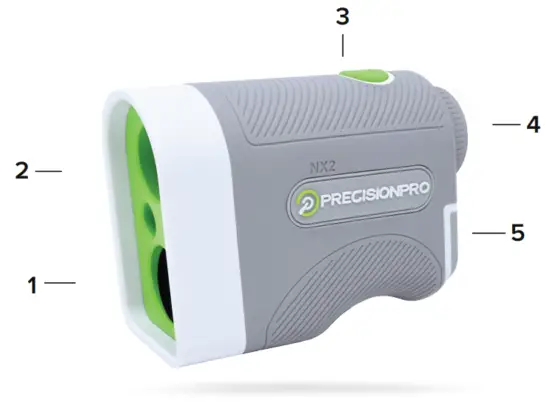

PRODUCT OVERVIEW
- Laser Lens
- Optical Lens
- Power & Activate Laser Button
- Adjustable Eyepiece
- Battery Door

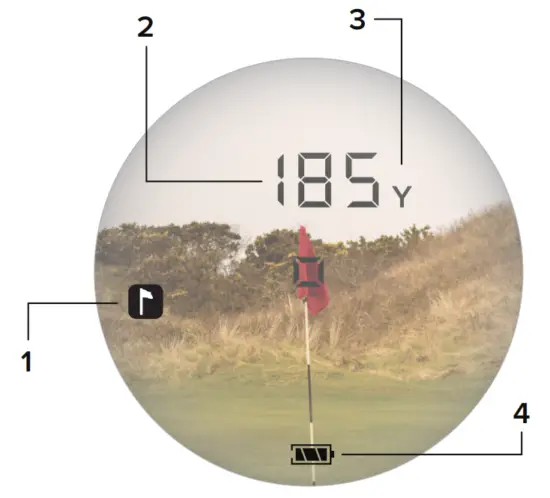

- Target Acquisition Indicator
- Distance
- Yards/Meters Indicator (Yd – Yards M – Meters)
- Battery Indicator
YARDS/METERS

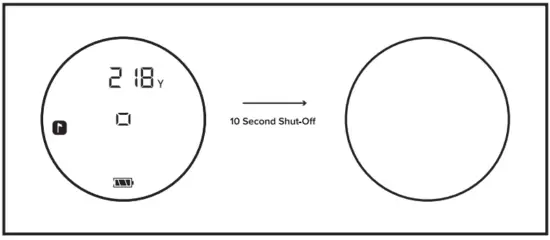

- Wait for the display to turn o. You shouldn’t see any images on the screen.

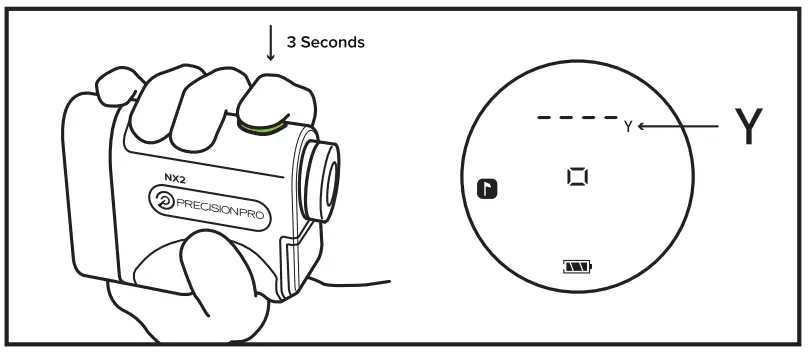

- Press and hold the green POWER button for three seconds to change between yards and meters.

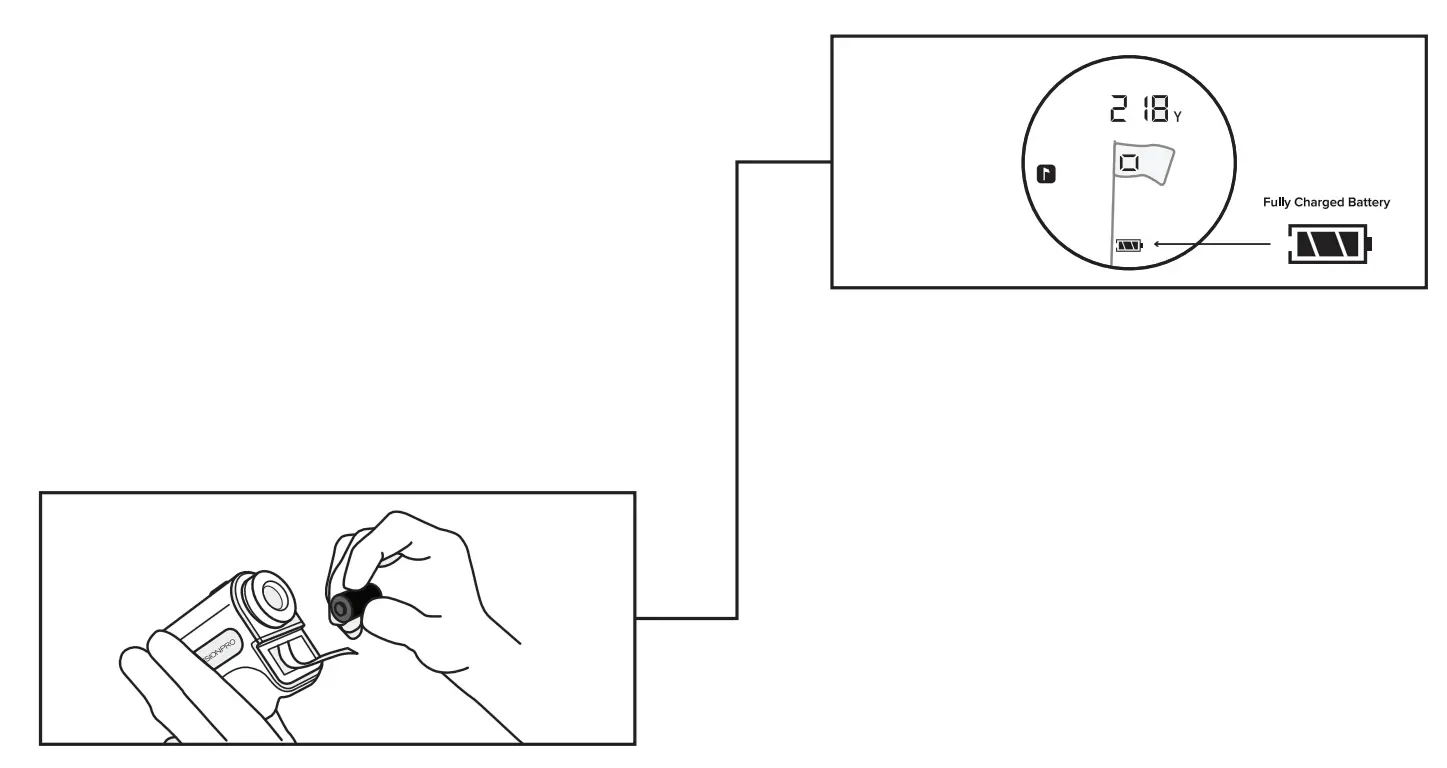

CHANGING THE BATTERY

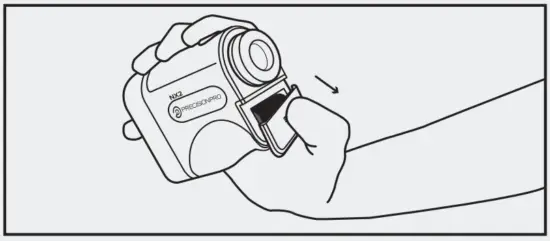

- Open the battery door by sliding the panel away from the eye piece.

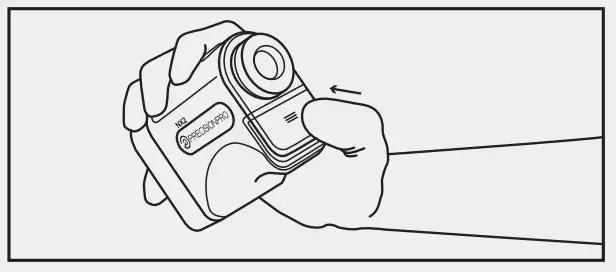

- Remove the old battery and insert the new battery to match the image shown inside. Put the battery door back on and secure tightly.
- Check the viewfinder to make sure the battery is fully charged and operating correctly.
- Double-check that the battery door is on securely.
BEST PRACTICES

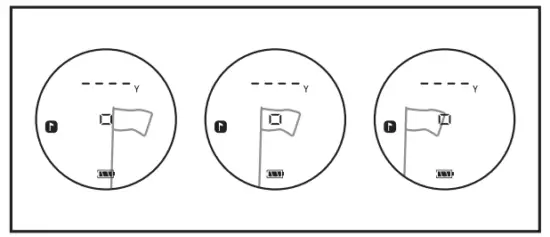

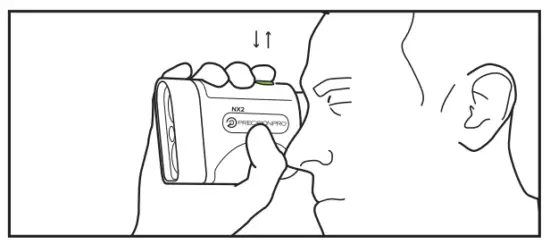

PAN OVER TARGET: For the best results, pan the crosshair over the target slowly as you measure the distance.
PRESS AND RELEASE: When measuring distances, it’s important to press and then release the green power button.
Holding the button will not work correctly.

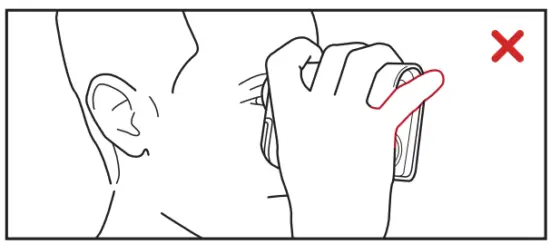

DON’T COVER THE LENS: Make sure the front of the rangefinder is unobstructed. A finger or side of the palm will interfere with the laser and result in inaccurate measurements.

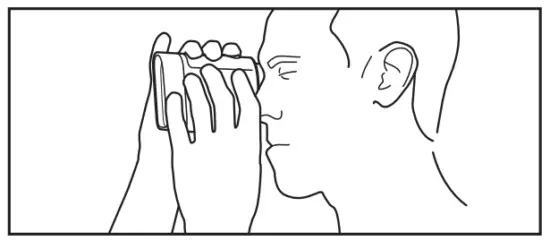

USE BOTH HANDS: Stabilize the rangefinder by using both hands and steady your arms by bracing them against your chest.
