PRODUCT MANUAL
NX7 PRO SLOPE GOLF RANGEFINDER

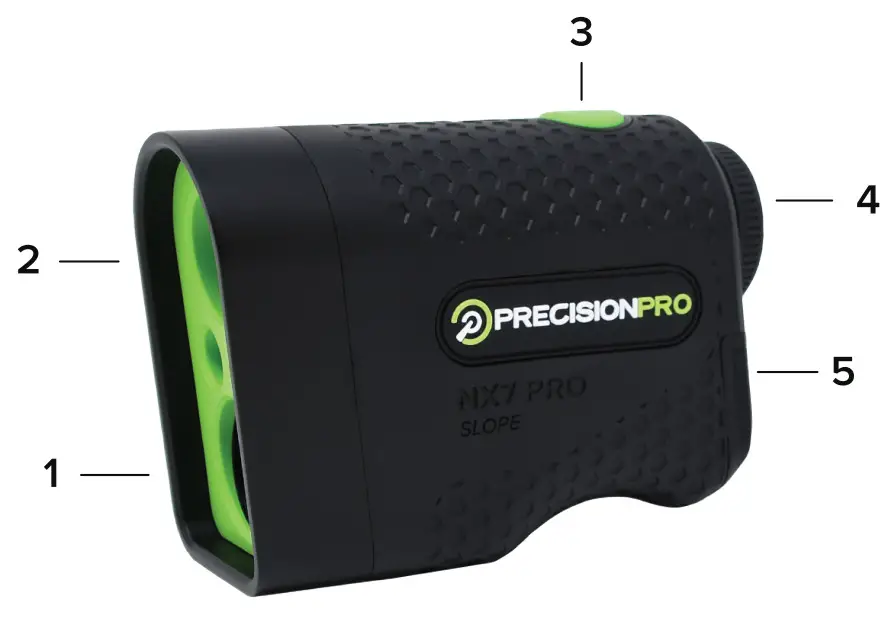

PRODUCT OVERVIEW
- Laser Lens
- Optical Lens
- Power & Activate Laser Button
- Adjustable Eyepiece
- Battery Door

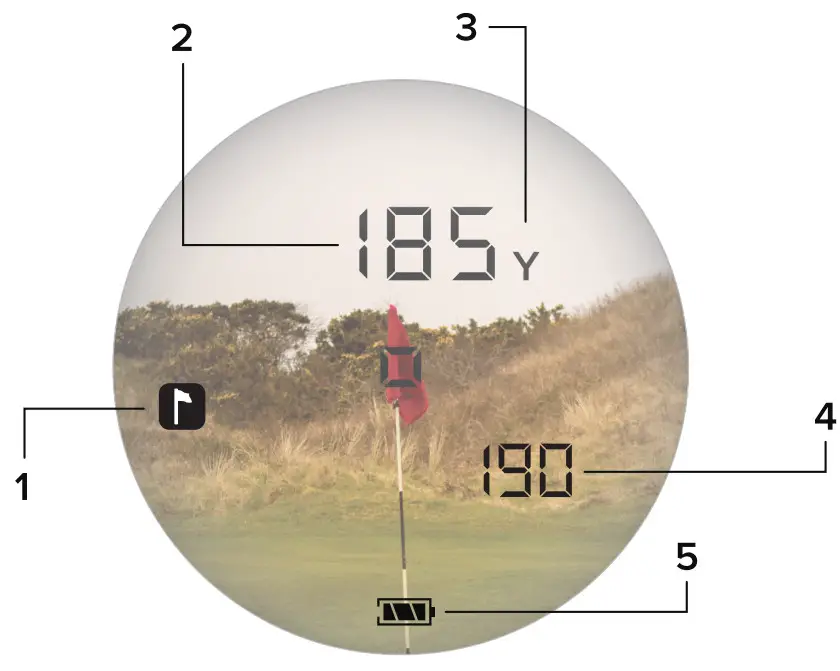

- Target Acquisition Indicator
- Distance
- Yards/Meters Indicator (Y – Yards M – Meters)
- Slope-Adjusted
- Distance Battery Indicator

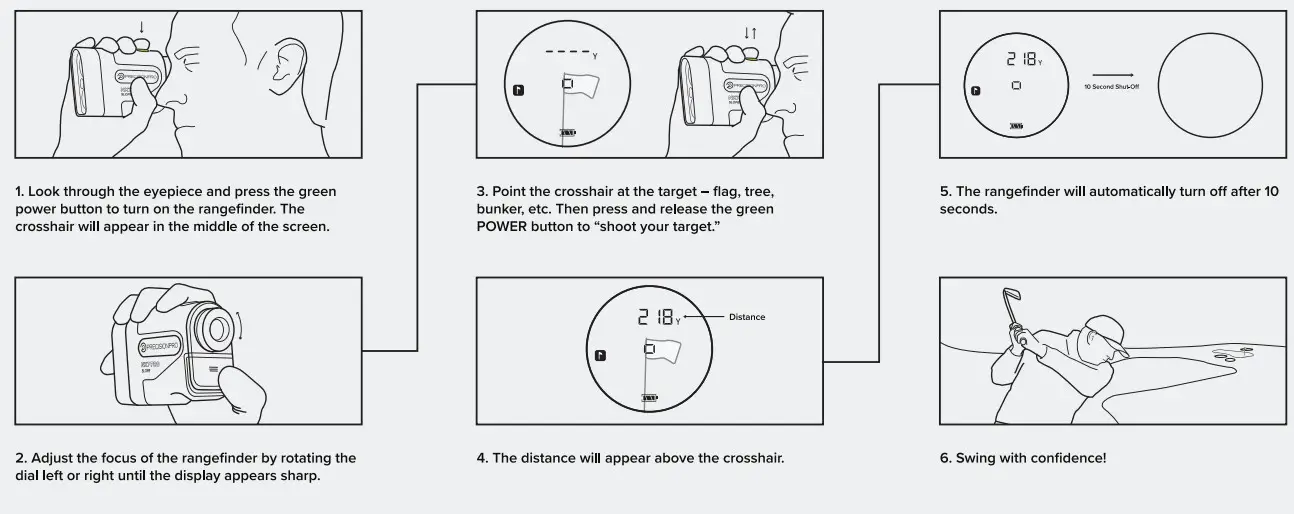

HOW TO USE

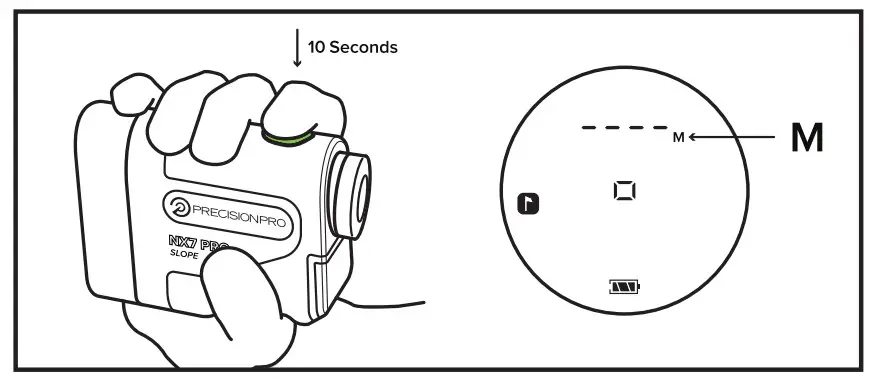

YARDS/METERS
- Wait for the display to turn off. You shouldn’t see any images on the screen.
- Press and hold the green POWER button for ten seconds to change between yards and meters.

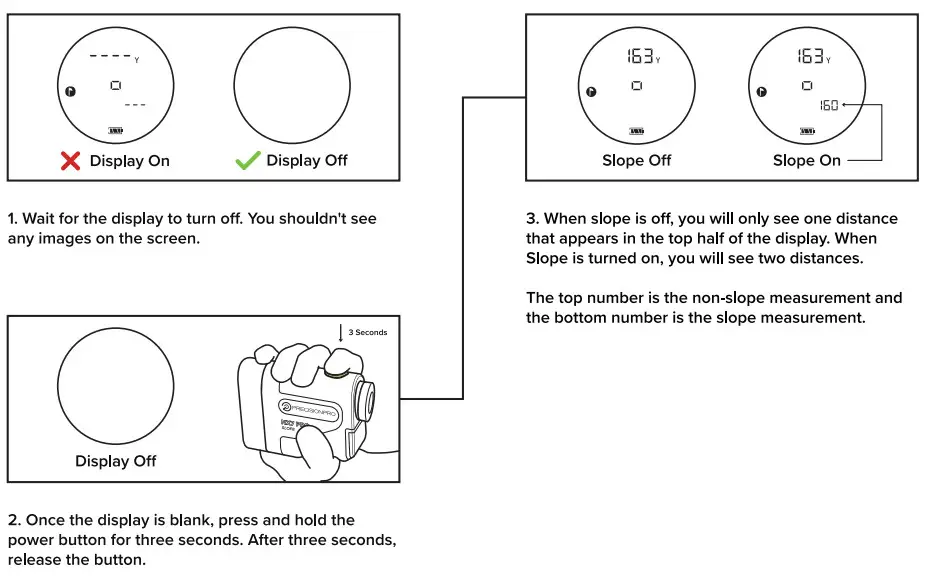

TOGGLE SLOPE ON OR OFF

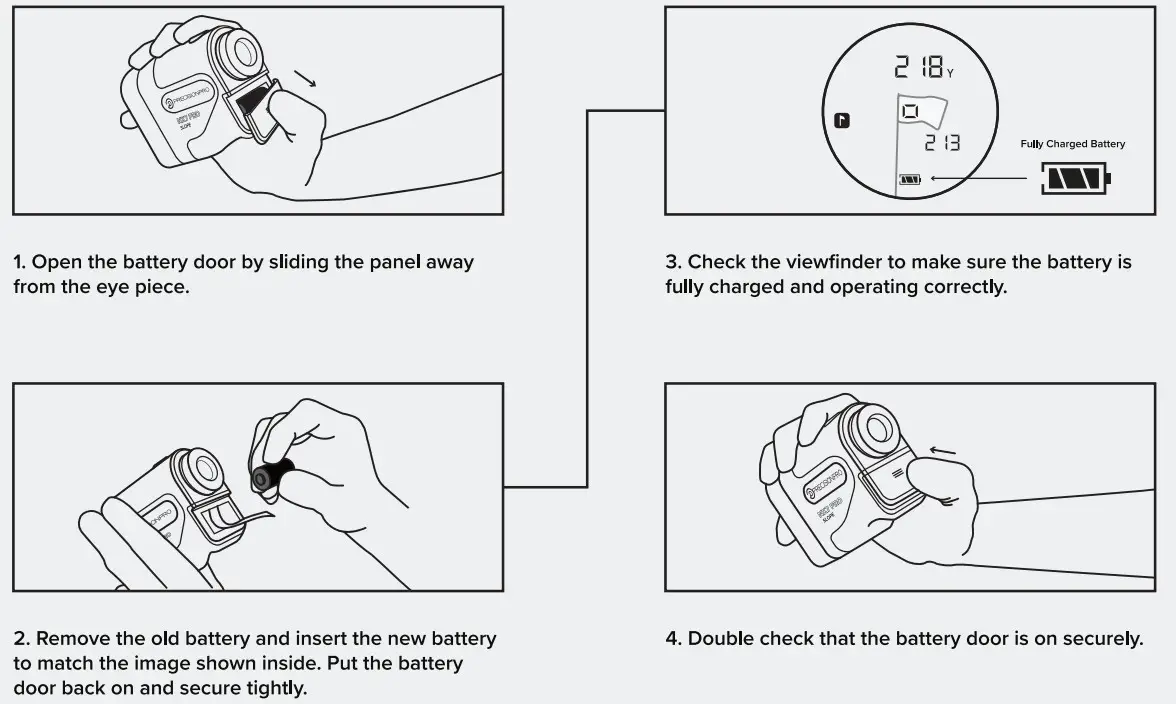

CHANGING THE BATTERY
BEST PRACTICES
 |  |

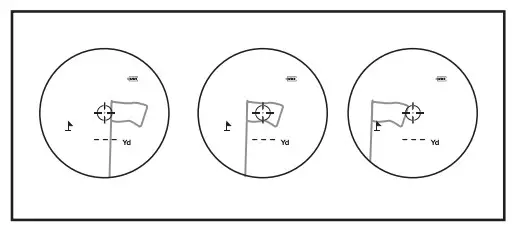

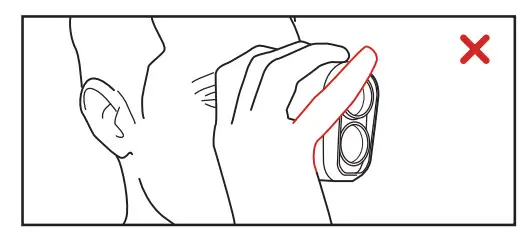

| PAN OVER TARGET: For the best results, pan the crosshair over the target slowly as you measure the distance. | DON’T COVER THE LENS: Make sure the front of the rangefinder is unobstructed. A finger or side of the palm will interfere with the laser and result in inaccurate measurements. |
 |  |

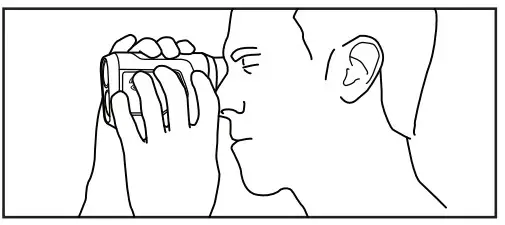

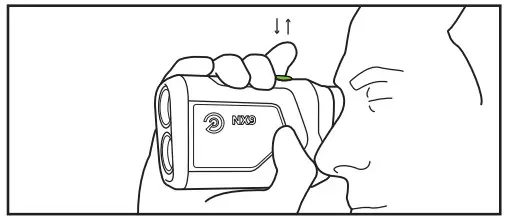

| PRESS AND RELEASE: When measuring distances, it’s important to press and then release the green power button. | USE BOTH HANDS: Stabilize the rangefinder by using both hands and steady your arms by bracing them against your chest. |
Holding the button will not work correctly.
CONTACT US
(888) 568-6770
[email protected]
precisionprogolf.com
