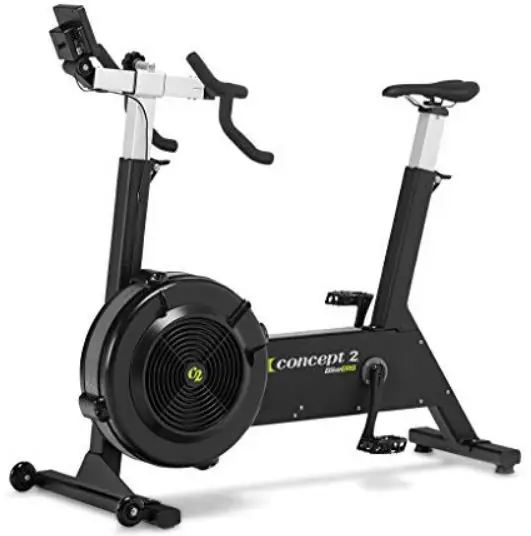

concept2 BikeERG 2900 Stationary Exercise Bike
Product Usage Instructions
Before starting the assembly process, it is important to note the following:
- Do not fully tighten screws until all screws are in place.
- Use the 6-lobe driver with L-key inserted and fully tighten all fasteners using this configuration.
Assembly Instructions
- Follow the numbered instructions provided in the manual for each part listed.

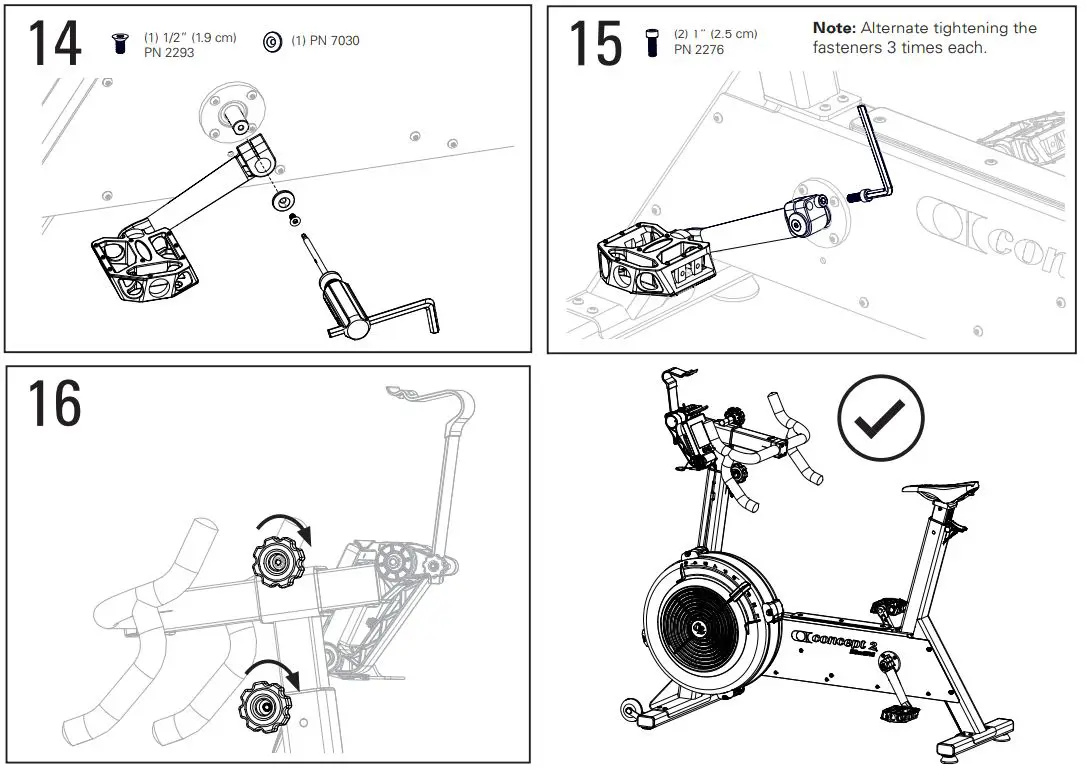

- Alternate tightening the fasteners 3 times each.

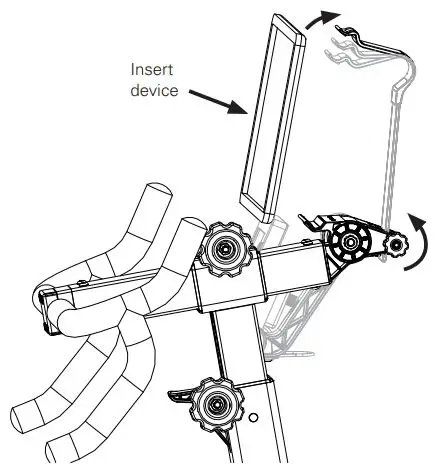

- Insert the device into the designated holder.
How to Use the Device Holder
To adjust the device holder:
- Loosen the knob to slide the rail up or down.
- Make sure to tighten the knob securely when the device is in place.
If you have any questions, comments, or problems during assembly or usage, please contact Concept2 directly at 800.245.5676 (US and Canada) or visit their website: concept2.com. Concept2, Inc. is located at 105 Industrial Park Drive, Morrisville, Vermont, USA 05661. You can also contact them through their website: c2vt.com/bikeergassembly.

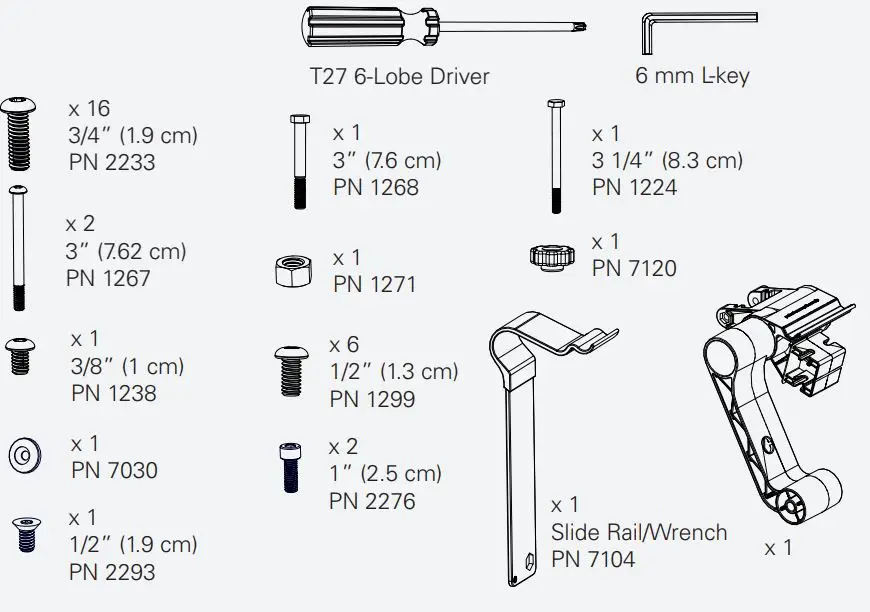

PARTS
not to scale
- BikeErg weight: 68 lb (31 kg)
- Space required for use (training area): 48 in x 60 in (122 cm x 152 cm)
Parts
IMPORTANT
- Do not fully tighten screws until all screws are in place.
- Use the 6-lobe driver with L-key inserted (as shown) and fully tighten all fasteners using this configuration.

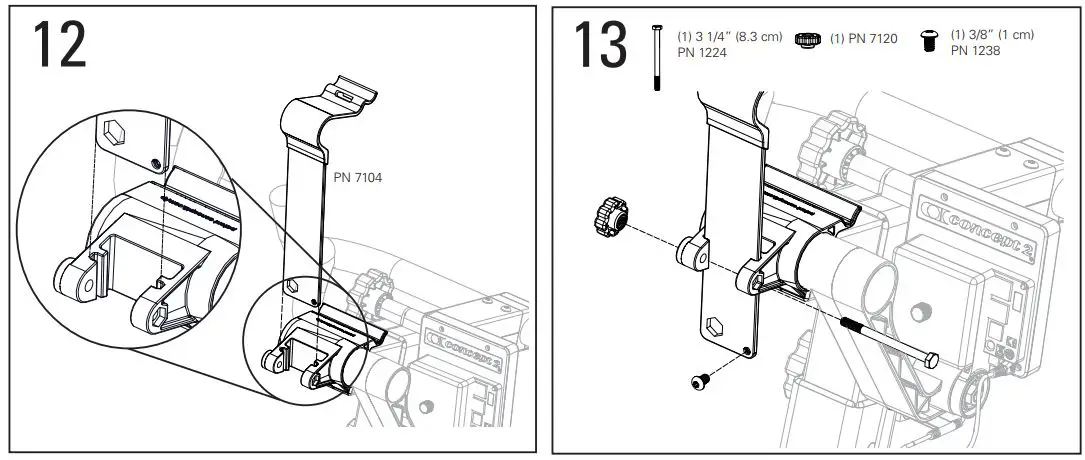

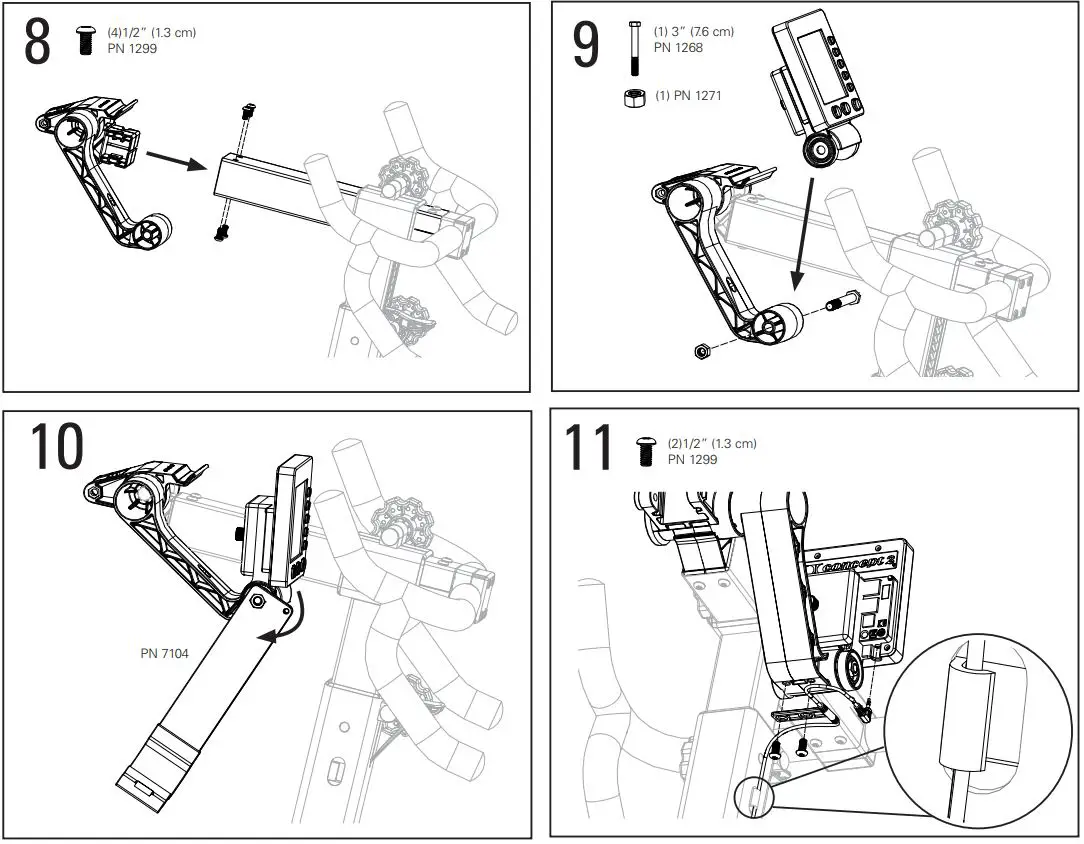

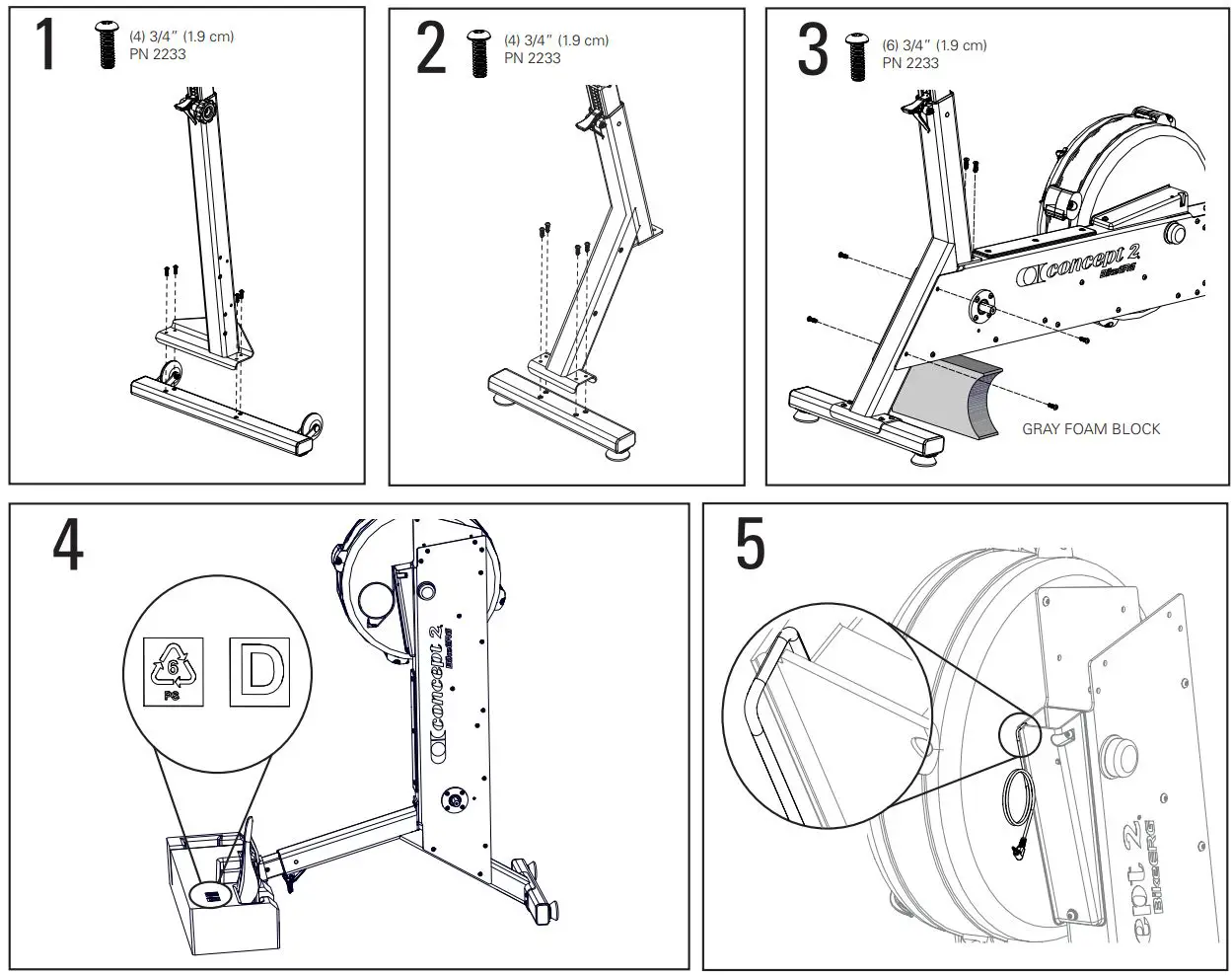

Installation Instructions

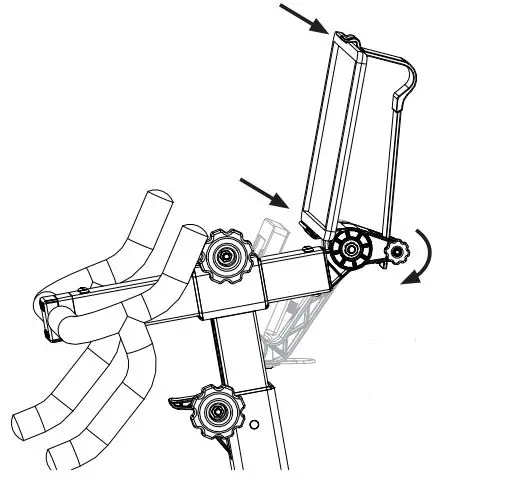

How to Use the Device Holder
- Loosen knob to slide rail up or down.
Important: Tighten knob when device is in place.
Contact
Questions? Comments? Problems?
- Contact Concept2 directly at 800.245.5676 (US and Canada)
- Or visit us online: concept2.com
Concept2, Inc.
- 105 Industrial Park Drive Morrisville, Vermont USA 05661
- concept2.com/contact
