Concept2 Bikeerg Exercise Bike Instruction Manual

Exercise Bike
Instruction Manual

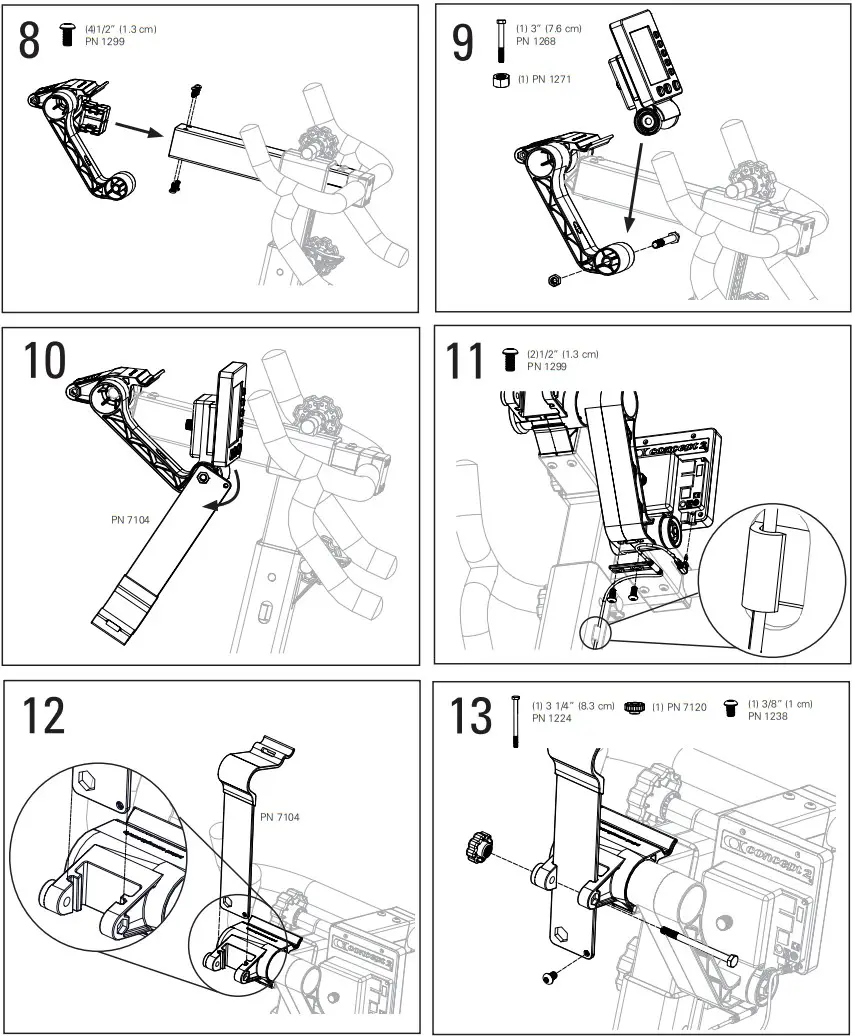

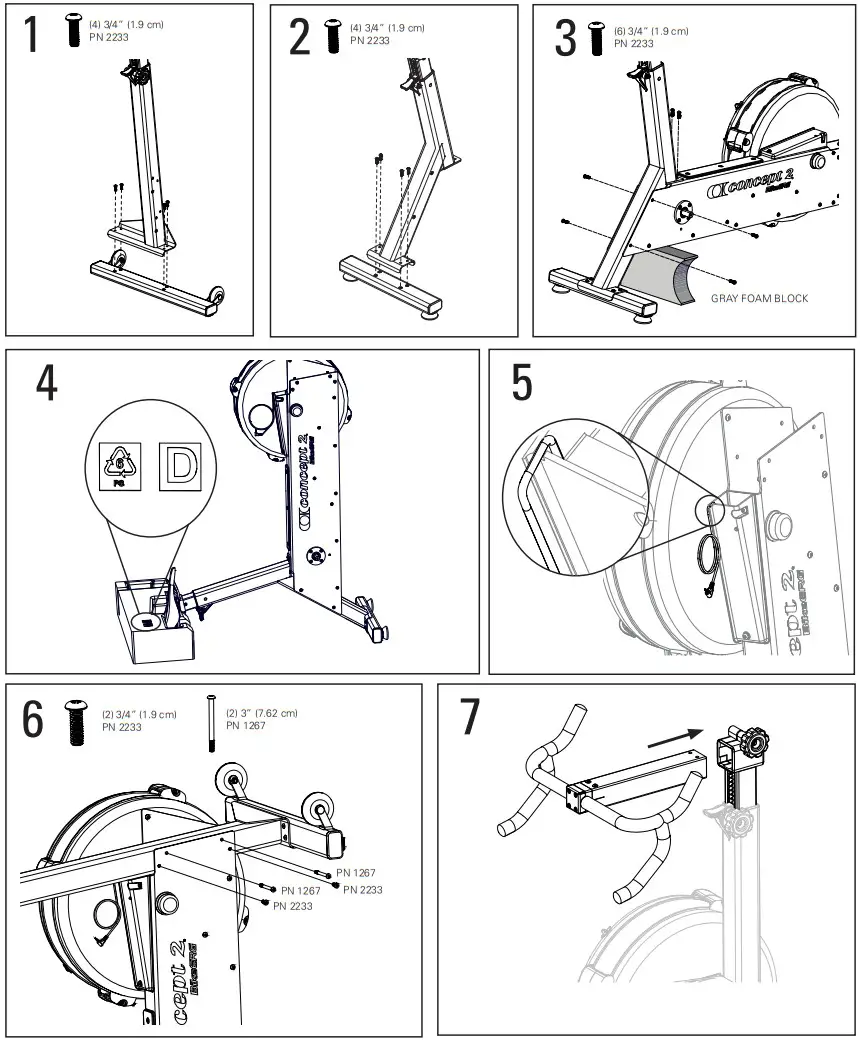

ASSEMBLY INSTRUCTIONS

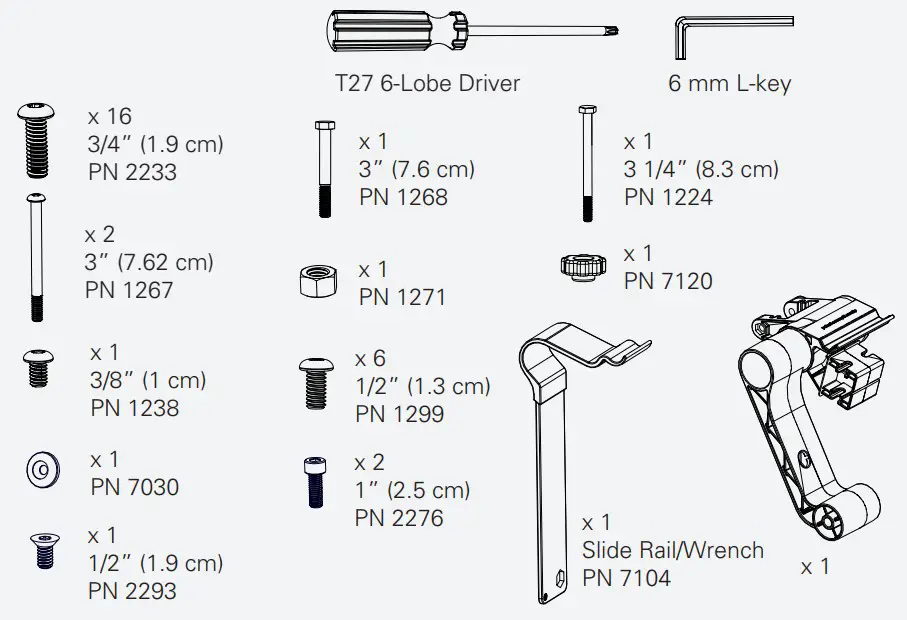

PARTS

*not to scale

BikeErg weight: 58 lb (26 kg)
Space required for use (training area): 48 in x 60 in (122 cm x 152 cm)

IMPORTANT: Do not fully tighten screws until all screws are in place.

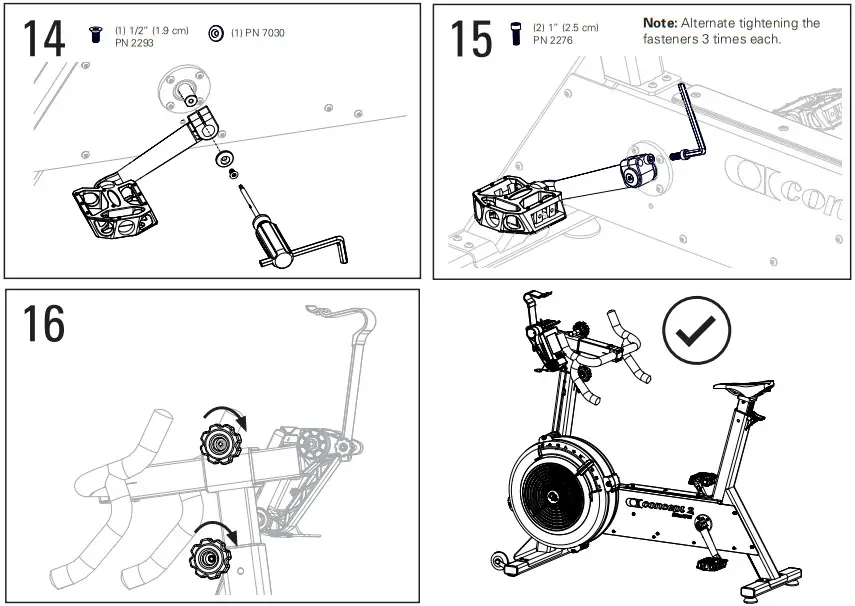

Use the 6-lobe driver with L-key inserted (as shown) and fully tighten all fasteners using this configuration.

https://tech.concept2.com/marketing/link/bikeergassembly
Concept2, Inc. 105 Industrial Park Drive Morrisville, Vermont USA 05661 concept2.com/contact
Questions? Comments? Problems?
Contact Concept2 directly at 800.245.5676 (US and Canada)
Or visit us online: concept2.com
