SM-800 Spin Bike

USER MANUAL

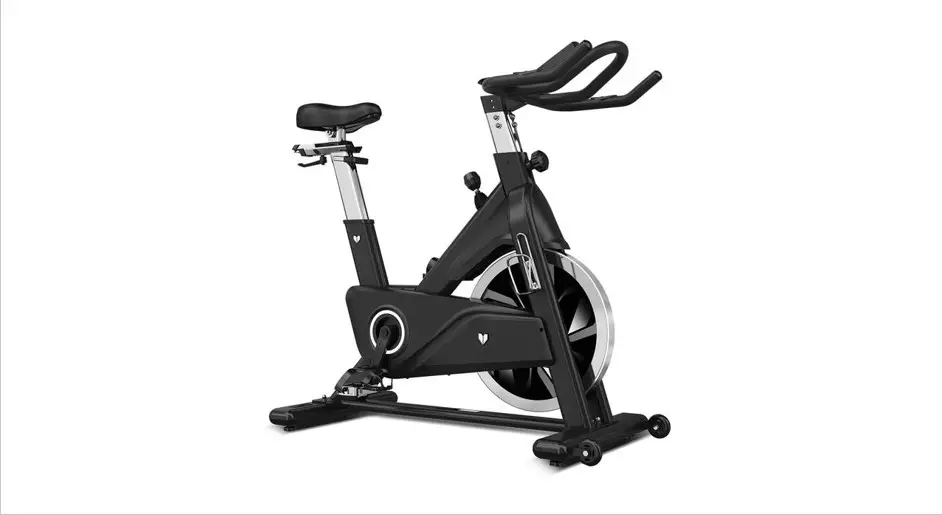

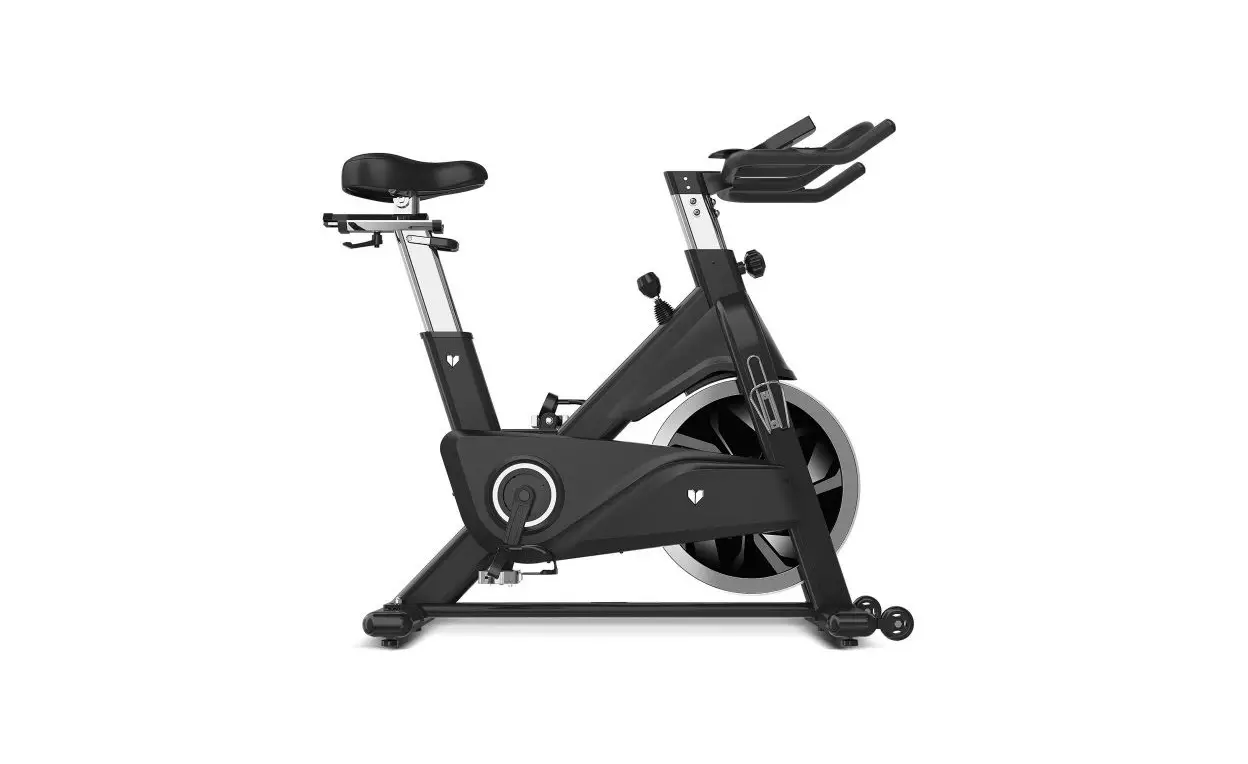

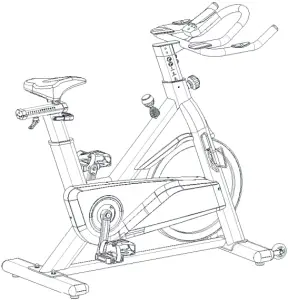

LIFESPAN SM-800 Magnetic Spin Bike

SM-800 - instructionsRead all instructions carefully before using this product. Retain this owner’s manual for future reference.

SM-800 - IMPORTANT  IMPORTANT

All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty.

NOTE:
Product may vary slightly from the item pictured due to model upgrades. This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

I. IMPORTANT SAFETY INSTRUCTIONS

SM-800 - IMPORTANTWARNING: Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty.


Please always keep this manual with you.

  • It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions
  • Before starting any exercise program, you should consult your doctor to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your doctor’s advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
  • Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these symptoms, you should consult your doctor before continuing with your exercise program.
  • Keep children and pets away from the equipment. This equipment is designed for adult use only.
  • Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 meters of free space around it.
  • Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the equipment until the problem has been rectified.
  • Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught vin the equipment or that may restrict or prevent movement.
  • This equipment is designed for indoor and family use only.
  • Care must be taken when lifting or moving the equipment so as not to injure your back.
  • Always keep this instruction manual and assembly tools at hand for reference.
  • The equipment is not suitable for therapeutic use.
  • The pulse or heart rate sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

II. CARE INSTRUCTIONS

SM-800 - IMPORTANT   IMPORTANT

a. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty.

b. Lubricate moving joints after periods of usage.

c. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.

d. The machine can be kept clean by wiping it down using dry cloth.

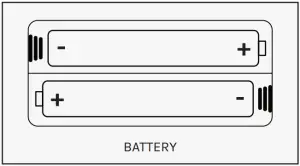

BATTERY USAGE

SM-800 - BATTERY USAGE

a. Batteries are to be installed or replaced by adult only.

b. Do not use rechargeable batteries. Do not mix different battery types. Do not mix old and new batteries. Do not mix alkaline, standard (Carbon Zinc), or rechargeable (Nickel-Cadmium) batteries.

c. Remove batteries when product is not in use.

d. Remove exhausted batteries from product and dispose of in accordance with the manufacturer’s recommendation.

e. Do not attempt to recharge non-rechargeable batteries.

f. Batteries are to be inserted with correct polarity.

g. The supply terminals are not to be short-circuited.

h. Do not dispose of batteries in fire, batteries may explode or leak.

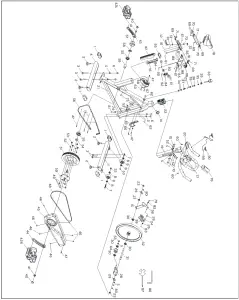

III. EXPLODED DIAGRAM

SM-800 - EXPLODED DIAGRAM

IV. PARTS LIST

No.NameSpec.QuantityUnit
1Tube Plug100*50*24pcs
2Stopperϕ52*43, M8X254pcs
3Carriage BoltGB/T 12-1988 M8X624pcs
4Rear StabilizerWeldment1pcs
5Flat Washer 1GB/T 95-2002 813pcs
6Domed Nut 1GB/T 802-1988 M84pcs
7Hex Head Bolt 1GB/T 5780-2000 M8*402pcs
8Bearing 1608ZZ4pcs
9Wheelϕ69X262pcs
10Bolt 1GB/T 70.2-2000 M8*156pcs
11Front StabilizerWeldment1pcs
12Adjustment Knob 1M10*201pcs
13Flat Washer 2GB/T96-1985 101pcs
14Adjustment Knob 2ϕ60*80 (M16*1.5)1pcs
15Magnet Holder PostWeldment1pcs
16Vertical Seat PostWeldment1pcs
17Seat PostWeldment1pcs
18SeatC-3604T/NT-1891pcs
19Handlebar PostWeldment1pcs
20HandlebarWeldment1pcs
21Main FrameWeldment1pcs
22Plastic Sleeve80*40/100*50*21pcs
23Hex Flange Surface Nut 1M12X1.252pcs
24Magnet HolderWeldment1pcs
25Brake PoleWeldment1pcs
26Shaft Sleeveϕ18*ϕ10*102pcs
27Hexagonal Nut 2M12X1.25 t71pcs
28Belt Wheel HolderWeldment1pcs
29Matel Plateδ2.52pcs
30Bearing 26001ZZ, NBK4pcs
31Flywheel Shaft 1ϕ16*ϕ12*1561pcs
32Flywheelϕ463*65, 20KG1pcs
33Brake KnobM10*1001pcs
34Casing Pipe20.6*20.6*162pcs
35Spring 1ϕ15.5*ϕ1.5X151pcs
36Nut20*20*t8(M10)2pcs
37Spring 2Φ2.0*521pcs
38Magnet30*15*107pcs
39Baket Tube Plug25*25*271pcs
40Crank Plugϕ28*6.52pcs
41Hex Flange Surface Nut 2M12X1.252pcs
42PedalJD-304V M20*1.51pcs
43Left Crank170*42.51pcs
44Right Crank170*42.51pcs
45Outer Chain Cover756*283*711pcs
46Screw 1GB/845-85 ST4.2X9.57pcs
47Screw 2GB/T 15856.1-2002 ST4.2X168pcs
48Belt5PK1pcs
49Bolt 2GB/T 70.3-2000 M8*184pcs
50Alexϕ25*1821pcs
51Belt Pulleyϕ200*241pcs
52Elastic Washer 1GB/T 859-1987 810pcs
53Lock Nut 1GB/T 889.1-2000 M88pcs
54Metal Tube 2ϕ30*ϕ25.05*91pcs
55Bearing 36005ZZ,NBK2pcs
56Inner Chain Cover743*277*171pcs
57Crank Coverϕ59*351pcs
58Fixing NutM25*11pcs
59Metal Tube 3ϕ30*ϕ25.05*56.11pcs
60Screw 5GB/T 845-1985 ST4.2*255pcs
61Screw 6GB/T 6561-1986 M5*1212pcs
62Screw 3ST2.9*9.54pcs
63Screw 4GB/T 845-1985 ST4.2*192pcs
64Pulleyϕ43*281pcs
65Bottle Holderϕ61pcs
66Flat Washer 6GB/T 95-2002 52pcs
67Lfft Decorative Cover235*155*2351pcs
68Plastic Sheet30*79*41pcs
69Bolt 3GB/T 70.1-2000 M4*86pcs
70Decorative Cover 319*59*252pcs
71Decorative Cover 419*59.5*232pcs
72Nut BlockΦ25*10.51pcs
73Spring 3ϕ1X11.51pcs
74Hex NutGB/T 41-2000 M81pcs
75Plastic Plugϕ14*142pcs
76ComputerST-76041pcs
77Bolt 4M5*104pcs
78Lock Nut M10GB/T 889.1-2000 M101pcs
79Bolt M6*10GB/T 70.1-2000 M6*102pcs
80Bolt M8*10GB/T 70.2-2000 M8*102pcs
81Bolt M8*45GB/T 70.1-2000 M8*451pcs
82Flat Washer ϕ6GB/T 95-2002 62pcs
83WasherGB894.1 Φ101pcs
84Nylon NutGB/T 889.1-2000 M51pcs
85Aluminum Handle80*16*102pcs
86Spanner6# (86X35)1pcs
87Crosshead SpannerS=13,14,151pcs
88Long ShaftΦ5*561pcs
89Step ShaftΦ8*50.51pcs
90SpacerΦ8*Φ5.2*201pcs
91Fixed ShaftΦ8*161pcs
92Short ShaftΦ5*231pcs
93Aluminum Buckle32*26*151pcs
94Fixing Frame65*27.5*23.51pcs
95Upper Cover115*56*12.51pcs
96Front Bushing257*48*461pcs
97Rear Bushing332*65*461pcs
98U Handle70*58*201pcs

V. ASSEMBLY INSTRUCTIONS

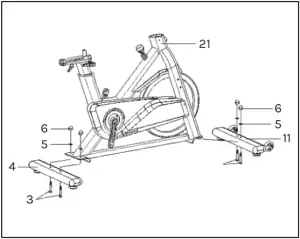

SM-800 - ASSEMBLY - STEP 1

STEP 1

Assemble Front and Rear Stabilizers

  1. Attached the Front Stabilizer (pt.11) to the Main Frame (pt.21), Lock the Front Stabilizer on the Main frame with 2pcs of Carriage Bolts (pt.3) and 2pcs of Flat Washers (pt.5) and 2pcs of Domed Nut (pt.6).
  2. Use the same way to lock the Rear (pt.4) on the Main frame.

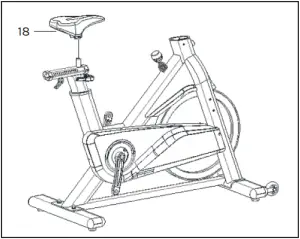

SM-800 - ASSEMBLY - STEP 2

STEP 2

Assemble Seat

  1. Fix the Seat on the Seat Post, then lock the 2pcs of nut under the Seat firmly.

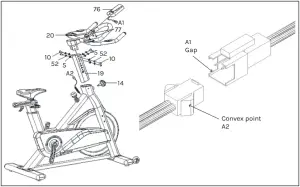

SM-800 - ASSEMBLY - STEP 3

SM-800 - ATTENTIONATTENTION:

Connected with the computer line, to Gap(A1) corresponding to the Convex Point (A2) to insert link.

STEP 3

Assemble Handlebar/Computer

  1. Fix the Handlebar (pt.20) on the Handlebar Post (pt.19) with 6pcs of Bolt (pt.10) and 6pcs of Washer (pt.52) and 6pcs of Flat Washer (pt.5).
  2. Insert the Handlebar Post (pt.19) into the Main Frame, adjust it at a expect height, then lock the adjustment knob (pt.14) into the nut on the Main Frame. Please make sure that the knob pin inserts into the Handlebar Post hole.
  3. Lock the Computer (pt.76) on the Handlebar (pt.20) with 4pcs of Bolt (pt.77), then connect A1 and A2 together.

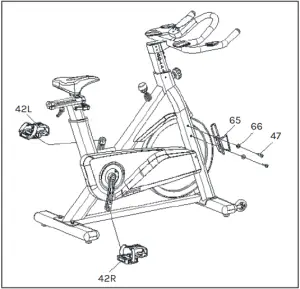

SM-800 - ASSEMBLY - STEP 4

STEP 4

Assemble Pedals/Bottle Holder

  1. Take the Left Pedal (pt.42L) the one with a L Sticker, screw its axle Counter-clockwise into the Left Crank.
  2. Take the Right Pedal (pt.42R) the one with a R sticker, screw its axle Clockwise into the Right Crank.

SM-800 - ATTENTIONIMPORTANT: Ensure both pedals are fully tighten as using pedals while loose can damage your thread and affect your warranty.

3. Lock the Bottle Holder (pt.65) onto the Main Frame with 2pcs of Flat Washer (pt.66) and Screw (pt.47).

SM-800 - FIG. A

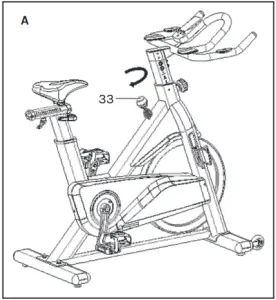

FIG A

A. Adjusting the Tension:
Increasing or decreasing the tension allows you to add variety to your workout sessions by adjusting the resistance level of the bike.

To increase tension and increase resistance (requiring more strength to pedal), turn the Emergency Brake & Tension Control Knob (pt.33) to the right.

To decrease tension and increase resistance (requiring less strength to pedal), turn the Emergency Brake & Tension Control Knob (pt.33) to the left.

SM-800 - FIG. B

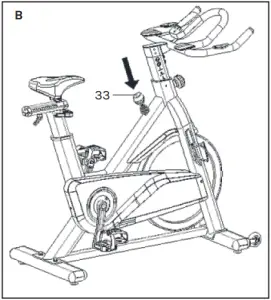

FIG B

B. Using the Emergency Brake Function: The same knob that allows you to adjust the tension of the bike also doubles as the Emergency Brake. Use this safety feature in any situation where you would need to get off the bike or stop the bike’s flywheel.

To use the Emergency Brake function in any situation you would need it in, firmly press down on the Emergency Brake & Tension Control Knob (pt.33).

VI. SEAT AND HANDLEBAR ADJUSTMENT

SEAT ADJUSTMENT

To adjust the seat height, slacken the spring knob on the vertical post stem on the main frame and pull back the knob. Position the vertical seat post for the desired height so that holes are aligned, then release the knob and retighten it.

To move the seat forward in the direction of the handlebar or backwards away from it, loosen the adjusting knob and washer and pull the knob back. Slide horizontal seat post into desired position. Align holes and then retighten the adjusting knob.

HANDLEBAR ADJUSTMENT

To adjust the handlebar height, slacken the spring knob and secondary knob and pull both knobs back. Slide the handlebar post along the housing on the main frame to the desired height and, with the holes aligned correctly, tighten the spring adjusting knob and then the secondary knob.

VII. COMPUTER OPERATION

BUTTONS
MODETo confirm all settings.
SETTo set up the value of TIME, DISTANCE, CALORIES and PULSE. You can hold the button to increase the value fast. (The computer must be in stop condition.)
RESETTo clear the set-up value. Press RESET key and hold for 2 seconds to reset all function figures.
RECOVERYTo test heart rate recovery status.
FUNCTIONS
SCANDisplays all function TIME → DISTANCE → CALORIES → PULSE → RPM/SPEED in sequence.
RPMDisplays the pedalling Rotation Per Minute. The RPM and SPEED will switch to another display in every 6 seconds after exercise starts.
SPEEDDisplays the user’s exercise speed.
TIME
  1. You can press “SET” button to set target time between 0:00 to 99:00 for count down function.
  2. It can be set up by the user or accumulated automatically for count up function.
DISTANCE
  1. You can press “SET” button to set target distance between 0:00 to 99:50 for count down function.
  2. It can be set up by the user or accumulated automatically for count up function.
CALORIES
  1. You can press “SET” button to set target calories between 0 to 99:90 for count down.
  2. It can be set up by the user or accumulated automatically for count up function.
PULSEDisplays the user’s pulse. User may set the target pulse. When pulse value reaches to the target, the computer will alarm with “Bi” sound.
OPERATION PROCEDURE

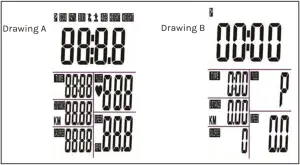

1. Installs 2 pieces of 1.5V #4 batteries, then the screen will display as following “Drawing A” and have “Bi” sound at the same time.

After that, it goes to the next step to the main menu as “Drawing B”.

SM-800 - OPERATION PROCEDURE 1

2. Get access to the set-up mode of TIME/DISTANCE/CALORIES/PULSE.
When you are in each set-up mode, for example in the time set-up mode, time value is blinking, you can press “SET” button to adjust the value and press “MODE” for confirmation. The set-up of DISTANCE, CALORIES & PULSE is the same as TIME.

3. With any signal been transmitted into the monitor, the value of TIME, DISTANCE, CALORIES start to count up as Drawing C. When there is any function has been pre-set the target (TIME or DISTANCE or CALORIES), the function will be counting down from the pre-set to zero while the training starts. Once the target is achieved to zero, the monitor start to beep for 8 seconds, and the function will be counting up from zero directly if the training is going. Press “MODE” button for confirmation and skip to next set-up.

SM-800 - OPERATION PROCEDURE 2

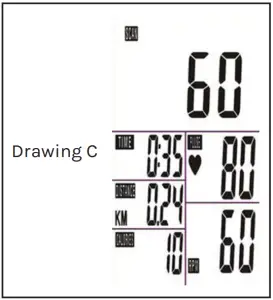

4. In SCAN mode shown as “Drawing C”. RPM/SPEED TM/DIST/CAL/PULSE will skip to display in every 6 seconds. The order is as follows.

5. You can also press “MODE” button to select single function display except RPM & SPEED function. The RPM & SPEED function will switch display.

6. RECOVERY:
a. When the user presses “RECOVERY” button, the RECOVERY function is active. At this time only PULSE and TIME is working, other functions will not be displayed, and the Sensor Input is not available. TIME starts to count down from “0:60”, Pulse signal will be blinking according user’s heart rate BPM. When Time counts down to “0”, it will show F1~F6. (F1 is the best, F6 is the worst).

F1Outstanding
F2Excellent
F3Good
F4Fair
F5Below Average
F6Poor

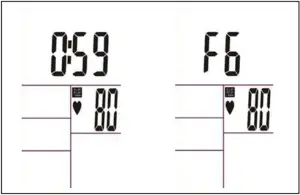

b. LCD display as follows: (RECOVERY start condition & end condition).

SM-800 - OPERATION PROCEDURE 3

c. If the countdown action to 0:00 is not completed and there is no pulse signal, the countdown action must be done and shown F6.

d. If you press the RECOVERY button prior to count down to 0:00, it will be end and return to the main menu.

SM-800 - ATTENTIONNOTE:

  1. Stop training for 4 minutes, the computer will enter to Sleep mode.
    You may press any button to have the computer restart working, the original value will retain. (If re-install batteries, the original value will remove.)
  2. If the computer displays abnormally, please re-install batteries and try again.
  3. Battery Spec: 1.5V UM-4 or AAA (2PCS).

VIII. EXERCISE GUIDE

SM-800 - ATTENTIONPLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.


Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

SM-800 - WARM UP

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

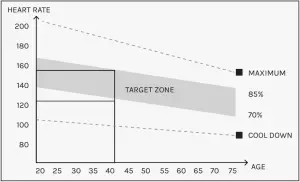

WORKOUT GUIDELINES

SM-800 - WORKOUT GUIDELINES

SM-800 - ATTENTION  This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

IX. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Please email us at [email protected] for all warranty or support issues.

For all warranty or support related enquiries an email must be sent before contacting us via any other means.

X. HAND PULSE TECHNOLOGY

This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and that they must be amplified 1000 times to make the signal useful for the computer to display your pulse.

To ensure proper operation:

  • The user must maintain good, consistent contact on all four sensors.
  • The users skin cannot be too dry or too wet.

Other factors that could affect the reading:

  • Change of grip on the sensors (during slow pace walking and up to running).
  • Tightening of hand muscles will produce small electrical signal.
  • Static electricity charges from the air or from walking on the treadmill.

EKG/ECG Sensors may filter through actual EKG/ECG signals and “Noise” factors that may affect the reading. This will cause the pulse reading to be delayed and will take longer to update the display as the heart rate changes. Too much noise will create an incorrect reading. Medical conditions or having no electrical signal in the hands are other factors that may affect pulse readings as well.

These are limitations of hand pulse technology and even the most expensive systems (which can cost upwards of $3,000) used in hospitals have the same problems. The difference is that a patient in a hospital is not running on a treadmill. Hand pulse technology works well on stationary exercise machines like bikes and even elliptical cross trainers but are not perfect on a treadmill. We offer treadmills with a wireless heart rate receiver which may be a more accurate option.

To test if your hand pulse sensors are working up to specification, hold them while standing on the sidestep rails, not walking, and see if the reading is more in line with what you would expect. This will eliminate the movement and static electricity factors. If your hands are dry, then wet them slightly (saliva works as a great conductor if this doesn’t bother you).

For more information, please contact our Lifespan Fitness Technical Support Department
www.lifespanfitness.com.au
[email protected]

Lifespan logo

WWW.LIFESPANFITNESS.COM.AU

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
