SM-700
Spin Bike

USER MANUAL

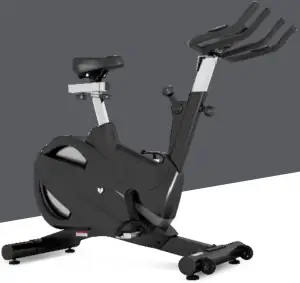

LIFESPAN SM-700 Spin Bike

Read all instructions carefullyRead all instructions carefully before using this product.
Retain this owner’s manual for future reference.

WARNING symbol  IMPORTANT

All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty.

NOTE:
Product may vary slightly from the item pictured due to model upgrades. This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

I. IMPORTANT SAFETY INSTRUCTIONS

WARNING symbol  WARNING: Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty.

Please always keep this manual with you.

  • It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions
  • Before starting any exercise program you should consult your doctor to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your doctor’s advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
  • Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do experience any of these symptoms, you should consult your doctor before continuing with your exercise program.
  • Keep children and pets away from the equipment. This equipment is designed for adult use only.
  • Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 meters of free space around it.
  • Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the equipment until the problem has been rectified.
  • Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movement.
  • This equipment is designed for indoor and family use only.
  • Care must be taken when lifting or moving the equipment so as not to injure your back.
  • Always keep this instruction manual and assembly tools at hand for reference.
  • The equipment is not suitable for therapeutic use.
  • The pulse or heart rate sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

II. CARE INSTRUCTIONS

WARNING symbol  IMPORTANT

a.  All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your thread and void your warranty.

b.  Lubricate moving joints with grease after periods of usage.

c.  Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.

d.  The machine can be kept clean by wiping it down using dry cloth.

e.  Flywheels must be lubricated after certain periods of use to keep the bike running smooth and reduce vibration noise.

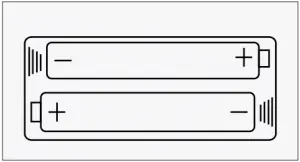

BATTERY USAGE

BATTERY USAGE

  • Batteries are to be installed or replaced by adult only.
  • Do not use rechargeable batteries. Do not mix different battery types. Do not mix old and new batteries. Do not mix alkaline, standard (CarbonZinc), or rechargeable (Nickel-Cadmium) batteries.
  • Remove batteries when product is not in use.
  • Remove exhausted batteries from product and dispose of in accordance with the manufacturer’s recommendation.
  • Do not attempt to recharge non-rechargeable batteries.
  • Batteries are to be inserted with correct polarity.
  • The supply terminals are not to be short-circuited.
  • Do not dispose of batteries in fire, batteries may explode or leak.

III. EXPLODED DIAGRAM

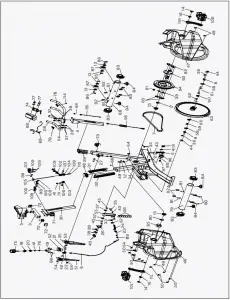

LIFESPAN SM-700 Spin Bike -- EXPLODED DIAGRAM

IV. PARTS LIST

NO.NameQuantitySpecifications
1Main Frame1Weldment
2Belt Wheel Holder1Weldment
3Seat Slider1Weldment
4Handlebar Post1Weldment
5Saddle1Aq -6010
6Resistance Line11185 * Φ1 .2
7Belt15Pk
8Metal Plate2Δ2.5
9Bolt12M6*16
10L/RPedal1prJd -301( 9/16″)
11L/RCrank L/R1pr170*27
12Sensor1Sr -212
13Bearing 608Z4608Zz
14Crank Plug2Φ 23*7.5
15Bearing 608Z26004Zz
16Flange Nut2M10*1.25
17Fixing Tube1Φ 25*20.05*9
18Brake Positioning Sleeve125*25*2
19Brake Square Tube1Weldment
20Fixing Nut1120*20*T8
21Axis1Φ 8*Φ 6*25.8
22Brake Rail140*22.8*20.8
23Pullrod1Weldment
24Spring1Φ2.0*130
25Spring1Φ 1.0X55
26Magnetic Holder1Weldment
27Silicon Tube 11Φ 13*Φ 9.5*19
28Handle Bar1Weldment
29Plastic Sleeve170*30*1.5
30Vertical Seat Post1Weldment
31Seat Tube Front Bushing1260*38.3*36.5
32Seat Tube Rear Bushing1300*56.1*36.5
33Silicon Tube 12Φ 8.5*Φ 5.5*17
34Sensor Holder1Ltf8163
35Bolt13M6*35
36Bolt2M8*10
37Bolt4M8*15
38Flat Washer 128
39Flat Washer 3108
40Bolt12M8*15
41Flat Washer46
42Fixing Nut M101M6
43Hexagonal Nut2M6
44Flange Nut2M12x1.25
45Washer Φ102Φ10
46Left Outter Chain Cover1908.5*602.4*84
47Right Outter Chain Cover1908.5*602.4*87.2
48Plastic Sleeve D173*49*10
49Screw5St4.2*16
50Screw St 4 .2*1912St4.2*19
51Brake Cover-Left1260*75*27
52Brake Cover154.7*33*31.3
53Brake Cover-Right1260*75*32
54Screw St 4 .2*1 93St2.9*16
55Magnetic Fixing Holder1Weldment
56Magnetic730*15*10
57Small Sleeve2Φ18*Φ10*10
58Hexagonal Nut2M12*1.25 H=7
59Fixing Tube1Φ 16*Φ 12.1*23.5
60Bearing 608Z26001Zz
61Short Flywheel Shaft1Φ12*142
62Casing Pipe1Φ 16*Φ 12.1*49.1
63Flywheel1Φ430*Φ58*Φ28
64Plastic Plug2Φ14*14
65Crank Protective Cover1Φ56*28
66Screw St 4 .2 * 1 93St2.9*9.5
67Brake Spacer116 .8 * Φ 10*T 6
68Computer1St-7607
69Pulse Line1L=700
70Limit Block1Weldment
71Adjust Knob1Φ58*33
72End Cap238*38*1.5
73Adjust Knob1M16*1.5
74Computer Holder1Weldment
75Brake Knob1M6*10
76Fixing Nut 31M6
77Bolt4M5*12
78Pulse2Φ25
79Rear Stabilizer1Weldment
80Carriage Bolt4M10*90
81Washer4Φ10
82Fixing Nut 34M10
83End Cap4Φ 76*1.5
84Stopper4M8*25
85Fixing Nut M106M8
86Bolt92M8*40
87Wheel2Φ69*26
88Front Stabilizer1Weldment
89Flatwasher 22Ф6
90Fixing Nut1Φ28*M20*1
91Magnetic16001Zz
92Bolt24Φ12*142
93Middle Axle1Φ 16*Φ 12.1*49.1
94Belt Pulley1Φ430*Φ58*Φ28
95Sensor Wire1Φ14*14
96Pulley1Φ56*28
97Bolt11St2.9*9.5
98Stepped Shaft116 .8 * Φ 10*T 6
99Long Shaft1St-7607
100Aluminum Handle2L=700
101Gloves1Weldment
102Washer1Φ58*33
103Aluminum Clasp138*38*1.5
104Aluminum Bracket1M16*1.5
105Connecting Rod1Weldment
106Fixed Shaft1M6*10
107Short Shaft1M6
108Small Spacer1M5*12
109Bolt10Φ25
110Fixing Nut M101Weldment
111Spring1M10*90
112Sensor Wire1Φ10
113Nut4M10
114Screw2Φ 76*1.5
115Spanner1M8*25
116Crosshead Spanner1M8
117Inner Hexagon Spanner1M8*40

V. ASSEMBLY INSTRUCTIONS

PREPARATION
  1. Before assembling make sure that you will have enough space around the item.
  2. Use the present tooling for assembling.
  3. Before assembling please check whether all needed parts are available (at the above of this instruction sheet you will find an explosion drawing with all single parts (marked with numbers) which this item consists of.

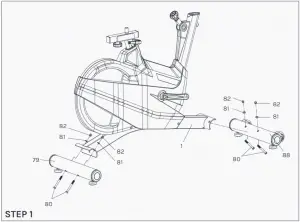

LIFESPAN SM-700 Spin Bike STEP 1

  1. Attach the Front Stabilizer (pt.88) to the Main Frame (pt.1) with two sets of Ø8 Flat Washer (pt.81), M8 Domed Nut (pt.82) and M8*42 Carriage Bolt (pt.80).
  2. Attach the Rear Stabilizer (pt.79) to the Main Frame (pt.1) with two sets of Ø8 Flat Washer (pt.81), M8 Domed Nut (pt.82) and M8*42 Carriage Bolt (pt.80).

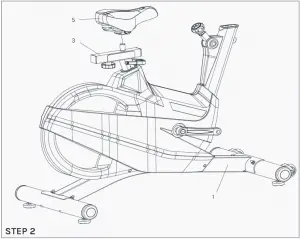

LIFESPAN SM-700 Spin Bike STEP 2

  1. The Saddle post is pre-assembled in the main frame. Fix the Saddle (pt.5) on the Seat post (pt.3) as shown

LIFESPAN SM-700 Spin Bike STEP 3

ATTENTION:
Connected with the computer line, to Gap (A1) corresponding to the convex point (A2) to insert link.

  1. Insert the Handlebar Post (pt.4) into the handlebar post tube of the main frame. You will have to slacken the Knob (pt.73) and pull the knob back. Then select the desired height. Release the knob and retighten the knob.
  2. The Handlebar (pt.28) and computer holder (pt.74) are fixed on the Handlebar Post (pt.4) with four sets of the Bolt (pt.37) and the Elastic Washer (pt.39).
  3. The Computer (pt.68) is fixed on the Handlebar with four Bolts (pt.77). Connect the computer line, to Gap (A3) corresponding to the Convex Point (A4) to insert link.

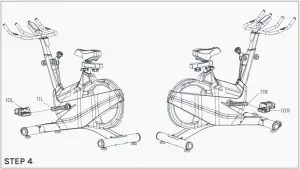

LIFESPAN SM-700 Spin Bike STEP 4

  1. The Pedals (pt.10L & pt.10R) are marked “L” and “R” – Left and Right. Connect them to their appropriate crank arms. The right crank arm is on the right- hand side of the cycle as you sit on it.

WARNING symbol   Important Note: The Right pedal should be threaded on clockwise and the Left pedal anticlockwise. Ensure the pedals are fully tighten as using this while loose or not tighten will damage the thread and affect your warranty.

ADJUSTING THE TENSION

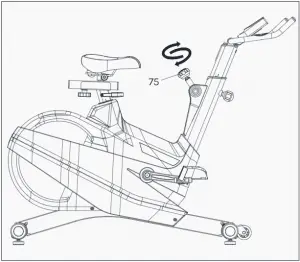

Adjust the Resistance 1. Adjust the Resistance

To increase resistance (requiring more strength to pedal), turn the Resistance Control Knob (pt.75) to the right.

To decrease resistance (requiring less strength to pedal), turn the Resistance Control Knob (pt.75) to the left.



Emergency Brake Function

2. The Emergency Brake Function

The Emergency Brake & Resistance Control Knob can be used as the Emergency Brake. When you want the flywheel to stop turning, you must firmly push down the Emergency Brake (pt.75).



VI. SEAT AND HANDLEBAR ADJUSTMENT

Seat Adjustment

To adjust the seat height, slacken the spring knob on the vertical post stem on the main frame and pull back the knob. Position the vertical seat post for the desired height so that holes are aligned, then release the knob and retighten it.

To move the seat forward in the direction of the handlebar or backwards away from it, loosen the adjusting knob and washer and pull the knob back. Slide horizontal seat post into desired position. Align holes and then retighten the adjusting knob.

Handlebar Adjustment

To adjust the handlebar height, slacken the spring knob and pull both knobs back. Slide the handlebar post along the housing on the main frame to the desired height and, with the holes aligned correctly, tighten the spring adjusting knob.

VII. COMPUTER OPERATION

BUTTONS

MODE

To confirm all settings.

SET

To set up the value of TIME, DISTANCE, CALORIES and PULSE. You can hold the button to increase the value fast. (The computer has to be in stop condition).

RESET

To clear the set-up value. Press RESET key and hold for 2 seconds to reset all function figures.

RECOVERY

To test heart rate recovery status.
FUNCTIONS

SCAN

Displays all function TIME → DISTANCE → CALORIES → PULSE → RPM/SPEED in sequence.

RPM

Displays the pedaling Rotation Per Minute. The RPM and SPEED will switch to another display in every 6 seconds after exercise starts.

SPEED

Displays the user’s exercise speed.

TIME

1. You can press “SET” button to set target time between 0:00 to 99:00 for count down
2. It can be set up by the user or accumulated automatically for count up function.

DISTANCE

1. You can press “SET” button to set target distance between 0:00 to 99:50 for count down function.
2. It can be set up by the user or accumulated automatically for count up function.

CALORIES

1. You can press “SET” button to set target calories between 0 to 9990 for count down function.
2. It can be set up by the user or accumulated automatically for count up function.

PULSE

Displays the user’s pulse. User may set the target pulse. When pulse value reaches to the target, the computer will alarm with “Bi” sound.
OPERATION PROCEDURE

1. Installs 2 pieces of 1.5V #4 batteries, then the screen will display as following “Drawing A” and have “Bi” sound at the same time.

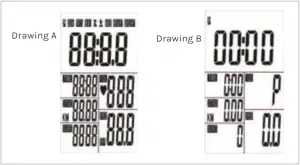

After that, it goes to the next step to the main menu as “Drawing B”.

OPERATION PROCEDURE

2. Get access to the set-up mode of TIME/DISTANCE/CALORIES/PULSE.
When you are in each set-up mode, for example in the time set-up mode: time value is blinking, you can press “SET” button to adjust the value and press “MODE” for confirmation. The set-up of DISTANCE, CALORIES & PULSE is the same as TIME.

3. With any signal been transmitted into the monitor, the value of TIME, DISTANCE, CALORIES start to count up as Drawing C. When there is any function has been pre-set the target (TIME or DISTANCE or CALORIES), the function will be counting down from the pre-set to zero while the training starts.

Once the target is achieved to zero, the monitor start to beep for 8 seconds, and the function will be counting up from zero directly if the training is going. Press “MODE” button for confirmation and skip to next set-up.

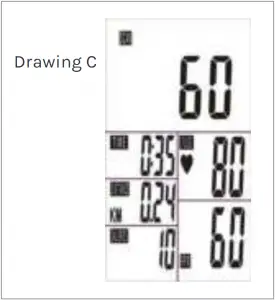

OPERATION PROCEDURE 3

4. In SCAN mode shown as “Drawing C”. RPM/ SPEED/TM/DIST/CAL/PULSE will skip to display in every 6 seconds. The order is as follows.

5. You can also press “MODE” button to select single function display except RPM & SPEED function. The RPM & SPEED function will switch display.

6. Recovery:

a. When the user presses “RECOVERY” button, the RECOVERY function is active. At this time only PULSE and TIME is working, other functions will not be displayed, and the Sensor Input is not available. TIME starts to count down from “0:60”, Pulse signal will be blinking according user’s heart rate BPM. When Time counts down to “0”, it will show F1~F6.
(F1 is the best, F6 is the worst)

F1

OUTSTANDING

F2

EXCELLENT

F3

GOOD

F4

FAIR

F5

BELOW AVERAGE

F6

POOR

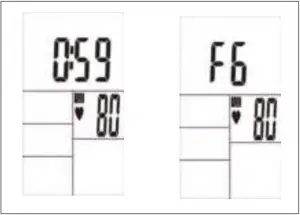

2. LCD display as follows: (RECOVERY start condition & end condition).

OPERATION PROCEDURE 5

b. If the countdown action to 0:00 is not completed and there is no pulse signal, the countdown action must be done and shown F6.

c. If you press the RECOVERY button prior to count down to 0:00, it will be end and return to the main menu.

Mark Icon  NOTE:

  1. Stop training for 4 minutes, the computer will enter to Sleep mode.
    You may press any button to have the computer restart working, the original value will retain. (If re-install batteries, the original value will remove.)
  2. If the computer displays abnormally, please re-install batteries and try again.
  3. Battery Spec: 1.5V UM-4 or AAA (2PCS).

VIII. EXERCISE GUIDE

Mark Icon  PLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.

Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

EXERCISE GUIDE

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent postexercise problems.

WORKOUT GUIDELINES

THE EXERCISE PHASE

Mark Icon  This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

IX. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed.

If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form

For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service Request Form or Parts Purchase Form.

Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form

LIFESPAN SM-700 Spin Bike QR Code

X. HAND PULSE TECHNOLOGY

This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and that they must be amplified 1000 times to make the signal useful for the computer to display your pulse.

To ensure proper operation:

  • The user must maintain good, consistent contact on all four sensors.
  • The users skin cannot be too dry or too wet.

Other factors that could affect the reading:

  • Change of grip on the sensors (during slow pace walking and up to running).
  • Tightening of hand muscles will produce small electrical signals.
  • Static electricity charges from the air or from walking on the treadmill.

EKG/ECG Sensors may filter through actual EKG/ECG signals and “Noise” factors that may affect the reading. This will cause the pulse reading to be delayed and will take longer to update the display as the heart rate changes. Too much noise will create an incorrect reading. Medical conditions or having no electrical signal in the hands are other factors that may affect pulse readings as well.

These are limitations of hand pulse technology and even the most expensive systems (which can cost upwards of $3,000) used in hospitals have the same problems. The difference is that a patient in a hospital is not running on a treadmill. Hand pulse technology works well on stationary exercise machines like bikes and even elliptical cross trainers but are not perfect on a treadmill. We offer treadmills with a wireless heart rate receiver which may be a more accurate option.

To test if your hand pulse sensors are working up to specification, hold them while standing on the sidestep rails, not walking, and see if the reading is more in line with what you would expect. This will eliminate the movement and static electricity factors. If your hands are dry, then wet them slightly (saliva works as a great conductor if this doesn’t bother you).

Lifespan logo

WWW.LIFESPANFITNESS.COM.AU

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
