Uni-t Uti120b Professional Thermal Imager User Manual

UTiI120B User Manual
Professional Thermallimager
P/N:110401111048X

UTi120B Professional Thermal Imager

Preface
Thank you for purchasing the new UTi120B thermal imager. In order to use this product safely and correctly, please read this manual thoroughly, especially the Safety Instructions part. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
Limited Warranty and Liability
Uni-Trend guarantees that the product is free from any defect in material and workmanship within one year from the purchase date. This warranty does not apply to damages caused by accident, negligence, misuse, modification, contamination or improper handling. The dealer shall not be entitled to give any other warranty on behalf of Uni-Trend. If you need warranty service within the warranty period, please contact your seller directly. Uni-Trend will not be responsible for any special, indirect, incidental or subsequent
damage or loss caused by using this device.

Specifications

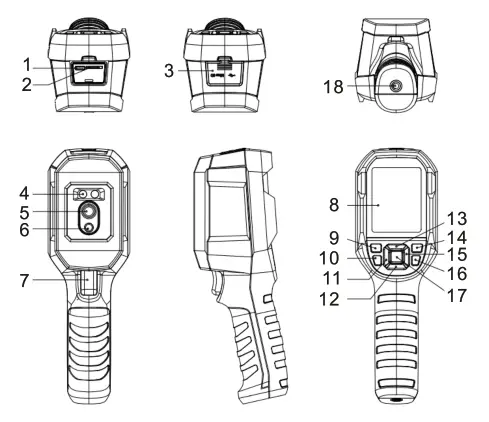

Structure

 Display

Display size: 2.8″ Display resolution: 320 (vertical) x 240 (horizontal) pixels

Power On/Off

Press the power button for 3s to power on, and press the power button for 1s

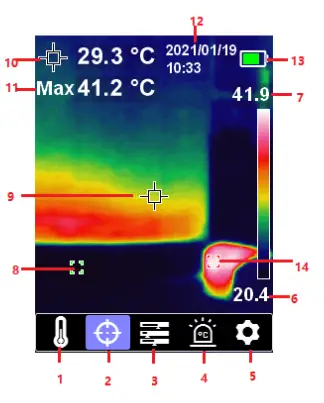

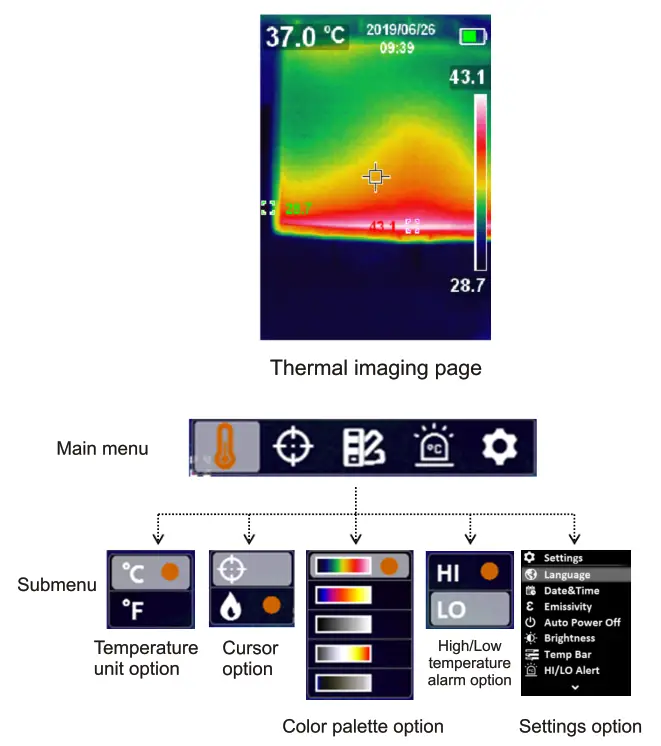

Menu Introduction

 Image fusion

This product can capture real-time IR image and display the measured temperature.
Press left/right button to select fusion rate from 0% (pure visual light image), 25%, 50%, 75%, 100% (pure infrared image), the best fusion distance is 2 1M.

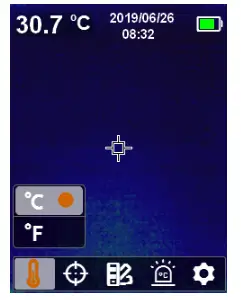

Temperature Unit Selection

1. Press the SET button to open the main menu.
2. Press the left/right button to select theopton.
3. Press the SET button to enter the temperature unit submenu.
4. Press the up/down button to select °C or °F.
5. Press the back button to exit the current menu.

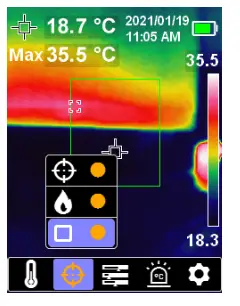

Center Point and High/Low-Temperature Tracking

Press SET to enter the main menu, select and press SET to enter the submenu:

1.  Select and press SET to measure the center point temperature.
2.  Select and press SET to track HI/LO temperature.
3. Select and press SET to measure ROI temperature.

Color Palette Selection

1. Press the SET button to open the main menu.
2. Press the left/right button to select the option.
3. Press the SET button to enter the color palette submenu.
4. Press the up/down button to select the desired color from Iron Red, Rainbow, White Hot, Red Hot, or Black Hot.
5. Press the back button to exit the current menu.

High/Low-Temperature Alarm

To enable high/low-temperature alarm:

1. Press the SET button to open the main menu.
2. Press the left/right button to select theoption.
3. Press the SET button to enter the high/low-temperature alarm submenu.
4. Press the up/down button to select HI (High) or LO (Low).
5. Press the SET button to confirm.
6. Press the back button to exit the current menu.

Note: High-temperature alarm and low-temperature alarm can be enabled
simultaneously or separately.

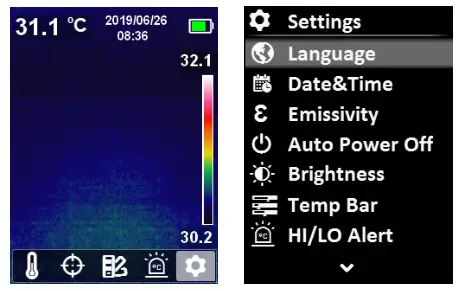

Settings

To enter the Settings menu:

1. Press the SET button to open the main menu.
2. Press the left/right button to select the option.
3. Press the SET button to confirm.

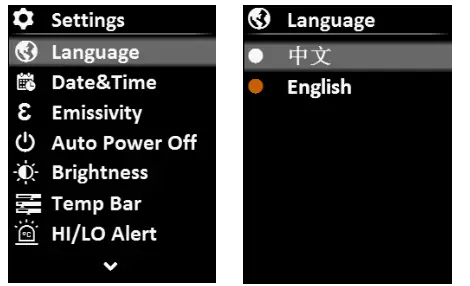

11.1 LanguageTo set language:

1. Select the Language option (up/down button) in the Settings menu.
2. Press the SET button to enter the Language submenu.
3. Press the up/down button to select the desired language from Chinese and English.
4. Press the SET button to confirm.
5. Press the back button to exit the current menu.

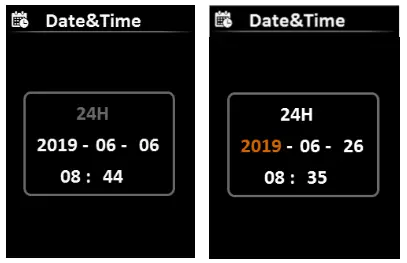

11.2 Date & Time
To set date & time:

1. Select the Date & Time option (up/down button) in the settings menu.
2. Press the SET button to enter the Date & Time submenu.
3. Press the left/right button to select the parameter to be adjusted.
4. Press the SET button to enter the parameter adjustment state.
5. Press the up/down button to increase or decrease the value.
6. Press the SET button to save the settings and return to set other parameters.
7.  Press the back button to exit the current menu.

11.3 EmissivityTo set emissivity:

1. Select the Emissivity option (up/down button) in the Settings menu.
2. Press the SET button to enter the Emissivity submenu.
3. Press the SET button again.
4. Press the up/down button to adjust the emissivity (step: 0.01; range: 0.01~0.99; default: 0.95)
5. Press the SET button to save the settings.
6. Press the back button to exit the current menu.

Note: Selecting correct emissivity is very important for the accuracy of temperature measurement, as emissivity has a significant impact on the measured surface temperature.
For emissivity values of common materials, please refer to the common emissivity table in the appendix.
11.4 Auto Power OffTo set auto power off:

1. Select the Auto Power Off option (up/down button) in the settings menu.
2. Press the SET button to enter the Auto Power Off submenu.
3. Press the upitown button to select the desired option from 5 Min, 10 Min, 30 Min, and Off.
4. Press the SET button to confirm.
5. Press the back button to exit the current menu.

11.5 Display Brightness
To set display brightness:

1.  Select the Brightness option (up/down button) in the settings menu.
2. Press the SET button to enter the Brightness submenu.
3. Press the up/down button to select the desired option from Low, Middle, and High.
4. Press the SET button to confirm.
5. Press the back button to exit the current menu.

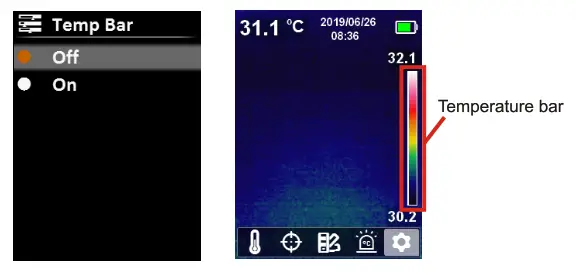

11.6 Temperature Bathe

To turn on/off temperature bar:

1. Select the Temp Bar option (up/down button) in the settings menu.
2. Press the SET button to enter the Temp Bar submenu.
3. Press the up/down button to select On or Off.
4. Press the SET button to confirm.
5. Press the back button to exit the current menu.

11.7 Alarm Temperatures

To set alarm temperatures:

1. Select the HI/LO Alert option (up/down button) in the settings menu.
2. Press the SET button to enter the HI/LO Alert submenu.
3. Press the up/down button to select the desired option from HI Alert and LO Alert.
4. Press the SET button to enter the temperature adjustment state.
5. Press the up/down button to adjust the temperature.
6. Press the SET button to save the settings and return to set another temperature.
7. Press the back button to exit the current menu.

11.8 Device Information

To view the device information:

1. Select the Device Info option (up/down button) in the settings menu.
2. Press the SET button to view the detailed information of the device.
3. Press the back button to exit the current menu.

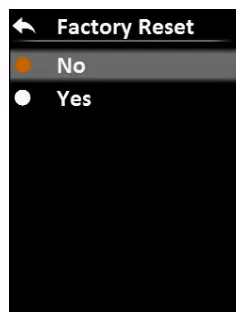

11.9 Factory ResetTo restore settings:

1. Select the Factory Reset option (up/down button) in the settings menu.
2. Press the SET button to enter the Factory Reset submenu.
3. Press the up/down button to select Yes.
4. Press the SET button to confirm.
5. Press the back button to exit the current menu.

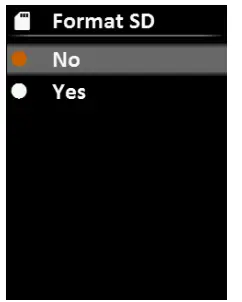

11.10 Format SD CardTo format SD card:

1. Select the Format SD option (up/down button) in the settings menu.
2. Press the SET button to enter the Format SD submenu.
3. Press the up/down button to select Yes.
4. Press the SET button to confirm.
5. Press the back button to exit the current menu.

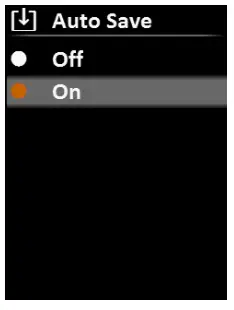

11.11 Auto Save

To turn on/off autosave:

1. Select the Auto Save option (up/down button) in the settings menu.
2. Press the SET button to enter the Auto Save submenu.
3. Press the up/down button to select On or Off.
4. Press the SET button to confirm.
5. Press the back button to exit the current menu.

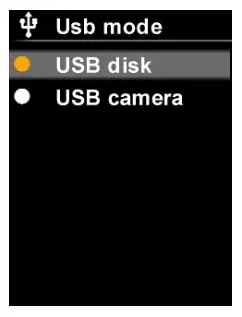

11.12 USB modeTo set USB mode:

1. Select the USB mode option (up/down button) in the settings menu.
2. Press the SET button to enter the USB mode submenu.
3. Press the up/down button to select USB disk or USB Camera.
4. Press the back button to exit the current menu.

USB Communication

1. Download and install the PC software (refer to UNI-T Documents Download Operation Guide).
2. Connect the USB cable to the PC.
3. Set the USB mode to USB disk to browse pictures and analyze data through the PC software; set the USB mode to USB camera to realize real-time image projection through the PC software.
4. Regarding its usage, retrieve the Software User Manual from the Help option of the operation interface.

SD Card

This device supports Micro SD card (TF card) to store images. To avoid affecting the operating speed of the device, please copy the backup data regularly and clean up the SD card in time. To avoid causing abnormal data on the SD card, do not insert or remove the SD card repeatedly. Try to remove and insert the SD card when the device is turned off.

Charging

Please use a safety-certified 5V/1A or 5V/2A power adapter for charging. Do not turn off the product easily during charging. If a shutdown or restart is needed, please unplug the Type-C power cord and disconnect the power supply first.

Maintenance

Use a wet cloth or weak soap solution to clean the outer shell of the device. Do not use abrasives, isopropyl alcohol or solvents to clean the outer shell, lens or window.

Safety Instructions

To ensure accurate measurement results, please read the instructions carefully.

• Please use this product in accordance with the user manual, otherwise, the free warranty will be voided if the product is damaged.
• Please do not use this product in flammable, explosive, steamy, wet or corrosive environments.
• Please stop using the product if it is damaged or modified to avoid inaccurate measurement results.
• Please use the correct emissivity to obtain accurate temperature readouts.
• To ensure the accuracy of the product, please warm it up for 20 minutes before measuring if it has not been used for a long time.
• When being charged, the internal temperature of the product will rise, which will lead to inaccurate temperature measurement. So, it is not recommended to take measurements during or right after charging the product.
• The inherent temperature drift of the sensor will occasionally cause inaccurate measurements. In this case, press the down button under the temperature measurement interface to bring out “Calibrating” and automatically calibrate the temperature.

Appendix

The emissivity of common objects

Note: This manual can be downloaded from the official website of Uni-Trend (refer to UNI-T Documents Download Operation Guide).
