Fency Additional Owner’s Manual
(apply to updated version: with table and reflector shield.)
IMPORTANT
- Please read Additional Owner’s Manual ( and Owner’s Manual Model JN-M-XX before assembling.
- Remove all the protective cover before assembling.( all the reflectors and tank housing.)
Additional 1

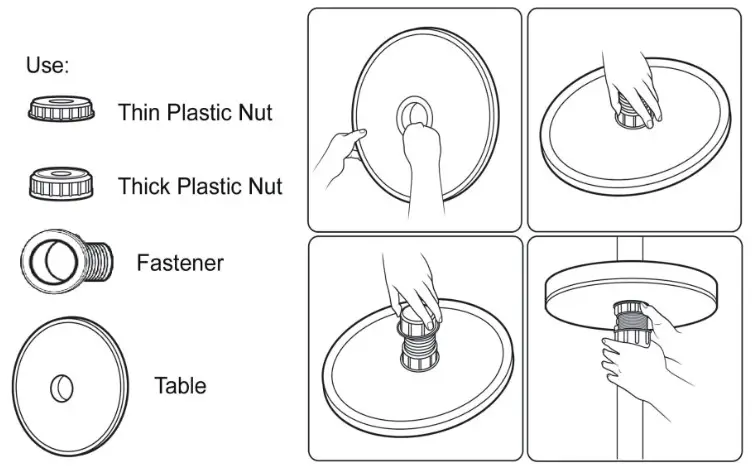

- Put fastener through table hole.
- Tighten thin plastic nut onto fastener.
- Screw thick plastic nut onto fastener (don’t tighten).
- Insert table through post. Adjust to desired height and tighten thick plastic nut.
Warning
Please install under the guidance of professionals. Please install in strict accordance with the instructions.
Danger

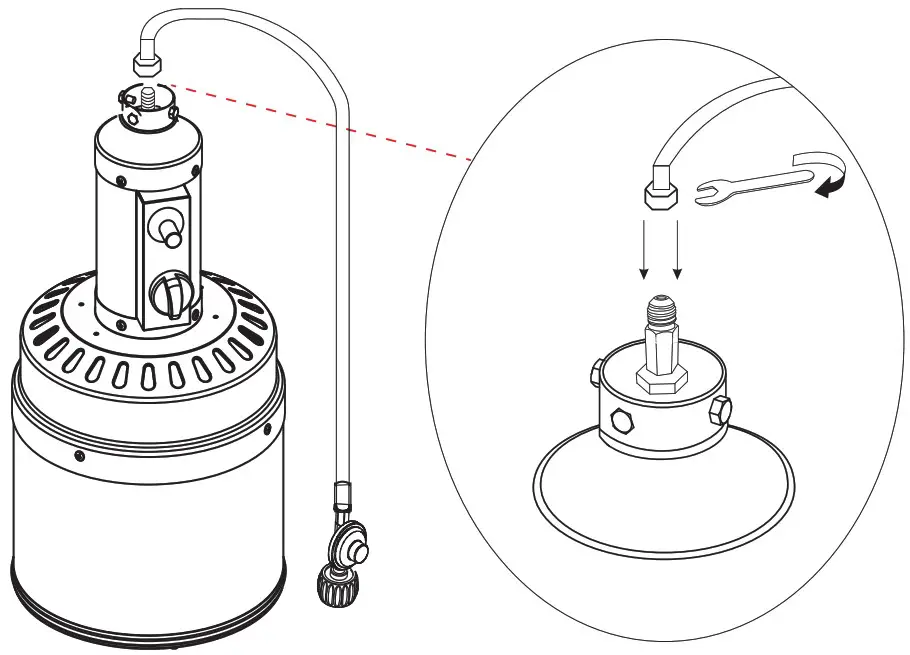

Gas pipe joints must be tightened with a wrench. If it is not tightened as required, it will cause gas leakage and cause a fire. In severe cases, it may damage personal and property safety.
Additional 2
Warning
Please install under the guidance of professionals. Please install in strict accordance with the instructions.
Additional 3
IMPORTANT

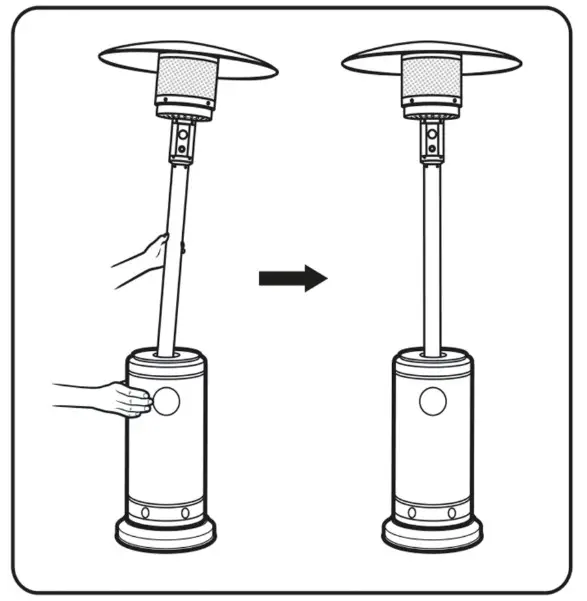

If you notice the POST is slightly tilted, you can straighten it gently with your hands. Tilting may be caused by some bolts being screwed tighter than others.
