Salus 091flrfv2 Digital Programmable Thermostat User Guide

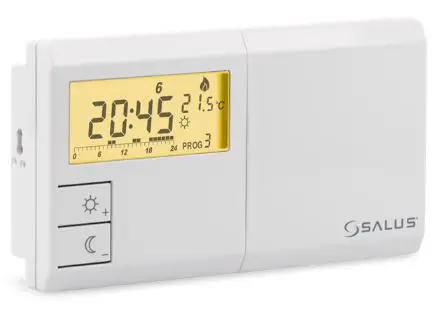

SALUS 091FLRFv2 Digital Programmable Thermostat

PRODUCER:

Salus Limited
6/F, Building 20E, Phase 3,
Hong Kong Science
Park, 20 Science Park East
Avenue, Shatin,
New Territories, Hong Kong

www.salus-controls.eu

Introduction
091FLv2/091FLRFv2 is a programmable, weekly thermostat used to control room temperature in heating or cooling systems. Before use please read this manual carefully. Use only AA 1.5V alkaline batteries in the thermostat. Place the batteries into the battery slot located under the cover. Do not use rechargeable batteries.

Product compliance
This product complies with the following EU Directives:
091FLv2: 2014/30/EU, 2014/35/EU, 2011/65/EU
091FLRFv2: 2011/65/EU, 2014/53/EU 868.0 MHz – 868.6 MHz; <13dBm
Full information is available on the website www.saluslegal.com

Safety Information
Use in accordance with national and EU regulations. Use the device only as intended, keeping it in a dry condition. The product is for indoor use only. Installation must be carried out by a qualified person in accordance with national and EU regulations.

Technical specification

Wired thermostat 091FLv2

Wireless thermostat 091FLRFv2

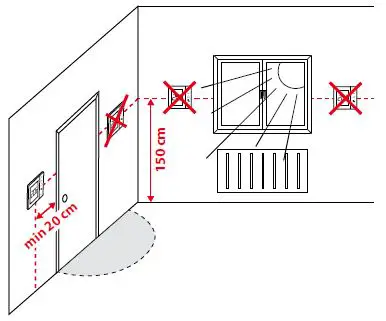

Proper thermostat placement

Button Functions

Button	Function
	Comfort temperature or changing parameters up
	Economic temperature or changing parameters down
	Set the day of the week
	Set the hour
	Set the minutes
	Temperature setpoint
	Weekly programming
	Program selection
	Confirm function
	Factory Reset

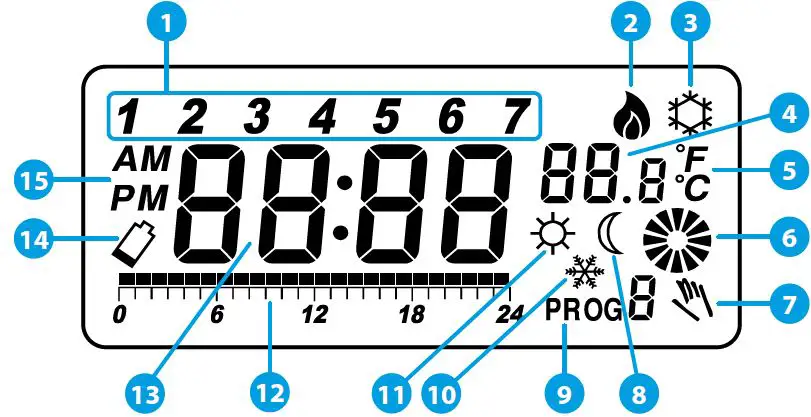

LCD Icon description

1. Day of the week indicator
2. Heating Mode ON
3. Cooling Mode ON
4. Room/setpoint temperature
5. Temperature unit
6. Controlled device working status (e.g. boiler)
7. Temporary override
8. Eco Mode
9. Program number
10. Antifrost Mode
11. Comfort Mode
12. Program timeline indicator
13. Clock
14. Low battery indicator
15. AM/PM

091FLv2 Wiring diagram

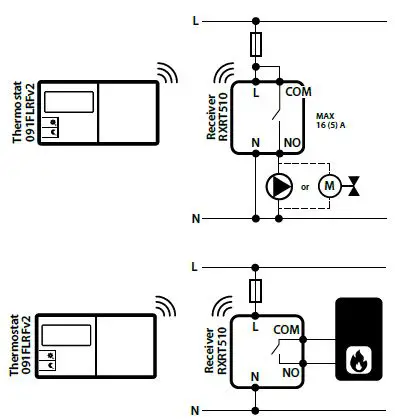

091FLRFv2 Wiring diagram

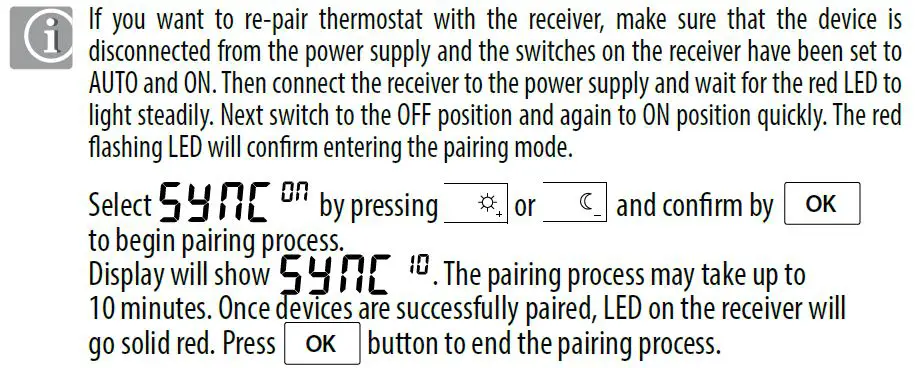

NOTE! If you are using 091FLRFv2 pack, the pairing between the thermostat and the receiver is already done.

Setting Time

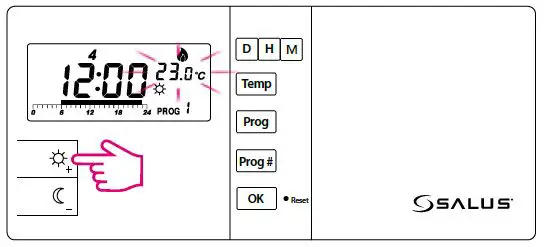

Setting the comfort temperature

1.
2.
3. To confirm press OK  button.

Setting the economic temperature

1. Press OK  button to highlight the display.
2. Press and then press Temp.
   Display will show current economic temperature.

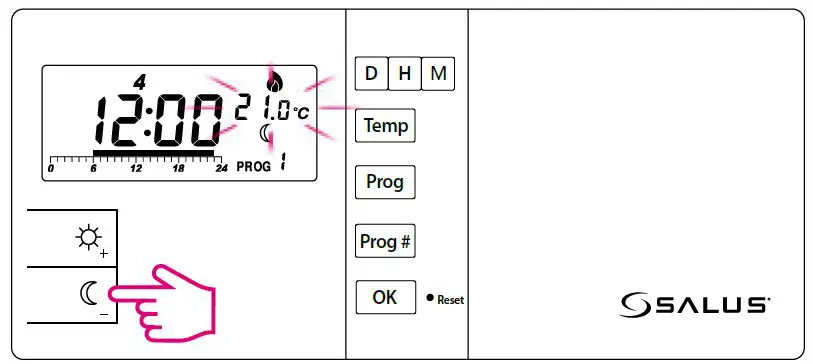

3. To change this temperature, press or button.

Programs

There are 9 programs available. Programs 0-5 are factory programs.
Programs 6-8 can be defined by user.

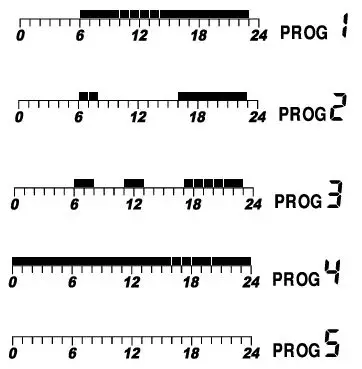

Selection of factory (0-5) programs

Press OK to h light the display.

1. Select t y of the week by pressing Prog button.
2. Press Prog # to set the program number (0-5) for the selected day.

   Program 0 is a special program. It will set the thermostat to antifrost temperature (7°C) for the full day.

3. To confirm press OK  button.

NOTE! Label with programs descriptions is sticking on the flip side of the cover.

Choosing and programming (6-8) user programs

1. Press OK to highlight the display.
   Select the day of the week by pressing Prog button.
2. Press Prog #   to set the program number (6, 7 or 8) for the selected day.

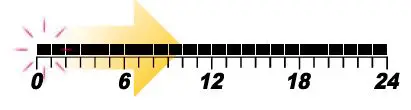

3. Press or button ach pressing one of these buttons moves the timeline by one hour and assigns a comfortable or an economic temperature).
4. To confirm press OK  button.

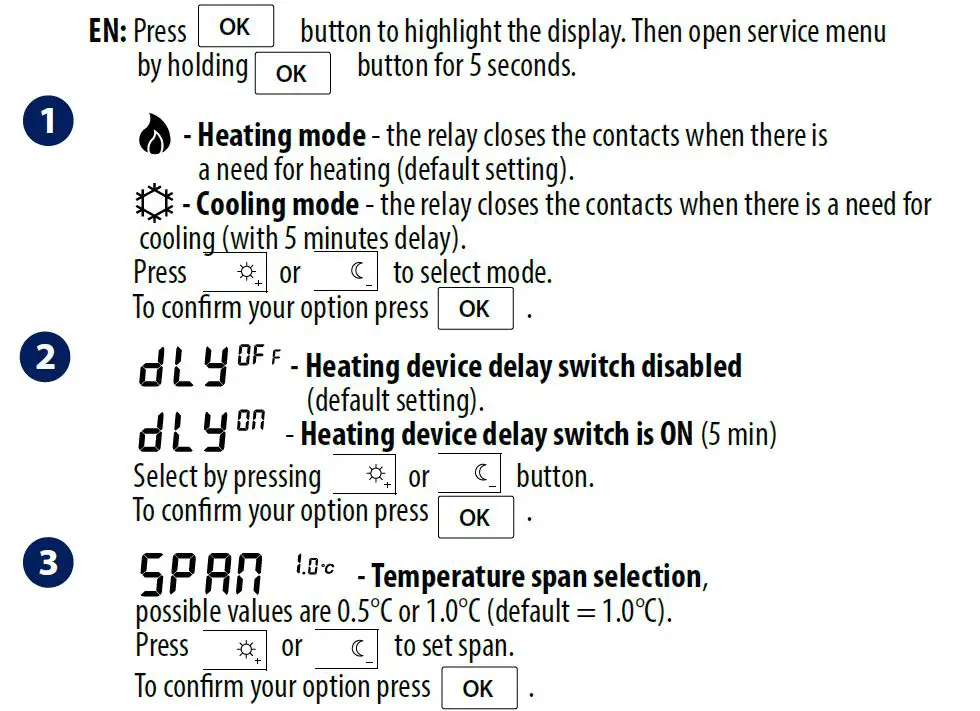

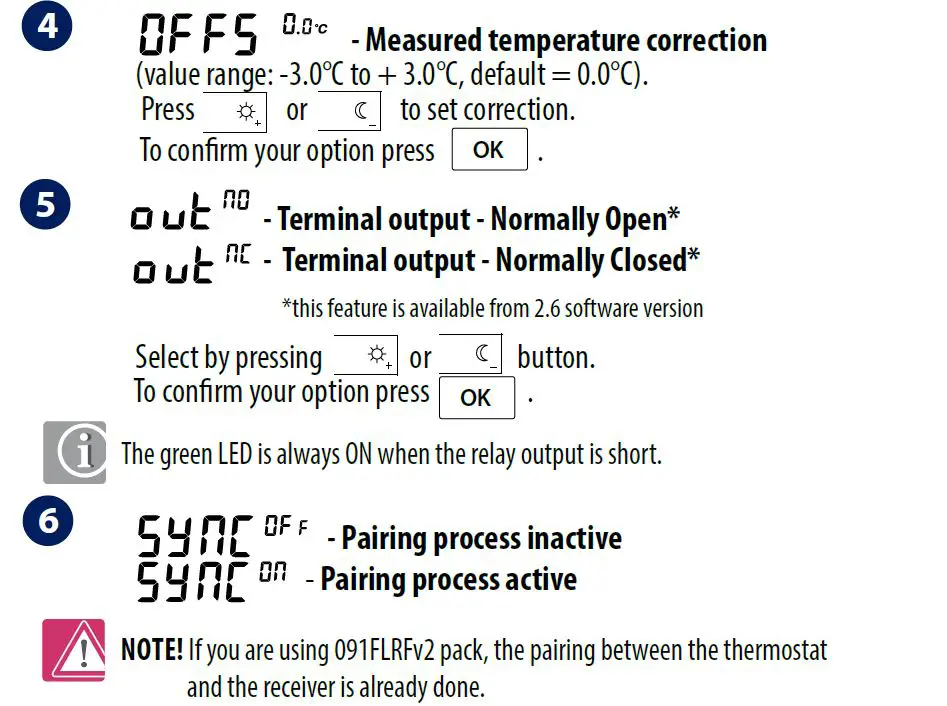

Service Menu
