VIOTEL Smart Barrier Node

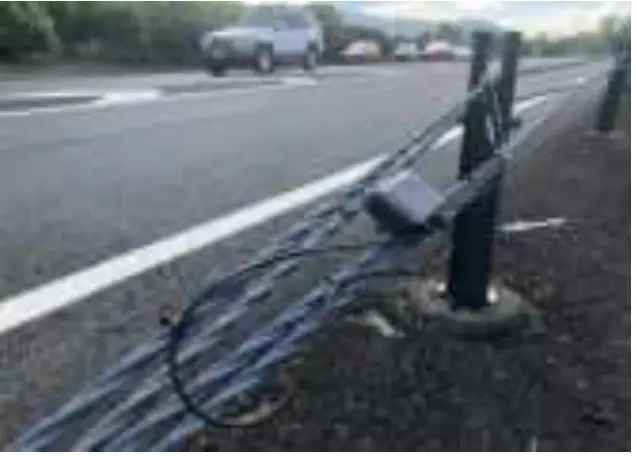

The Viotel Smart Barrier node features a unique patented design for quick installation on wire rope barriers and fences. The node measures the tension of the wires, and monitors the barrier for impacts. The Smart Barrier node uses an integrated solar panel and rechargeable battery, and an internal Cat-M1 modem for communications. The barrier status is uploaded regularly, and whenever an impact is detected.
FEATURES AND BENEFITS
- INTERNAL ACCELEROMETER WITH ADVANCED SIGNAL PROCESSING TO MINIMISE FALSE ALARMS
- WIRELESS OPERATION USING CAT-M1
- ALARM CAPABILITY WHEN IMPACTS ARE DETECTED
- MEASURES WIRE ROPE TENSION
- TAMPERING DETECTED IN REAL-TIME
- INTERNAL GPS FOR POSITIONING
| SPECIFICATIONS | |
| ACCELEROMETER | 3 COMPONENT – TRIAXIAL |
| TENSION MEASUREMENT | COMBINATION OF TENSION IN TWO WIRES |
| TENSION FULL-SCALE | 100 kN (3m spacing between posts, 5cm wire deflection) |
| TENSION ACCURACY | 150 N (3m spacing between posts, 5cm wire deflection) |
| ATTACHMENT TO BARRIER | STEEL CABLE TIES TO UPPER AND LOWER WIRES & STEEL BAND FOR TENSION MEASUREMENT |
| DATA UPLOADS | REGULARLY (HOURLY/DAILY DEPENDING ON BATTERY LEVEL) AS WELL AS WHENEVER IMPACTS ARE DETECTS |
| TILT TOLERANCE | 180° (OMNIDIRECTIONAL) |
| DIMENSIONS | 90 X 130 X 40 (W X L X D) MILLIMETRES – EXCL BAND |
| WEIGHT | 0.5 KG |
| OPERATING TEMPERATURE | -10 TO +65 °C |
| POWER | INTEGRATED SOLAR PANEL WITH RECHARGEABLE BATTERY |
| ENCLOSURE FEATURES | ABS PLASTIC, IP67 |
