MS S-P Series Surface Mounted Pendants
Instruction ManualSurface mounted
TC MS Series

Contents hide

1 MS S-P Series Surface Mounted Pendants

2 Disconnect before servicing

3 Documents / Resources

3.1 References

4 Related Posts

MS S-P Series Surface Mounted Pendants

Surface mounted

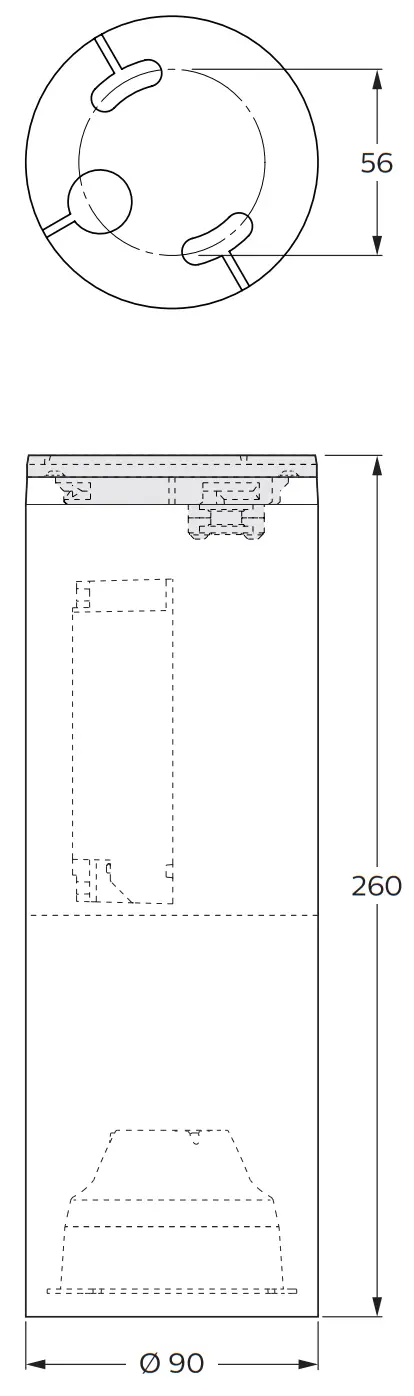

Dimensions in mm ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES

– The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
– This luminaire is not suitable for use as emergency lighting.
– The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
– Clean with dry cloth.

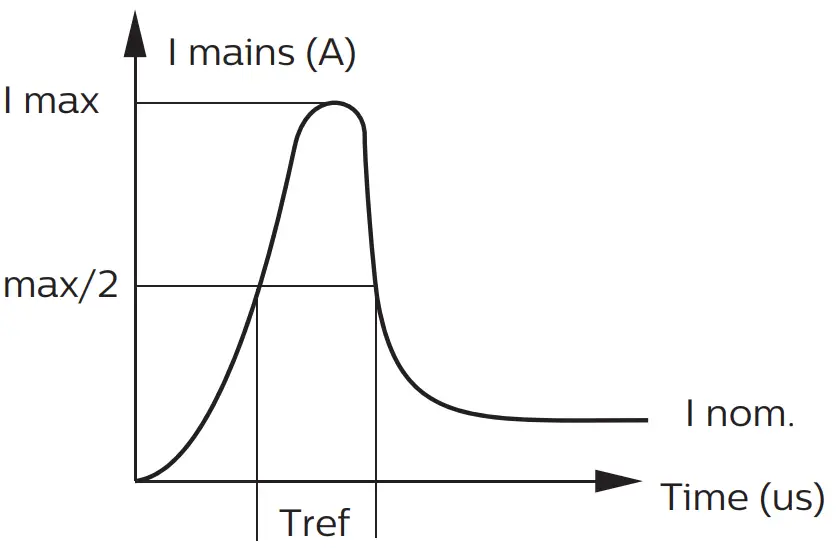

Inrush current

	PSU			DIA		WIA
	20W	36W		20W	36W	36W
		Electrical. characteristics
Imax (A)	4.	5.		18	18	5.
Tref (ps)	66	65		250	250	56
MCB			Luminaires max.
2-10 A	21	21		21	21	15
B-16 A	34	34		34	34	24
C-10 A	35	35		35	35	25
C-16 A	57	57		57	57	40

For 27S and 32S, use PSU and DIA version 36W.

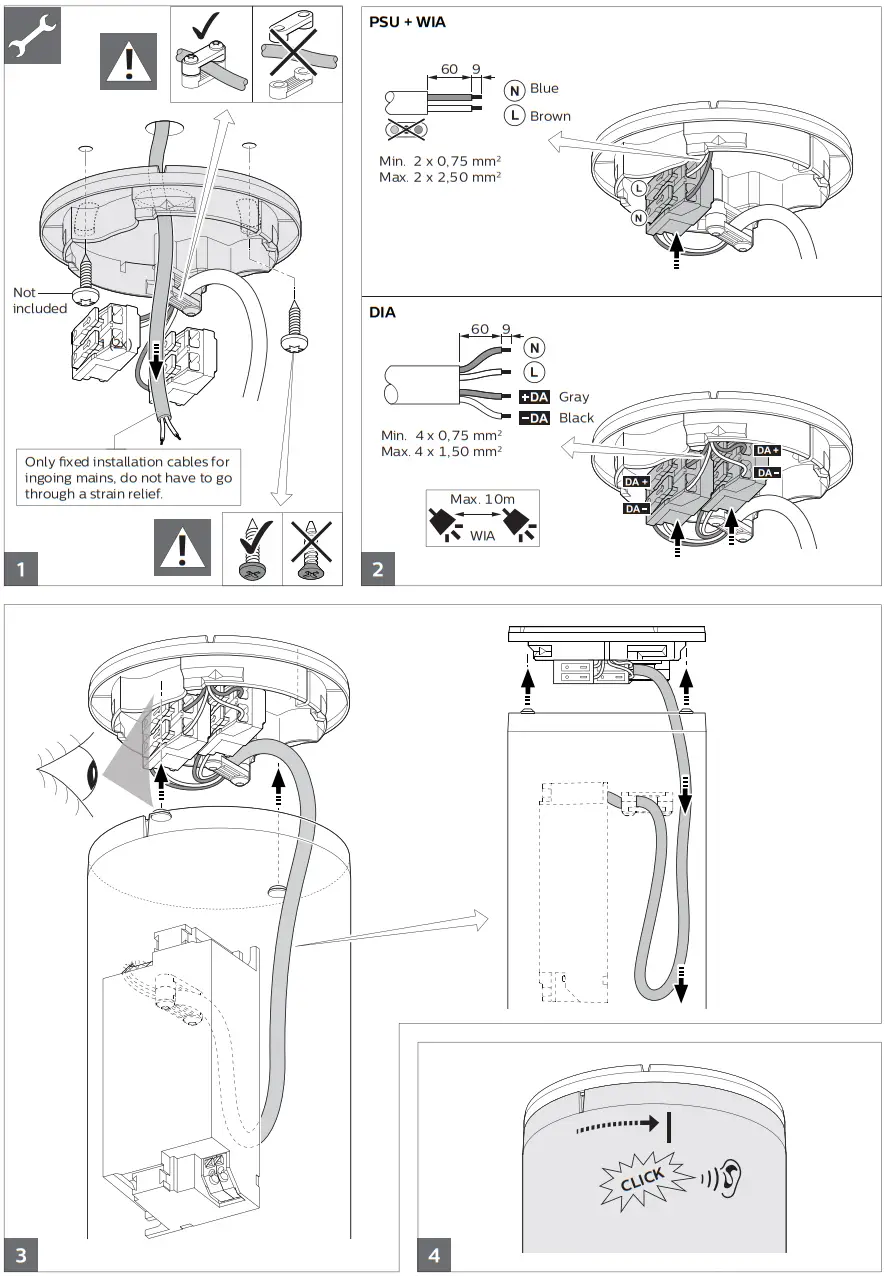

Disconnect before servicing

Luminaire has basic insulation between Low Voltage supply and control conductors.
The control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualiﬁed person. The light source contained in this luminaire is not replaceable, in case of damage replace the luminaire.
Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque speciﬁcation to assure maximum strength over lifetime.
This product contains a light source of energy efﬁciency class: see table or label.
