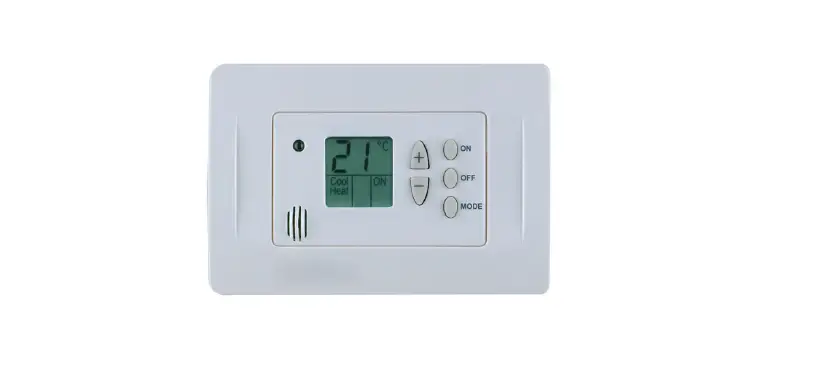

Meitav-tec Fmh24-pd-1s-ir Thermostat Owner's Manual

meitav-tec FMH24-PD-1S-IR Thermostat

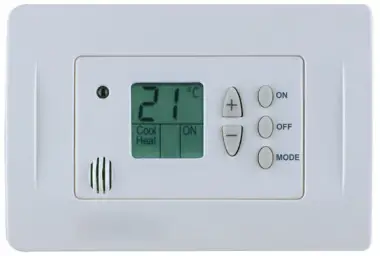

FMH24-PD-1S-IR Product Information

The FMH24-PD-1S-IR is a Flush Mount unit thermostat manufactured by Meditate Ltd (Comtel group). It is a temperature control device that can be used to regulate heating, cooling, or fan-only systems. The device is designed to provide an accurate reading of the temperature and can be installed easily in an electrical box.

Installation Instructions

It is important to find the right place to install the Flush Mount unit. Please make sure to follow all the installation instructions in order to get an accurate reading of the temperature.

General Points to Follow

• Connect the wires (see #2)
• Put the thermostat in the electrical box.
• Tighten up the 2 screws.
• Adapt the front frame-panel into its place, by pushing it towards the wall.

Wiring Connections

Switching the Thermostat On

1. Press the ON button to activate the thermostat.
2. ON will appear on display.

Switching the Thermostat Off

1. Press the OFF button to deactivate the thermostat.
2. OFF will appear on display.

Setting the Temperature

1. Press the (+) or (-) the temperature will flash.
2. Change the set temperature using the (+) or (-) buttons.

Selecting Modes

1. Press the MODE button to switch between:
   • Cool
   • Heat
   • Fan only

Meitav-tec Ltd (Contel group)
Tel: 972-3-9626462 Fax: 972-3-9626620
www.meitavtec.com – [email protected]

FMH24-PD-1S-IR

Owner’s Manual – Installation and Operating Instructions

Please read this manual carefully before installation and use.

Overview

Is very important to find the right place to install the Flush Mount unit. Please make sure to follow all the installation instructions in order to get an
accurate reading of the temperature.

General points to follow:

•  The unit MUST be fitted into a standard electrical box (GEWISS Box – GW00001481VR)
• The unit should not be installed on an outside wall or where there is an air draft.
• The unit must not be exposed to a direct sunlight.
• The standard height to install this unit is 1.5 meter from the floor (5 feet).

Installation procedure:

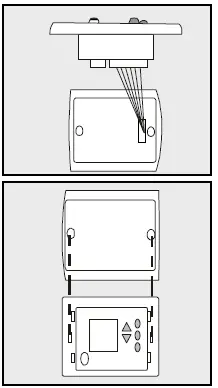

• Connect the wires (see #2)
• Put the thermostat in the electrical box.

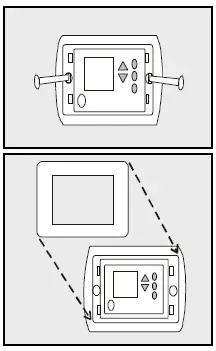

• Tighten up the 2 screws.
• Adapt the front frame-panel into its place, by pushing it towards the wall.

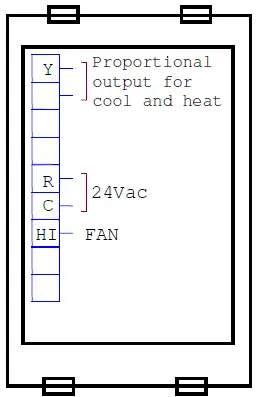

Product Wiring Connections

Operating Manual

Switching the thermostat On

1. Press the ON button to activate the thermostat.
2. ON will appear on display.

Switching the thermostat Off

1. Press the OFF button to deactivate the thermostat.
2. OFF will appear on display.

Setting the temperature

1. Press the (+) or (-) the temperature will flash.
2. Change the set temperature using the (+) or (-) buttons.

Selecting modes

1. Press the MODE button to switch between:
   • Cool
   • Heat
   • Fan only

File: fmh24-pd-1s-A4-rev1.doc Rev. 1
Date:07/06/2005
