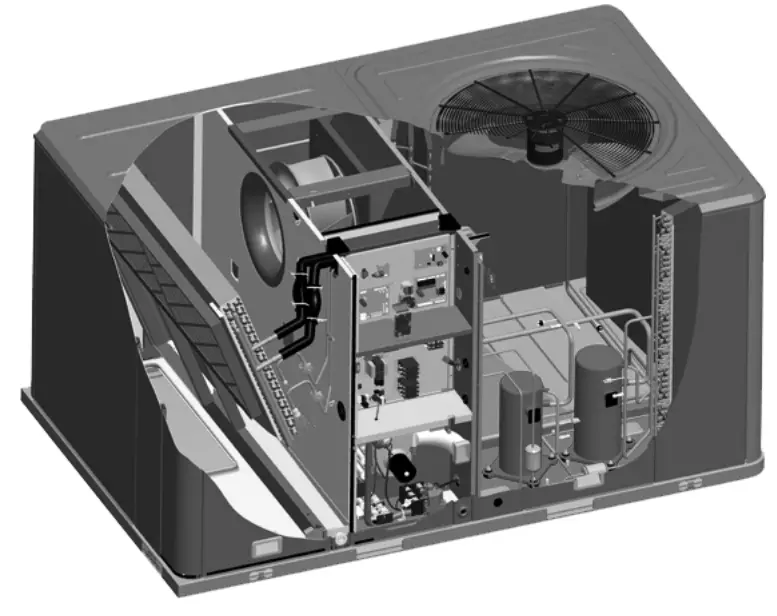

TRANE TYSC036E1RLA005P Precedent 3 Tons 10.5 Seer Standard Efficiency Convertible Packaged Gas or Electric Unit
Copyright
This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.
Trademarks
All trademarks referenced in this document are the trademarks of their respective owners.
Revision History
- Updated List of factory installed options table.
- Updated the standard efficiency, 3 to 5 ton packaged rooftop performance data (cooling or gas) table.
- Updated MCA and MOP electrical data (standard indoor fan motor) (cooling or gas) table.
- Updated the Unit indoor fan data (cooling or gas) table.
- Updated Unit dimensional data table.
List of factory installed options
| 0-50% Motorized outside air damper | Human interface – 5-in. color touchscreen |
| Air-Fi® Wireless Communication Interface | LonTalk® Communication Interface (LCI) |
| BACnet® Communication Interface (BCI-R) | Manual outside air damper |
| Barometric relief | MERV 8 filters |
| Clogged filter switch | MERV 13 filters |
| CompleteCoat™ (microchannel condenser coil) | Multiple zone VAV (variable air volume) |
| Condensate overflow switch | Multi-speed indoor fan system |
| Demand control ventilation wiring | Powered convenience outlet |
| Discharge air temperature sensing kit | ReliaTel™ controls |
| Economizer – comparative enthalpy | Stainless steel drain pan |
| Economizer – dry bulb | Stainless steel heat exchanger |
| Economizer – low leak, dry bulb | Supply, return, and plenum air smoke detectors |
| Economizer – reference enthalpy | Through-the-base electric provision |
| Fan failure switch | Through-the-base gas provision |
| Fault detection & diagnostics (FDD); Meets CA Title 24 requirements | Unit mounted circuit breaker |
| Frostat™ | Unit mounted non-fused disconnect |
| Hail guard | Unpowered convenience outlet |
| Hinged access panels |
Verify option availability in product catalog.
Standard efficiency
3 to 5 ton packaged rooftop performance data (cooling or gas)
| Nominal Size (Tons) | 3 | 4 | 5 |
| Cooling Performance | |||
| Supply Air (cfm)(a) | 1,200 | 1,600 | 2,000 |
| Tot / Sens Cap (MBh)(b)(c) | 37.1/29.9 | 49.0/38.6 | 60.1/49.4 |
| SEER/EER | 14.0 | 14.0 | 14.0 |
| SEER2/EER2 (d) | 13.4/10.6 | 13.4/10.6 | 13.4/10.6 |
| IEER (T/Y) | N/A | N/A | N/A |
| Gas Heating Performance | |||
| Low Heat (Input/output) – (MBh) | 80/64.8 | 80/64.8 | 80/64.8 |
| Medium Heat (Input/output) – (MBh) | 100/81 | 100/81 | 100/81 |
| High Heat (Input/output) – (MBh) | 120/97.2 | 130/105.3 | 150/121.5 |
| Other Information | |||
| Net Weight (Lbs) – Gas Heat | 472 | 492 | 522 |
| Net Weight (Lbs) – Electric Heat | 431 | 452 | 498 |
| Roof Curb | BAYCURB042A | ||
| Unit Cabinet Size | F | ||
| Filters(e) – Type Furnished | Throwaway | Throwaway | Throwaway |
| Number Size Recommended | (2) 20x30x2 | (2) 20x30x2 | (2) 20x30x2 |
- Nominal cfm.
- Cooling performance is rated at 80/67/95.
- All units listed utilize 3-phase voltage.
- EER2 and SEER2 is rated at AHRI conditions and calculated in accordance with AHRI Standard 210/240-2023. Airflow and net cooling capacity not shown
- Optional 2-inch MERV 8 and MERV 13 filters also available.
Unit MCA and MOP electrical data (standard indoor fan motor)
(cooling or gas)
| T/YHC | Volts | MCA | MOP |
| 036 | 208-230/3 | 20 | 30 |
| 036 | 460/3 | 10 | 15 |
| 036 | 575/3 | 8 | 15 |
| 048 | 208-230/3 | 26 | 35 |
| 048 | 460/3 | 11 | 15 |
| 048 | 575/3 | 10 | 15 |
| 060 | 208-230/3 | 29 | 40 |
| 060 | 460/3 | 13 | 15 |
| 060 | 575/3 | 10 | 15 |
| 072 | 208-230/3 | 35 | 50 |
| 072 | 460/3 | 17 | 25 |
| 072 | 575/3 | 13 | 20 |
| 090 | 208-230/3 | 39 | 60 |
| 090 | 460/3 | 19 | 30 |
| 090 | 575/3 | 15 | 20 |
| 092 | 208-230/3 | 39 | 50 |
| 092 | 460/3 | 18 | 20 |
| 092 | 575/3 | 15 | 20 |
| 102 | 208-230/3 | 46 | 60 |
| 102 | 460/3 | 23 | 25 |
| 102 | 575/3 | 17 | 20 |
| 120 | 208-230/3 | 49 | 60 |
| 120 | 460/3 | 22 | 25 |
| 120 | 573/3 | 22 | 25 |
For MCA/MOP of units with electric heat, refer to product catalog.
Unit indoor fan data (cooling or gas)
| T/YHC | Volts | Standard – HP – RPM | Oversize – HP – RPM |
| 036 | 208-230/3(a) | 3/4 – MULT | 1 – MULT |
| 036 | 460/3(a) | 3/4 – MULT | 1 – MULT |
| 036 | 575/3(a)(b) | 3/4 – MULT | 1 – MULT |
| 048 | 208-230/3(a) | 1 – MULT | 1 – MULT |
| 048 | 460/3(a) | 1 – MULT | 1 – MULT |
| 048 | 575/3(a)(b) | 1 – MULT | 1 – MULT |
| 060 | 208-230/3(a) | 1 – MULT | 1 – MULT |
| 060 | 460/60/3(a) | 1 – MULT | 1 – MULT |
| 060 | 575/3(a)(b) | 1 – MULT | 1 – MULT |
- Direct drive
- Powered through 575/230V

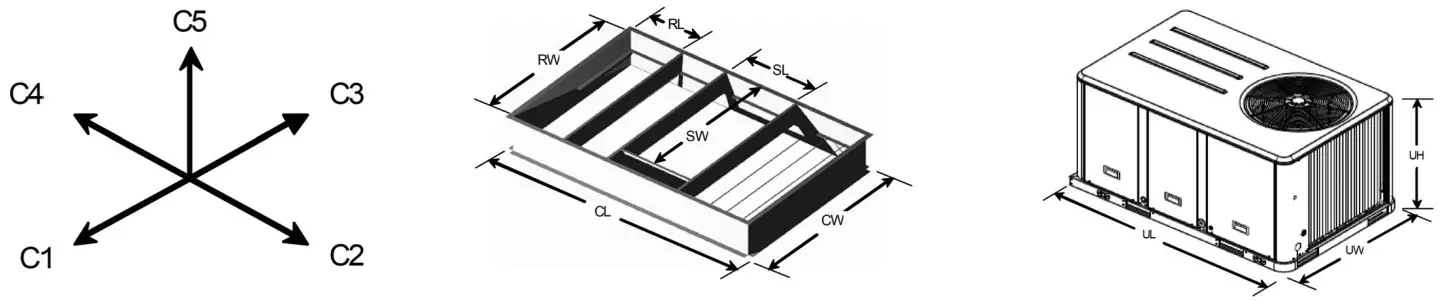

Unit dimensional data
| F | |
| Unit Length UL | 69 7/8 |
| Unit Width UW | 44 1/4 |
| Unit Height UH | 40 7/8 |
| Clearance C1 | 48 |
| Clearance C2 | 36 |
| Clearance C3 | 36 |
| Clearance C4 | 36 |
| Clearance C5 | 72 |
| Curb Length CL | 65 13/16 |
| Curb Width CW | 41 7/16 |
| Supply Length SL(a) | 16 3/4 |
| Supply Width SW(a) | 17 7/8 |
| Return Length RL(a) | 14 19/16 |
| Return Width RW(a) | 25 3/16 |
Dimensions are for curb openings and not duct inserts. Reference the product catalog for duct insert dimensions.
