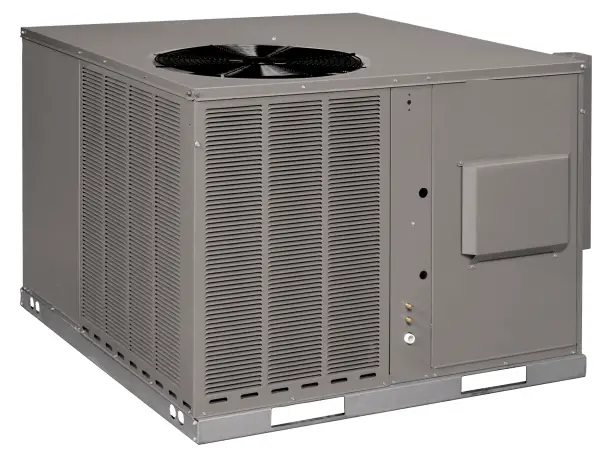

OXBOX J4PG4030B1060A 2.5 Ton High-Efficiency Gas Package Unit

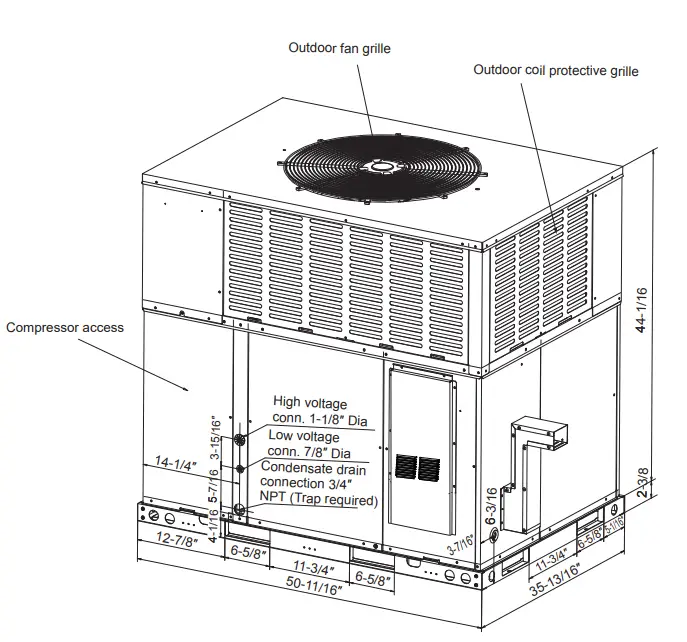

DIMENSION

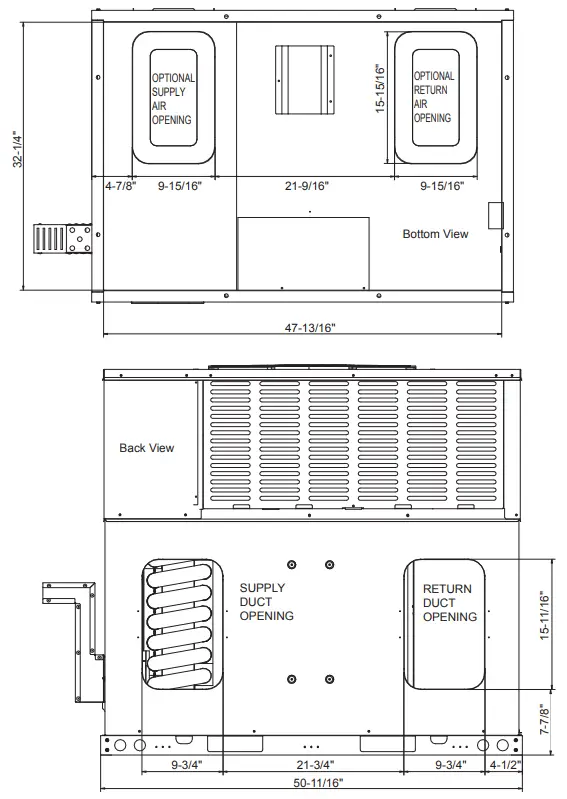

Dimensions Back and Bottom
PRODUCT SPECIFICATIONS

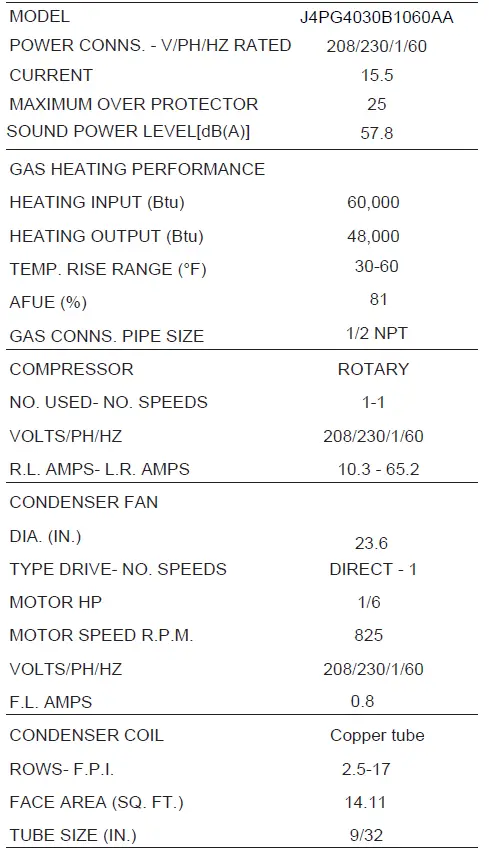

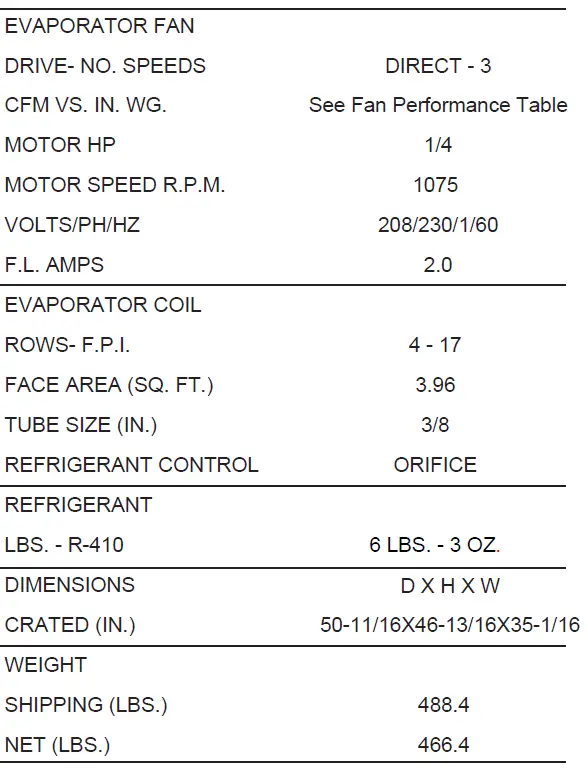

Specifications
Fan Performance Table
| Model Number | Motor Speed | External Static Pressure-Inches W.C.[kPa] | |||||||||
| 0[0] | 0.1[.02] | 0.2[.05] | 0.3[.07] | 0.4[.10] | 0.5[.12] | 0.6[.15] | 0.7[.17] | 0.8[.20] | |||
|
30 | Low | CFM | 1110 | 1044 | 977 | 916 | 813 | / | / | / | / |
| Current/A | 1.5 | 1.4 | 1.4 | 1.4 | 1.3 | / | / | / | / | ||
| Power/W | 336 | 328 | 321 | 309 | 289 | / | / | / | / | ||
| Middle | CFM | / | 1179 | 1106 | 1039 | 966 | 851 | 758 | / | / | |
| Current/A | / | 1.5 | 1.5 | 1.4 | 1.4 | 1.3 | 1.3 | / | / | ||
| Power/W | / | 345 | 337 | 328 | 319 | 298 | 289 | / | / | ||
| High | CFM | / | / | / | / | 1111 | 1031 | 864 | 786 | 750 | |
| Current/A | / | / | / | / | 1.8 | 1.8 | 1.7 | 1.7 | 1.62 | ||
| Power/W | / | / | / | / | 401 | 390 | 364 | 356 | 347 | ||
Features
- Single-stage gas (LP conversion kit provided with each unit) heating.
- Bottom or side air return.
- Aluminized steel tubular heat exchanger.
- Quiet multi-speed circulation blower.
- Direct spark ignition
- AHRI certified and ETL listed.
- Suitable for Manufactured/Mobile Home Use.
The manufacturer has a policy of continuous product and product data improvement and it reserves the right to change design and specification without notice.
BX-PRQ-J4PG4030B1060A-1A
