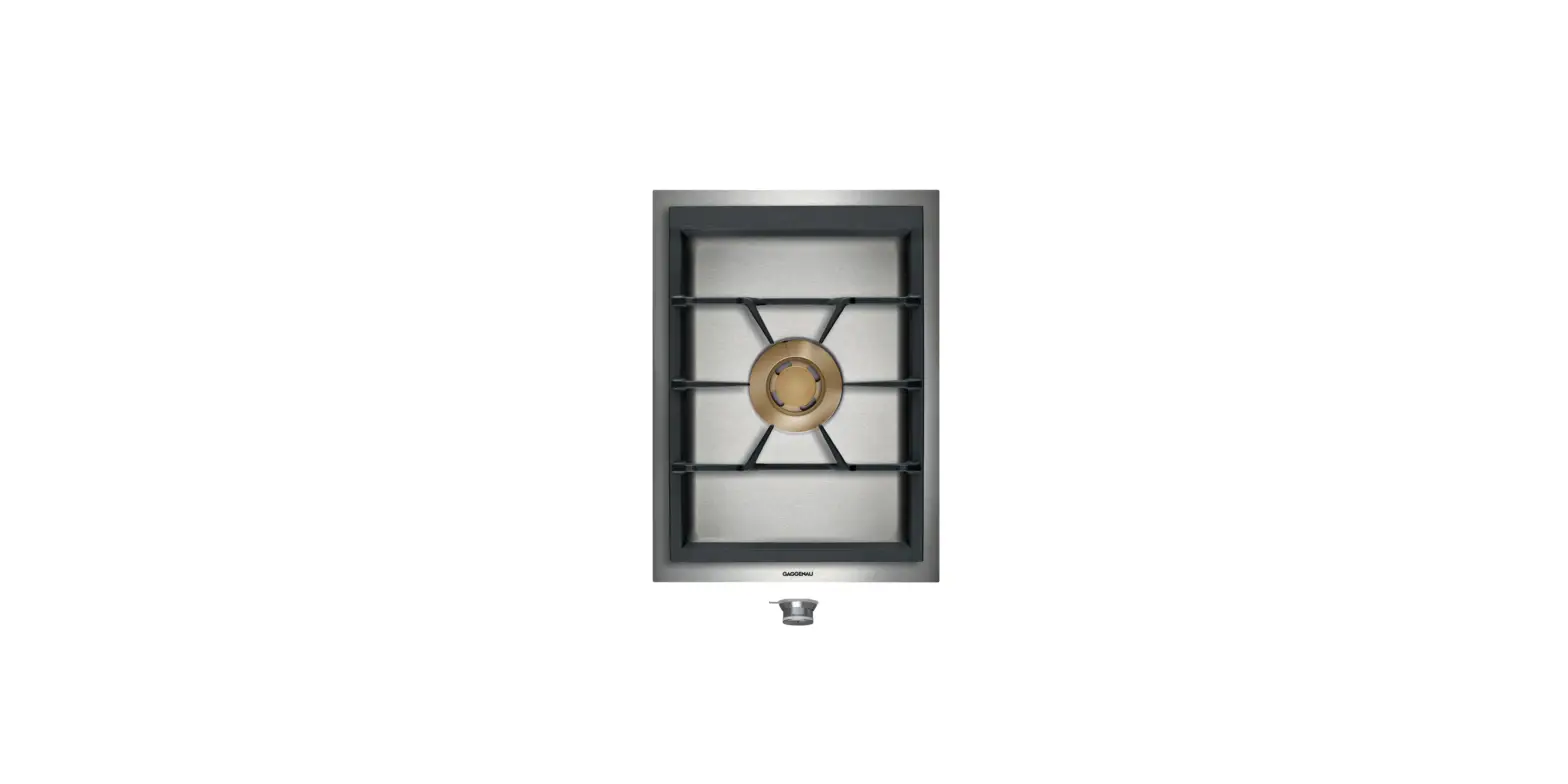

VG415315SG Gas Wok
Product Information: Gaggenau Gas Wok (HK Town Gas)
The Gaggenau Gas Wok is a high-quality kitchen appliance
designed for domestic use and intended for preparing food and
drinks. The appliance is suitable for use with HK Town Gas and
comes with a range of features to enhance your cooking
experience.
Intended Use
The Gaggenau Gas Wok is intended to be fully fitted in a kitchen
and must be installed according to the included installation
instructions. The appliance should only be used indoors and is not
suitable for use as a heater. It is not recommended to install this
appliance on boats or in vehicles. The maximum height of this
appliance above sea level is 2000 metres.
Important Safety Information
It is essential to read the instruction manual carefully before
operating the Gaggenau Gas Wok. Only a registered gas installer
should undertake gas installation works, including connecting the
appliance. Do not connect the appliance if it has been damaged
during transport. Do not use inappropriate child safety shields or
hob guards as they can cause accidents. This appliance may be used
by children over the age of 8 years old and by persons with reduced
physical, sensory, or mental capabilities if they are supervised or
instructed by a person responsible for their safety.
Operating the Appliance
To switch on the Gaggenau Gas Wok, turn the control knob to the
desired setting. The simmer setting is also available for low-heat
cooking. The appliance features electronic flame monitoring and
automatic re-ignition for added safety. To switch off the
appliance, turn the control knob to the off position. An residual
heat indicator will alert you when the surface is still hot after
use. The safety shut-off feature will automatically turn off the
gas supply to the appliance if the flame goes out.
Cleaning and Maintenance
Clean the appliance regularly to prevent burnt-on dirt and
discolouration of the burner. Use suitable cleaning products and
follow the cleaning instructions in the manual. If you experience
any issues with the appliance, refer to the troubleshooting section
of the manual or contact after-sales service for assistance.
Tips for Cooking and Roasting
Refer to the table of settings and tips for recommended cooking
times and temperatures. The Gaggenau Gas Wok is also suitable for
use with a wok, and tips for using a wok are included in the
manual. Use suitable cooking vessels and follow the precautions for
use to ensure safe and efficient operation of the appliance.
Gaggenau Instruction manual / Installation instructions Gaggenau /
VG415315SG
Gas wok (HK Town Gas) ()
Attention! According to the Gas Safety Ordinance of Hong Kong, any gas installation works including installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractor.
Table of contents
Intended use
3
Important safety information
4-5
Causes of damage
6
Environmental protection
6
S aving energy
6
Environmentally-friendly disposal
6
Familiarising yourself with your appliance
7-8
Gas hob
7
C ontrol knob
7
Visual signals of the luminous disc
7
Installation accessories
8
S pecial accessories
8
Individual parts of the wok burner
8
Operating the appliance
9
S witching on
9
S immer setting
9
Electronic flame monitoring and automatic re-ignition9
S witching off
9
Residual heat indicator
9
S afety shut-off
9
Table of settings and tips
10
Tips for cooking and roasting
10
Tips for using a wok
10
Information and tips regarding cookware
11
S uitable cooking vessels
11
Precautions for use
11
Cleaning and maintenance
12
C leaning the appliance
12
Burnt-on dirt
12
Burner discolouration
12
Trouble shooting
13
After-sales service
14
E number and FD number
14
Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau.com/zz/store
Intended use
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use of for subsequent owners.
This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.
This appliance must be installed according to the installation instructions included.
C heck the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
According to the Gas Safety Ordinance of Hong Kong, any gas installation works including installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractor.
Only allow a registered gas installer to connect the appliance. Damage caused by incorrect connection is not covered under warranty.
This appliance is intended for domestic use and the household environment only. This appliance must only be used to prepare food and drinks and must never be used as a heater. Do not leave the appliance unattended during operation. Only use the appliance indoors.
Do not install this appliance on boats or in vehicles.
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance is not intended for operation with an external clock timer or a remote control.
Do not use inappropriate child safety shields or hob guards. These can cause accidents.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliances safely and have understood the associated hazards.
General maintenance works of the appliance must be undertaken by our trained registered gas installers.
Keep children below the age of 8 years old at a safe distance fromthe appliances and power cable.
C lose the safety valve on the gas supply line if the appliances will not be used for a prolonged period.
Important safety information
Warning – WHAT TO DO IF YOU SMELL GAS! Escaping gas may cause an explosion. If you smell gas or notice any faults in the gas installation: Immediately shut off the gas supply. Immediately extinguish all naked flames and
cigarettes. Do not turn on or turn off any light or appliance
switches and do not pull any plugs out of sockets. Do not use any telephones or mobile phones within the building. Open windows and ventilate the room. C all the after-sales service or the gas supplier.
Warning – Risk of asphyxiation! The use of a gas cooker leads to a build-up of heat, moisture and products of combustion in the room where the appliance is installed. Ensure that the installation roomis well ventilated. The natural ventilation openings must be kept open or a mechanical ventilation device must be provided (e.g. an extractor hood). Intensive and persistent use of the appliance may mean that it is necessary to have additional ventilation (e.g. opening a window), or more effective ventilation (e.g. operating the existing mechanical ventilation device at a higher setting).
Warning – Risk of fire! Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use water to put out burning oil or fat. S witch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. The hot plates become very hot. Never place combustible items on the hob. Never place objects on the hob. The appliance becomes very hot and flammable materials could catch fire. Never store or use flammable objects (e.g. spray cans, cleaning agents) under the appliance or in its immediate vicinity. Never place flammable items on or in the appliance. When gas hot plates are in operation without any cookware placed on them, they can build up a lot of heat. The appliance and the extractor
hood above it may become damaged or be set on fire. Grease residue in the filter of the extractor hood may ignite. Only operate the gas burners with cookware on them. If the burner does not ignite after 15 seconds, switch off the control knob and open the door or window in the room. Wait at least 1 minute before igniting the burner again.
Warning – Risk of burns! The appliance becomes hot during operation.
Allow the appliance to cool down before cleaning. The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance. The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance. When the appliance cover is closed, heat will accumulate. Only close the appliance cover when the appliance has cooled down. Never switch the appliance on with the appliance cover closed. Do not rest food on the appliance cover or use it to keep food warm. Empty cookware becomes extremely hot when set on a gas hotplate that is in operation. Never heat up empty cookware.
Warning – Risk of injury! Incorrect repairs are dangerous. Repairs may
only be carried out, and damaged power and gas lines replaced, by a registered gas installer trained by us. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. S hut off the gas supply. C ontact the aftersales service. Faults or damage to the appliance are dangerous. Never switch on a faulty appliance. Unplug the appliance fromthe mains or switch off the circuit breaker in the fuse box. S hut off the gas supply. C ontact the after-sales service. Unsuitable pan sizes, damaged or incorrectly positioned pans can cause serious injury. Observe the instructions which accompany the cookware.
Warning – Risk of electric shock! Incorrect repairs are dangerous.
Repairs may only be carried out by one of our trained registered gas installers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. C ontact the after-sales service. The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance. Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance fromthe mains or switch off the circuit breaker in the fuse box. C ontact the aftersales service.
Causes of damage
Caution! – Risk of heat damage to adjacent appliances or
kitchen units: If the appliance is in operation for an extended period, heat and moisture will be generated. Additional ventilation is required. Open the window or switch on an extractor hood that discharges the extracted air and moisture outside the building.
– Risk of damage to the appliance due to the build-
up of heat: Do not heat roasters, frying pans or grill stones using more than one burner at a time.
– Malfunction: Always turn the control knob to the “Off”
position when the appliance is not being used.
Environmental protection
The sections below list a number of energy-saving tips and provide information on disposing of your appliance.
Saving energy C hoose a burner of roughly the same size as your
pan. Place the cookware in the middle. Use small saucepans for small quantities. Using a
large saucepan with little in it consumes a lot of energy. Always place suitable lids on saucepans. C ooking without a lid consumes significantly more energy. Use a glass lid so that you can see into the pan without having to lift the lid. C ook with only a little water. This will save energy and preserve the vitamins and minerals in vegetables. S witch to a lower heat setting in good time. This will save energy.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly Manner.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Familiarising yourself with your appliance
Gas hob
1. Ventilation openings (underneath pan support) 2. Pan support 3. Wok ring 4. Wok burner 6.5 kW (HK Town Gas) 5. Wok burner control knob
Control knob
The markings show the setting between level 1 to 12or simmering .
Visual signals of the luminous disc
The control knob is encircled by an illuminated ring that indicates a number of statuses and functions.
Indicator Off
Meaning Appliance off
Lit continuously orange Appliance on
Flashing orange
Flashing orange and white alternately Flashing yellow and magenta alternately Lit green and then yellow for some seconds
Appliance off Residual heat indicator S afety shut-off, power failure
Appliance fault C all the after-sales service. Appliance initialising, only after first installation or power failure
Installation accessories
AA 414 010 Ventilation molding for operation next to downdraft ventilation VL 414
VA 420 004
C onnection strip for combination with other Vario 400 appliances for flush installation
VA 420 010
C onnection strip for combination with other Vario 400 appliances for surface installation
VA 440 010 S tainless steel appliance cover
Individual parts of the wok burner
Ensure that the individual parts of the wok burner are fitted in the correct position and are straight; otherwise, this may result in ignition problems or problems during operation. Fit the burner head such that the thermocouple is positioned in the corresponding recess on the burner head. The lug on the burner ring must engage in the corresponding recess on the burner head.
Note: If the burner parts are fitted at an angle, the appliance will not work.
Special accessories
You can order the following special accessories from your specialist dealer:
WP 400 001
Multi-layer material wok pan, with curved base and handle, Ø 36 cm, 6 litres volume, 10 cm high.
Only use the accessories as specified. The manufacturer accepts no liability if these accessories are used incorrectly.
1. Burner cap 2. Burner ring 3. Burner head 4. Thermocouple 5. Ignition plug
Operating the appliance
Notes – Only use the accessories specified. Do not line the
stainless steel recess (e.g. with aluminiumfoil). – The burner and ignition plug must be clean and dry. – Only light the hotplates if the pan supports and all
burner parts are correctly fitted. – Do not touch the ignition plug while the gas
appliance is being lit. – It is important to keep the appliance clean. lf the
ignition plugs are dirty, this may cause ignition problems. C lean the ignition plugs regularly with a small, non-metallic brush. Take care to prevent the ignition plugs fromsuffering any heavy knocks. – When you cook using a wok, place the wok ring onto the pan support over the wok burner. Make sure that the wok is stable on the wok ring when you are cooking. – Do not cover the ventilation openings on the rear of the gas hob. Lack of ventilation will result in damage to the hob. – When the gas cooktop is switched on, the electronics open up the gas supply, which produces a short sound. This is normal. – In the event of a power failure, the appliance will not work. The gas supply is shut off.
Switching on
Your gas hob has an automatic quick-ignition function.
1. Place a suitable item of cookware on the pan support. 2. Push in the control knob and turn it clockwise or anti-
clockwise to the heat setting you require. The burner ignites automatically.
Turn the control knob to set the heat setting. Warning Risk of deflagration!
If the burner does not ignite after 15 seconds, switch off the control knob and open the door or window in the room. Wait at least 1 minute before igniting the burner again.
Simmer setting
With the simmer setting, the burner switches the gas flame on and off. This allows you to melt chocolate or heat up delicate sauces, for example. Turn the control knob to . It takes 10-50 seconds to switch on or off.
Electronic flame monitoring and automatic re-ignition
For your safety, the hob has an electronic flame monitoring system. If the flame goes out while the hob is in use (e.g. due to a draught), the appliance will automatically re-ignite the burner. If re-ignition is unsuccessful (e.g. because liquid or food has boiled over and remains on the burner), the appliance will switch off the gas supply. The illuminated ring behind the control knob will flash. Turn the control knob to 0. Wait until the appliance is cool enough and then check whether all the burner parts are in the correct position. C heck whether the burner or the ignition plug are covered in food remnants etc. “Trouble shooting” on page 13
Switching off
Turn the control knob to position 0. The appliance electronics will shut off the gas supply.
Warning Risk of burns! When the appliance cover (optional accessory) is closed, heat will accumulate. Only close the appliance cover when the appliance has cooled down. Never switch the appliance on with the appliance cover closed. Do not rest food on the appliance cover or use it to keep food warm.
Residual heat indicator
The luminous disc behind the control knob flashes after switching off, to indicate that the appliance has still not cooled down to such an extent that it can be touched safely.
Safety shut-off
For your safety, the appliance has a safety shut-off function. The appliance is automatically switched off if it has been in operation for an extended period. How long the appliance waits before switching itself off depends on the setting (setting 12 = 1 hour, setting 1 = 4 hours). The illuminated ring behind the control knob will flash orange and white alternately. Turn the control knob to 0. You will now be able to start the appliance again as usual.
Table of settings and tips
Heat setting Cooking method 12 Heating Blanching
E xamples Water, clear soups Vegetables
10-12
7-10 6-8 4-6
S earing
Frying at high temperatures S immering with the lid open Baking Frying at medium temperatures Frying at low temperatures W arming
Deep-frying
Meat, wok dishes/ pan-fried dishes Meat, potatoes
Liquids, dough-based foods Flour-based food Poultry, fish
Fried sausages, onions, egg dishes Vegetables, soups, stews C hips, pastries
Poaching with the lid Dumplings, boiled
open
sausages
3-4 Defrosting
Frozen food
Braising
Beef olives, joints
S tewing
Vegetables
2-4
S immer setting -up to 3 S immer setting
S immering with the lid on S oaking
Melting, keeping warm
S oups, vegetables
Rice, rice pudding, cereals
C hocolate, butter
Tips for cooking and roasting
The values given in the settings table must be looked upon as recommended values. The heat required depends not only on the type and condition of the food, but also the size and contents of the pot.
Due to the high performance of the cooktop, fat and oil will heat up quickly. Never leave the cooktop unattended, fat can ignite, food can burn.
Tips for using a wok
Note: When you cook using a wok, place the wok ring onto the pan support over the wok burner. Make sure that the wok is stable on the wok ring when you are cooking.
We recommend using woks with a domed base. You can order a high-quality wok as an optional accessory (WP 400 001).
When cooking with the wok, use only cooking oil that is suitable for heating to high temperatures, such as groundnut oil.
C ook the ingredients at a high heat, while stirring constantly. Do not cook them for too long. The vegetables should be al dente.
For stirring the food and for taking it out of the pan, it is best to use a shallow ladle with a long handle made froma heat-resistant material.
Information and tips regarding cookware
The following information and tips have been provided to help you save energy and avoid damaging your cookware.
Suitable cooking vessels
Burner
Recommended pan base diameter
Wok burner 240-320 mm Use the wok only on
the wok ring.
Minimum pan base diameter 160 mm
Pans with a diameter of less than 160 mm or more than 320 mm should not be used. If you do use larger pans, these should not protrude beyond the edges of the appliance.
Maximum weight of cookware placed on the burner shall not exceed 20 kg.
Precautions for use
Use pots or pans which are the right size for each burner. Do not use small pots or pans on large burners. The flame should not touch the sides of the pot.
Do not use damaged pots or pans, which do not sit evenly on the cooktop, they may tip over. Only use pots or pans with a thick, flat base.
Do not cook without using a lid and make sure the lid is properly fitted. This wastes energy.
Always centre the pot or pan over the burner, otherwise it could tip over. Do not place large pots on the burners near the control knobs. These may get damaged by the high temperatures.
Place the pots or pans on the pan support, never directly on the burner. Make sure that the pan supports and burner caps are correctly positioned before using the appliance.
Pots or pans should be placed on the cooktop carefully. Do not strike the cooktop and do not place excessive weight on it.
Do not heat a cooking vessel (e.g. roaster, pan, grill stone) on more than one burner at the same time. The resulting heat accumulation will damage the appliance.
Cleaning and maintenance
Warning – Risk of electric shock! Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
Warning – Risk of electric shock! The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
Caution! Risk of surface damage Do not use these cleaners – harsh or abrasive cleaning agents – oven cleaners – corrosive or aggressive cleaners, or those containing
chlorine – cleaning agents with a high alcohol content – hard and scratchy sponges, brushes or scouring
pads If such an agent comes into contact with the appliance, wash it off immediately with water. Thoroughly wash out new sponge cloths before using them!
Cleaning the appliance
C lean the appliance after each use once it has cooled down. Remove spilt liquids immediately and do not allow any food remains to burn on.
Make sure that the ventilation openings under the pan support are always clean. The ventilation openings must not be covered.
Dry the burners thoroughly after cleaning. Only operate the appliance when the burners are dry. Damp burners can cause ignition problems and/or an unstable flame.
During assembly, make sure that the burner parts (catch tappets) are in the correct position. All parts must be straight.
Appliance part/ surface S tainless steel surfaces
Pan supports
Burner parts
C ontrol knob
Recommended cleaning
Use soapy water and dry with a soft cloth. Only use a minimal amount of water when cleaning so that no water enters the appliance. S oak burnt-on remains with a small amount of soapy water; do not scour. Remove heavy soiling or yellow discolouration caused by heat using our stainless steel cleaning agent (item no. 00311499). C arefully remove them for cleaning. S oak in the sink. C lean using a scrubbing brush and detergent. C lean the area around the rubber buffers carefully so that they do not become detached. Rinse with clean water before leaving to dry. Do not clean them in the dishwasher. Use soapy water and dry with a soft cloth. Make sure that the openings are not blocked. Take care that no small parts are lost. Do not clean them in the dishwasher. The soapy cloth must not be too wet. Dry with a soft cloth.
Burnt-on dirt
For hard-to-remove, burnt-on dirt, you can order a cleaning gel fromour online shop, fromyour specialist retailer or our after-sales service (item number 00311859). It is suitable for pan supports and the stainless-steel recess. If necessary, let the dirt soak overnight. Follow the instructions on the cleaning agent.
Caution! Damage to the surface Do not use the cleaning gel on the burner parts.
Burner discolouration
After extended use, the brass burner parts take on a darker colour as a result of the oxidation process that occurs naturally. The discolouration does not affect their serviceability.
Trouble shooting
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
Warning – Risk of electric shock! Incorrect repairs are dangerous. Repairs may only be carried out by one of our registered gas installer. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. C ontact the after-sales service.
Disruption
Possible cause
The burner will not ignite when it is Power supply disconnected. switched on.
The burner will not ignite when it is switched on. The illuminated ring behind the control knob is flashing orange and white alternately.
Burner or gas supply fault.
S olution Turn all control knobs to 0. C heck the fuse box to see whether the circuit breaker has tripped.
Turn all control knobs to 0. C heck: Are the burner parts positioned correctly? Is the main gas tap open? Is the burner clean and dry?
The burner will not ignite when it is switched on. The illuminated ring behind the control knob is flashing yellow and magenta alternately.
Electronics fault
Turn all control knobs to 0 and disconnect the appliance from the mains power supply for one minute (switch off the circuit breaker or pull out the plug). Reconnect the appliance. The illuminated rings around the control knobs will be lit green for a few seconds and then turn yellow. Wait until the illuminated rings switch off. Then turn any of the control knobs to any of the heat settings and then back to 0. S witch on the burner. If the illuminated ring starts flashing yellow and magenta again, call our aftersales service.
The burner goes out while the appliance is in operation. The illuminated ring behind the control knob is flashing orange and white alternately.
S afety switch-off function: No actions have been performed for an extended period.
Turn all control knobs to 0, and then switch them back on if you wish to continue using the appliance.
The burner goes out while the appliance is in operation. The illuminated ring behind the control knob is flashing orange and white alternately.
Domestic power failure: Following a power failure, the appliance will remain switched off for safety reasons.
Turn all control knobs to 0, and then switch them back on if you wish to continue using the appliance.
There is a smell of gas in the kitchen. Gas may be leaking out.
C heck that the gas connection is not leaking. Open windows and ensure the room is well ventilated.
The appliance paneling becomes The metal fromwhich the cooktop This is normal. It will contract again once it has slightly raised at the corners when it is made expands as it heats up. cooled down. is in operation.
Notes – Each time the mains power is switched on or
following a power failure, a sound is produced when the gas valves are started up. The illuminated rings around the control knobs will be lit green for a few seconds and then turn yellow. Wait until the illuminated rings switch off.
– When the gas cooktop is switched on, the electronics open up the gas supply, which produces a short sound. A sound can also be heard when the setting is changed. This is normal.
After-sales service
Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits.
E number and FD number
When calling us, please quote the full product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate that features these numbers can be found on the underside of the appliance.
To save time, you can make a note of the numbers for your appliance and the telephone number of the after-sales service in the space below in case you need them.
Please note that a visit froman registered gas installer is not free of charge in the event that the appliance has been misused, even during the warranty period.
Please find the contact data of all countries in the enclosed customer service list.
To book an engineer visit and product advice HK 2553 8353
Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by registered gas installer using original spare parts for your domestic appliance.
17
18-19
18
19 19 19
20-21 20 20 20 21 21 21
22 22 22 22 22 22 22
23 23 23
24 24 24
25 25 25 25
25
26 26
www.gaggenau.com www.gaggenau.com/zz/store
2000
8
8
–
– )
–
15 1
–
–
–
–
– –
2012/ 19/E UW E E E
1. 2. 3. 4. 6.5kW 5.
1 12 .
AA 414 010 VL 414
VA 420 004 Vario 400
VA 420 010
Vario 400
VA 440 010
WP 400 001 Ø 36610
I 1 I I 2 I I 3 I I 4 I I 5 I
–
) – –
– –
– – – –
1. 2.
– 15 1
1050
0 “” 26
0
–
12 = 11=4
0
12
10-12
7-10 6-8 4-6
3-4
2-4 3
/
WP400 001
240-320 mm
160 mm
160 mm320 mm
20
( )
–
–
– – – – –
/
/
00311499
00311859
–
0
0
0 0
0
0
–
–
E no. FD no.
HK 2553 8353
BSH Hausgeräte GmbH C arlCarl-Wery-Straße 34 81739 München, Germany
www.gaggenau.com
GAGGENAU VG415315SG Installation instructions
>35 ø50
384+1
1
524+1 492 1
>35 ø50
1c
VA420004/VA420010
1d
2 a
3a ,——- – – j—t
li——–n:
3b
t
·
·
3
()
en
Important notes
Read these instructions carefully and keep them in a safe place. Safety during use can only be ensured if the appliance is fitted correctly according to these installation instructions. The installer is responsible for ensuring that the appliance operates perfectly at the point of installation. Attention! According to the Gas Safety Ordinance of Hong Kong, any gas installation works including the installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractors. Use approved gas tubing bearing EMSD approval marking (example: EMSD APPROVAL GTXXXX) for connection to appliances or other appropriate methods accepted by EMSD. Appliance must not be converted to another type of gas. Before carrying out any type of work, turn off the electricity and gas supply. For installation, currently applicable building regulations and the regulations of local electricity and gas suppliers must be observed. The operating pressure of this gas hob is 15 mbar. Therefore no external gas governor is required.
Risk of gas escape! After connecting the appliance to the gas supply, always check the connection for leak tightness. The manufacturer accepts no responsibility for the escape of gas from a gas connection which has been previously tampered with. Ensure sufficient air exchange in the room where the appliance is installed. Up to11 kW total input: Minimum volume of the room where appliance is installed: 20 m3 A door leading to the open air or a window which can be opened. Up to18 kW total input: Minimum volume of the room where appliance is installed: 2 m3
per kW total input. A door leading to the open air or a window which can be opened. An extraction hood into the open air. Minimum displacement
volume of extraction hood: 15 m3/h per kW total input. The installation system must incorporate an all-pin isolating switch with a contact opening of at least 3 mm, or the appliance should be connected to the mains via a safety plug. The plug must remain accessible after installation is complete. Specifications on the rating plate showing voltage, type of gas and gas pressure must agree with the local mains connection conditions. Do not kink or trap the mains connection cable. This appliance corresponds to appliance class 3 (for installation in a kitchen unit). It must be fitted according to the installation drawing. The wall behind the appliance must be made of nonflammable material. This appliance is not intended for operation with an external timer or an external remote control. Do not install this appliance on boats or in vehicles.
Special accessories
You can order the following special accessories from your specialist dealer:
WP 400 001 Multi-layer material wok pan, with curved base and handle, Ø36 cm, 6 litres volume, 10 cm high.
Only use the accessories as specified. The manufacturer accepts no liability if these accessories are used incorrectly.
Preparing the units (Fig.1a)
The kitchen unit must be heat-resistant to at least 90oC (about 190oF). The stability of the unit must be maintained after producing the cut-out. Produce the cut-out in the worktop for one or more Vario appliances as shown in the installation sketch. The angle between the cut surface and the worktop must be 90o. The cut edges at the sides must be flat to ensure a good fit of the retaining springs on the appliance. In laminated worktops, it may be necessary to fit strips at the sides of the cut-out. Remove shavings after cutting. Seal cut surfaces for resistance to heat and so they are watertight. Pay attention to a minimum gap of 10 mm from the underside of the appliance to kitchen units. Use suitable base constructions to ensure load-carrying capacity
and stability, especially in the case of thin worktops. Pay attention to the weight of the appliance, including any payload. Reinforcement material used must be resistant to heat and moisture. Note: Wait until the appliance has been installed in the installation opening before checking that it is level. Installation flush with surrounding surfaces (Fig. 1b) It is possible to fit the appliance into a worktop such that it is flush with the worktop surface. The appliance can be installed in the following temperature- and water-resistant worktops: Granite worktops Plastic worktops (e.g. Corian®) Solid wood worktops: Only on agreement with the worktop
manufacturer (seal the cut-out edges) For other worktop materials, contact the worktop
manufacturer about their use. The appliance cannot be installed in compressed-wood worktops. Note: All cut-outs in the worktop are to be carried out in a specialist workshop in accordance with the installation diagram. Each cut-out must be neat and precise as the cut edge is visible on the surface. Clean and degrease the cut-out edges with a suitable cleaning agent (follow the instructions from the silicone manufacturer).
Combining multiple Vario appliances (Fig.1c) The connecting strip VA420004/010 is required in order to combine multiple Vario appliances. This can be ordered separately as an optional accessory. When making the cut-out, allow extra space for the connecting strip between the appliances (see installation instructions VA420004/010). Appliances can also be fitted in their own individual cut-outs as long as at least 50 mm of material is left between the cut-outs.
Combination with appliance cover (Fig.1d) The appliance cover VA440010 is available separately as an optional accessory. Take the additional space required by the appliance cover into consideration when making the cut-out. Hole for the control knob Possible installation types:
At the front of the floor cabinet In the worktop next to the appliance In the worktop in front of the appliance Note: Follow the installation instructions provided for the control knobs.
Fitting the control knobs (Fig.2)
Note: Follow the installation instructions provided for the control knobs. 1. Depending on the distance between the control knobs, it may
be necessary to break off the retaining plate at the perforation. Hold the retaining plate in place against the rear of the control panel/ underside of the worktop or secure it in place with the screws provided. 2. When fitting an individual control knob or if the retaining plate has been broken off at the perforation, use two screws to hold each retaining plate in place and prevent it from rotating. For stone worktops, use temperature-resistant twocomponent adhesive (for metal to stone) to adhere the retaining plate. 3. Remove the protective film on the back of the illuminated ring. 4. Push the control knob into the hole, and use the installation tool provided to tighten the nut at the rear. 5. Use the short cables provided to connect all the control knobs. The male connectors must snap into place in the female connectors. Note: The two female cable connectors on the control knob are identical. 6. Attach the long cable to one of the control knobs to connect it to the appliance. The male connector must snap into place in the female connector. Note: The appliance can be connected to any control knob. 7. After fitting, check that all plug-in connections are seated correctly. 8. After fitting all the cables, secure them to the retaining plate by turning the tab down.
Installing the appliance (Fig.3a)
1. Insert the end of the connection cable for the control knob into the female connector on the underside of the appliance. The male connector must snap into place.
2. Insert the appliance evenly into the cut-out. Push it down firmly into the cut-out. Note: The appliance must sit fast in the cut-out and must not be able to move around (e.g. during cleaning). If the width of the cut-out is at the upper tolerance limit, secure batten to the sides of the cut-out if necessary.
3. Connect the appliance to the power and gas supply and test for correct functioning. There might be an air pocket in the gas supply line if the appliance switches off. Turn control knobs off and switch on again. Repeat until burner ignites.
Only for installation flush with surrounding surfaces (Fig.3b)
Note: Make sure that everything is working correctly before grouting. Grout the surrounding gap with a suitable temperature-resistant silicone adhesive (e.g. OTTOSEAL® S 70). Smooth the seal joint with a smoother recommended by the manufacturer. Follow the instructions for the silicone adhesive. Do not use the appliance until the silicone adhesive is completely dry (at least 24 hours, depending on the room temperature). Caution! Using unsuitable silicone adhesive on natural stone work surfaces may cause permanent discolouration.
Gas connection (Fig. 4)
The gas connection must be located in a position where the stop tap is accessible. According to the Gas Safety Ordinance of Hong Kong, any gas installation works including the installation of appliances and connection tubing, must be undertaken by registered gas installers who are registered for that appropriate classes and be employed by registered gas contractors. Use approved gas tubing bearing EMSD approval marking (example: EMSD APPROVAL GTXXXX) for connection to appliances or other appropriate methods accepted by EMSD. Using R½” (for appliance side) connection elbows provided, connect the appliance to the gas tubing. The gas tubing must be routed so that it does not come into contact with moving parts of the kitchen unit (e.g. drawers).
Electrical connection
Check that the appliance has the same voltage and frequency as the electrical installation system. The hob is delivered with a mains cable, with or without plug, depending on model. Only connect the appliance to sockets which have been fitted and earthed according to regulations. The appliance corresponds to type Y: the mains connection cable must only be replaced by the after-sales service. Check the cable type and minimum cross section.
Technical data
Gas type: Hong Kong Town Gas (15 mbar) Total connected load VG415315SG: 6.5 kW Voltage and frequency: 220-240 V, 50/60 Hz Electrical nominal power: 25 W
Removing the appliance
Disconnect the appliance from the power and the gas supply. For flush-mounted appliances, remove the silicone joint. Push out the appliance from below. Caution! Damage to appliance! Do not lever out the appliance from above.
zh-hk
EMSD APPROVAL GTXXXX 15
11kW 20 m3 18kW 2 m3 15
m3/ h 3 mm, 3(
WP 400 001 Ø36 610
1a
90 °C190°F Vario 90° 10mm 1b ®
Vario1c) VarioVA420004/010 VA420004/010
50 mm 1d VA440010
2
1.
/ 2. 3. 4. 5. 6. 7. 8.
3a
1.
2.
3.
3b
OTTOSEAL® S70 24
4
(: EMSD APPROVAL GTXXXX)
R½”
Y
15 VG415315SG: 6.5 kW : 220-240V, 50/60 Hz : 25 W
9001802352 (021020) en, zh-hk
BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, Germany ZZZJDJJHQDXFRP
*9001802352*
Select your region | Gaggenau
