UN0815 – 80 lb Nugget Ice Machine
Self-Contained Undercounted Ice Machine with Storage
UN0815 80lb Self Contained Undercounted Nugget Ice Machine with Storage
 | Sealed, maintenance-free bearings ensure maximum reliability and contribute to a long machine life |  | Unit specific QR code for quick access to service manuals, cleaning guides and warranty history |
 | Ergonomic slide back door allows easy access to ice in the bin |  | ADA compliant with optional floor mount kit |
Features and Benefits
Space Saving Design:
- Only 15” wide, this ice maker can be placed it the tightest locations
- Front breathing – No side clearance required for flexible placement
- Optional floor mount kit allows for installation under 34“ ADA counter tops
Ease of Use:
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Ergonomic slide back door allows easy access to ice in the bin
- Power cord, NEMA 5-15P plug, ice scoop and adjustable legs are included for quick and easy installation
Reliability:
- Sealed, maintenance-free bearings for reduced preventative maintenance and long-lasting performance
- Stainless steel evaporator and auger for maximum durability
- Heavy duty, rust-free front panel and corrosion-resistant aluminum alloy side panels for maximum lifespan
- 3 Year parts and labor warranty
- Designed, engineered and assembled in the USA
High Production:
- Produces up to 79 lb. (36 kg) per day and stores 36 lbs (16 kg), maximizing ice output despite its small footprint
- Maximized production ensures that you can keep up with growing demand for The Original Chewable® Nugget Ice
Environmentally Friendly:
- Energy Star certified
- Meets US Safe Drinking Act low lead requirements
- Non-ozone depleting R-134A refrigerant
24 Hour Volume Production
24 Hour Volume ProductionAir Cooled
| 70˚F/21˚C 50˚F/10˚C | Air Water | 90˚F/32˚C 70˚F/21˚C |
| 79/36 lb./kg | 55/25 lb./kg | |
Nugget Ice
Nugget Ice
The Original Chewable Ice®! Soft ice ideal for fountain beverages and blended fruit drinks.
Certification
Certification
Warranty
Warranty- 3 years parts and labor on all components
- Warranty valid in North, South & Central America for commercial installations
- Contact factory for warranty in other regions
- Residential Applications: 1 year parts and labor
Specifications
Specifications| Model Number | Condenser Unit | Storage Capacity lb/kg | Basic Electrical Volts/Hz/Phase | Max. Fuse Size or HACR Circuit Breaker (amps) | Circuit Wires | Min. Circuit Ampacity | Energy Consumption kWh/100 lb (45.4 kg) 90˚F(32˚C)/70˚F(21˚C) | Potable Water Usage Gallons/100 lb (liters/45.4 kg) 90˚F(32˚C)/70˚F(21˚C) |
| UN0815A-1 | Air | 36/16 | 115/60/1 | 15 | 2 | Cord | 7.71 | 12/45.5 |
All Models

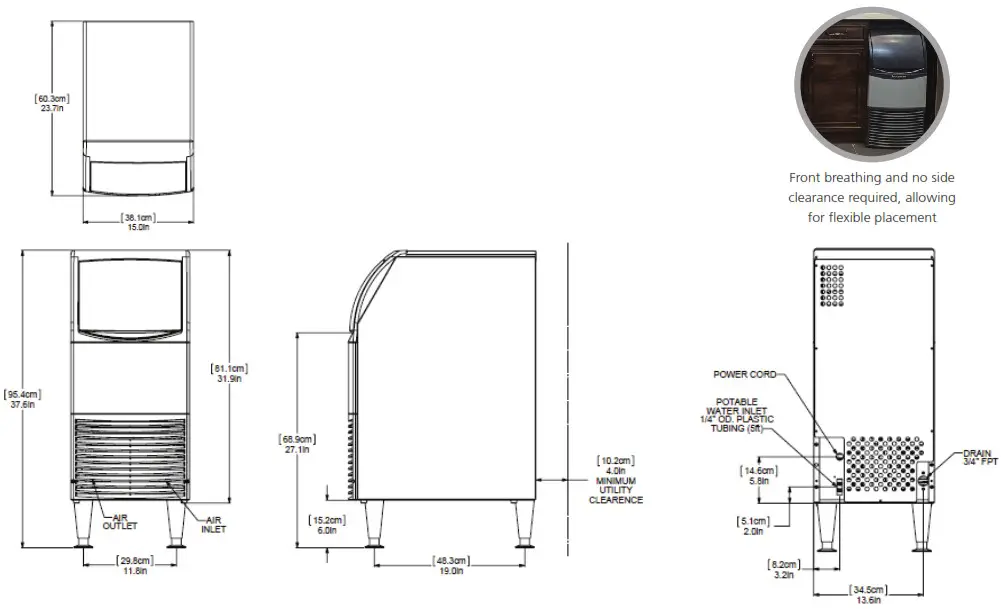

All ModelsDimensions (W x D x H):
| Unit: | 15” X 24” X 38” (38.1 x 61.0 x 96.5 cm) |
| Includes 6” (15.24 cm) adjustable legs | |
| Shipping Carton: | 22” x 27” x 38” (55.9 x 68.6 x 96.5 cm) |
| Shipping Weight: | 108 lb / 49 kg |
| BTUs per hour: | 1,500 |
| Refrigerant: | R-134A |
Accessories
Accessories| Model Number | Description |
| KLP8S | Kit, Leg 6”, Stainless Steel |
| KBC1 | Kit, Casters |
| KUFM15 | For ADA applications. Floor mount kit lowers overall height to 31.9” |
Operating Requirements
Operating Requirements| Minimum | Maximum | |
| Air Temperatures Water Temperatures Water Pressures Electrical Voltage | 50°F (10°C) 40°F (4.4°C) 20 PSIG (1.4 bar) -5% | 100°F (38°C) 100°F (38°C) 80 PSIG (5.5 bar) +10% |
Specifications and design are subject to change without notice.
101 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844
[email protected]
www.scotsman-ice.com
© 2021 Scotsman Ice Systems.
an Ali Group Company
The Spirit of Excellence
