N1322 1300lb Nugget Ice Machine
Owner’s Manual

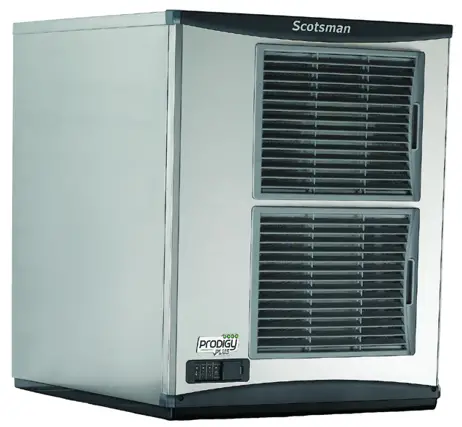

N1322 – 1300lb Nugget Ice Machine
Prodigy Plus® Nugget Ice Machine
N1322 1300lb Nugget Ice Machine
Sealed, maintenance-free bearings ensure maximum reliability and contribute to a long machine life
Available in softer, Original Chewable Nugget Ice or harder, H² Nugget Ice
Nugget Ice
Original Chewable Nugget Ice Hardness Rating: Soft = 74% H² Nugget
Ice Hardness Rating: Hard = 86%
Features & Benefits
- Available in softer, Original Chewable Nugget Ice and harder, H² Nugget Ice Sealed, maintenance-free bearings for reduced preventative maintenance and long-lasting
performance - Stainless steel evaporator and auger for maximum durability
- AutoAlert™ indicator lights for better visibility
- Operational footprint among the industry’s smallest
- Unit specific QR code for quick access to service manuals, cleaning guides and warranty history
- Front-breathing – No side clearance required for flexible placement
- Smart-Board™ advanced feature module available for additional diagnostic capabilities
- Optional Vari-Smart™ ice level control allows operators to customize ice levels
- Antimicrobial protection guards internal surfaces between cleanings
- A full range of water- and energy-saving features
24 Hour Volume Production
Original Chewable Nugget
| Air Cooled | Remote Cooled | Remote Cooled | |||
| 70˚F/21˚C 50˚F/10˚C Air Water | 90˚F/32˚C 70˚F/21˚C | 70˚F/21˚C 50˚F/10˚C Air Water | 90˚F/32˚C 70˚F/21˚C | 70˚F/21˚C 50˚F/10˚C Air Water | 90˚F/32˚C 70˚F/21˚C |
| 1385/630 lb/kg | 954/433 lb/kg | 1360/618 lb/kg | 1077/489 lb/kg | 1513/688 lb/kg | 1115/506 lb/kg |
24 Hour Volume Production
| Air Cooled | H² Nugget Remote Cooled | Water Cooled | |||
| 70˚F/21˚C 50˚F/10˚C Air Water | 90˚F/32˚C 70˚F/21˚C | 70˚F/21˚C 50˚F/10˚C Air Water | 90˚F/32˚C 70˚F/21˚C | 70˚F/21˚C 50˚F/10˚C Air Water | 90˚F/32˚C 70˚F/21˚C |
| 1186/538 lb/kg | 866/393 lb/kg | 1191/540 lb/kg | 1000/454 lb/kg | 1242/563 lb/kg | 1033/469 lb/kg |
Modular Bin & Dispenser Options
| Model Number* | Dimensions W” x D” x H” | Bin Application Capacity lb/kg | Finish | Ship Weight lb/kg |
| B948S | 48 x 34 x 44** | 893/406 | Metallic | 209/95 |
| BH1100BB-A | 48 x 34 x 50** | 1100/499 | SS w/ GBB† | 280/127 |
| BH1100SS-A | 48 x 34 x 50** | 1100/499 | Stainless Steel | 280/127 |
| BH1300BB-A | 60 x 34 x 50** | 1400/635 | SS w/ GBB† | 310/141 |
| BH1300SS-A | 60 x 34 x 50** | 1400/635 | Stainless Steel | 310/141 |
| BH1600BB-A | 60 x 34 x 62** | 1755/796 | SS w/ GBB† | 370/168 |
| BH1600SS-A | 60 x 34 x 62** | 1755/796 | Stainless Steel | 370/168 |
*Contact Scotsman for bin top requirements. **Add 6” Height for bin legs.
† Stainless steel with galvanized back & bottom.
Certification
Warranty
- 3 years parts and labor on all components.
- 5 years parts on the compressor.
- Warranty valid in North, South & Central America for commercial installations.
- Contact factory for warranty in other regions.
- Residential Applications: 1 year parts and labor
Specifications
Specifications| Model Number Nugget Type Salt or Hard | Condenser Unit | Basic Electrical Volts/Hz/Phase | Max. Fuse Size or HACR Circuit Breaker (amps) | Circuit Wires | Min. Circuit Ampacity | Energy Consumption kWh/100 lb (45.4 kg) 90°F(32°C)/70°F(21°C) | Water Usage Gallons/100 lb (liters/45.4 kg) Potable Condenser 90*F(32°C) /70°F(21°C) | |
| soft NS1322A-32 N51322R-32 N51322W-32 N51322W-3 | Air Remote Water Water | 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/3 | 30 30 30 15 | 2 2 2 3 | 19.1 18.4 17.9 11.2 | 5.02 4.65 3.8 3.8 | 12.0/45.5 12.0/45.5 12.0/45.5 12.0/45.5 | – – 115/435.9 115/435.9 |
| hard NH1322A-32 NH1322R-32 NH1322W-32 NH1322W-3 | Air Remote Water Water | 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/3 | 30 30 30 15 | 2 2 2 3 | 19.1 18.4 17.9 11.2 | 5.31 4.77 3.87 3.87 | 12.0/45.5 12.0/45.5 12.0/45.5 12.0/45.5 | – – 125/473.8 125/473.8 |
All Models

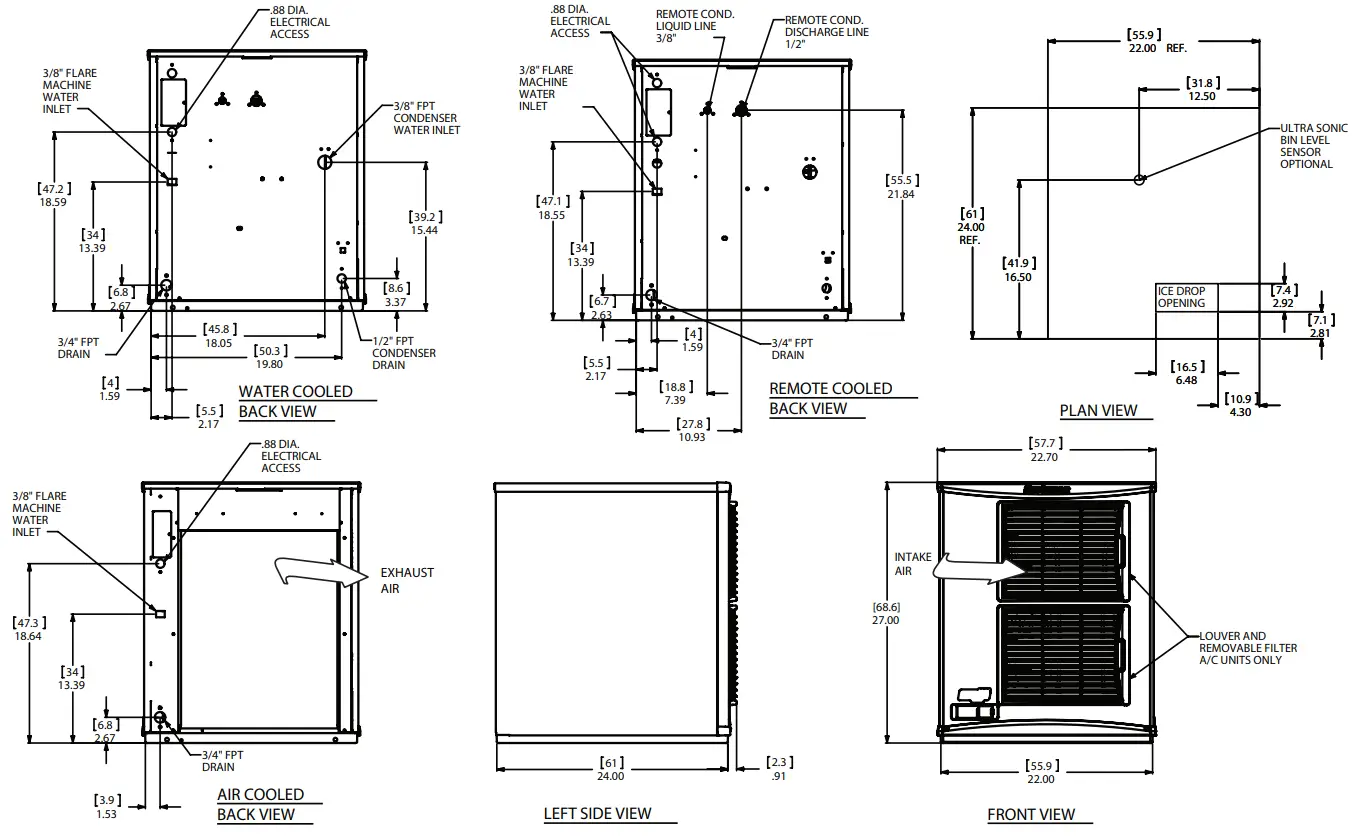

Dimensions (W x D x H):
| Unit: | Individual 22.9” x 24” x 27” (58.2 x 61.0 x 68.6 cm) Side by Side 44” x 24” x 27” (111.8 x 61.0 x 68.6 cm) |
| Shipping Carton: | 25.5” x 27.5” x 32.5” (64.8 x 69.9 x 82.6 cm) |
| Shipping Weight: 225 lb / 102 kg Refrigerant: R-404A | BTUs per hour: 16,000 |
Accessories
Accessories| Model Number | Description |
| KVS | Vary-Smart™ Ice Level Control – Program ice bin levels to match ice needs. |
| KSBU | Smart-Board™ Advanced Contra Use additional operational data for fast diagnosis. |
| KSBU-N | Smart-Board™ Advanced Contra with Network Network capable. |
| ERC311-32A | Remote condenser for N1322R, 208-230V/60/1 |
| BRTE10 | Line set, 10ft, brazing required. |
| BRTE25 | Line set, 25ft, brazing required. |
| BRTE40 | Line set, 40ft, brazing required. |
| BRTE75 | Line set, 75ft, brazing required. |
| KPAS | Prodigy Advanced Sustainability Kit – Includes KVS and KSBU – N |
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
Operating Requirements
Operating Requirements| Minimum | Maximum | |
| Air Temperatures | 50°F (10°C) | 100°F (38°C) |
| Water Temperatures | 40°F (4.4°C) | 100°F (38°C) |
| Remote Cond. Temps | -20°F (-29°C) | 120°F (49°C) |
| Water Pressures | 20 PSIG (1.4 bar) | 80 PSIG (5.5 bar) |
| Electrical Voltage | -5% | 10% |
Specifications and design are subject to change without notice.
101 Corporate Woods Parkway, Vernon Hills, IL 60061
1-800-SCOTSMAN Fax: 847-913-9844
www.scotsman-ice.com
[email protected]
© 2020 Scotsman Ice Systems.
an Ali Group Company
The Spirit of Excellence
SIS-SS-PP-N1322 03-20
