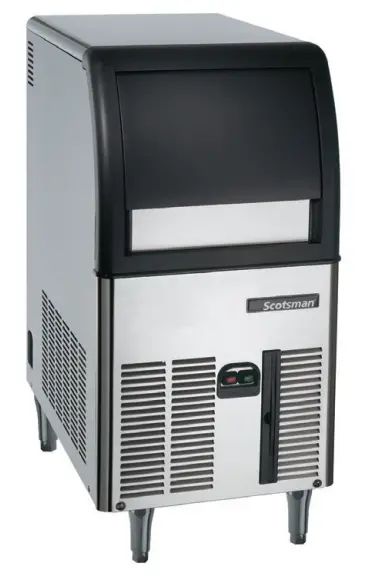

CU0515 – 70lb Cube Ice Machine
Self-Contained Under Counter Cuber with Storage
Features and Benefits
- Produces up to 84 lbs. of crystal-clear, gourmet ice in 24 hours.
- 15” cabinet width for placement in tight spaces.
- Stores up to 24 lbs.
- Produce clear, long-lasting gourmet shaped ice.
- Energy Saving Systems that optimizes cycle efficiency and ice quality, while reducing energy consumption and cutting operation costs.
- Durable stainless steel construction.
- Power cord for quick installation.
- Ideal for and under counter or bar application.
- Built-in convenience. Under counter bar installation puts the ice where it is needed.
- Legs allow for cleaning below and aisle ventilation.
24 Hour Volume Production
Air Cooled
| 70˚F/21˚C | Air | 90˚F/32˚C |
| 50˚F/10˚C | Water | 70˚F/21˚C |
| 74/34 | 58/26 |
| lb/kg | lb/kg |
Gourmet Ice
Large, slowmelting ice form, ideal for mixed drinks.
Cube Dimensions
1” x 1 1/8” x 1 1/4”
(2.54 x 2.86 x 3.18 cm)
Certification
Warranty
Warranty- 3 years parts and labor on all components.
- 5 years parts on the compressor and condenser.
- Warranty valid in North, South & Central America for commercial installations.
- Contact factory for warranty in other regions.
- Residential Applications: 1 year parts and labor
Installation Note: Allow 6” space at left, back and right side for ventilation and utility connections.
Specifications
Specifications| Model Number | Condenser Unit | Storage Capacity | Basic Electrical Volts/Hz/Phase | Max. Fuse Size or HACR ircuit Breaker (amps) | Circuit Wires | Min. Circuit Ampacity | Energy Consumption kWh/100 lb (45.4 kg) 90˚F(32˚C)/70˚F(21˚C) | Water Usage Gallons/100 lb (liters/45.4 kg) Potable Condenser 90˚F(32˚C)/70˚F(21˚C) | |
| CU0515GA-1 | Air | 24/11 | 115/60/1 | 15 | 2 | Cord | 12.05 | 37/140 | 49/187 |
All Models

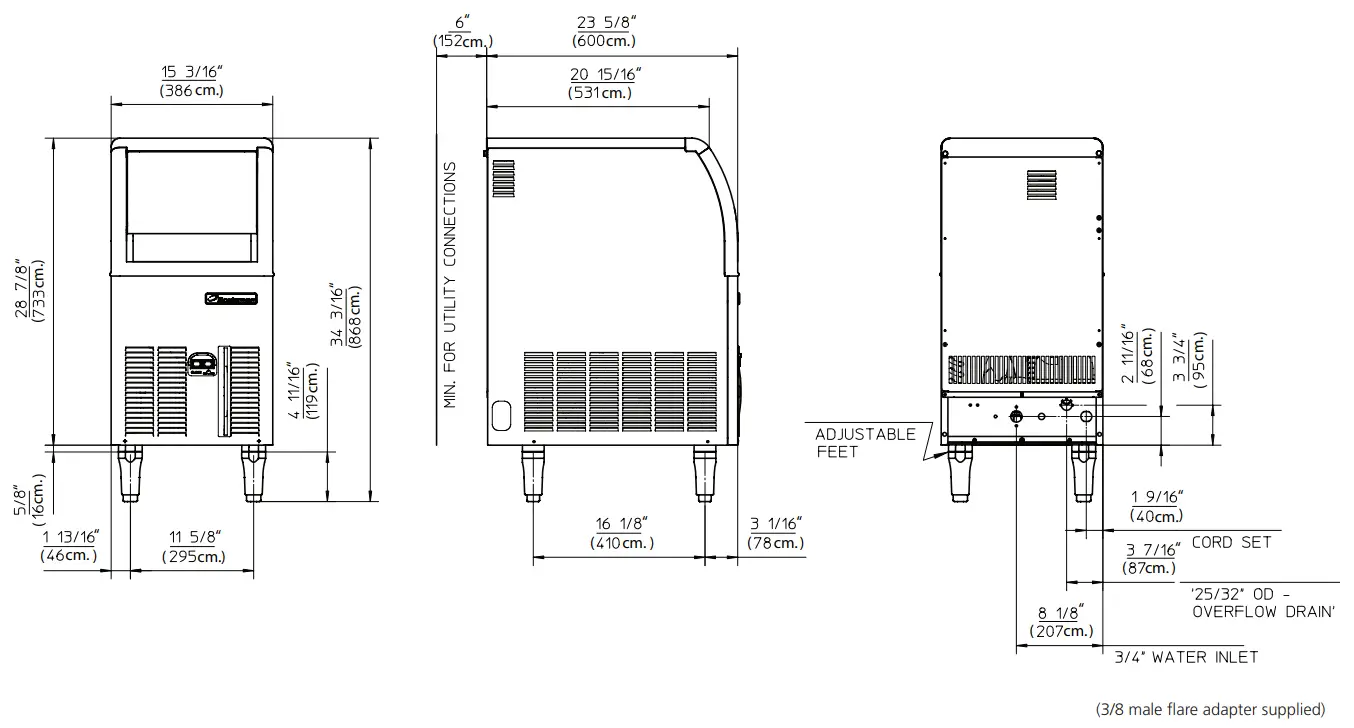

Dimensions (W x D x H):
| Unit: | 15.19” x 23.63” x 28.88”* (38.1 x 60.0 x 73.36 cm) *Add 5.25”/13.3 cm for legs |
| Shipping Carton: | 18” x 26” x 30” (45.7 x 66.0 x 76.2 cm) |
| Shipping Weight: | 95lb / 43kg |
| BTUs per hour: | 2,700 |
| Refrigerant: R-134A | R-134A |
Operating Requirements
Operating Requirements| Minimum | Maximum | |
| Air Temperatures | 50°F (10°C) | 100°F (38°C) |
| Water Temperatures | 40°F (4.4°C) | 100°F (38°C) |
| Remote Cond. Temps | -20°F (-29°C) | 120°F (49°C) |
| Water Pressures | 14 PSIG (1 bar) | 70 PSIG (5 bar) |
| Electrical Voltage | -5% | 10% |
Specifications and design are subject to change without notice.
Scotsman recommends all ice machines have water filtration. See Scotsman water filter specification sheet for details.
