Munters 110468 Rhs Humidity+ Sensor Installation Guide

RHS+ Humidity Sensor

Installation

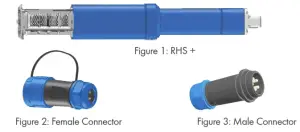

The RHS + comes with a male-female connector used to connect the sensor to a controller. The male connector comes attached to the RHS +. Installing the sensor hardware consists of properly attaching the controller’s wires to the female connector and then joining the female and male halves.

1. Install the sensor in place.
2. Remove both caps from the female connector.
3. Attach the controller wires to the sensor according to the following color chart:
4. Reattach the cap screwing the wiring.
5. Connect the male/female connectors.
   + Connect the shield to the safety ground!
   + Configure the controller as detailed in the controller manual.

Specifications

Input voltage:12 VDC
> Output voltage: 0 – 3 VDC
> Operating temperature: -10° to +70° C
> RH range: 0 – 100%
> Accuracy: 20 – 80% humidity (± 3%); above 80% humidity (±5%)
> Maximum cable length: 300 meter
> Minimum wire size: 22 AWG

NOTE: The warranty covers this product for one year.
Replacing the Sensor Tip P/N: 999-99-00214
Filter Sensor Head Assembly

Figure 4: Sensor Tip Components (not to scale)

1. Untwist the filter.
2. Pull out the sensor from the sensor head assembly.
   CAUTION: Do not touch the sensor element!
3. Put a new sensor in place and replace the filter.

Cleaning and Maintenance

+ Remove the filter before cleaning it. Clean the filter every six months or as required, using water only. Avoid touching the sensor while cleaning.

Washing the House

Before you clean the coop/house

CAUTION: Failure to remove the unit before washing or cleaning the chicken house will result in the cancellation of the RHS +’s warranty!

1. Remove the entire unit from the female connector.
2. Place the cap on the female connecter.
3. Clean the house and reattach the connectors.
