Imy Coffee Shop Wmf 1200s Professional Coffee Machinesnstruction Manual

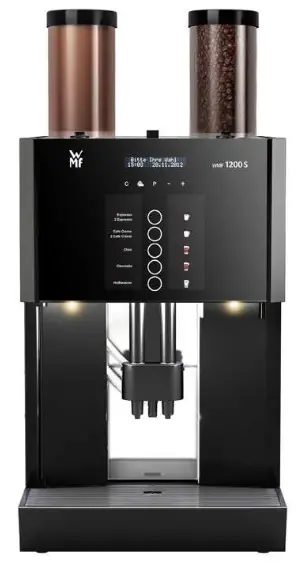

WMF 1200S Professional Coffee
Machinesnstruction Manual

WMF – CLEANING INFORMATION

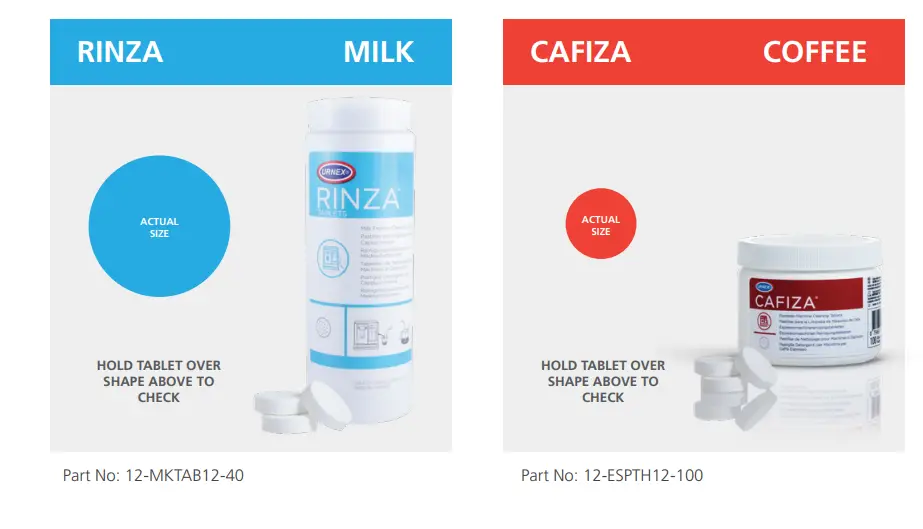

CLEANING TABLET CHECK SHEET

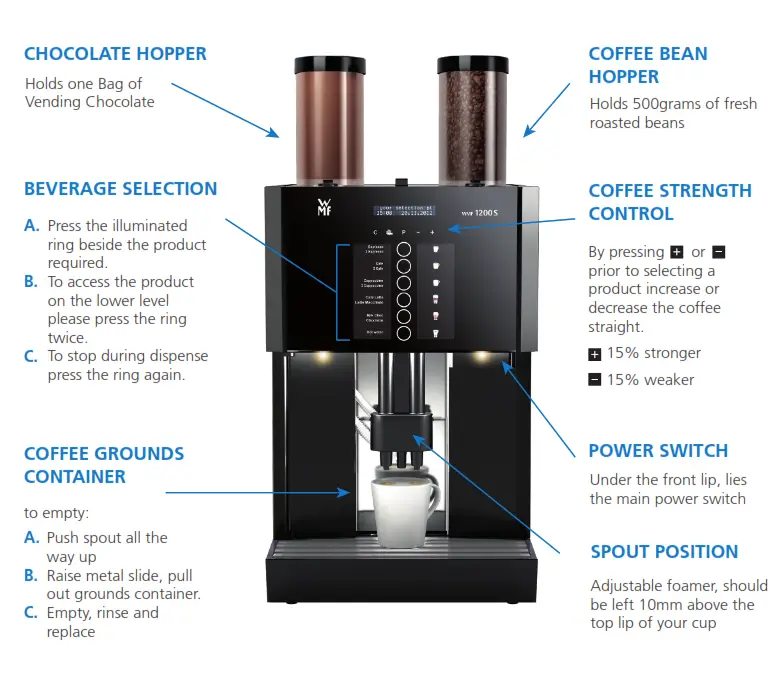

1200S BASIC USER GUIDE

 REMOVAL OF GROUTS

IMPORTANT PROCESS

1. Push combi spout all the way up
2. Remove grounds container
3. Empty and replace grounds container
4. Confirm process on the display

CLEANING INTERVALS OVERVIEW

For further information please refer to the care menu instructions or the user manual

MACHINE CLEAN – BASIC MILK (TANKED)

PERFORM THIS AT LEAST ONCE EVERY 24 HOURS	THIS CLEANING PROCEDURE TAKES APPROX. 10 MINUTES	CHECK CORRECT TABLET IS USED FOR EACH STAGE. USE ONLY URBEX TABLETS.

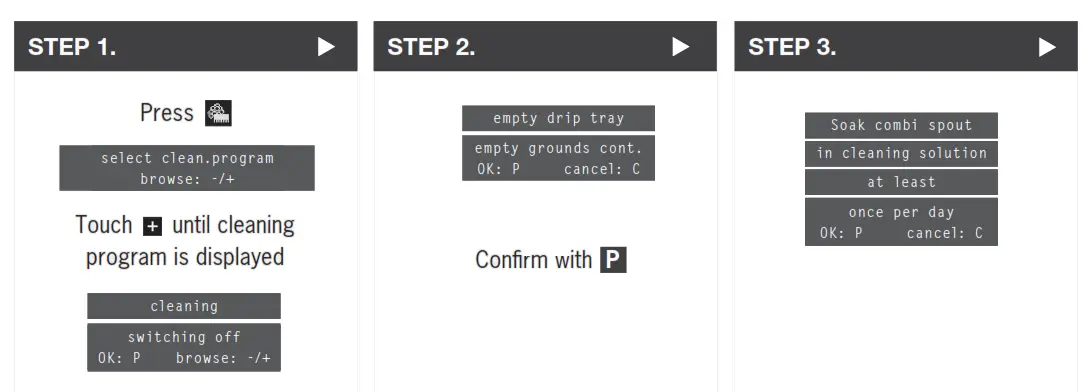

Press P	That the drip tray has been emptied	Confirm with P

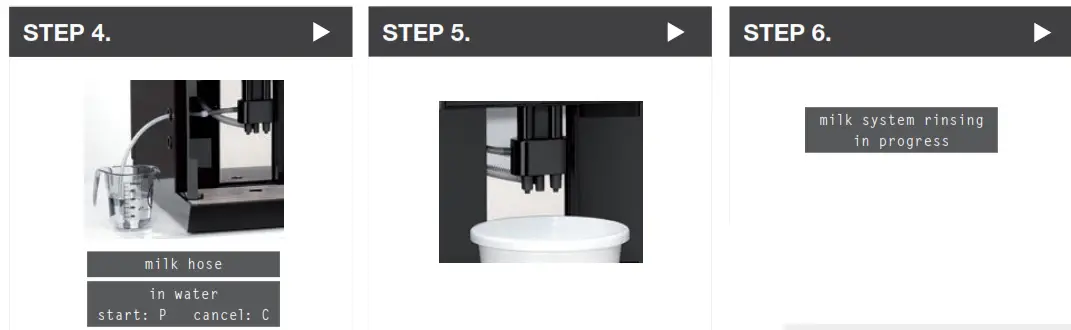

Prepare 0.3l of clear, cold drinking water for the water rinsing.	Place a 2L container underthe combi spout, press P Rinsing  tarts	The milk system is rinsed using hot water. The  hot water is drained through the combi spout.
Add cleaning tablet and close the cover	Machine cleaning will start. If choc beverages have been dispensed, cleaning will start with mixer rinsing.	approx

MILK SYSTEM EXCHANGE & CLEAN

PERFORM THIS AT LEAST ONCE EVERY 24 HOURS	THIS CLEANING PROCEDURE TAKES APPROX. 15 MINUTES	USE ONLY WMF-CERTIFIED MILK CLEANING TABLETS.

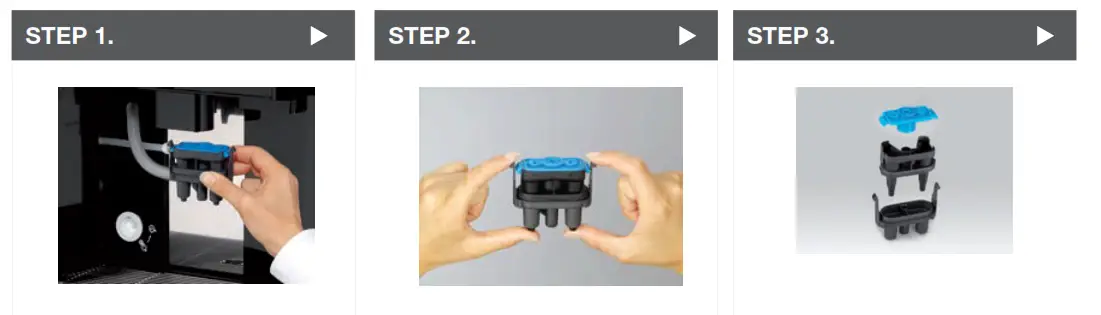

Pull forward the lever behind the combi spout	Remove combi spout & remove milk hose from container	Dismantle combi spout into separate pieces ready  or soaking & immerse the length of the remaining ilk hose inthe cleaning solution

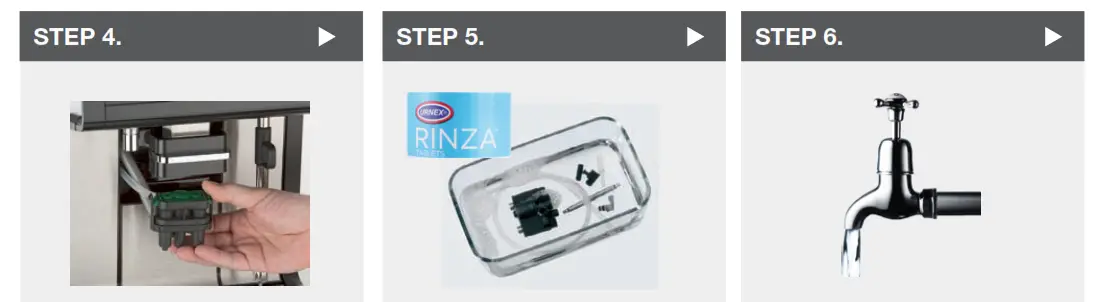

Re-mount the spare clean former, choc hose &  milk line	Fill the container with warm water and one RINZA ablet. Place dirty foamer & milk line, soak for 5 hours	After soaking, rinse all pieces under the tap and dry

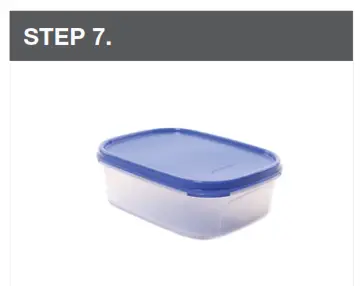

Store in the tub with lid to avoid contamination and ready for next weekly exchange

REFILL COFFEE HOPPERS

PERFORM THIS WHEN PROMPTED BY A MACHINE

THIS PROCEDURE TAKES APPROX. 2-3 MINUTES

DURING REFIL BE CAREFUL THAT NO FOREIGN DEBRIS FALLS INTO HOPPER

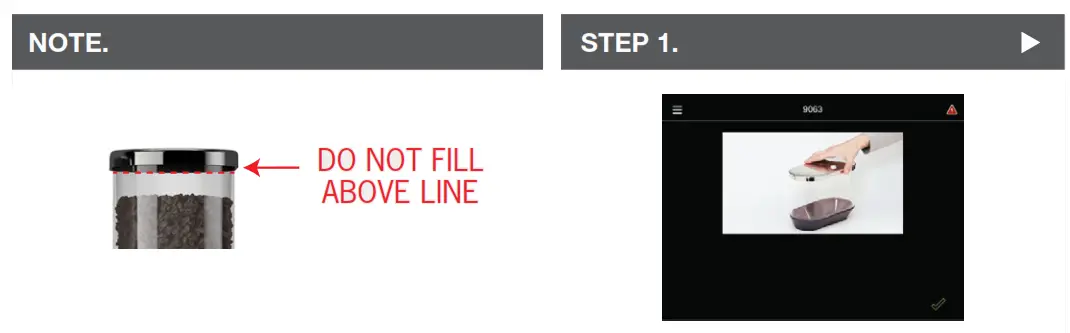

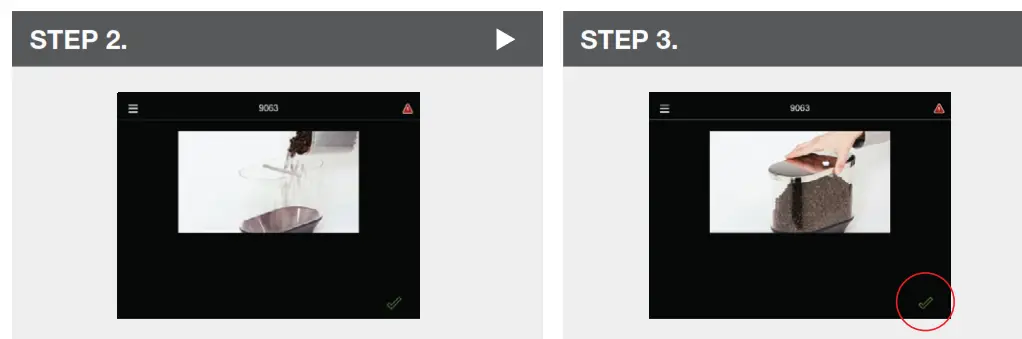

Fill hoppers with fresh coffee to just below lid line. The hoppers will empty at the same rate so ensure all hoppers are filled to the same level.	If the machine runs out of coffee, it will prompt the operator to refill opper.
Remove lid the poured coffee into the empty hopper.	Once hopper is topped up, tap on the green tick to continue.

HOPPER CLEANING

PERFORM THIS AT THE END OF THE MONTH.	THIS CLEANING PROCEDURE TAKES APPROX. 15 MINUTES	ENSURE HOPPERS ARE DRY BEFORE RE-FITTING

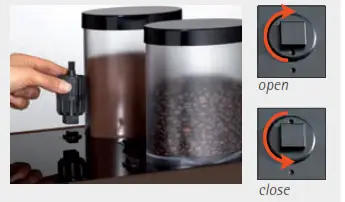

STEP 1. Press the ON/OFF switch for longer than 2 seconds until the coffee machine switches off.  Disconnect the mains plug.	STEP 2.Unlock hoppers with multitool by turning in a clockwise direction	STEP 3. Lift hopper out and empty. Unscrew the union nut at the front & rear nd remove the dosing auger.  Never clean hoppers in the dishwasher.

STEP 4. Thoroughly wipe out hopper using a damp cloth. Thoroughly clean individual dosing auger components.
STEP 5.

Allow hopper and individual components to dry completely before reassembling

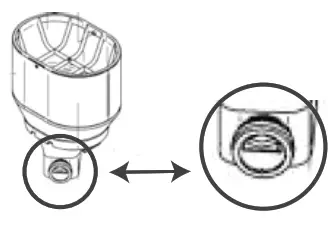

IMPORTANT: HOPPER REASSEMBLY Please note, that once you have dried the hopper after washing, it is important that the hopper is reassembled correctly for proper functioning. Please use the exploded diagram as a guide for reassembly and make sure that the half moon opening is at the top before re-inserting the hopper.
