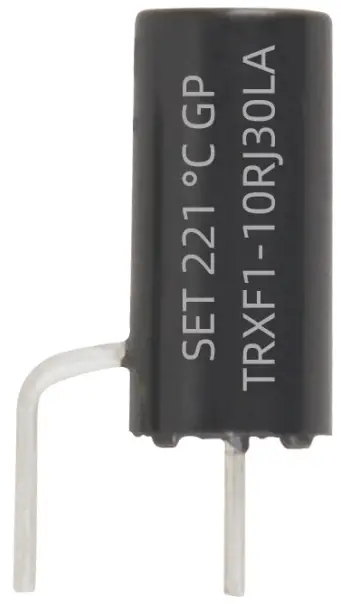

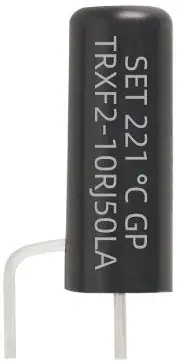

Vertical Installation (Round)

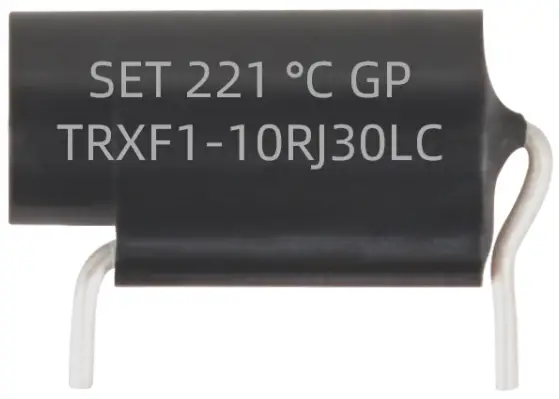

Horizontal Installation (Ω Shape)

Description

Thermal-Link & Fusing Resistor (TRXF) is a unique type of power resistor, with over temp. and over current protections.
The Alloy Thermal-Link (ATCO) is placed through the core of Fusible Wirewound Resistor (RXF) and in series with RXF.

Features

Patented Product
Over Temp. Protection
Surge Protection
Inrush Current Protection
Small Fault Current Protection
Short Circuit Protection
RoHS & REACH Compliant

Applications

Switch Mode Power Supply (SMPS)
Adapters
LED Drivers
Small Power Home Appliances

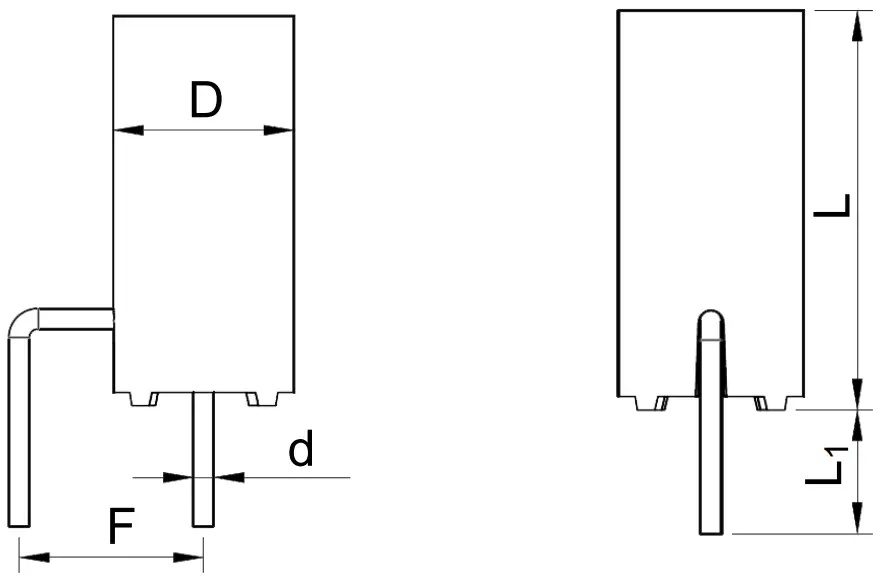

Dimensions (mm)

L	L1a	D	d	Fa
11.0 Max.	3.5 ± 0.5	Φ4.8 ± 0.2	Φ0.54 ± 0.05	5.0 ± 0.5

Note:
a: F, L1 and the bending mode of pins can be customized as required.

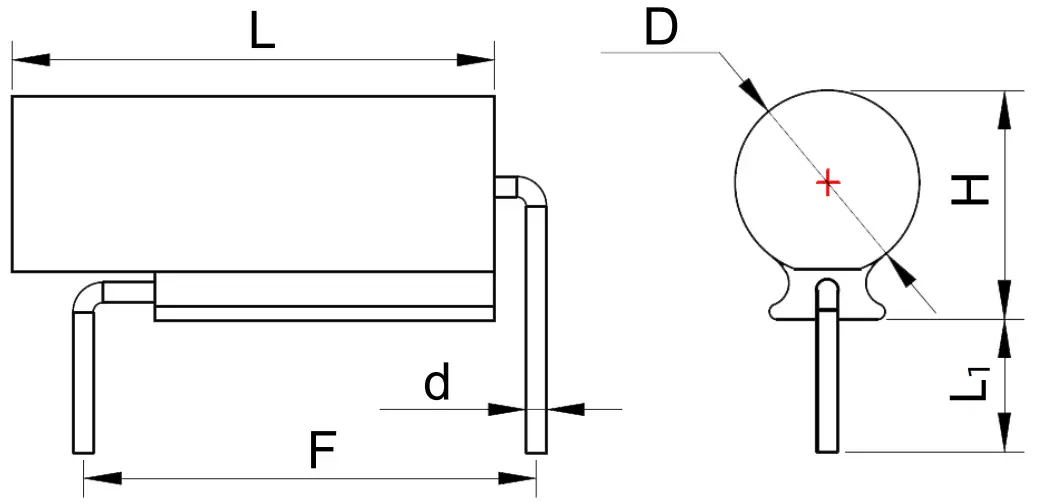

L	L1a	H	D	d	Fa
11.0 Max.	3.5 ± 0.5	6.0 ± 0.2	Φ4.8 ± 0.2	Φ0.54 ± 0.05	10.0 ± 0.5

Note:
a: F, L1 and the bending mode of pins can be customized as required.

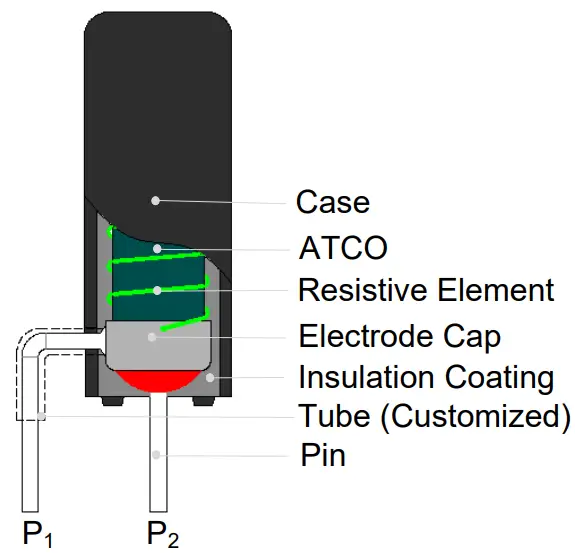

Structure Diagram

Agency Approvals

Agency	Standards	File No.	Resistance Range
	UL1412	E324712	0.27 Ω ~ 800 Ω
	SJ 2865	CQC15001126563	0.27 Ω ~ 800 Ω
	IEC 60065	R50279979	0.47 Ω ~ 800 Ω

Specifications

Series	Power Type	Derating Factor (25 °C)	Rated Resistance	Resistance Tolerance	Rated Functioning Temp. (T_f)	Fusing Temp.	Agency Approvals			Environmental Status
										RoHS	REACH
	(W)	(%)	(Ω)	(%)	(°C)	(°C)	cURus	TUV	CQC
TRXF1	1	50	0.27 ~ 0.47	± 5, ± 10	145	138 ~ 142	l	N/A	l	l	l
		100			221	216 ~ 221
		50	0.47 ~ 800	± 5, ± 10	145	138 ~ 142	l	l	l	l	l
		100			221	216 ~ 221

Resistance Selection Table (According to IEC60063-2015, blue font is SETsafe | SETfuse common resistance).

Rated Resistance	Code	Rated Resistance	Code	Rated Resistance	Code	Rated Resistance	Code
(Ω)	Code	(Ω)	Code	(Ω)	Code	(Ω)	Code
0.10	R10	1.0	1R0	10	10R	100	100R
0.11	R11	1.1	1R1	11	11R	110	110R
0.12	R12	1.2	1R2	12	12R	120	120R
0.13	R13	1.3	1R3	13	13R	130	130R
0.15	R15	1.5	1R5	15	15R	150	150R
0.16	R16	1.6	1R6	16	16R	160	160R
0.18	R18	1.8	1R8	18	18R	180	180R
0.20	R20	2.0	2R0	20	20R	200	200R
0.22	R22	2.2	2R2	22	22R	220	220R
0.24	R24	2.4	2R4	24	24R	240	240R
0.27	R27	2.7	2R7	27	27R	270	270R
0.30	R30	3.0	3R0	30	30R	300	300R
0.33	R33	3.3	3R3	33	33R	330	330R
0.36	R36	3.6	3R6	36	36R	360	360R
0.39	R39	3.9	3R9	39	39R	390	390R
0.43	R43	4.3	4R3	43	43R	430	430R
0.47	R47	4.7	4R7	47	47R	470	470R
0.51	R51	5.1	5R1	51	51R	510	510R
0.56	R56	5.6	5R6	56	56R	560	560R
0.62	R62	6.2	6R2	62	62R	620	620R
0.68	R68	6.8	6R8	68	68R	680	680R
0.75	R75	7.5	7R5	75	75R	750	750R
0.82	R82	8.2	8R2	82	82R	N/A	N/A
0.91	R91	9.1	9R1	91	91R	N/A	N/A
