CTC-1052-QT-DT35A Medical Alarm System
Senior Care Series
Protecting your loved ones

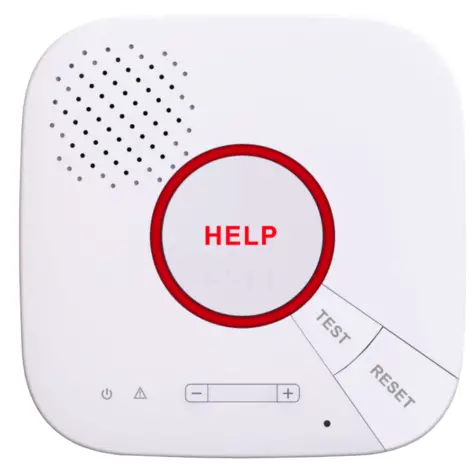

CTC-1052-QT-DT35A Medical Alarm System
- VoLTE Supported
- Remote Programming & Local PC Programming Software
- Voice Prompt Update via OTA
- AT&T / Verizon / T-Mobile Supported

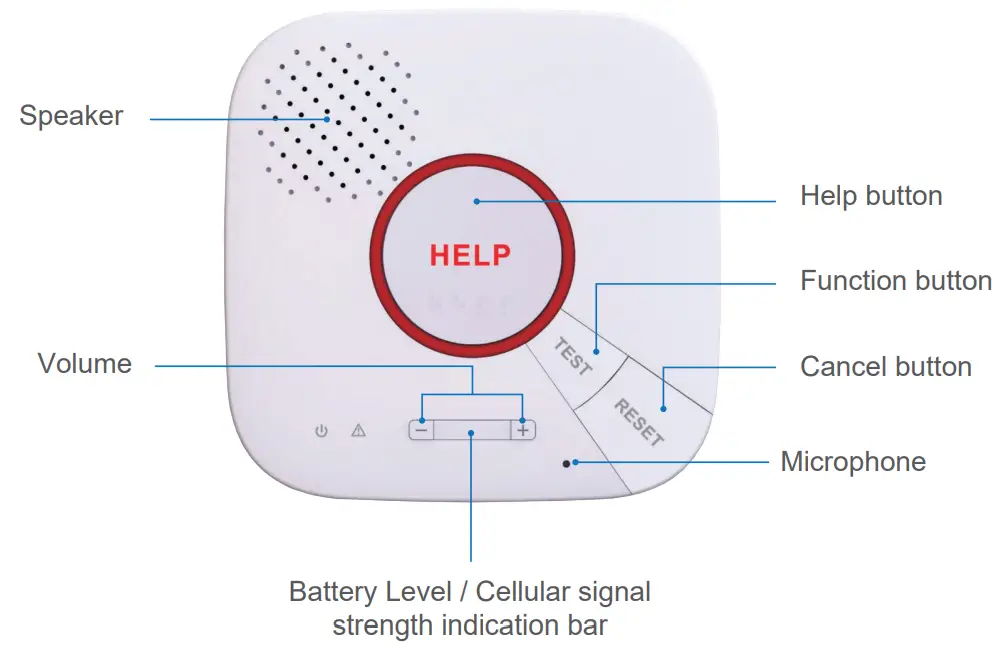

CTC-1052-QT-DT35A Medical Alarm System supports VoLTE (voice over LTE), offering a better quality of voice communication and calling experience. CTC-1052-QT-DT35A features a new case design, with volume adjustment buttons and a white bar to indicate the cellular signal strength. In addition, CTC-1052-QT-DT-35A can be programmed via remote programming or local PC programming, providing an intuitive graphical interface for installers to program the panel easily.
CTC-1052-QT-DT35A comes with a user-friendly voice prompt feature for learn-in sensor instructions, emergency events, and power/inactivity status. The step-by-step instructional voice prompt further simplifies the sensor learning procedure, making learning in a new emergency pendant quick and easy. Besides, the voice prompt can be updated via OTA.
CTC-1052-QT-DT35A is incredibly easy to integrate into users’ daily lives, giving users and their loved ones the assurance that help is just a call and a button push away.
Features
- LTE Medical Alarm Panel
- VoLTE (voice over LTE)
- Remote programming & Local PC programming software
- AT&T / Verizon / T-Mobile supported
- Voice prompt update via OTA
- Voice Prompts: learn-in sensor instructions, emergency events, power/inactivity timer status
- Compatible with medication dispenser
- Alarm Reporting via GPRS, SMS, or Speech
- Two-way hands-free voice communication
- Integrate multiple devices/sensors: Wrist Transmitter, Emergency Pendant, Fall Sensor, PIR Motion Sensor, Panic Button, Smoke Detector, Water Leakage Sensor, and CO Sensor, etc.
- Test button for easy access to the trigger test report
- Long communication range
- Silent emergency call
- Supervision for emergency pendants
- Mobility Check, Automatic Check-in report, “Help Arrived” Confirmation, Fault Reporting
- Backup Battery in case of power failure
Specifications
| Frequency | 919 MHz / 869 MHz |
| LTE Frequency | EU: B1 (2100MHz) / B3 (1800MHz) / B7 (2600MHz) / B8 (900MHz) / B20 (800MHz) / B28 (700AMHz) US: B2 (1900MHz) / B4 (1700MHz)/ B5 (850MHz) / B12 (700MHz) / B13 (700MHz) |
| 3G Frequency | EU: B1 (2100MHz) / B8 (900MHz) US: B2 (1900MHz) / B4 (1700MHz)/ B5 (850MHz) |
| Power Source | 12V/1A Power Adaptor |
| Backup Battery | 7.2V, 1600mAh Ni-MH Rechargeable Battery Pack |
| Battery Life | 24 hours* |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Operating Humidity | Up to 85% non-condensing |
| Dimensions | 156 mm x 156 mm x 47 mm |
*Note: Actual battery life varies with settings, conditions, operating environment, and usage.
