Finsmakare Convection Oven Steamer Pyrolysis-Black
Instruction Manual

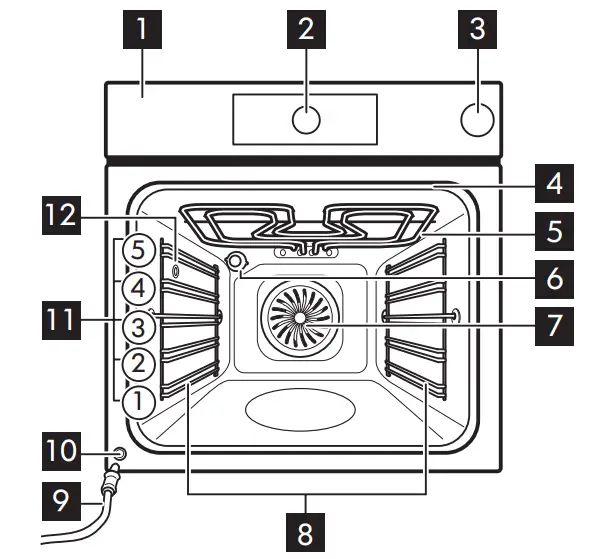

Product Description
- Control panel
- Electronic programmer
- Water drawer
- Socket for the food sensor
- Grill
- Lamp
- Fan
- Shelf support, removable
- Draining pipe
- Water outlet valve
- Shelf positions
- Steam inlet

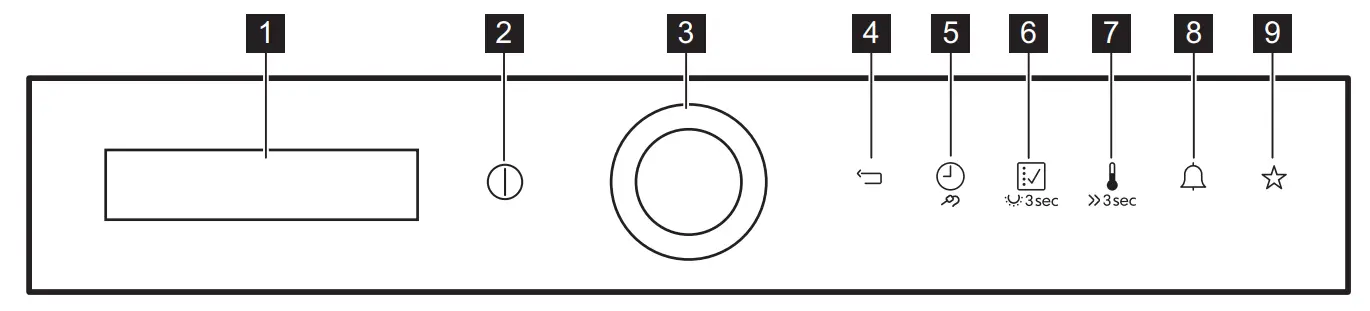

Control Panel
- Display
- ON / OFF
- OK / Shuttle
- Back key
- Time / More functions
- Heating Functions / Assisted Cooking /Lamp
- Temperature / Fast Heat Up
- Minute minder
- Favorite programs

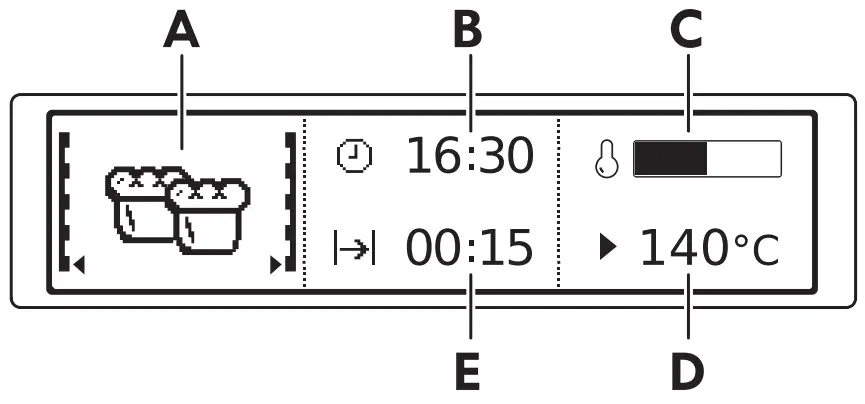

Display
A. Heating function
B. Time of day
C. Heat-up indicator
D. Temperature
E. Duration time or end time of a function
Other indicators of the display:
| Symbol | Function |
 | The function is on. |
 | Shows the current time. |
 | Shows the necessary time for cooking. |
 | Shows cooking duration. |
 | Shows the temperature. |
 | Shows when the set cooking time ends. |
 | The oven calculates the required cooking time. |
 | Indicates heat level in the oven. |
 | Fast Heat Up is on. |
 | Shows that Weight Automatic function is on, or that you can change the weight setting |
 | Heat + Hold is on. |
Heating Functions
  | True Fan Cooking True Fan + Steam Conventional Cooking Pizza Function Slow Cooking Bottom Heat Moist Fan Baking Frozen Foods Grill Fast Grilling Turbo Grilling Steam Regenerating | Even baking, tenderness, drying Vegetables, side dishes, fish Traditional baking Baking pizza For tender roasts Baking cakes Baking For convenience food (e.g. french fries) Grilling, toasting Grilling big portions, toasting Roasting meat, browning Reheating on a plate |
Specials
 | Bread Baking |
 | Au Gratin |
 | Dough Proving |
| Plate Warming |
 | Preserving |
| Dehydrating |
| Keep Warm |
| Defrost |
Notes on: Moist Fan Baking
This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible. When you use this function the lamp automatically turns off after 30 sec.
This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced.
Troubleshooting
If you encounter an issue with your appliance, check the “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
Product Information and Product Information Sheet*
| Supplier’s name | IKEA |
| Model identification | FINSMAKARE 504.117.30 |
| Energy Efficiency Index | 81. |
| Energy efficiency class | A+ |
| Energy consumption with a standard load, conventional mode | 0.93 kWh/cycle |
| Energy consumption with a standard load, fan-forced mode | 0.69 kWh/cycle |
| Number of cavities | 1 |
| Heat source | Electricity |
| Volume | 72 I |
| Type of oven | Built-In Oven |
Mass……………………………. 38.0 kg
* For European Union according to EU Regulations 65/2014 and 66/2014.
For the Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.
For Ukraine according to 568/32020.
The energy efficiency class is not applicable to Russia.
EN 60350-1
– Household electric cooking appliances
– Part 1: Ranges, ovens, steam ovens, and grills
– Methods for measuring performance.
To download the full version visit www.ikea.com
21552
© Inter IKEA Systems B.V. 2022
AA-2335883-1
