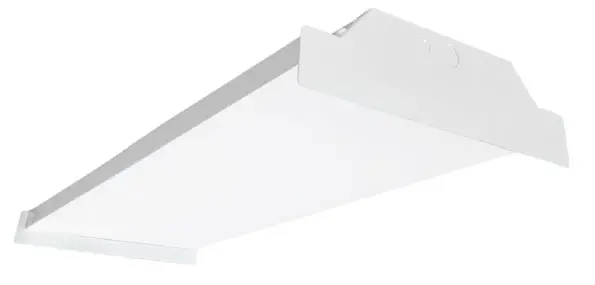

LED 4FT Tunable Wrapround Light
ORE-TWP-4FT-WS-SCT LED 4FT Tunable Wrapround Light
FEATURES:
•:• Optical design, greatly improved the light utilization and evenness.
•:• High efficiency LED Driver.
•:• Sheet iron design, better cooling, light quality, LED Tj < 85℃
•:• The 0-10V Dimming type is continuous.
•:• 42V PCB output voltage.
•:• The product can dim to 10%.

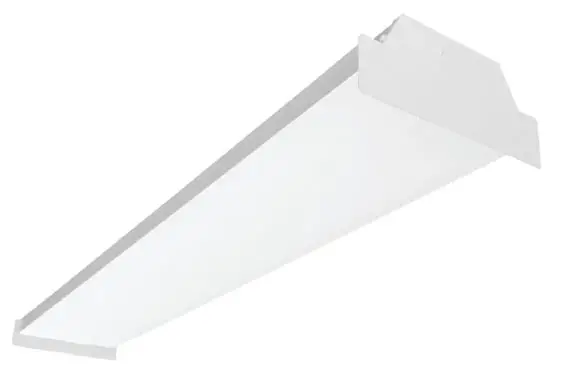

Additional Information:
- Power: 30W/35W/40W
- Input: AC 120-277V
- CCT : 3500K/4000K/5000K
- Light Source: SMD 2835 LEDs
- Driver: WELED POWER
APPLICATIONS:
The Wrapround LED Lighting Series can be widely used for Indoor Excellent for Offices, Hallways, Multipurpose Rooms ,Office Buildings, Conference Rooms, super market, store and
many other applications.

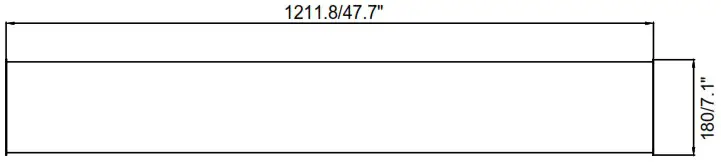

DIMENSIONS :
Specifications
Wrapround-4FT
Length:1211.8MM(47.7’’)
Width: 180MM(7.1’’)
Depth:71MM(2.8’’)
Weight:7.94 (lbs)
Mounting
• Surface Mounting.
TECHNICAL PARAMETERS:
| Type | ORE-TWP-4FT-WS-SCT-UNV | ||
| Power | 30W/35W/40W | Lighting Angle | 101 |
| Input Voltage | AC120-277V | LED Brightness Decay | < 5%/6000 hr s |
| PF | >0.98 | Working Life | > 75000 hrs |
| Driver Efficiency | >90% | Working Temperature | -20 – + 50 ‘C |
| Luminous Flux | 4100 Im / 4690 Im / 5240 Im | Storage Temperature | -20 – + 50 ‘C |
| Color Temperature | 3500K/4000K/5000K | Protection Level | Damp |
| CAI | Ra> 80 | Cable | Input Connect, No Cable |

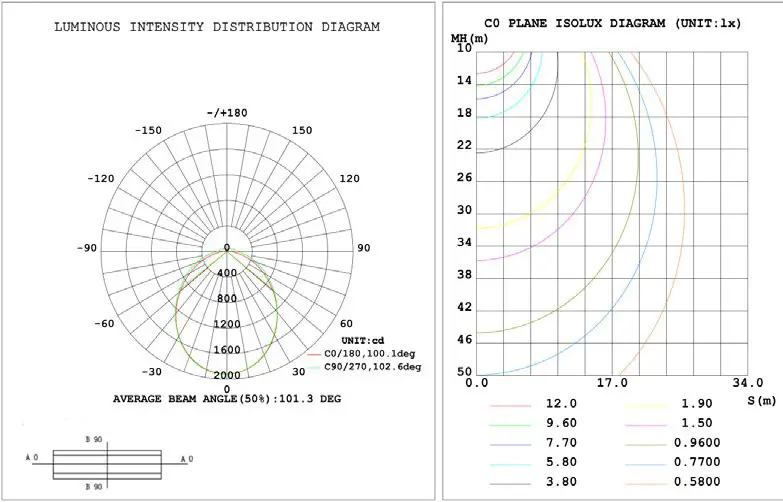

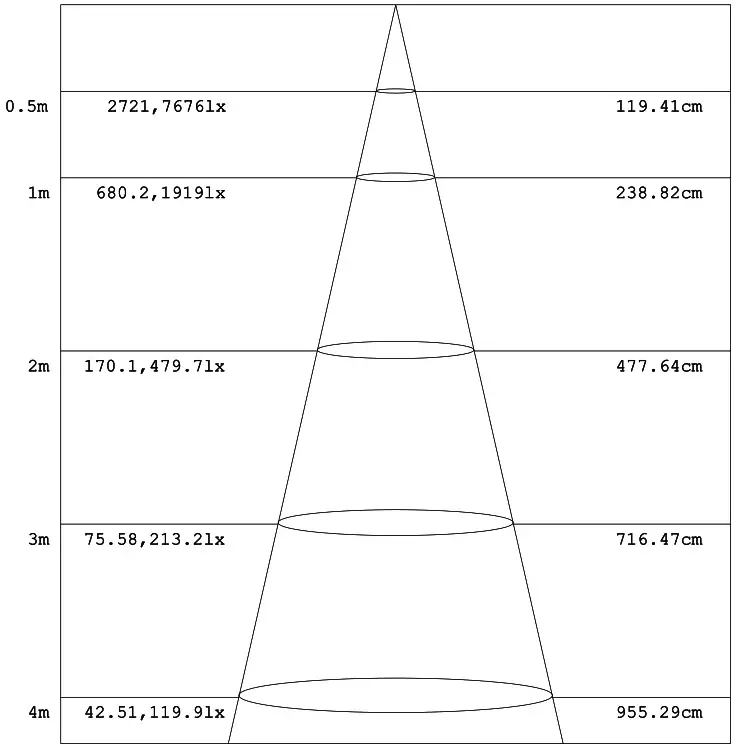

PHOTOMETRY:
ORDERING EXAMPLE:ORE-TWP-4FT-WS-SCT-UNV
| TWP | 4FT | WS | SCT |
| Product | Size | Power | Color Temp |
| TWP Wrapround Light | 444 F T (4feet) | 3 0 W (30W) 3 5 W (35W) 4 0 W (40W) | 35K (3500K) 40K (4000K) 50K (5000K) |

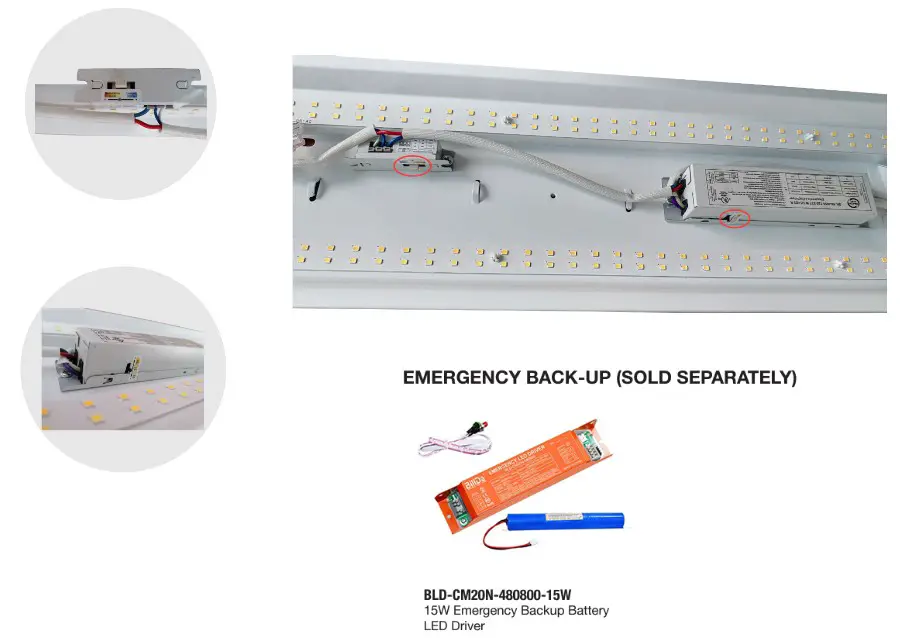

Control Module:
Adjust the switch
The LED WRAPROUND LIGHT can adjust the power and color temperature of the whole lamp, which is convenient and fast. The power and color temperature can be selected according to the actual needs of customers. For example, if I want 35W power and 4000K color temperature, you need to shift the dial code switch to the middle position of the switch Greatly,meet the needs of customers.
ORE LIGHTING
WSD LED INC - green and reliable lighting luminaires
