LEDYi Lighting 2010SMD 364LEDs Tunable White LED Strip
User Guide
LED STRIP SPECIFICATION
2010SMD 364LEDs TUNABLE WHITE LED STRIP
Note: LEDYI may change product specifications and installation guidance without prior notice.

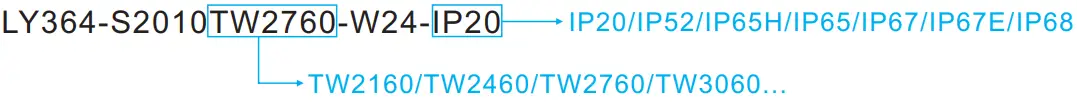

| Part Number: |  |
Description

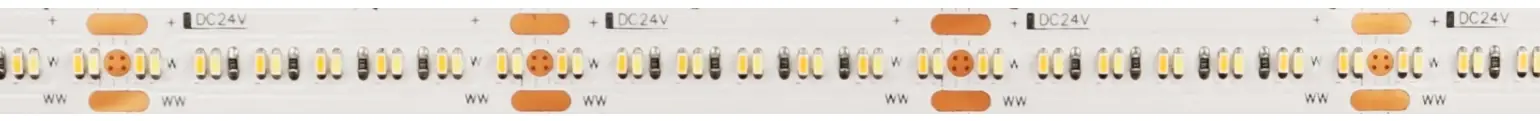

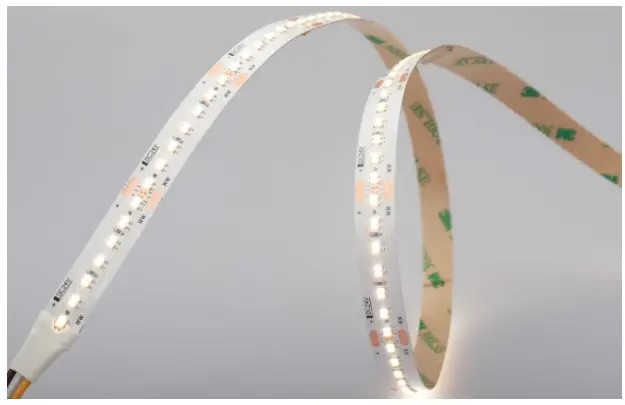

24V, flexible LED strip (14LED/step =38.46mm) with 3M adhesive tape on the back for easy installation. 2056lm/m at 20W/m. 120° beam angle.

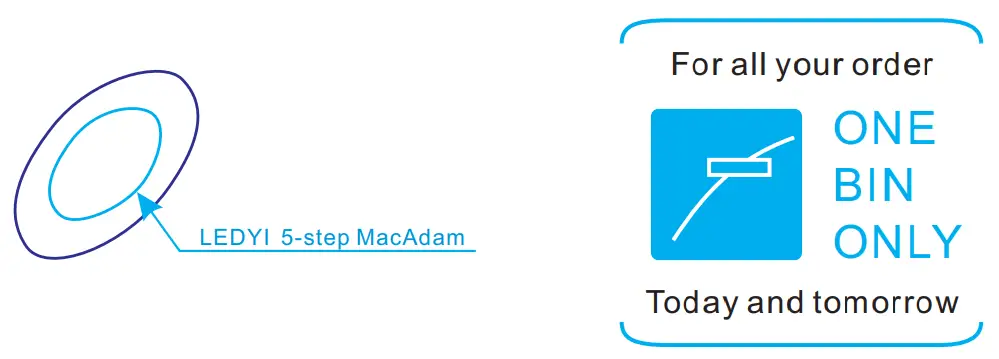

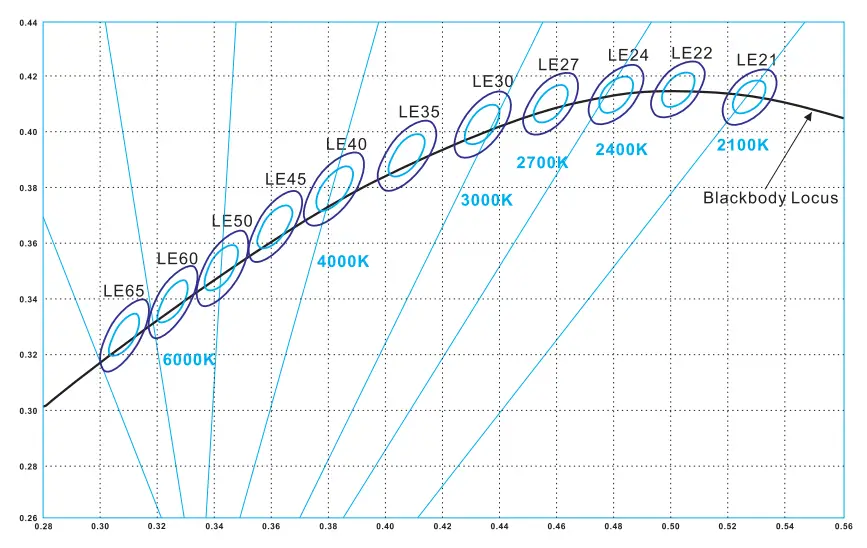

Very good color reproduction with CRI>90. “One Bin Only” within 5 MacAdam guarantees constant color temperature and high light quality at a lifetime of 54,000 hours (L70 ).Double-layer FPC(2Oz) for good heat dissipation.
Dimensions & Waterproof
Product Specification
| Dimension | 5000x10x1.4mm |
| Chip Type | 2010SMD |
| Chip Density | 364LEDs/m |
| Step LEDs | 14LEDs |
| Step Length | 38.46mm |
| Voltage(V) | DC24V |
| Current(A/m) | 0.84A |
| Power(W/m) | 20W(2 colors 100% on) |
| Beam Angle | 120° |
| Operation Temperature | -20°C~50°C |
Product Photometrics
| CCT (K) | Lumen (lm/m) | Power (w/m) | Efficacy (lm/w) | CRI | R9 | TM-30-15 | |
| Rf (Fidelity) | Rg (Gamut) | ||||||
| 2700 only | 948. | 10 | 95. | 91 | 79. | 93. | 101. |
| 6000 only | 1108. | 10 | 111. | 92 | 91. | 92. | 102. |
| 2700+6000 both | 2056 | 20 | 103. | 90 | 85. | 91. | 103.85 |
Binding
Graphic Description:
IP20: bare, max. light output and the best color consistency, for indoor use.
IP52: Silicone coating, ~5% less output and 3rd best color consistency, indoor use, for damp environments.
IP65 / IP65H: Silicon tube / Heat shrink tube / Extrusion tube / U milky tube + clear cover, ~3% less output and 2nd best color consistency, Indoor use or semi-outdoor use, for rainy environments.
IP67: Silicone tube + silicon filling, ~7% less output and 4th best color consistency, outdoor use, max length is 10 meters.
IP67E: Solid silicone extrusion, ~7% less output, and 4th best color consistency, outdoor use, max length up to 50 meters.
IP68: PU(Polyurethane),~7% less output and 4th best color consistency, under the water, within 2 meters deep.

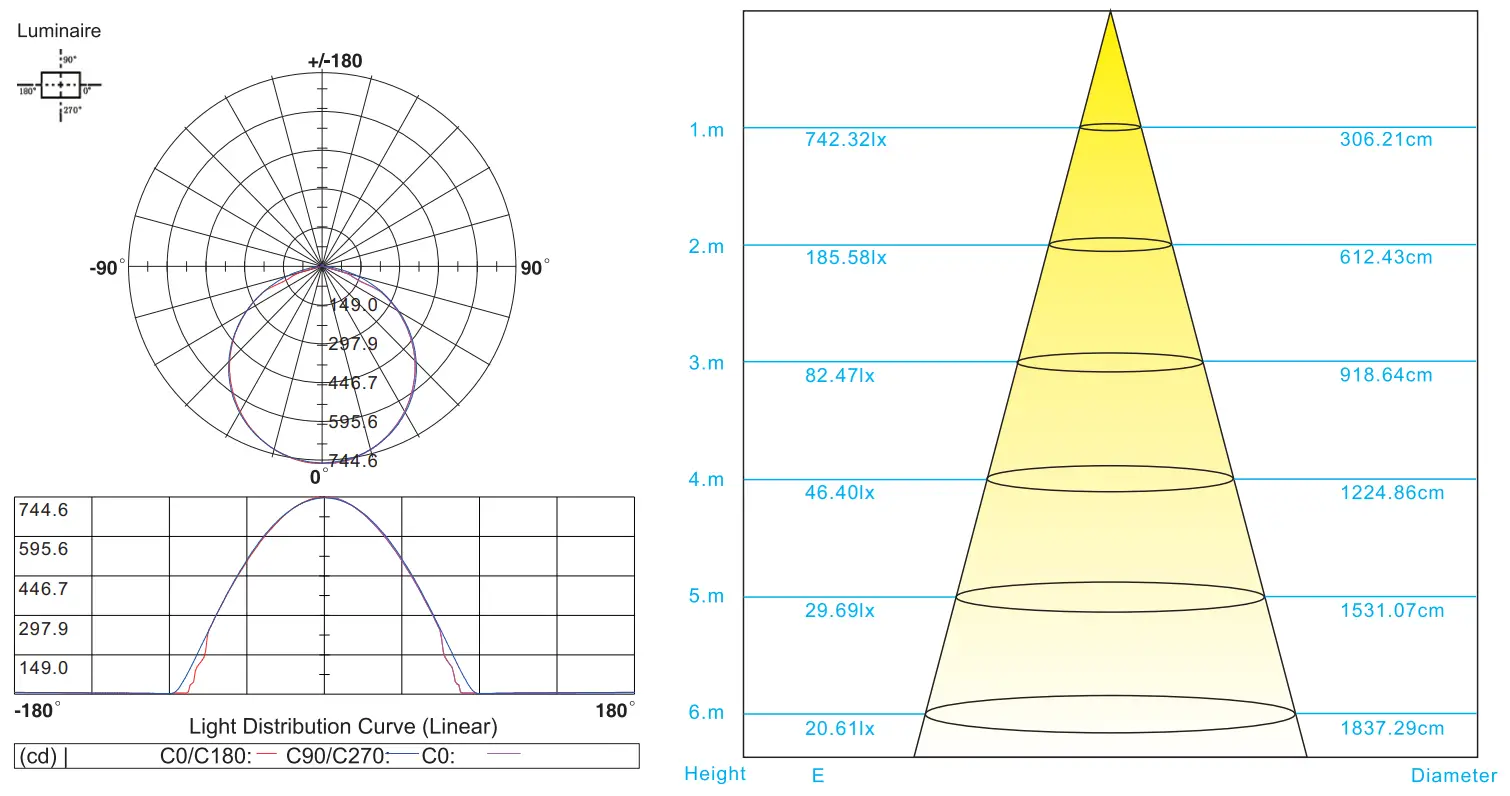

Light Distribution Curve[Data base on 1m IP20 2700K+6000K CRI>90, Unit:cd]

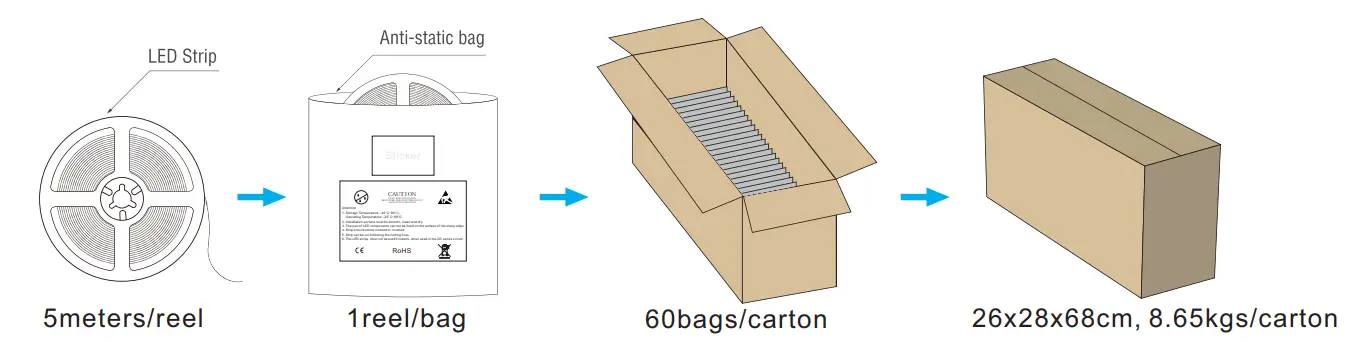

Packing Information(Database on IP20)
Web: www.ledyi.com
Mail: [email protected]
Tel.: +86 0755 2302 5890
Copyright©2022 LEDYI LIGHTING CO., LIMITED
All Rights Reserved
